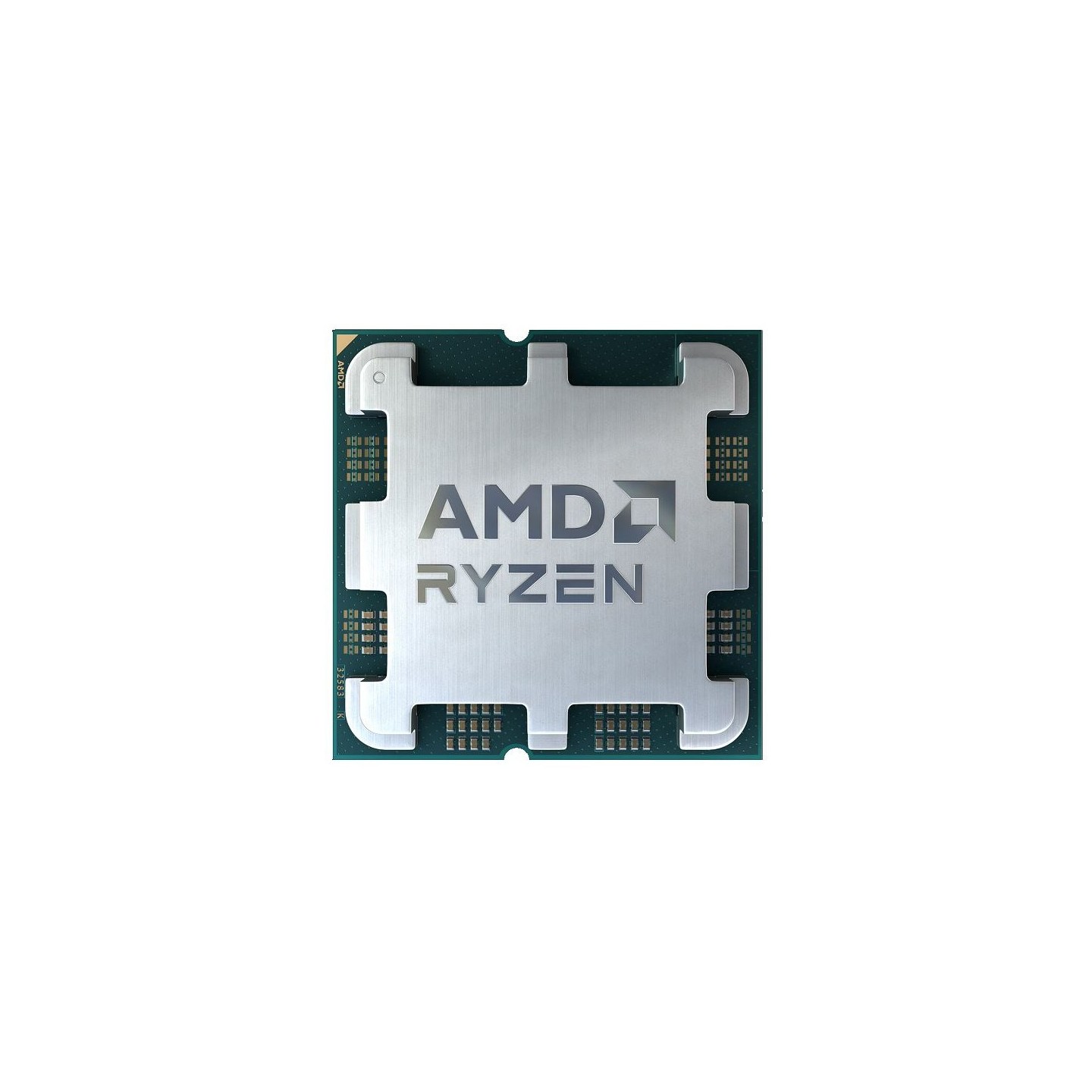

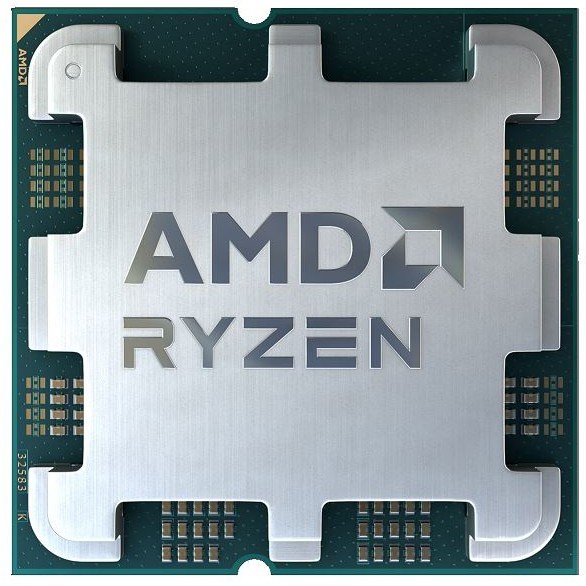

AMD Ryzen 7 9800X3D - AM5 Tray - 8-Core/16-Thread, 4.7GHz Base / 5.2GHz Boost, 120W, 96MB L3
AMD Ryzen 7 9800X3D AM5 tray CPU: 8 cores/16 threads, 4.7GHz base/5.2GHz boost, 96MB L3 cache, 120W TDP. DDR5-5600, Radeon Graphics. World's top gaming CPU, beats Intel i9-14900K by 30-50% in games[1][2][4].
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | AMD AM5 |
|---|---|
| CPU (Processors) - Processor Family | AMD Ryzen 7 |
| CPU (Processors) - Cores | 8 |
| CPU (Processors) - Threads | 16 |
| CPU (Processors) - TDP | 96-120W |
| CPU (Processors) - Integrated Graphics | Yes (Integrated Graphics) |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - Unlocked/Overclockable | Yes |
| CPU (Processors) - Cooler Included | No |
The AMD Ryzen 7 9800X3D delivers revolutionary gaming performance with Zen 5 architecture and 2nd-gen 3D V-Cache technology stacking 96MB L3 cache. Built on 4nm process, this 8-core/16-thread processor runs at 4.7GHz base and boosts to 5.2GHz. Tray version for OEMs/system builders - no retail box or cooler[1][2][4].
Socket AM5 compatible, supports DDR5 up to 5600MHz (dual-channel, 192GB max), PCIe 5.0 (28 lanes), and integrated AMD Radeon Graphics at 2200MHz. 120W TDP excels in gaming, topping charts vs Intel Core i9-13900K/14900K by up to 53% in 1080p/1440p benchmarks like F1 24, Alan Wake 2[1][5]. Future-proof for high-end desktops.
- ✅ 8 Cores / 16 Threads - Elite gaming & multitasking
- ✅ 96MB L3 Cache - 2nd-gen 3D V-Cache dominates games
- ✅ DDR5-5600 & PCIe 5.0 - Next-gen platform ready
- ✅ Integrated Radeon Graphics - GPU-free display output
- ✅ Unlocked Multiplier - Full overclocking support
- ✅ Tray Packaging - Bulk for builders, no cooler
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen 9000 Series |
| Processor model | 9800X3D |
| Processor family | AMD Ryzen™ 7 |
| Processor base frequency | 4.7 GHz |
| Processor cores | 8 |
| Processor socket | Socket AM5 |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5.2 GHz |
| Processor cache | 96 MB L3 (104MB total) |
| Thermal Design Power (TDP) | 120 W |
| Package type | Tray |
| Memory types supported by processor | DDR5-SDRAM |
| Memory channels | Dual-channel |
| On-board graphics card model | AMD Radeon Graphics |
| Market segment | Desktop |
