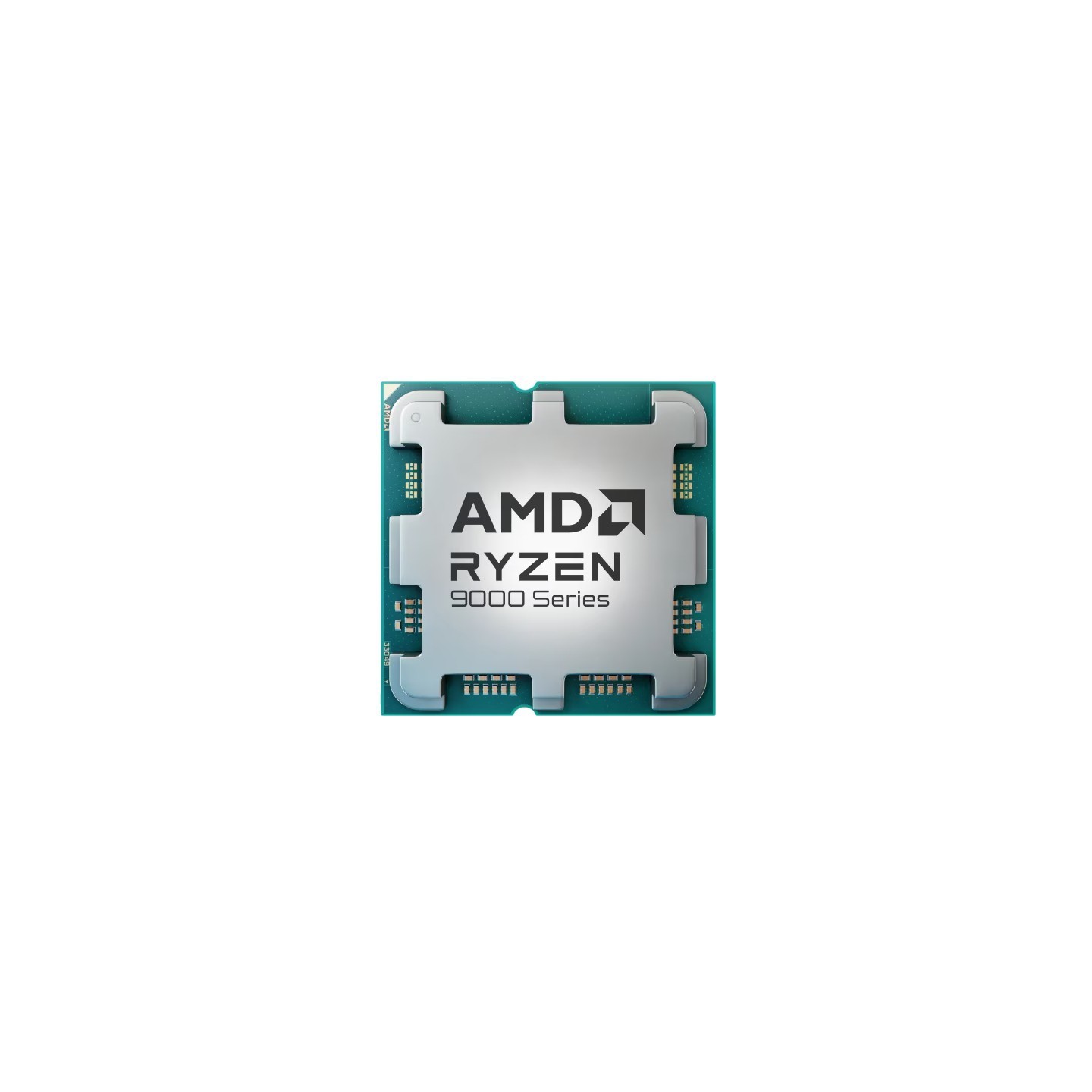

AMD Ryzen 7 9700X AM5 8-Core/16-Thread 3.8GHz (5.5GHz) 40MB Cache 65W (Tray)
AMD Ryzen 7 9700X: 8-core/16-thread Zen 5 processor with 3.8-5.5 GHz boost, 40MB cache, 65W TDP, AM5 socket, DDR5 support, integrated Radeon graphics, and 16% IPC improvement over Zen 4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | AMD AM5 |
|---|---|
| CPU (Processors) - Processor Family | AMD Ryzen 7 |
| CPU (Processors) - Cores | 8 |
| CPU (Processors) - Threads | 16 |
| CPU (Processors) - TDP | 46-65W |
| CPU (Processors) - Integrated Graphics | Yes (Integrated Graphics) |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - Unlocked/Overclockable | Yes |
| CPU (Processors) - Cooler Included | No |
The AMD Ryzen 7 9700X is a high-performance 8-core, 16-thread desktop processor built on the Zen 5 architecture using TSMC's advanced 4nm process technology. With a base frequency of 3.8 GHz and boost speeds up to 5.5 GHz, this processor delivers exceptional single-threaded and multi-threaded performance for gaming, content creation, and productivity workloads. The 9700X features 40MB of total cache (32MB L3 + 8MB L2) and operates at just 65W TDP, making it one of the most power-efficient high-performance CPUs available.
This processor supports DDR5 memory at speeds up to 5,600 MT/s (overclockable to 8,000 MT/s) and includes 24 PCIe 5.0 lanes plus up to 12 additional PCIe 4.0 lanes depending on motherboard configuration. The integrated AMD Radeon graphics (Radeon 610M) provide basic display output and light graphics tasks. Zen 5 architecture delivers a 16% IPC (Instructions Per Cycle) improvement over Zen 4, with enhanced branch prediction, improved data bandwidth (12-way L1 cache at 48KB), and doubled L2 bandwidth without increased latency. The processor is compatible with AM5 socket motherboards and supports a comprehensive instruction set including AVX-512, AES-NI, and SHA extensions.
- 8 Zen 5 cores / 16 threads with SMT support
- 3.8 GHz base / 5.5 GHz boost frequency
- 40MB total cache (32MB L3 + 8MB L2 + 640KB L1)
- 65W TDP with excellent power efficiency
- AM5 socket compatibility
- DDR5-5600 memory support (up to 192GB)
- Integrated AMD Radeon 610M graphics
- PCIe 5.0 and PCIe 4.0 support
- TSMC 4nm FinFET manufacturing process
- Supports 64-bit operating systems
| Processor Manufacturer | AMD |
| Processor Family | AMD Ryzen 7 |
| Processor Generation | Ryzen 9000 Series (Zen 5) |
| Processor Model | 9700X |
| Processor Cores | 8 |
| Processor Threads | 16 |
| Base Frequency | 3.8 GHz |
| Boost Frequency | 5.5 GHz |
| L1 Cache | 640 KB (80 KB per core) |
| L2 Cache | 8 MB |
| L3 Cache | 32 MB |
| Total Cache | 40 MB |
| Thermal Design Power (TDP) | 65 W |
| Manufacturing Process | TSMC 4nm FinFET (CCD) / 6nm (I/O Die) |
| Socket | AM5 |
| Memory Support | DDR5-SDRAM |
| Memory Speed | DDR5-5600 MT/s (up to 8000 MT/s overclocked) |
| Maximum Memory | 192 GB |
| Memory Channels | Dual-channel |
| PCIe Lanes | 24x PCIe 5.0 + up to 12x PCIe 4.0 |
| Integrated Graphics | AMD Radeon 610M (2 CUs, 2200 MHz) |
| Instruction Set | x86-64, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, AVX, AVX2, AVX-512, AES-NI, SHA, FMA3, MMX |
| Operating Modes | 64-bit |
| Maximum Temperature | 95°C |
| Package Type | Tray |
| Unlocked/Overclockable | Yes |
| IPC Improvement | 16% over Zen 4 |
