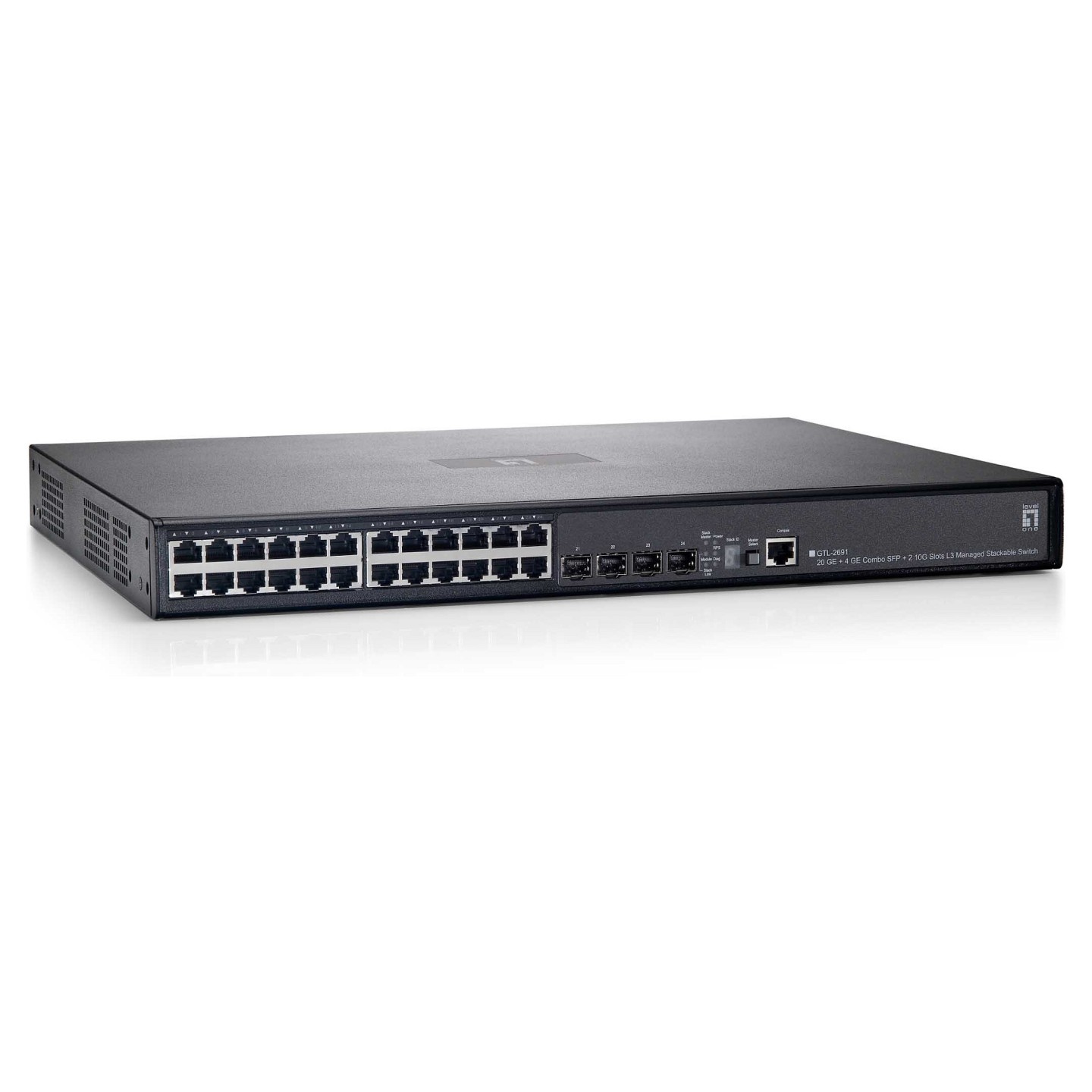

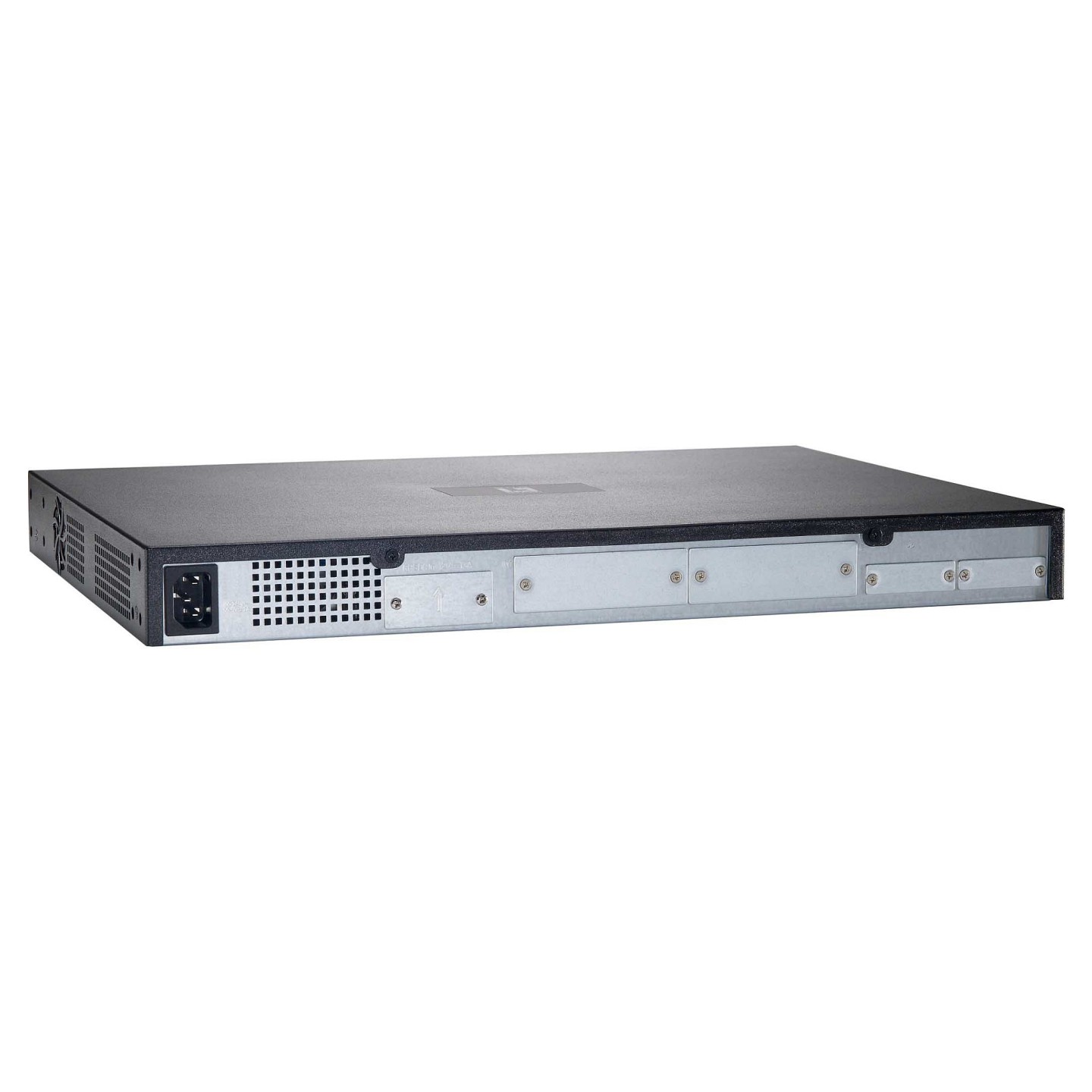

Switch 24x GE GTL-2691 2xGE 4xGSFP+19'
LevelOne GTL-2691. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GTL-2691. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 128 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE.... Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Upgradefähige Firmware |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Combo-SPF-Anschlüsse | 4 |
| Anzahl SFP/SFP+ Anschlüsse | 2 |
| Menge SFP-Modul-Steckplätze | 4 |
| Konsolen-Port | RJ-45 |
| Virtuelle LAN-Funktionen | Private VLAN. Port-based VLAN |
| Routing-/Switching-Kapazität | 128 Gbit/s |
| Transferrate | 95.2 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Anzahl Queues | 8 |
| Anzahl der statischen Routen | 512 |
| Jumbo-Frames | 9000 |
| Paketweiterleitungsrate (1 Gbit/s) | 1488000 pps |
| Paketweiterleitungsrate (100 Mbit/s) | 148000 pps |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| Authentifizierung | MAC-basierte Authentifizierung |
| Multicast MAC-Adresstabelle | 1024 Eintragungen |
| Management-Protokolle | Telnet. SNMP. SNTP. RMON. |
| Unterstützte Netzwerkprotokolle | IPv6. IPv4. BOOTP |
| Produktfarbe | Schwarz |
| Puffergröße | 2048 KB |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 47/63 Hz |
| Stromverbrauch (Standardbetrieb) | 49.6 W |
| Stromverbrauch (max.) | 63.96 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 440 mm |
| Tiefe | 415 mm |
| Höhe | 44 mm |
| Gewicht | 5.7 kg |
| Verpackungsart | Box |
| Verpackungsbreite | 530 mm |
| Verpackungstiefe | 420 mm |
| Verpackungshöhe | 135 mm |
| Zertifizierung | FCC Part 15 Class A. CE. RoHS |
| Warentarifnummer (HS) | 85176990 |
