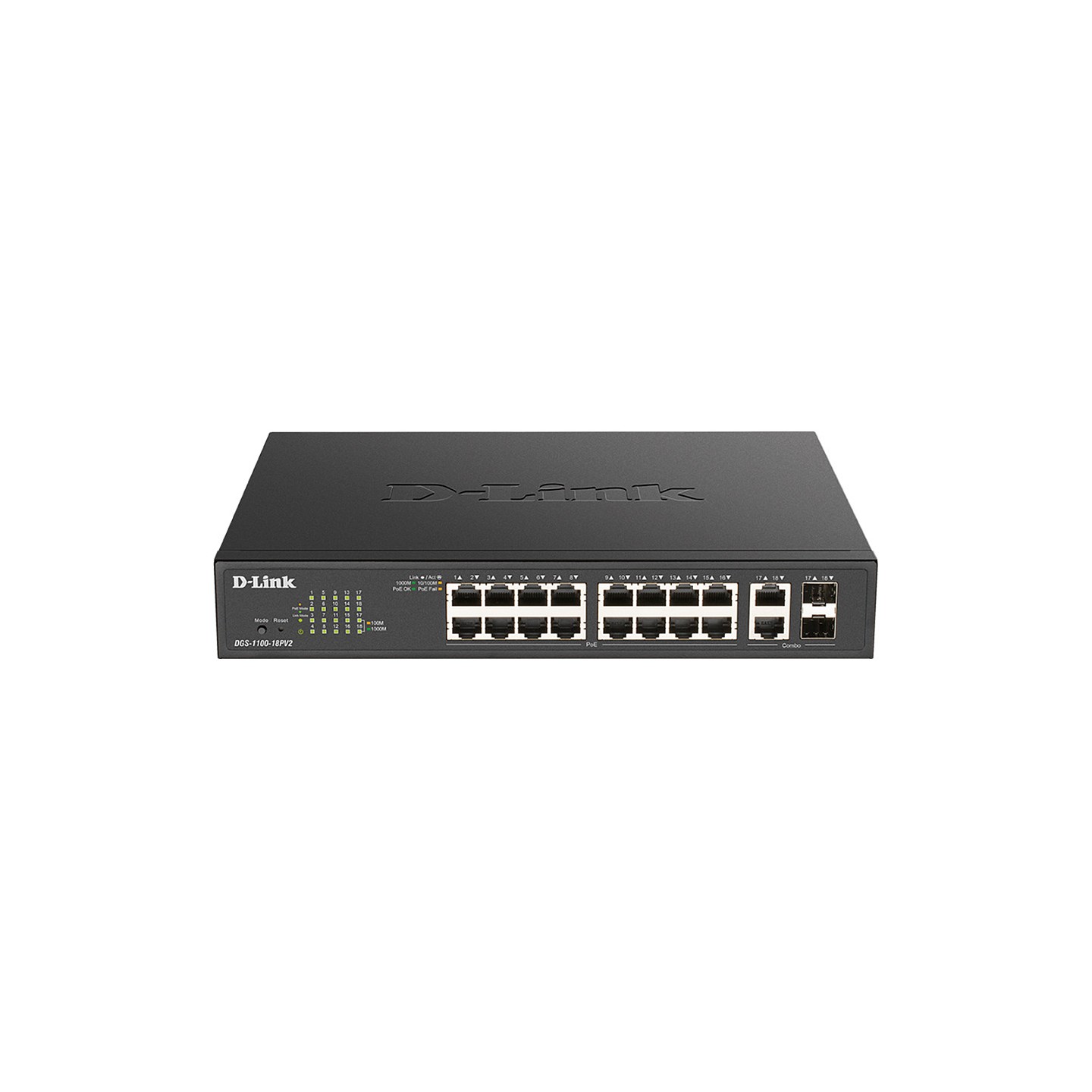

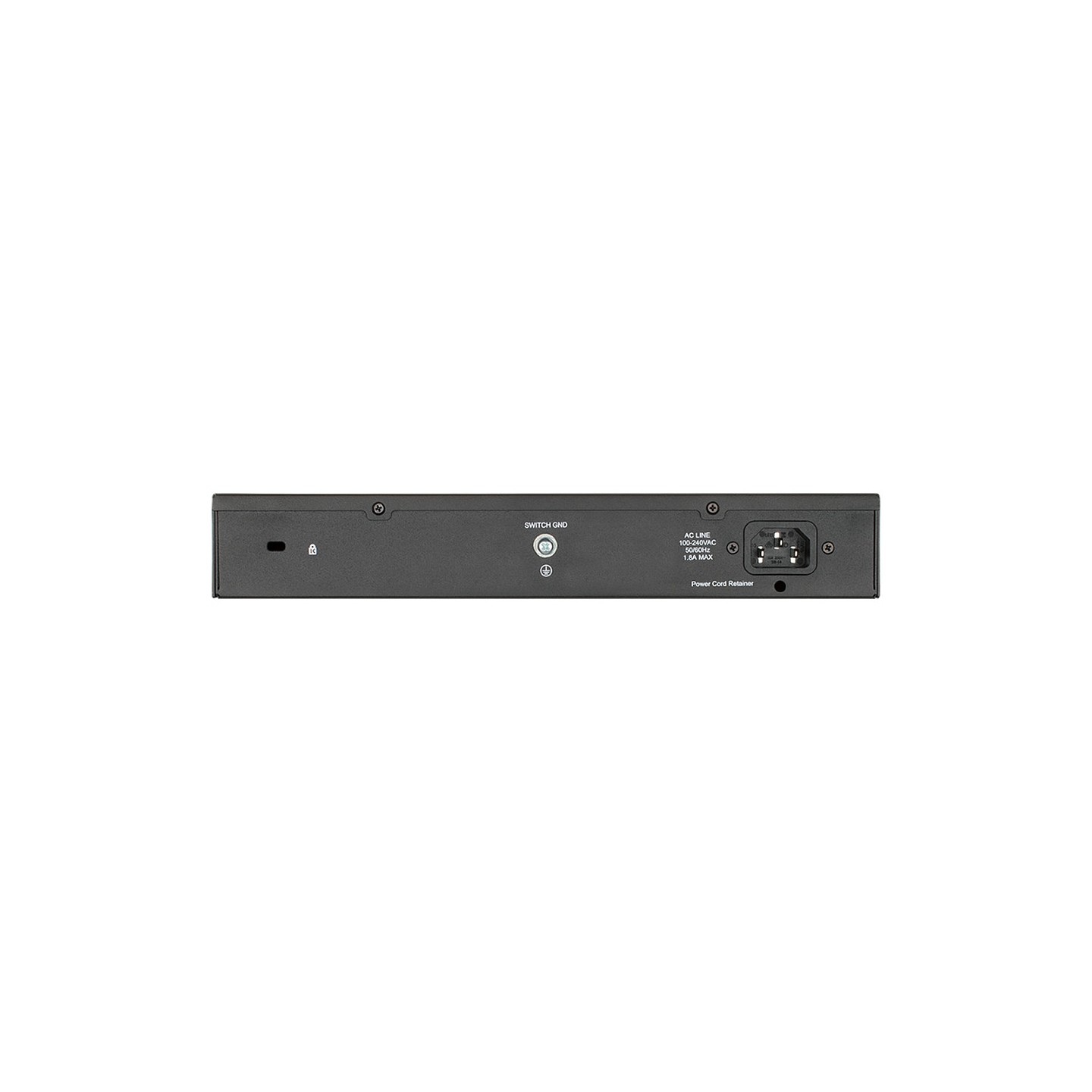

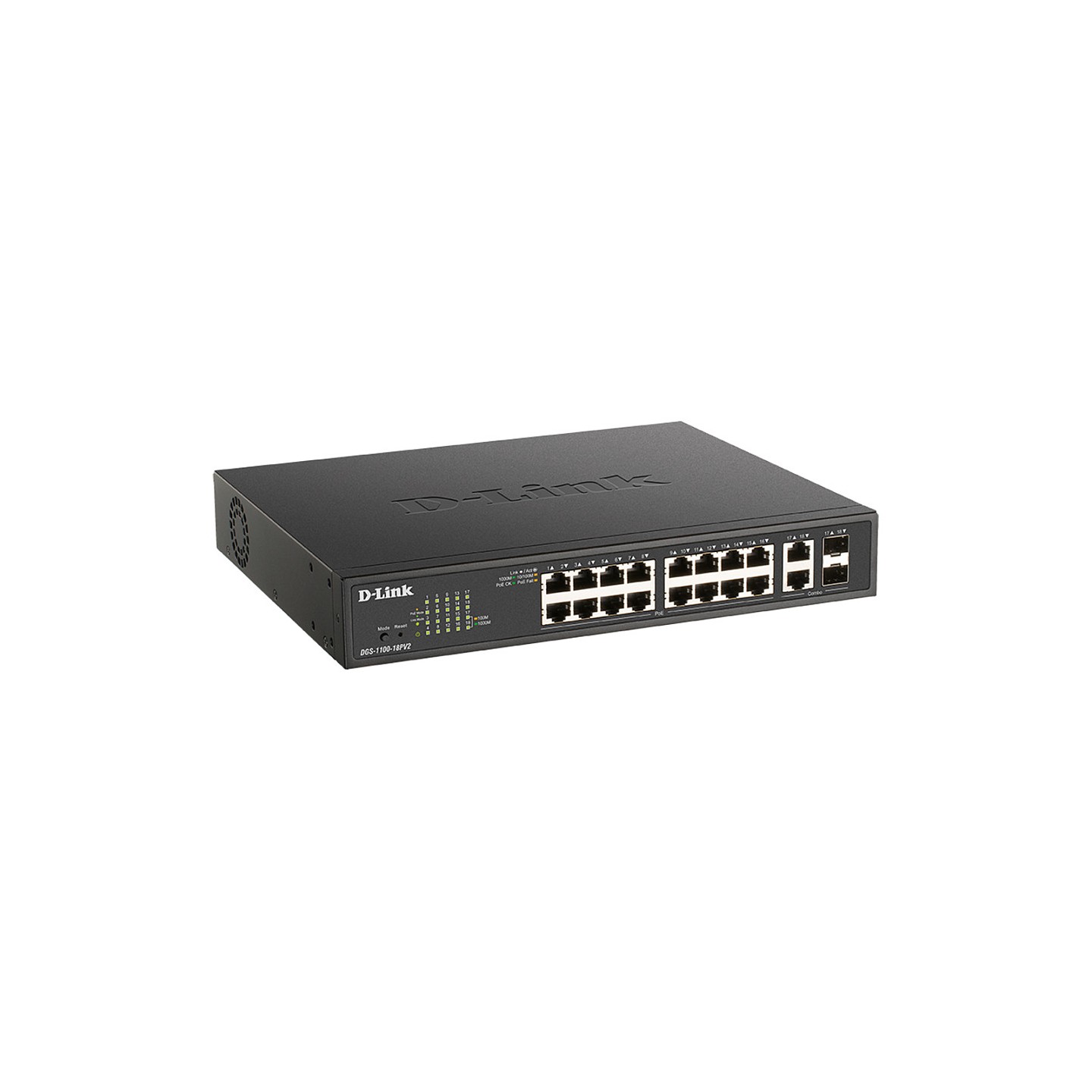

D-Link DGS-1100-18PV2 18-Port PoE+ Gigabit Smart Manag. Switch
D-Link DGS-1100-18PV2. Managed. L2. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
D-Link DGS-1100-18PV2. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Vollduplex. Routing-/Switching-Kapazität: 36 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3u..... Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Combo-SPF-Anschlüsse | 2 |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x |
| Kupfer Ethernet Verkabelungstechnologie | 1000BASE-T |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 36 Gbit/s |
| Transferrate | 26.78 Mpps |
| Jumbo-Frames | 9216 |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Anzahl Lüfter | 1 Lüfter |
| Elektromagnetische Verträglichkeit | FCC Class A. CE Class A. VCCI Class A. C-Tick. BSMI |
| Geräuschpegel | 45.8 dB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 343695 h |
| Energiequelle | DC/PoE |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 16 |
| Gesamtleistung Power over Ethernet (PoE) | 130 W |
| Betriebstemperatur | -5 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Wärmeableitung | 125.2 BTU/h |
| Breite | 280 mm |
| Tiefe | 230 mm |
| Höhe | 44 mm |
| Gewicht | 2.1 kg |
| Konformitätsbescheinigungen | RoHS |
| Zertifizierung | cUL. UL. LVD. CB. BSMI |
