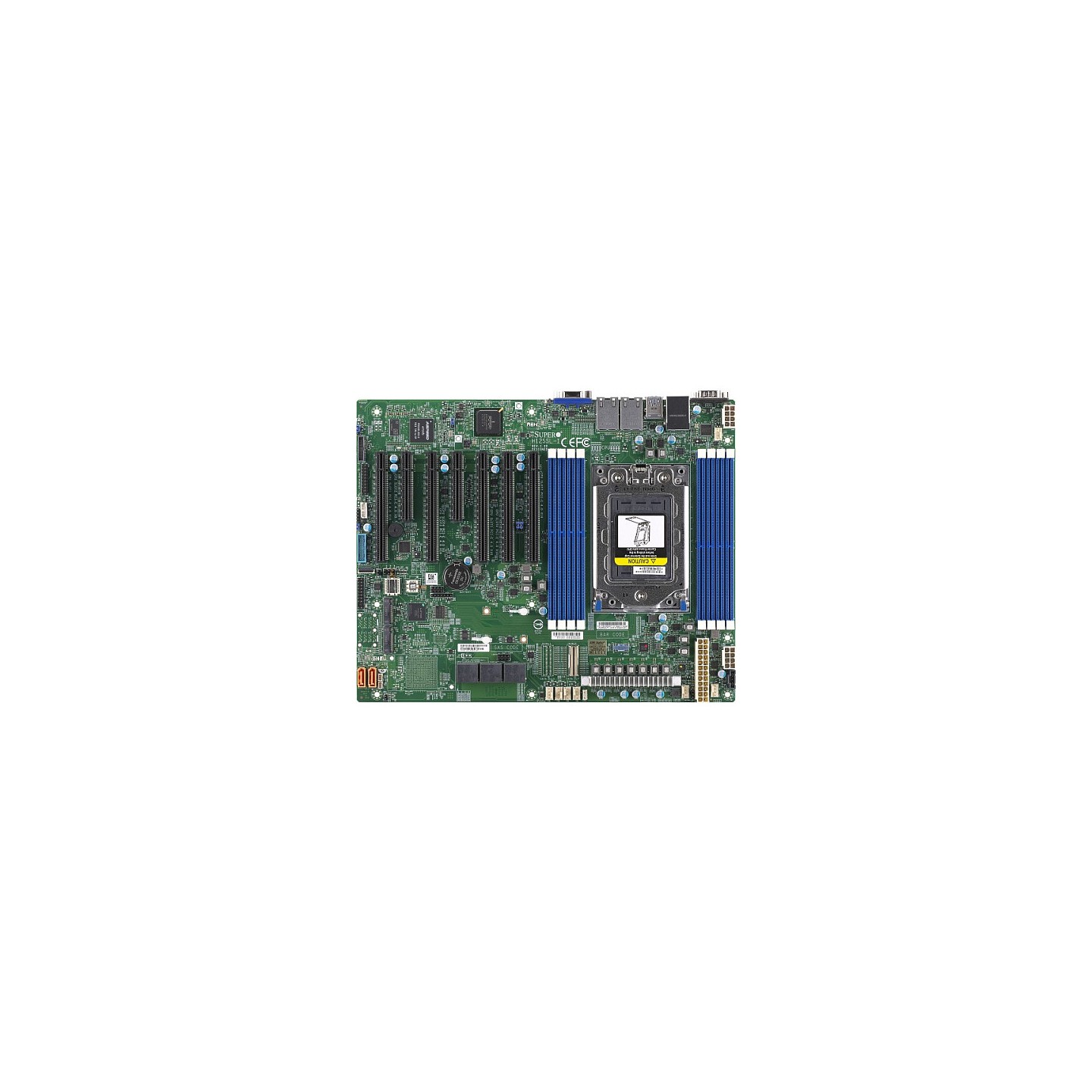

Supermicro MBD-H12SSL-I-B SP3 ATX 2x1Gb Server MB (Bulk)
Supermicro MBD-H12SSL-I-B is ATX server motherboard for single AMD EPYC 7002/7003 SP3 CPU. Supports 2TB ECC DDR4, 5x PCIe 4.0 x16, 8x SATA3, 2x M.2, dual 1GbE. Bulk packaging for system integrators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD SP3 |
|---|---|
| Motherboards - Chipset | AMD A300 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | ECC DDR4 |
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - Max Memory Capacity | 512 GB (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 8 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Supermicro MBD-H12SSL-I-B is a high-performance ATX server motherboard designed for single AMD EPYC 7002/7003 series processors using the SP3 socket. Featuring System on Chip architecture, it delivers exceptional compute density for data centers, virtualization, and HPC workloads. This bulk version is ideal for OEMs and system builders seeking cost-effective, scalable solutions.
Key highlights include 8 DIMM slots supporting up to 2TB of Registered ECC DDR4-3200MHz memory across an 8-channel bus, ensuring high bandwidth for memory-intensive applications. Expansion is robust with 5x PCIe 4.0 x16 slots, 2x PCIe 4.0 x8, and dual M.2 PCIe 4.0 x4 interfaces (2280/22110 M-key). Storage options feature 8x SATA3 ports or 2x NVMe via SlimSAS x8, plus dual Gigabit Ethernet LAN ports and ASPEED AST2500 BMC for remote management.
- CPU: Single AMD EPYC 7002/7003 (SP3 socket, up to 64 cores)
- Memory: 8x DDR4 ECC RDIMM, 2TB max @3200MHz
- Expansion: 5x PCIe 4.0 x16, 2x M.2 PCIe 4.0 x4
- Storage: 8x SATA3 (or 2x NVMe), SlimSAS support
- Networking: 2x 1GbE RJ45 + IPMI LAN
- I/O: 6x USB 3.0, VGA, COM, TPM 2.0 header
| Form Factor | ATX (12 |
| CPU Socket | Single AMD SP3 (EPYC 7002/7003) |
| Chipset | System on Chip (SoC) |
| Memory Slots | 8 DIMM (8-channel) |
| Max Memory | 2TB Registered ECC DDR4 3200MHz |
| Memory Type | DDR4 3200MHz ECC RDIMM, 288-pin |
| PCIe Slots | 5x PCIe 4.0 x16, 2x PCIe 4.0 x8 |
| M.2 Slots | 2x PCIe 4.0 x4 (2280/22110, M-key) |
| SATA Ports | 8x SATA3 (or 2x NVMe via SlimSAS x8) |
| Networking | 2x Gigabit Ethernet + 1x IPMI RJ45 |
| USB Ports | 6x USB 3.0 (4 rear, 2 header) |
| Video | 1x VGA (ASPEED AST2500 BMC) |
| Other I/O | 1x COM, 2x SATA DOM power, TPM 2.0 header |
| BIOS | AMI 256Mb SPI Flash, ACPI 5.1, SMBIOS 3.1.1 |
