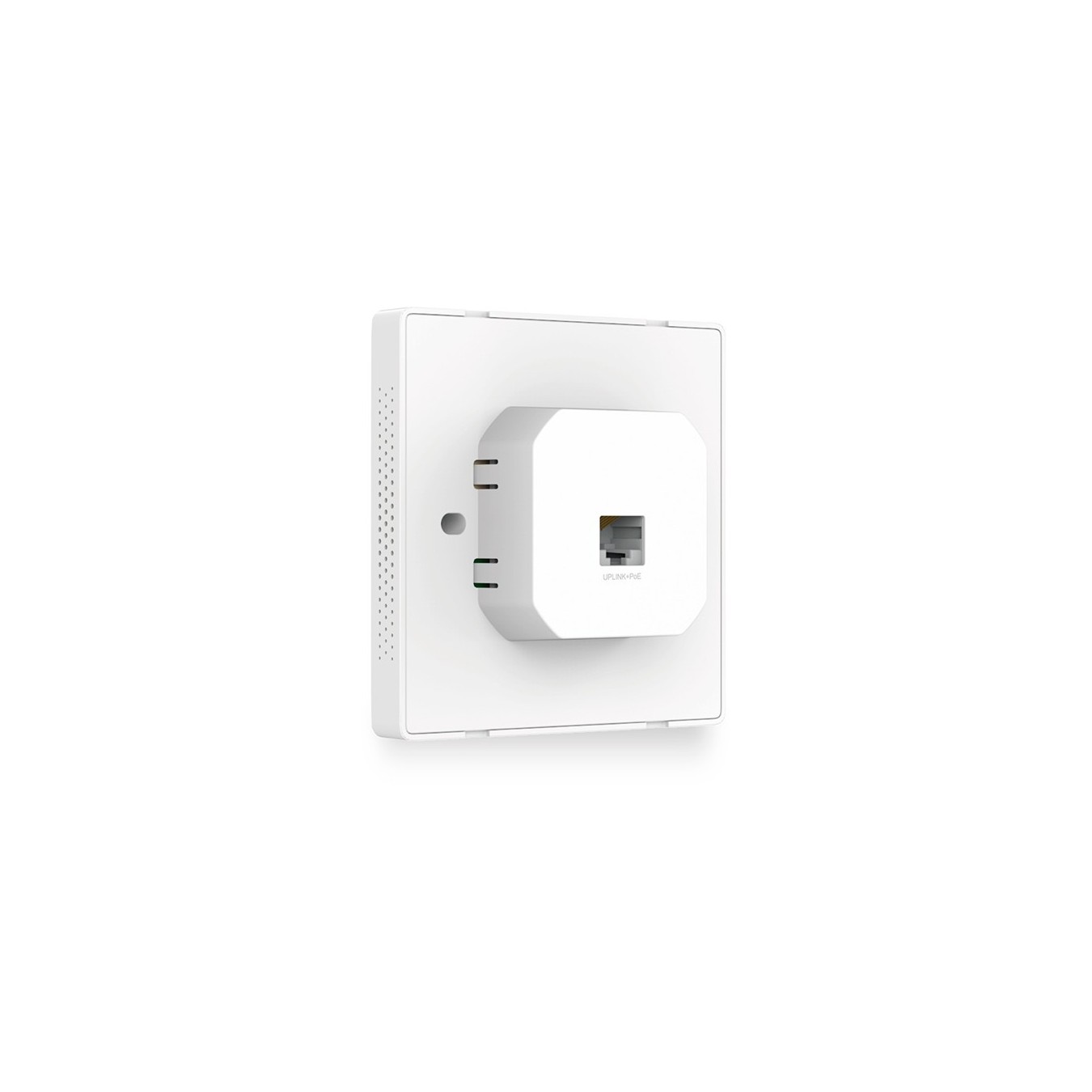

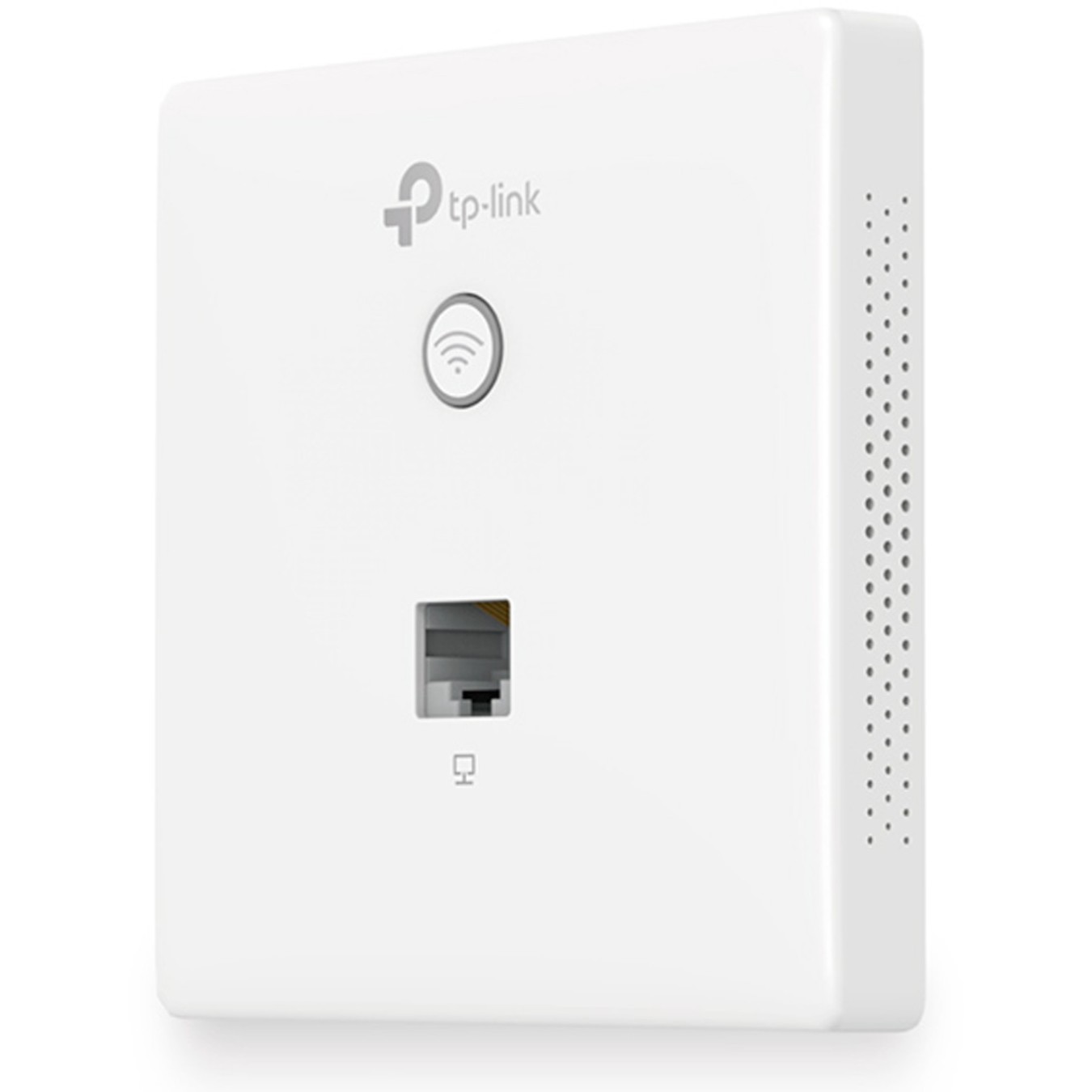

TP-Link Omada EAP115-Wall - EAP115-Wall - White 2.4GHz 300Mbps Wall-Plate AP, Passive PoE
Wall-plate access point, 2.4 GHz Wireless N up to 300 Mbps, passive PoE, 2 Ethernet ports, 8 SSIDs, VLAN & RADIUS/WPA2 security. Compact white design for indoor deployment.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point. 2.4 GHz. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS. HTTPS. WPA. WPA-PSK. WPA2. WPA2-PSK. Ethernet LAN data rates: 10.100 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Sustainability compliance |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Virtual LAN features | Port-based VLAN. VLAN mapping |
| Transmitting power (CE) | 20 dBm |
| Transmitting power | 15 dBmW |
| Security algorithms | 802.1x RADIUS. HTTPS. WPA. WPA-PSK. WPA2. WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Management protocols | SNMP. Telnet |
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power consumption (typical) | 2.8 W |
| Placement | Wall |
| Product colour | White |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 1.8 dBi |
| Compatible operating systems | Windows XP. Windows Vista. Windows 7. Windows 8. Windows 10 |
| Compliance certificates | CE. RoHS |
| Width | 86.8 mm |
| Depth | 86.8 mm |
| Height | 30.2 mm |
| Package width | 118 mm |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 190 g |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Harmonized System (HS) code | 85176990 |
