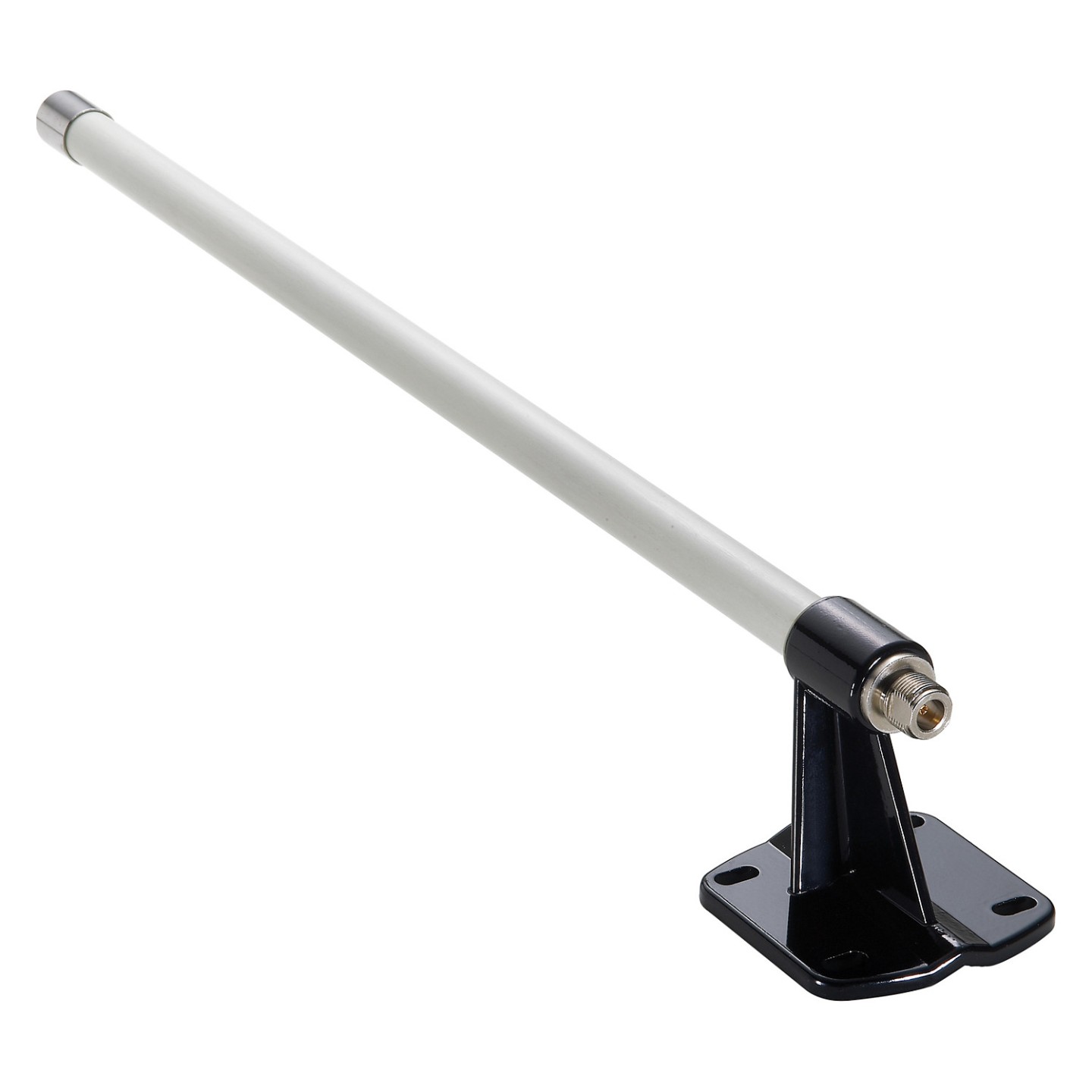

WL-Antenne OAN-2090 9dBi 2.4GHz Indoor
LevelOne OAN-2090. 8.5 dBi. 2.4 - 2.5 GHz. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. 50 Ohm. 360°. 15°
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne OAN-2090. Antenne Zunahmeniveau (max): 8.5 dBi. Frequenzband: 2.4 - 2.5 GHz. Netzstandard: IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: N-Typ. Steckerverbindergeschlecht: Weiblich. Breite: 70 mm. Tiefe: 610 mm. Höhe: 53 mm. Verpackungsbreite: 89 mm. Verpackungstiefe: 650 mm. Verpackungshöhe: 75 mm
| Frequenzband | 2.4 - 2.5 GHz |
| Netzstandard | IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Impedanz | 50 Ohm |
| Horizontale Lichtstrahlbreite | 360° |
| Vertikale Lichtstrahlbreite | 15° |
| Antenne Zunahmeniveau (max) | 8.5 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | N-Typ |
| Steckerverbindergeschlecht | Weiblich |
| Polarisation | Vertikale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1.8:1 |
| Produktfarbe | Schwarz. Weiß |
| Gehäusematerial | Fiberglas |
| Überlebens-Windgeschwindigkeit | 180 km/h |
| Zweck | Innen & Außen |
| Betriebstemperatur | -20 - 65 °C |
| Temperaturbereich bei Lagerung | -30 - 75 °C |
| Breite | 70 mm |
| Tiefe | 610 mm |
| Höhe | 53 mm |
| Gewicht | 345 g |
| Verpackungsbreite | 89 mm |
| Verpackungstiefe | 650 mm |
| Verpackungshöhe | 75 mm |
| Paketgewicht | 580 g |
| Feature | Schnellinstallationsanleitung |
| Warentarifnummer (HS) | 85177100 |
