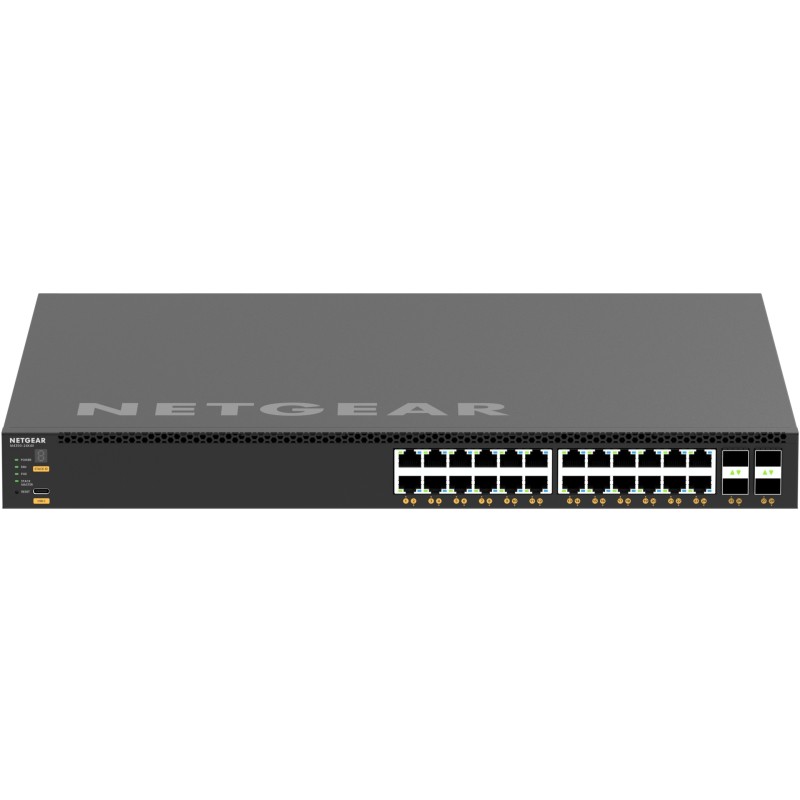

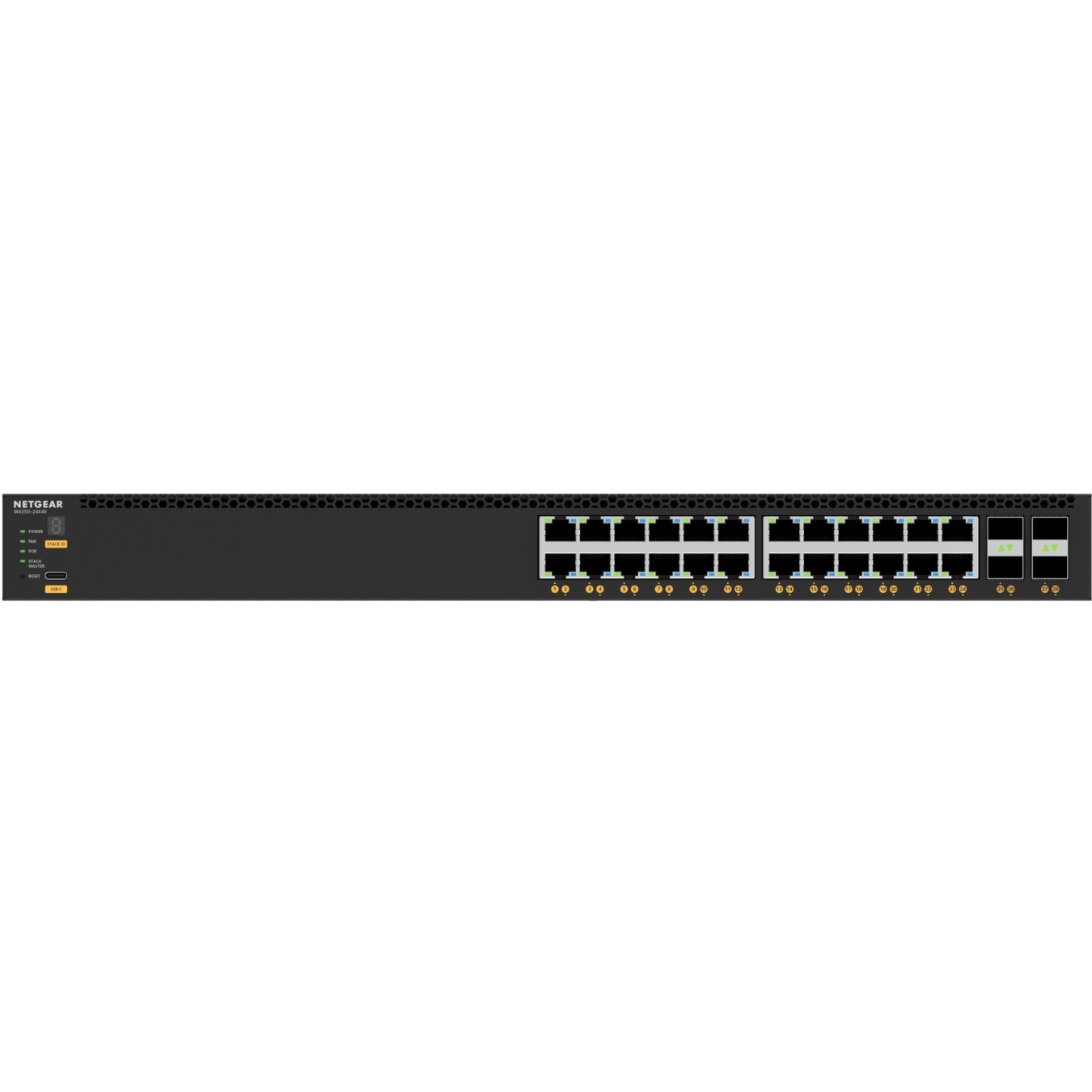

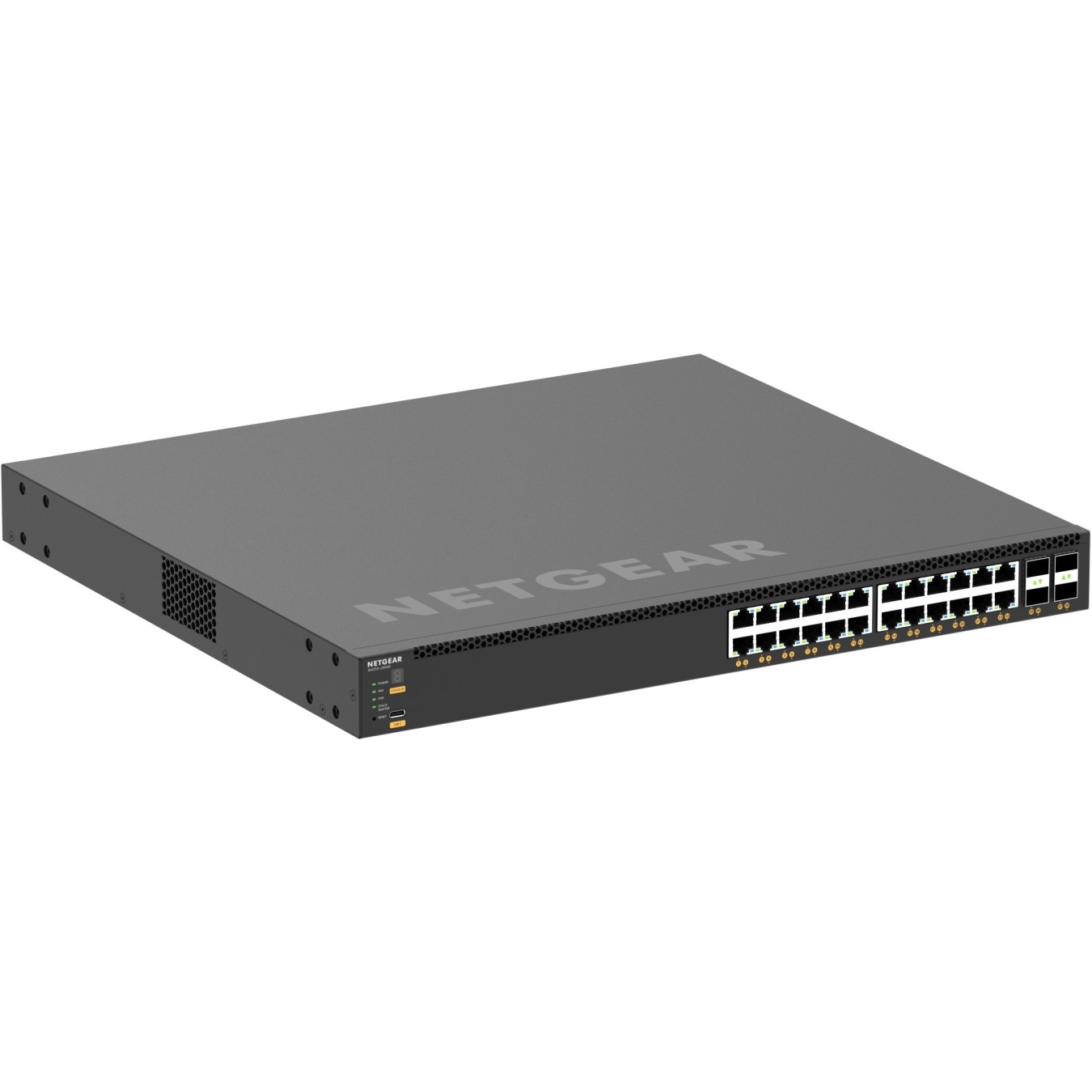

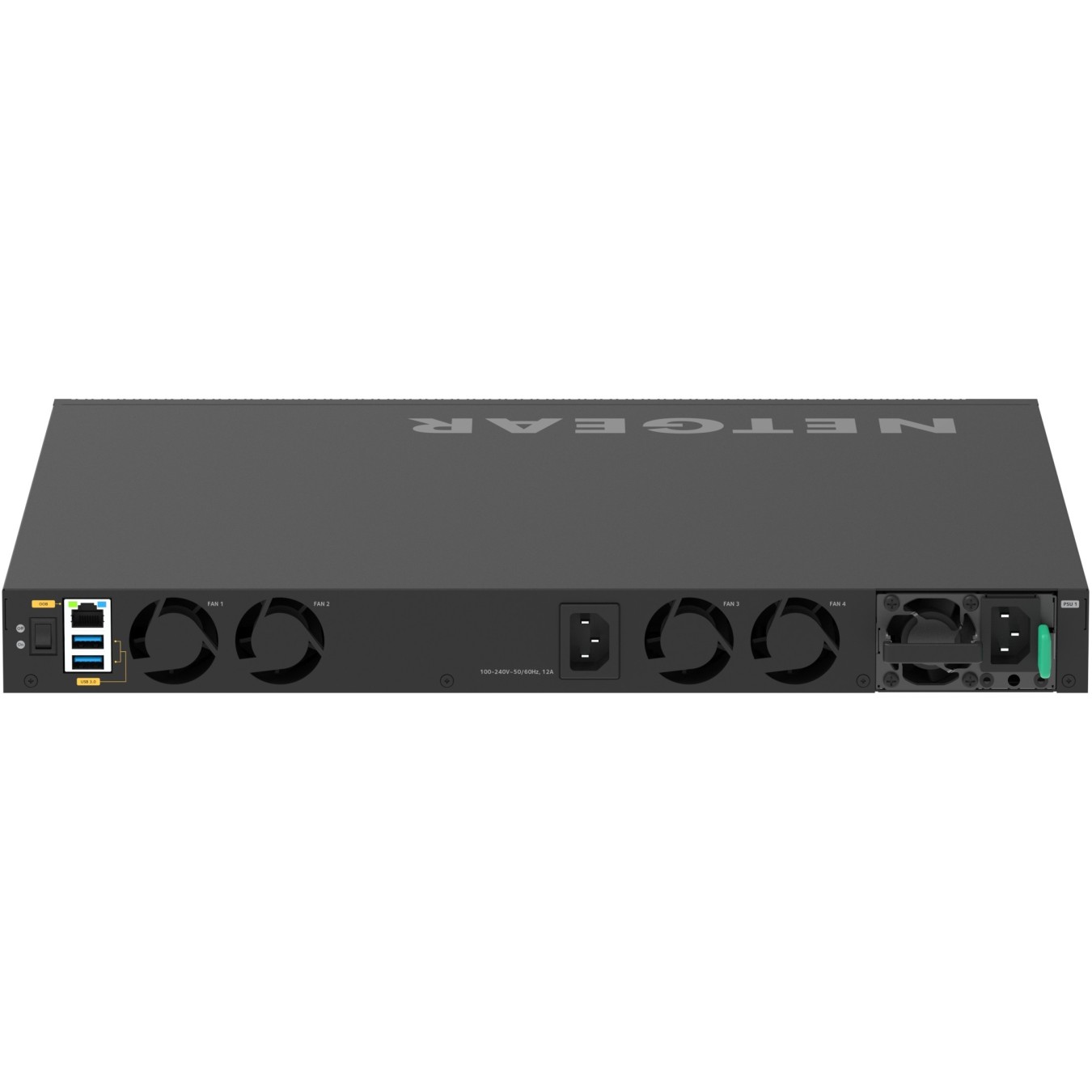

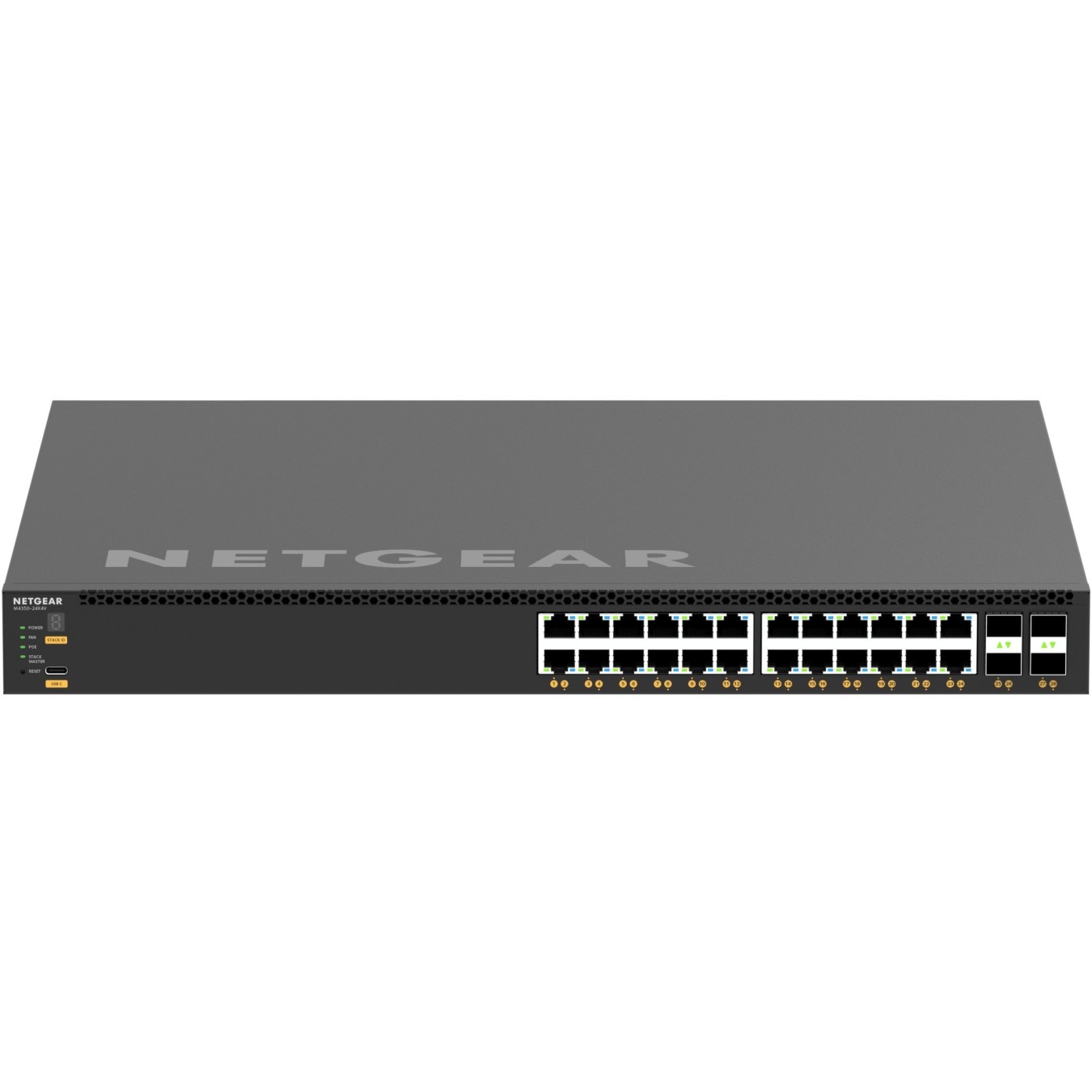

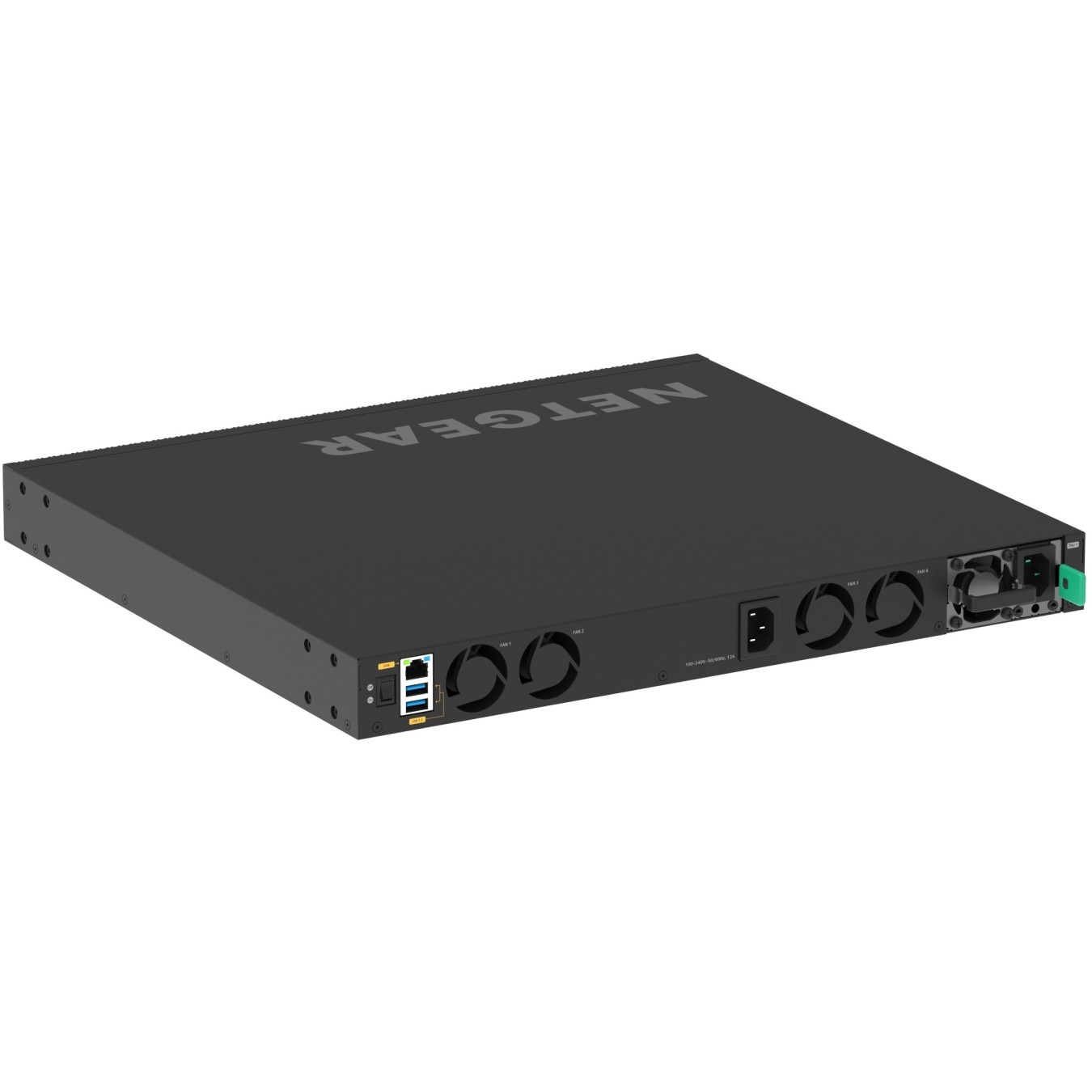

28-Port PoE Managed Switch - M4350-24X4V - 24x10G RJ45 + 4xSFP+, 1U Rackmount, L3, PoE
NETGEAR M4350-24X4V — 1U L3 managed rack switch with 24x10G RJ45 + 4xSFP+, PoE support, 680 Gbps switching capacity, advanced VLAN and routing features.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - Rackmount | Yes |
NETGEAR M4350-24X4V. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qav. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 24 |
| SFP28 ports quantity | 4 |
| Power connector | AC-in jack |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Virtual LAN features | MAC address-based VLAN. Private VLAN. Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 680 Gbit/s |
| Throughput | 505.92 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 2.43 µs |
| Latency (10 Gbps) | 2.2 µs |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
| DHCP features | DHCP Option 150. DHCP Option 66. DHCP Option 67. DHCP relay. DHCP server. DHCP snooping |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| Authentication | Guest VLAN. MAC-based authentication |
| Authentication type | RADIUS. TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ). Weighted random early detection (WRED) |
| Management protocols | SNMP V1. V2. V3 |
| Routing protocols | OSPF. OSPFv2. OSPFv3. RIP. RIP-1. RIP-2 |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Power source | AC |
| Power consumption (typical) | 119.4 W |
| Power consumption (max) | 750.1 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power supply | 880 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 6.58 kg |
| Cables included | AC. USB Type-C |
| Included power plug types | EU. UK. NA |
| Compliance certificates | BSMI. CCC. CE. Federal Communications Commission (FCC). Low Voltage Directive (LVD) |
