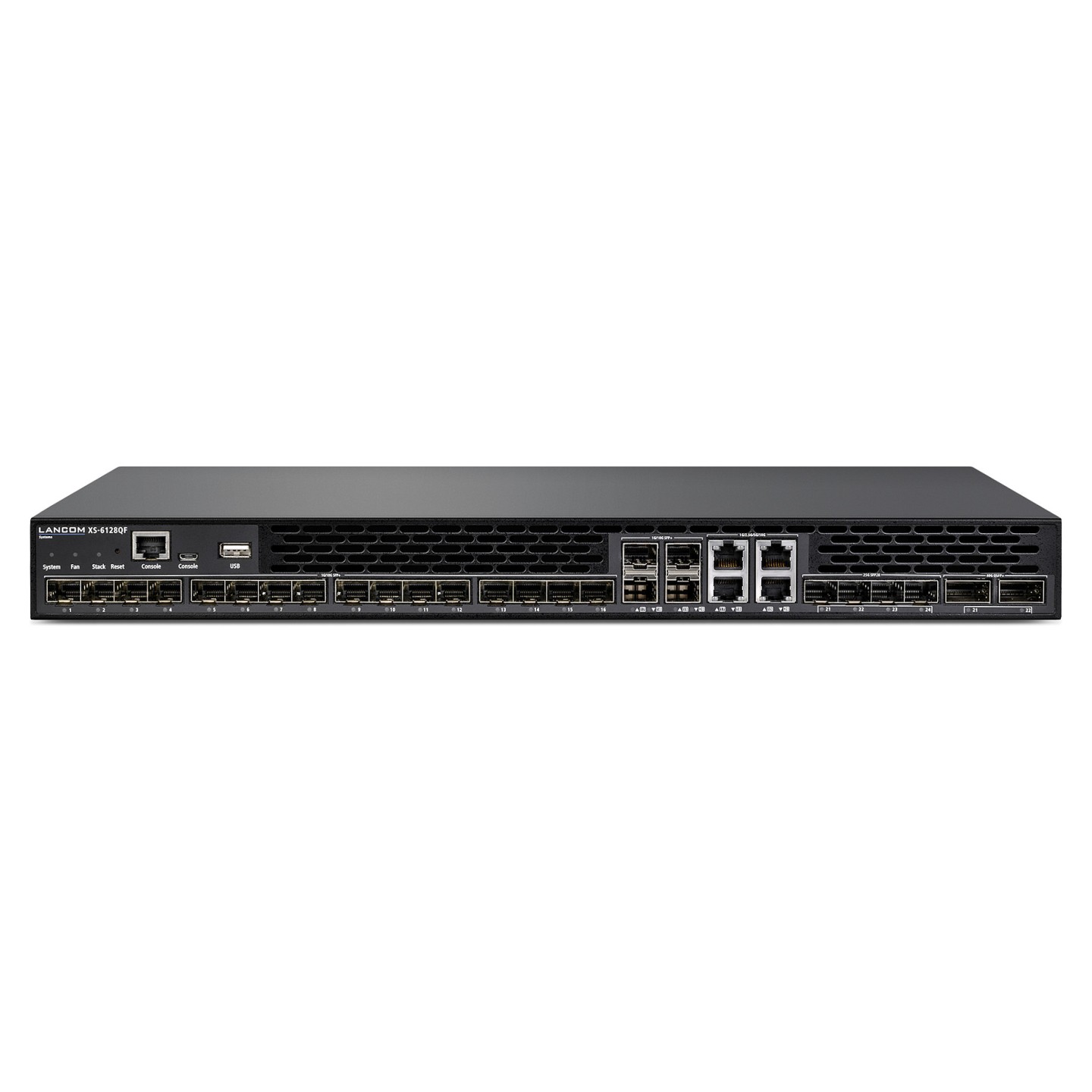

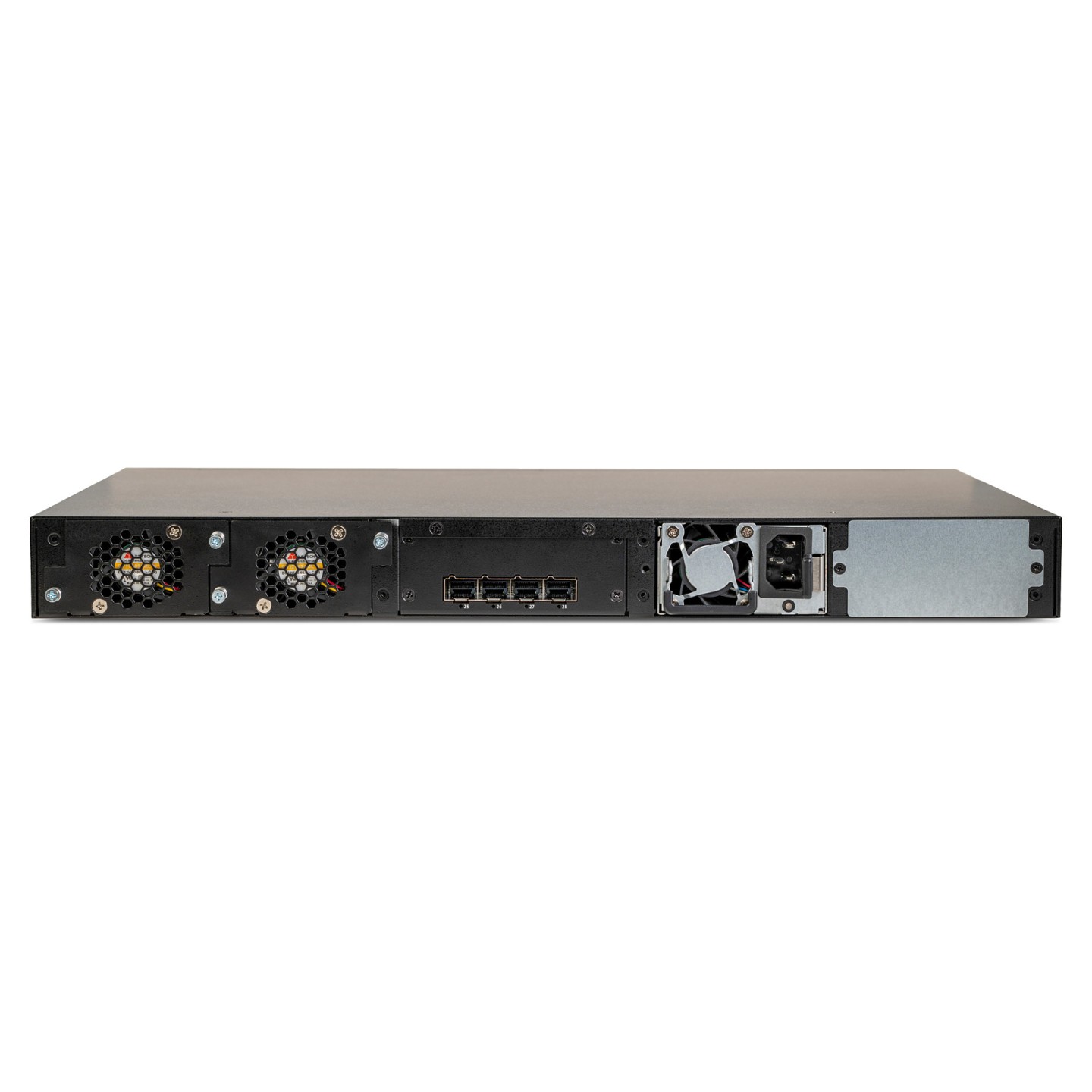

LANCOM XS-6128QF Stackable L3-Managed 10G Fiber Aggregation Switch 1TBit s throughput 24x SFP+- incl. 4x Combo-Ports ...
LANCOM XS-6128QF. Managed. L2/L3. Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM XS-6128QF. Switch-Typ: Managed. Switch-Ebene: L2/L3. Anzahl USB 2.0 Anschlüsse: 1. MAC-Adressentabelle: 32000 Eintragungen. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qav. IEEE 802.1Qbb. IEEE 802.1ab. IEEE 802.1ak. IEEE 802.1p..... Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Feature | Unterstützung für redundantes Netzteil |
| Anzahl 10G Ethernet (Kupfer)-Ports | 4 |
| Anzahl Combo-SPF-Anschlüsse | 4 |
| Anzahl Faseranschlüsse | 20 |
| Optischer Kabelverbinder | SFP+ |
| Anzahl QSFP28-Ports | 2 |
| Anzahl SFP28-Ports | 4 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Ethernet LAN Datentransferraten | 1000.2500.5000.10000 Mbit/s |
| Anzahl der VLANs | 4093 |
| Durchsatz | 1000 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Jumbo-Frames | 12288 |
| Datenpaket-Pufferspeicher | 8 MB |
| DHCP-Funktionen | DHCP client. DHCP server. DHCP snooping |
| Autentifizierungstyp | IEEE 802.1x. RADIUS. TACACS+ |
| Multicast-Funktionen | Schnittstellen-basierte Multicast-Traffic-Statistiken |
| Management-Protokolle | SNMP |
| Router Protokoll | BGP. OSPFv2. OSPFv3. VRRP |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |

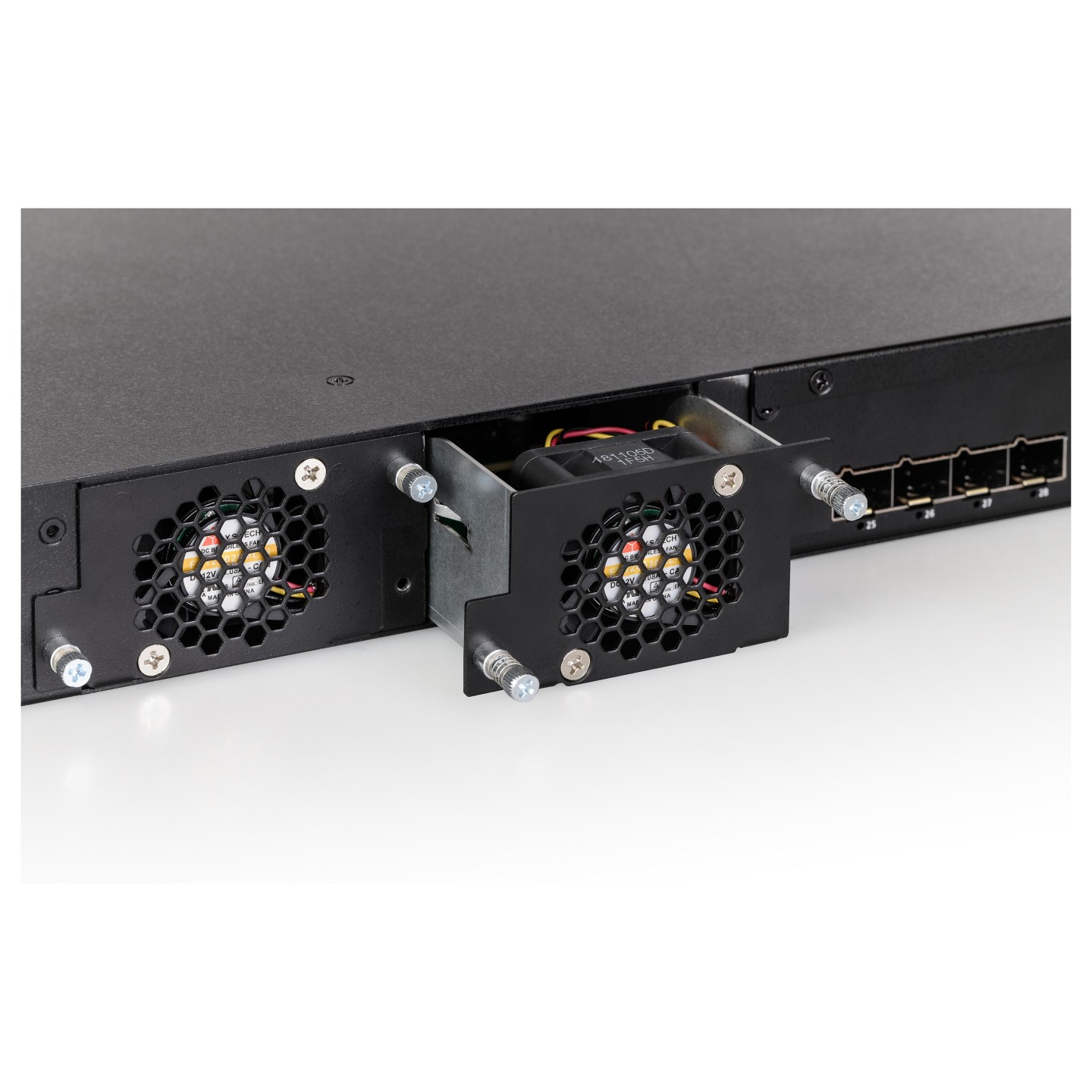

| Anzahl Lüfter | 2 Lüfter |
| Geräuschpegel | 50 dB |
| Energiequelle | AC |
| Anzahl von Stromversorgungseinheiten | 2 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 70 W |
| Stromverbrauch (max.) | 105 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 359 BTU/h |
| Breite | 442 mm |
| Tiefe | 375 mm |
| Höhe | 44 mm |
| Gewicht | 6 kg |
| Verpackungsbreite | 470 mm |
| Verpackungstiefe | 534 mm |
| Verpackungshöhe | 100 mm |
| Paketgewicht | 7.74 kg |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
