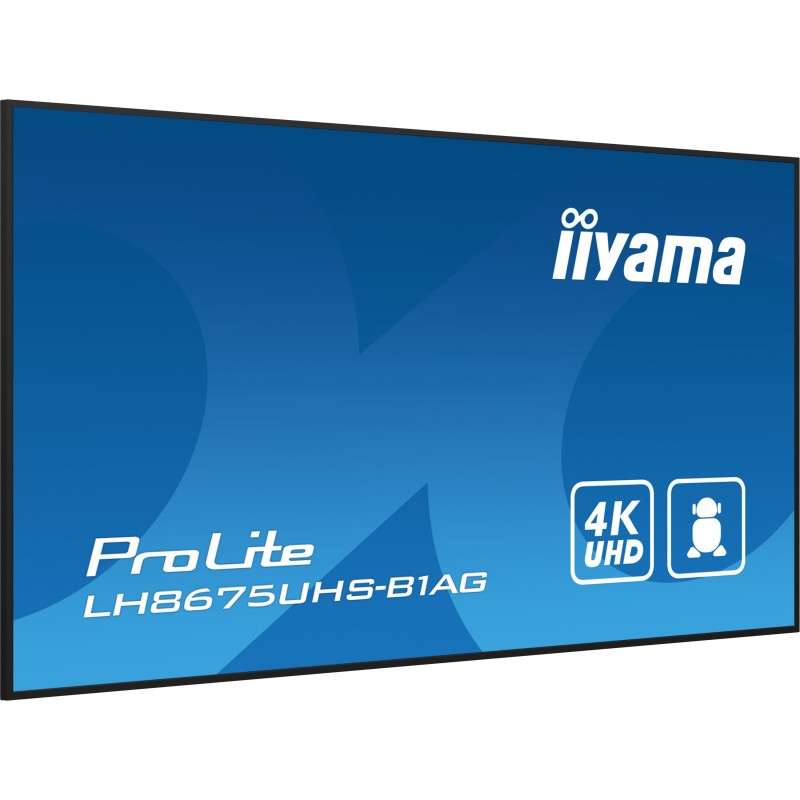

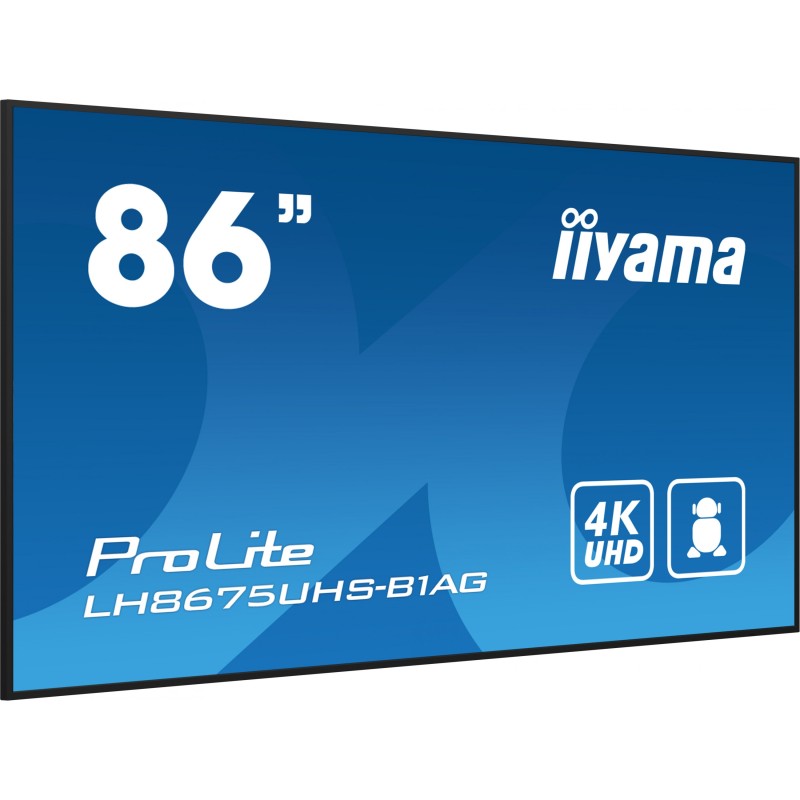

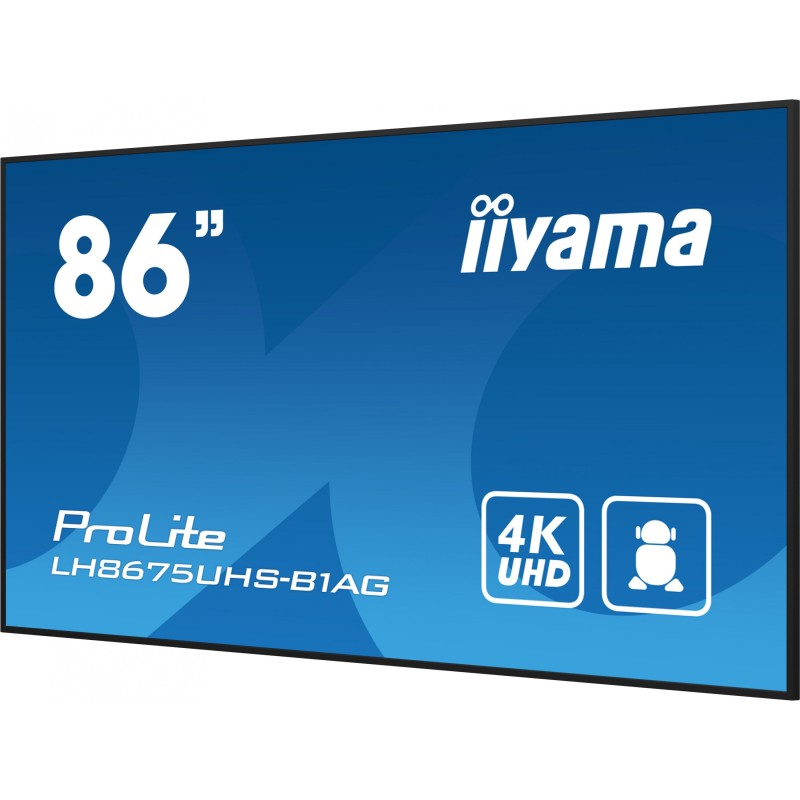

iiyama LH8675UHS-B1AG - 86" 4K UHD IPS Digital Signage Display - Android 11, 500 cd/m2, 3xHDMI, Intel SDM, 24/7, Black
86" iiyama 4K UHD (3840x2160) IPS digital signage display with Android 11, 500 cd/m², 3x HDMI, DisplayPort 1.2, Intel SDM slot, designed for 24/7 operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Panel Type | IPS |
| Monitors - Refresh Rate | 60 Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
iiyama 86" 4K UHD Professional Digital Signage 24/7 display featuring Android OS. FailOver and Intel® SDM slot. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"). Display technology: LCD. Display resolution: 3840 x 2160 pixels. Display brightness: 500 cd/m². HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.494 x 0.494 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217 cm |
| Maximum frame rate | 60 fps |
| Horizontal scan range | 28 - 160 kHz |
| Haze rate | 25% |
| RGB colour space | sRGB |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Feature | Quick start guide |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

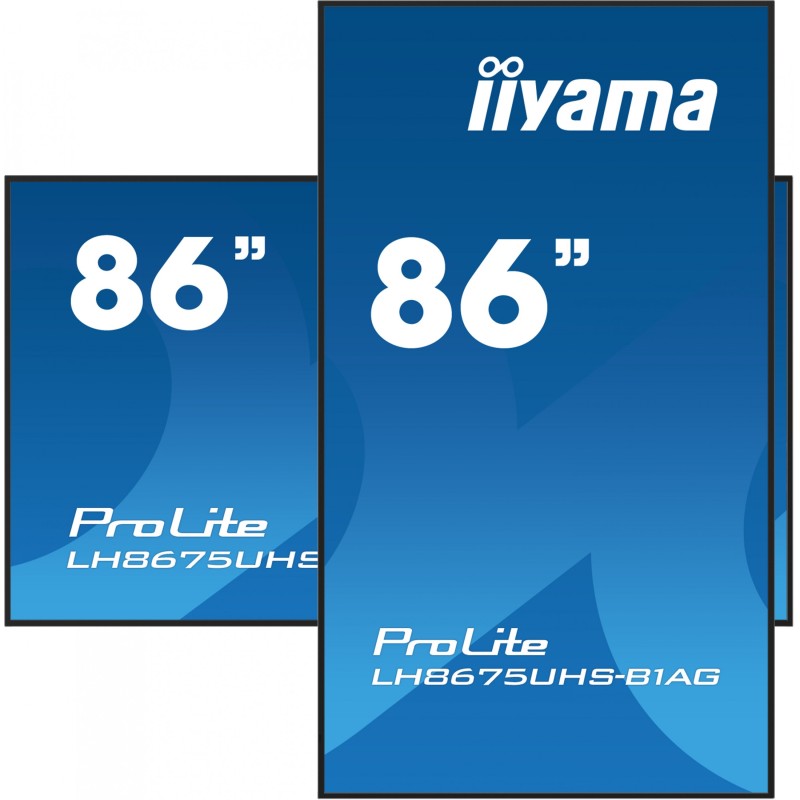

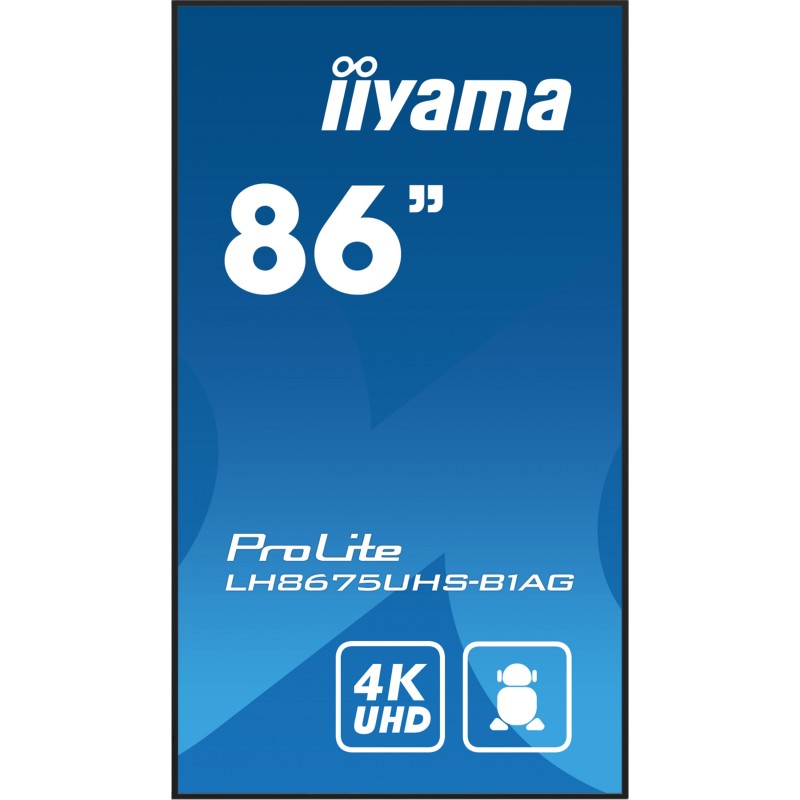

| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Purpose | Universal |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Simplified Chinese. Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 44000 h |
| Power consumption (typical) | 228 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 228 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 1927 mm |
| Display depth | 57 mm |
| Display height | 1098.5 mm |
| Display weight | 50 kg |
| Package width | 2123 mm |
| Package depth | 225 mm |
| Package height | 1247 mm |
| Package weight | 65 kg |

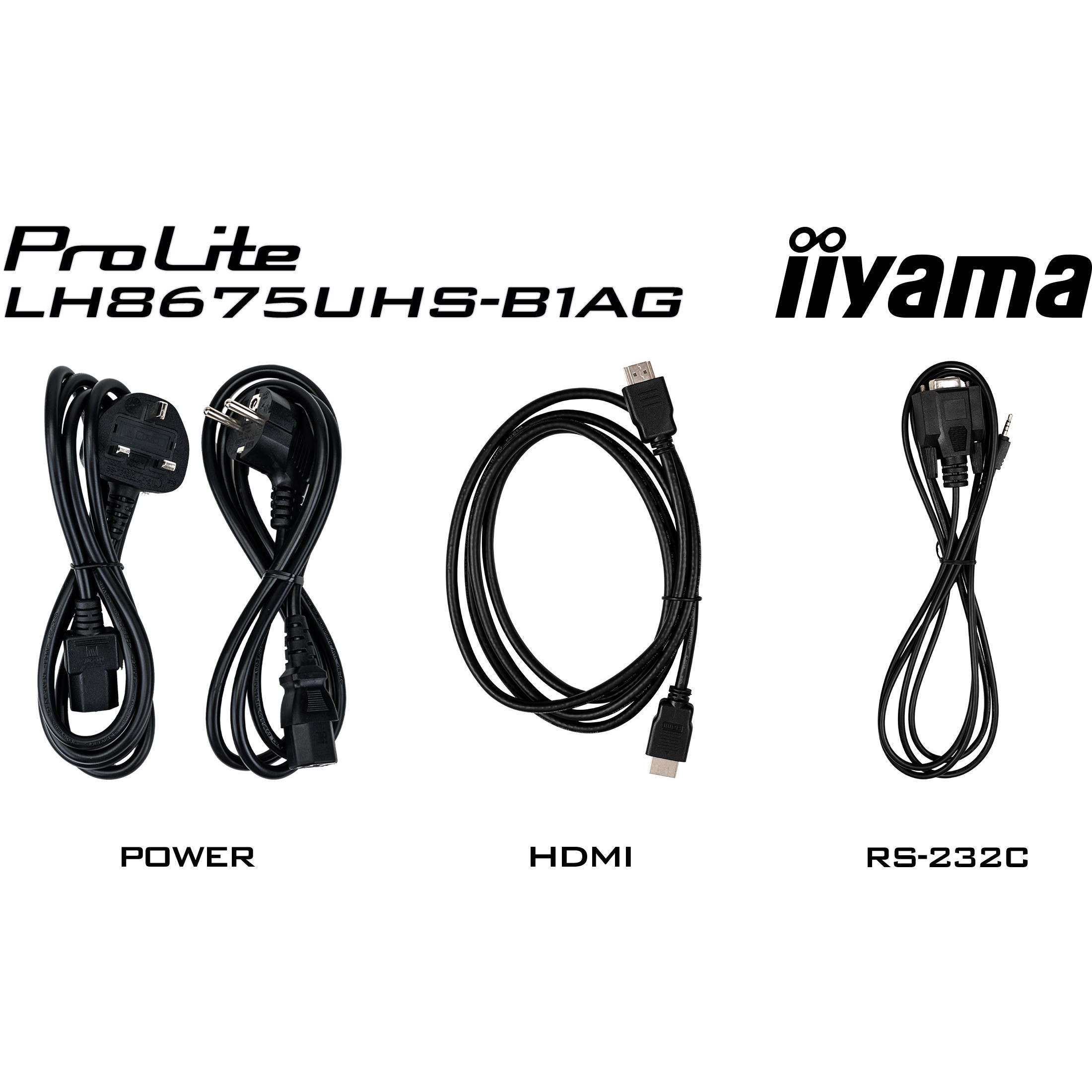

| Cables included | AC. HDMI. RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. ErP. WEEE. REACH |
| Harmonized System (HS) code | 85285210 |
| Compliance certificates | RoHS |
| Housing material | Metal |
