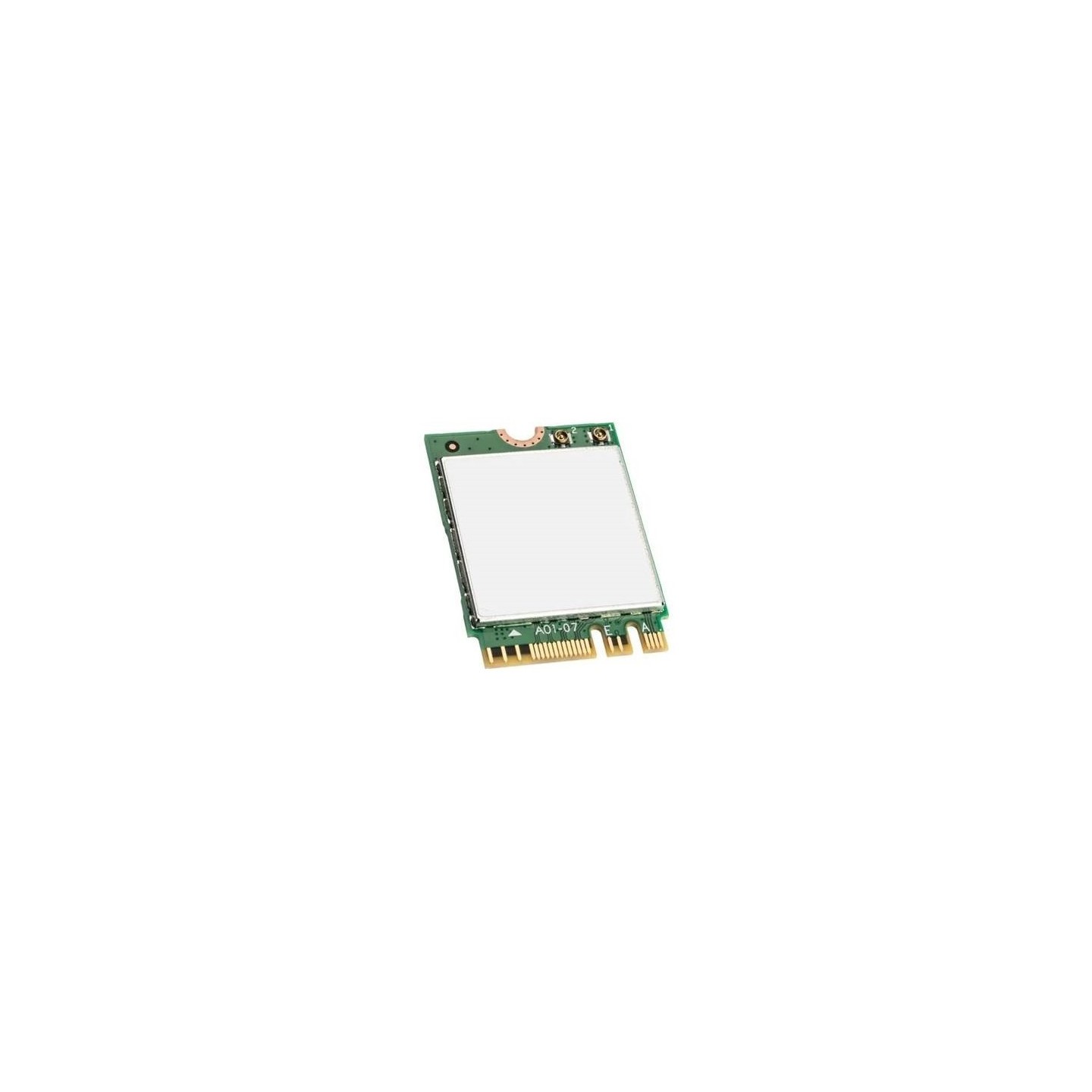

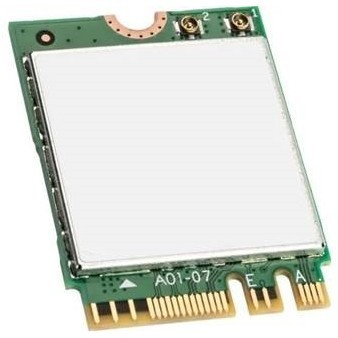

Intel Wi-Fi 6E AX210 M.2 2230 - 2x2 Wi-Fi 6E, Bluetooth 5.2, PCIe Internal Card
Internal Intel AX210 M.2 2230 Wi‑Fi 6E card with PCIe host interface, up to 2400 Mbps, 2x2 antennas and Bluetooth 5.2. Compatible with Windows 10 x64 and Linux.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Type | Network Card (Wi-Fi) |
|---|---|
| Expansion Cards - Interface | PCIe x1 |
Intel Wi-Fi 6E AX210. Internal. Connectivity technology: Wireless. Host interface: PCI Express. Interface: WLAN. Maximum data transfer rate: 2400 Mbit/s. Antenna type: 2x2
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Maximum data transfer rate | 2400 Mbit/s |
| Feature | Supported Under vPro |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
| Component for | PC/Laptop |
| Antenna type | 2x2 |
| Package size | 22 x 30 x 2.4 mm |
| Compatible operating systems | Windows 10. 64-bit*|Linux* |
| Windows operating systems supported | Windows 10 x64 |
| Operating temperature (T-T) | 0 - 80 °C |
| Width | 22 mm |
| Depth | 2.4 mm |
| Height | 30 mm |
| Weight | 2.8 g |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Launch date | Q4'20 |
| Status | Launched |
| Processor family | Intel Wi-Fi 6E Products |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Compliance | FIPS. FISMA |
| Product series | Intel® Wireless Products |
