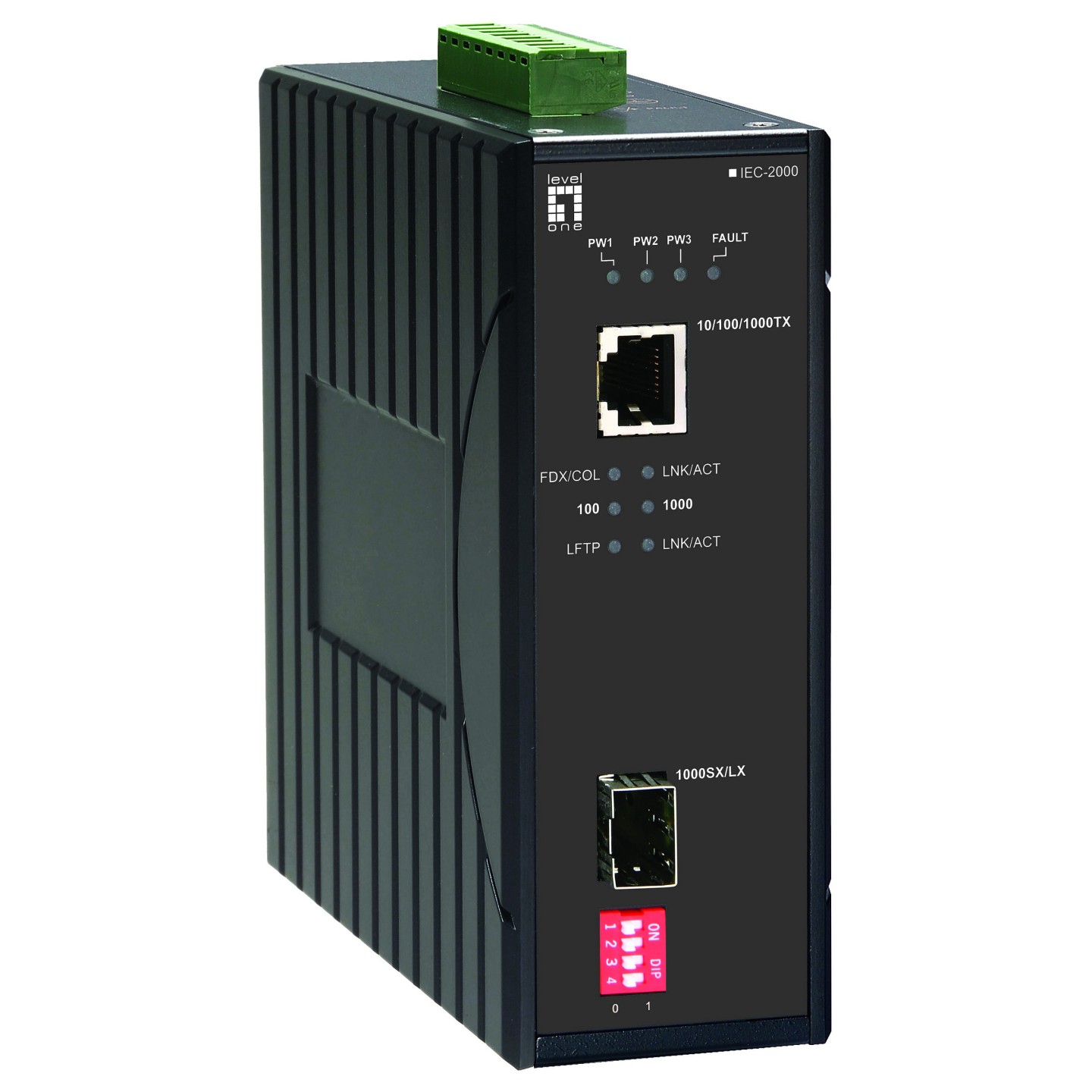

Konverter IEC-2000 10 100TX to 100FX 2km
LevelOne IEC-2000. 1000 Mbit/s. 10Base-T. 100Base-TX. 1000Base-TX. 1000Base-LX. 1000Base-SX. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Gigabit Ethernet. 10.100.1000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne IEC-2000. Maximale Datenübertragungsrate: 1000 Mbit/s. Converter Eingangsschnittstelle: 10Base-T. 100Base-TX. 1000Base-TX. Converter output Oberfläche: 1000Base-LX. 1000Base-SX. Mittlere Betriebsdauer zwischen Ausfällen (MTBF): 665760 h. LED-Anzeigen: Aktivität. Link. Leistung. Status. Produktfarbe: Schwarz. Gehäusematerial: Aluminium. Optischer Kabelverbinder: SFP. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 12 - 48 V. Ausgangsstrom (48V): 0.16 A. Stromverbrauch (max.): 7.68 W
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T. 100Base-TX. 1000Base-TX |
| Converter output Oberfläche | 1000Base-LX. 1000Base-SX |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Paketweiterleitungsrate (1 Gbit/s) | 1488100 pps |
| Feature | Schnellinstallationsanleitung |
| Duplex-System | Voll. Halb |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 665760 h |
| LED-Anzeigen | Aktivität. Link. Leistung. Status |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SFP |
| Eingangsspannung | 12 - 48 V |
| Ausgangsstrom (48V) | 0.16 A |
| Stromverbrauch (max.) | 7.68 W |
| Breite | 50 mm |
| Tiefe | 110 mm |
| Höhe | 135 mm |
| Gewicht | 800 g |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Verpackungsbreite | 198 mm |
| Verpackungstiefe | 92 mm |
| Verpackungshöhe | 236 mm |
| Paketgewicht | 1 kg |
| Verpackungsart | Box |
| Sicherheit | UL508 |
| Ursprungsland | Taiwan |
| Warentarifnummer (HS) | 85176990 |
