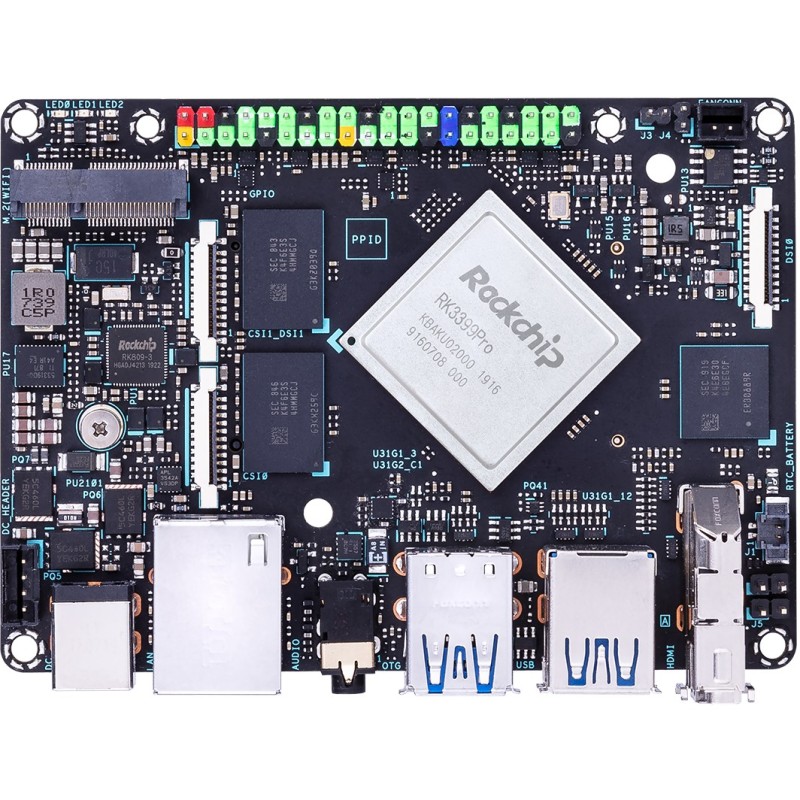

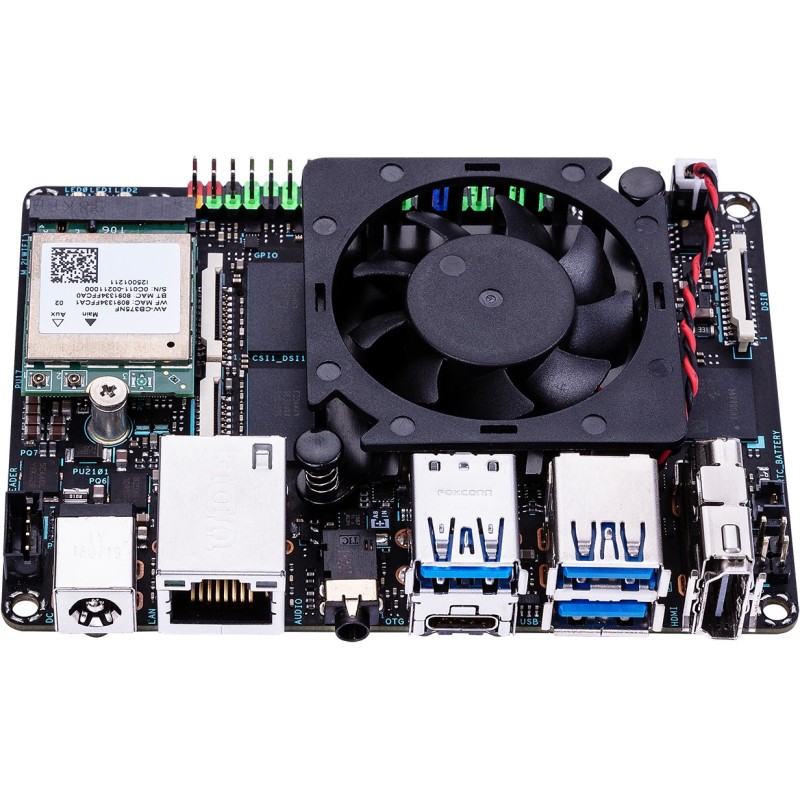

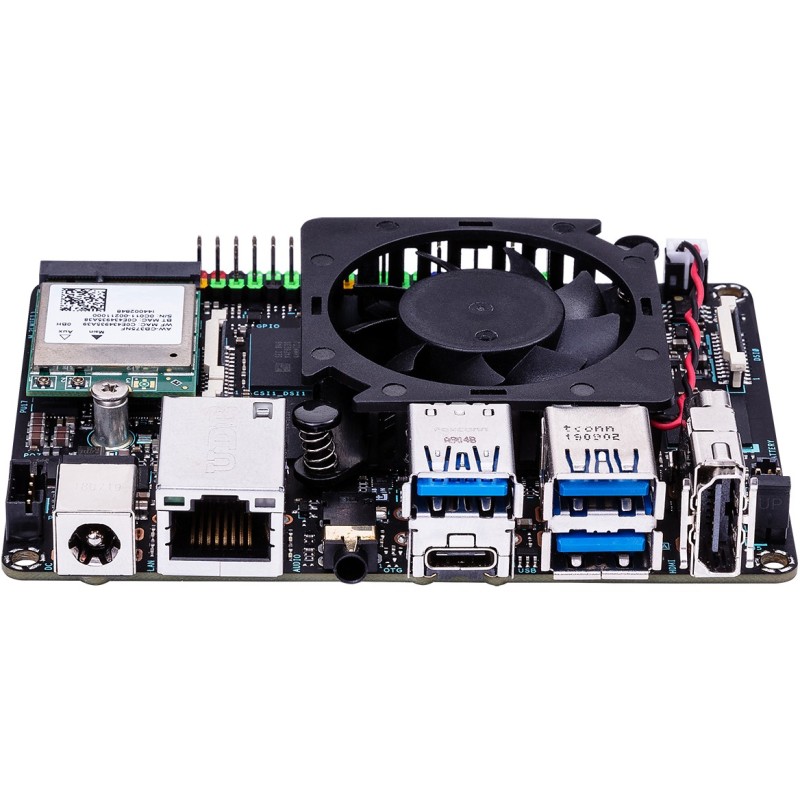

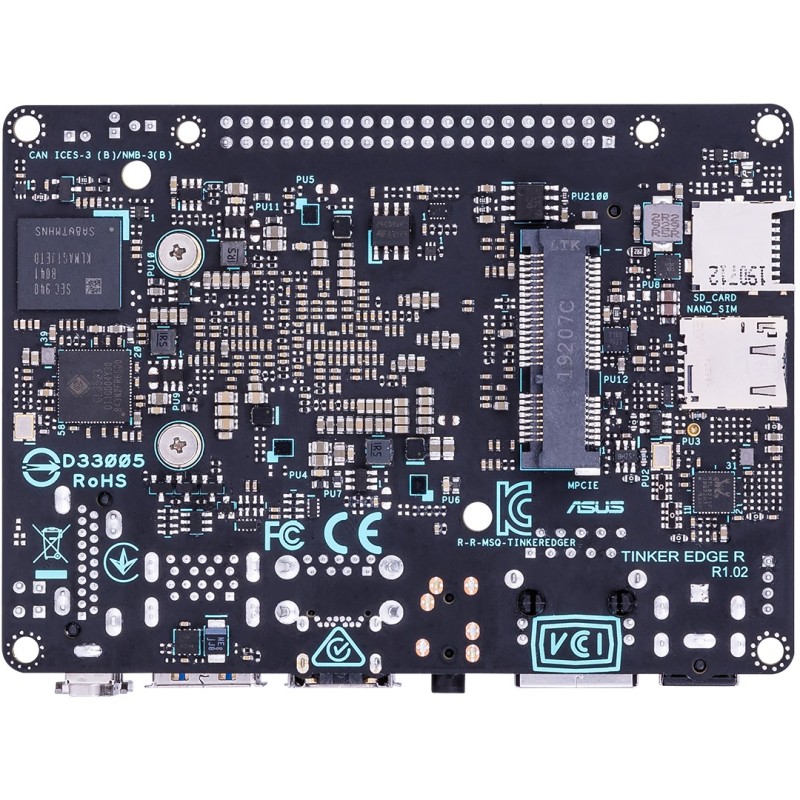

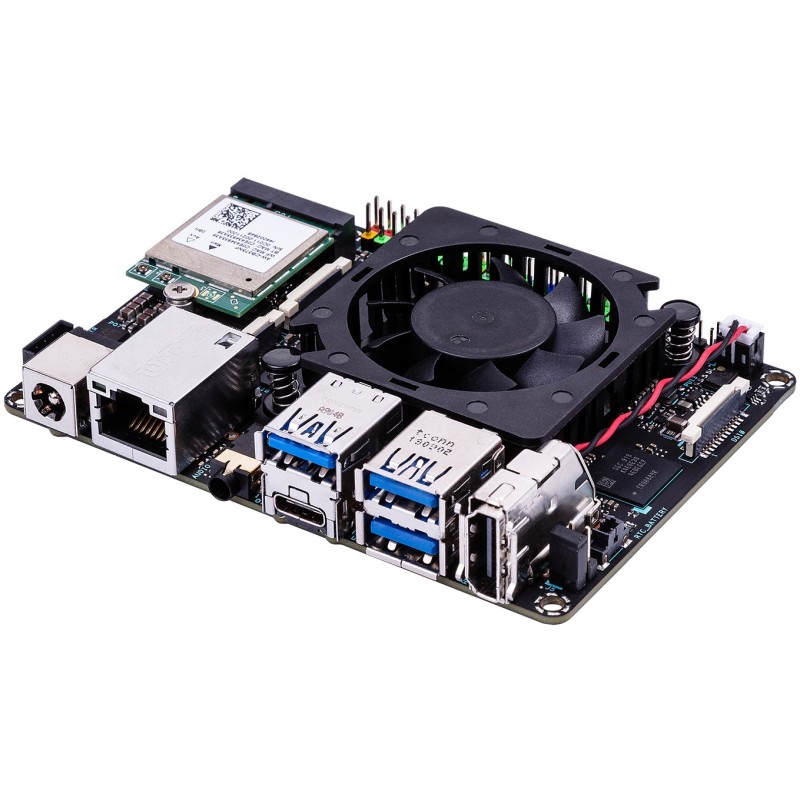

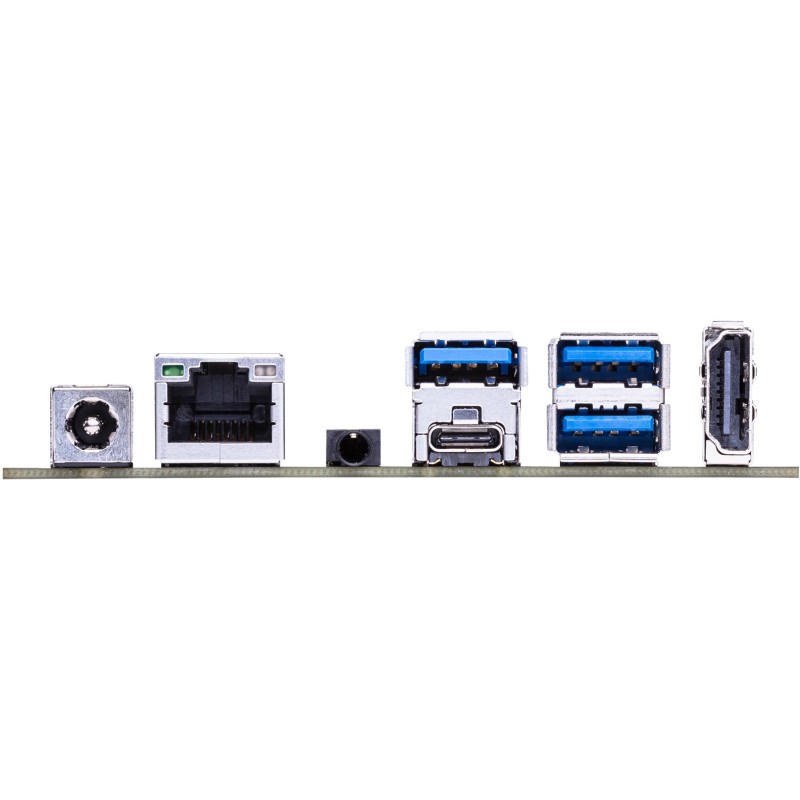

ASUS Tinker Edge R - RK3399Pro 1.8GHz - 6GB LPDDR4, 16GB eMMC, Wi-Fi, Bluetooth 5.0, Gigabit Ethernet
ASUS Tinker Edge R SBC with Rockchip RK3399Pro 1.8GHz, 6GB LPDDR4, 16GB eMMC, Wi‑Fi 802.11a/b/g/n/ac, Bluetooth 5.0, Gigabit Ethernet, 4× USB 3.2 Gen1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
ASUS Tinker Edge R. Processor frequency: 1.8 MHz. Processor manufacturer: Rockchip. Processor model: Rockchip RK3399Pro. Maximum internal memory: 6 GB. Internal memory type: LPDDR4-SDRAM. Memory channels: Dual-channel. USB version: 3.2 Gen 1 (3.1 Gen 1). Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Ethernet interface type: Gigabit Ethernet. On-board graphics card model: ARM Mali-T860 MP4. DC input voltage: 12 - 19 V
| Processor frequency | 1.8 MHz |
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3399Pro |
| Maximum internal memory | 6 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory channels | Dual-channel |
| Flash memory type | eMMC |
| eMMC capacity | 16 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Storage location | Internal |
| Feature | On-board graphics card |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Bluetooth version | 5.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PWM digital I/O pins | 3 |
| HDMI ports quantity | 1 |
| On-board graphics card model | ARM Mali-T860 MP4 |
| DC input voltage | 12 - 19 V |
| Board dimensions | 100 x 72 mm |
| Package type | Box |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
