Netzwerk-Videorekorder 16-Kanal bis 12MP
LevelOne NVR-1316. 16 Kanäle. 3840 x 2160 Pixel. 128 Benutzer. H.264. H.264+. H.265. MPEG4. Eingebettetes LINUX. 256 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne NVR-1316. Video-Eingangskanäle: 16 Kanäle. Maximale Auflösung: 3840 x 2160 Pixel. Zahl der Benutzer: 128 Benutzer. Max. Speicherkapazität: 24 TB. HDD Größe: 3.5". Ethernet LAN Datentransferraten: 10.100.1000 Mbit/s. Unterstützte Netzwerkprotokolle: TCP.UDP.IPv4.IPv6.Http.Https.SMTP.NTP.SNTP. LED-Anzeigen: Leistung. Produktfarbe: Schwarz. Ursprungsland: China. Stromverbrauch (Standardbetrieb): 20 W. AC Eingangsspannung: 100 - 240 V
| Video-Eingangskanäle | 16 Kanäle |
| Alarm-Eingangskanäle | 4 |
| Alarm-Ausgangskanäle | 8 |
| Maximale Auflösung | 3840 x 2160 Pixel |
| Zahl der Benutzer | 128 Benutzer |
| Unterstützte Videoformate | H.264. H.264+. H.265. MPEG4 |
| Installiertes Betriebssystem | Eingebettetes LINUX |
| Durchsatz-Datenrate | 256 Mbit/s |
| HDD Kapazität | 0 GB |
| Maximale unterstützte Anzahl der HDD | 4 |
| Max. Speicherkapazität | 24 TB |
| HDD Größe | 3.5" |

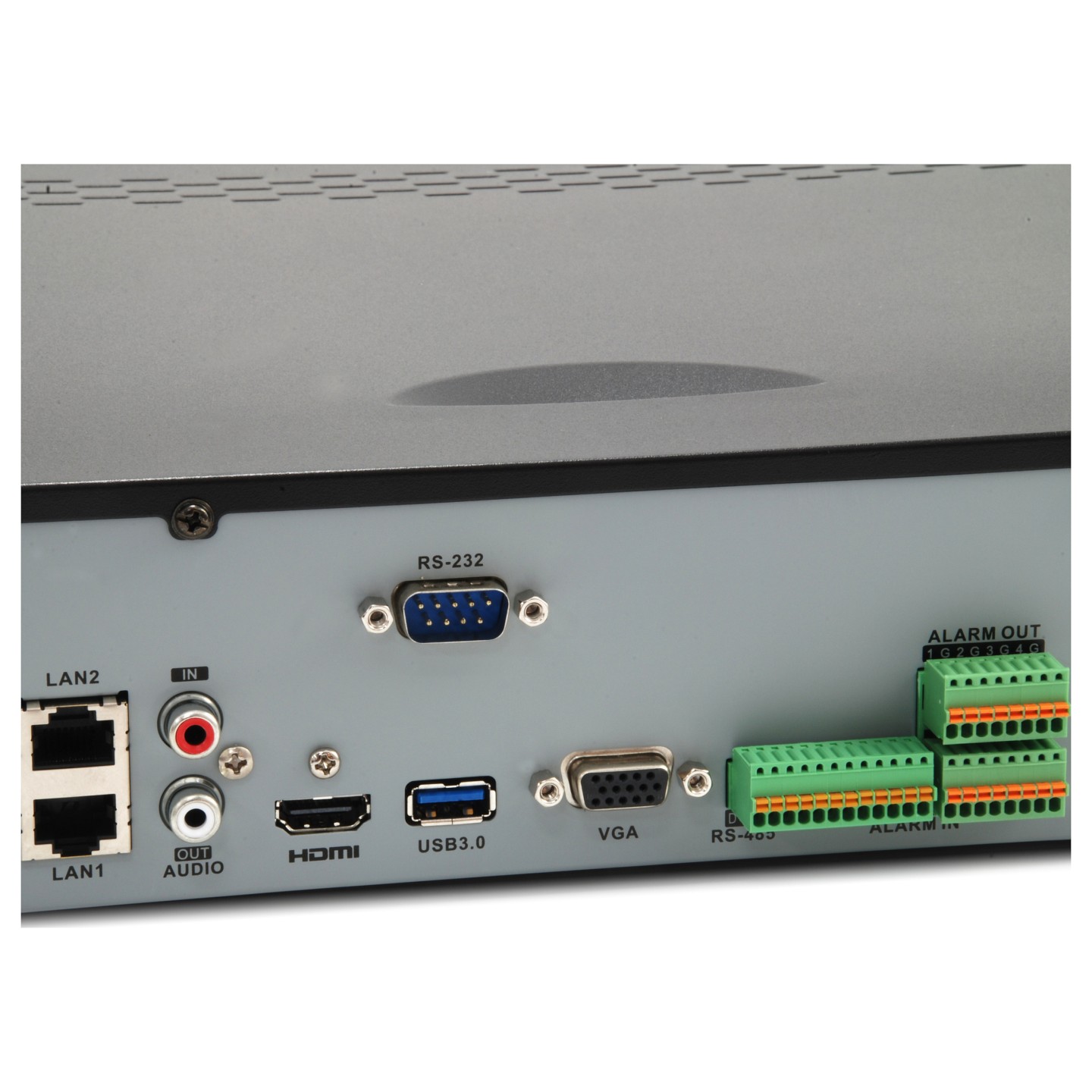

| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Feature | Handbuch auf CD |
| Anzahl HDMI-Anschlüsse | 1 |
| VGA (D-Sub)-Ausgangsanschlüsse | 1 |

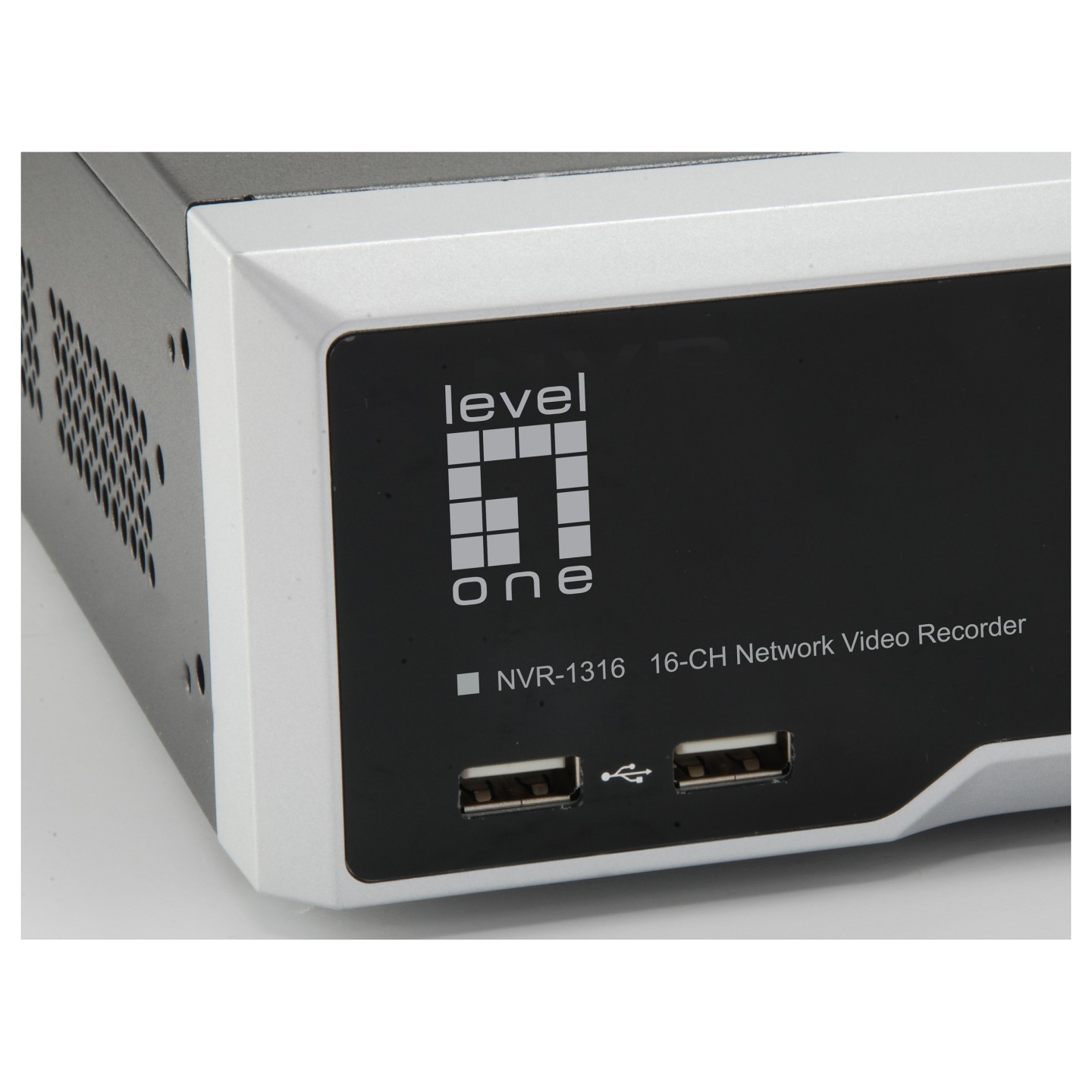

| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| Audio-RCA-Eingänge | 1 |
| Audio-RCA-Ausgänge | 1 |
| RS-485-Anschlüsse | 1 |
| Unterstützte Netzwerkprotokolle | TCP.UDP.IPv4.IPv6.Http.Https.SMTP.NTP.SNTP |

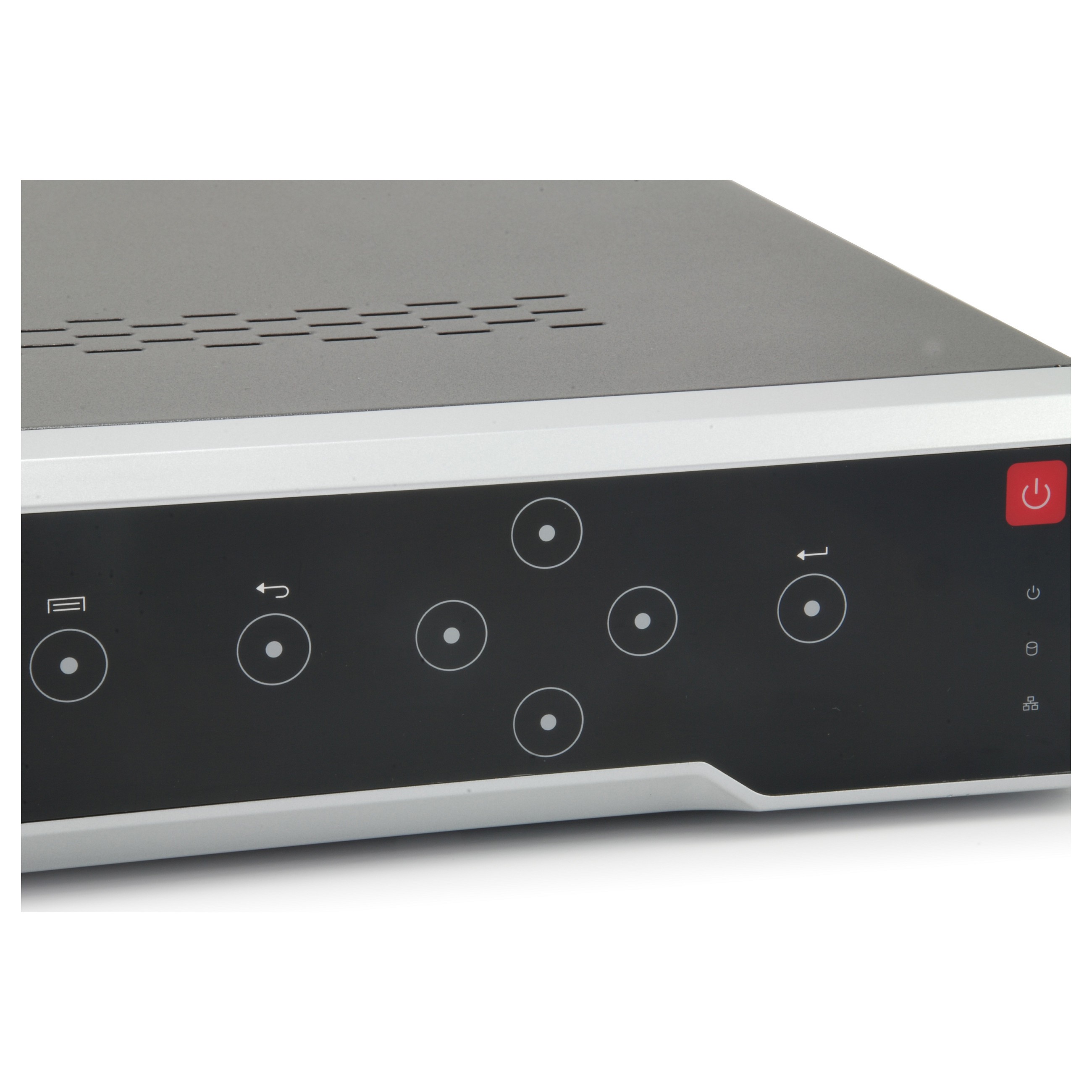

| LED-Anzeigen | Leistung |
| Produktfarbe | Schwarz |
| Ursprungsland | China |
| Zertifizierung | CE. FCC. uL |
| Stromverbrauch (Standardbetrieb) | 20 W |

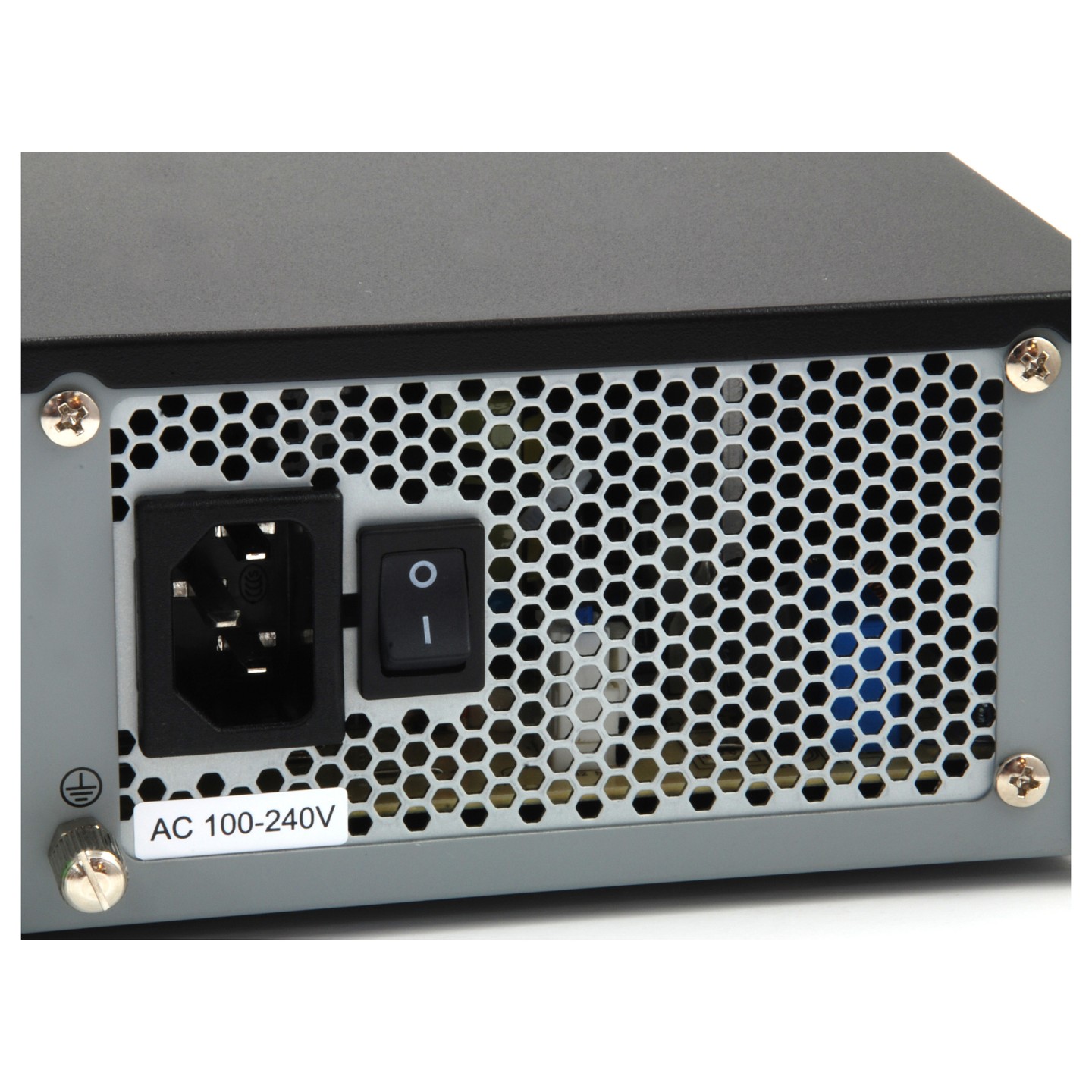

| AC Eingangsspannung | 100 - 240 V |
| Unterstützter Browser | Internet Explorer 9+ |
| Betriebstemperatur | -10 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 390 mm |
| Tiefe | 70 mm |
| Höhe | 445 mm |
| Gewicht | 5 kg |
| Verpackungsbreite | 502 mm |
| Verpackungstiefe | 158 mm |
| Verpackungshöhe | 495 mm |
| Verpackungsart | Box |
| Paketgewicht | 5.5 kg |
| Mitgelieferte Kabel | AC |
| Breite des Versandkartons | 523 mm |
| Länge des Versandkartons | 340 mm |
| Höhe des Versandkartons | 522 mm |
| Gewicht Versandkarton | 6 kg |
| Anzahl Produkte pro Versandkarton | 1 Stück(e) |
