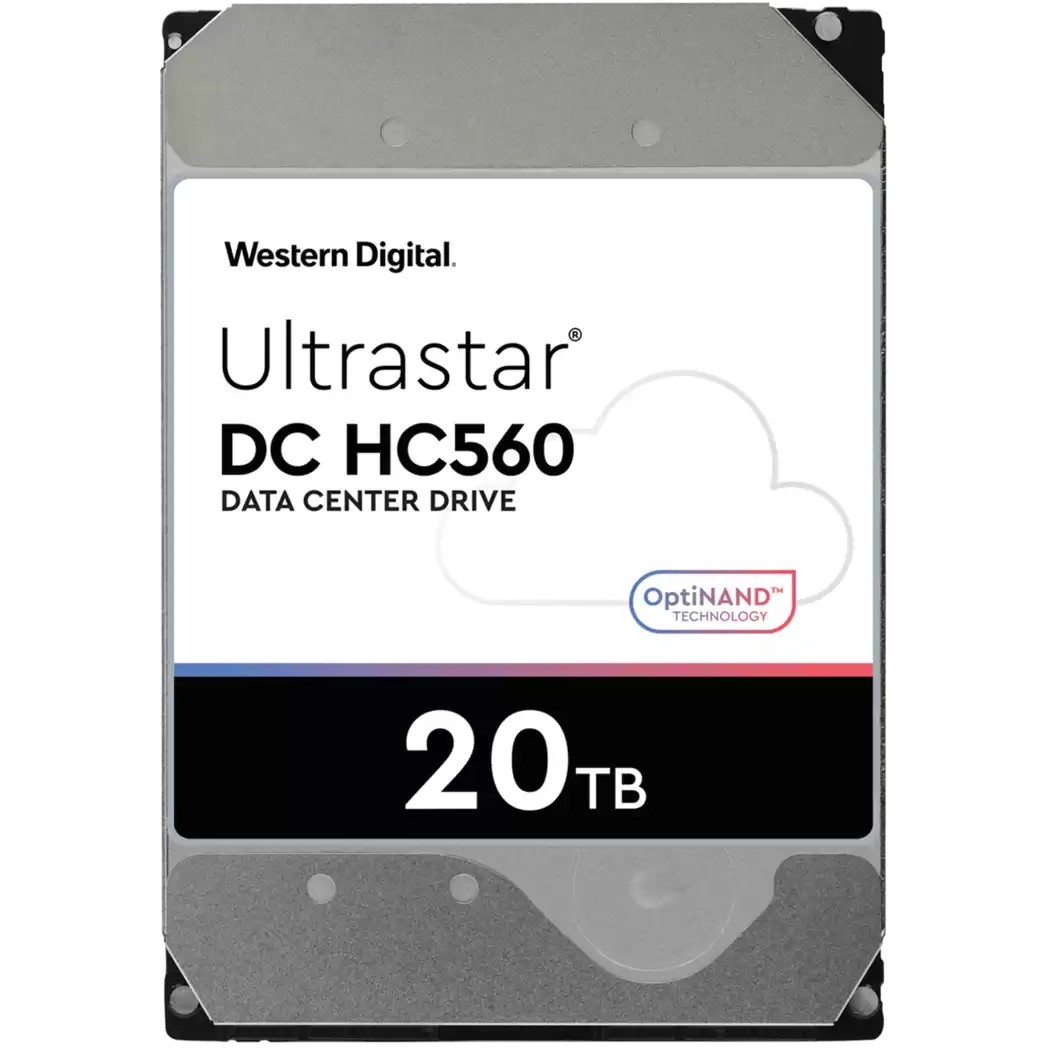

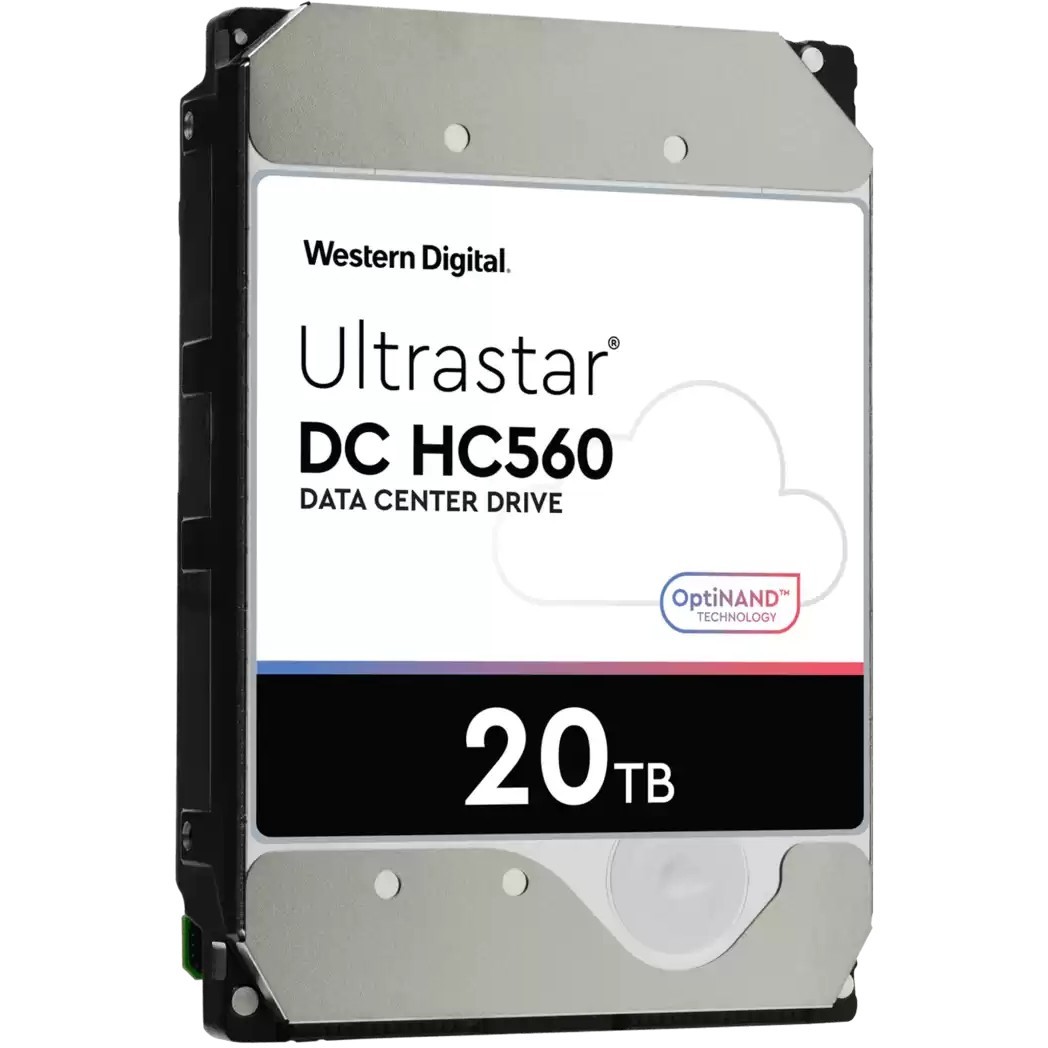

WD Ultrastar DC HC560 - 20TB 7200RPM 512MB Cache - 3.5in SATA III Enterprise/Data Center HDD
WD Ultrastar DC HC560 20TB enterprise HDD — 7200 RPM, 512 MB cache, 3.5in SATA III (6Gb/s), 257 MiB/s sustained, 550 TB/year workload, high MTBF.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 20TB |
| Storage (SSD & HDD) - Interface | SATA III 6Gb/s |
| Storage (SSD & HDD) - Form Factor | 3.5inch |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Intended Use | Data Center |
Western Digital Ultrastar DC HC560. HDD capacity: 20 TB. HDD speed: 7200 RPM. Storage drive buffer size: 512 MB. HDD size: 3.5". Interface: Serial ATA
| HDD capacity | 20 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5" |
| Interface | Serial ATA |
| Type | HDD |
| Component for | Server/workstation |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 257 MiB/s |
| Average latency | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Feature | Linux operating systems supported |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) | 2.5 h |
| Operating voltage | 5 / 12 V |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 50 G |
| Non-operating shock | 250 G |
| Width | 101.6 mm |
| Height | 147 mm |
| Depth | 26.2 mm |
| Weight | 690 g |
| Harmonized System (HS) code | 84717050 |
