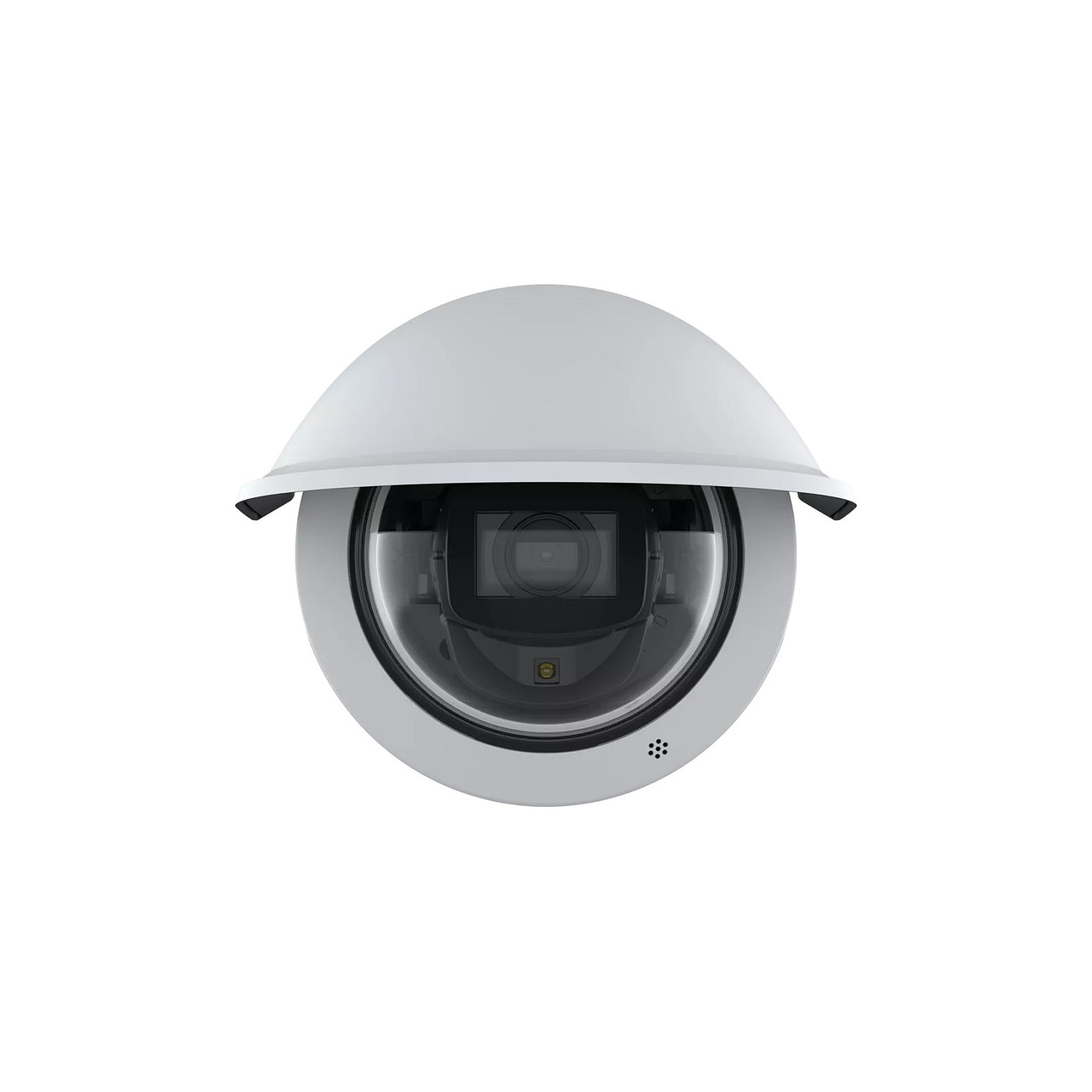

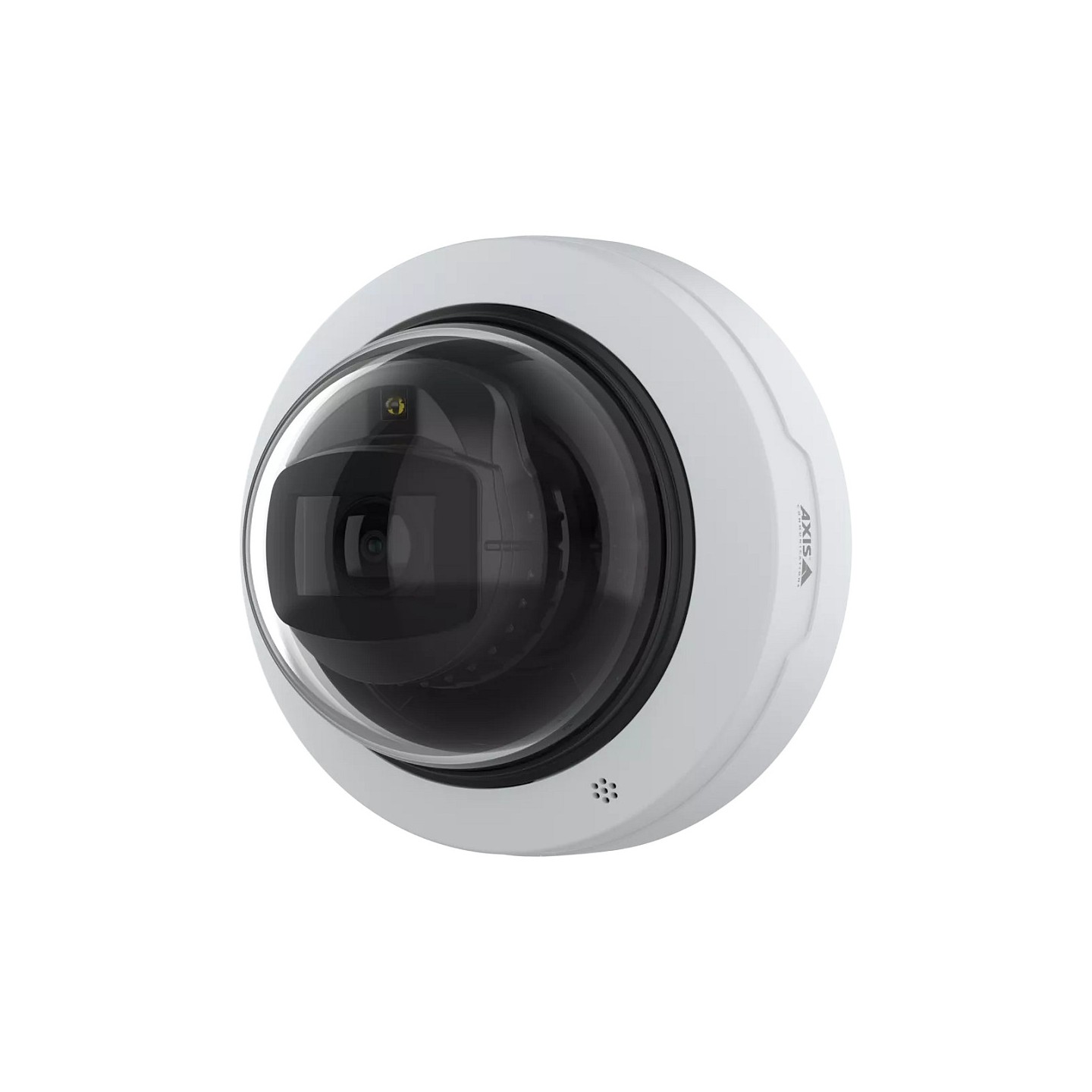

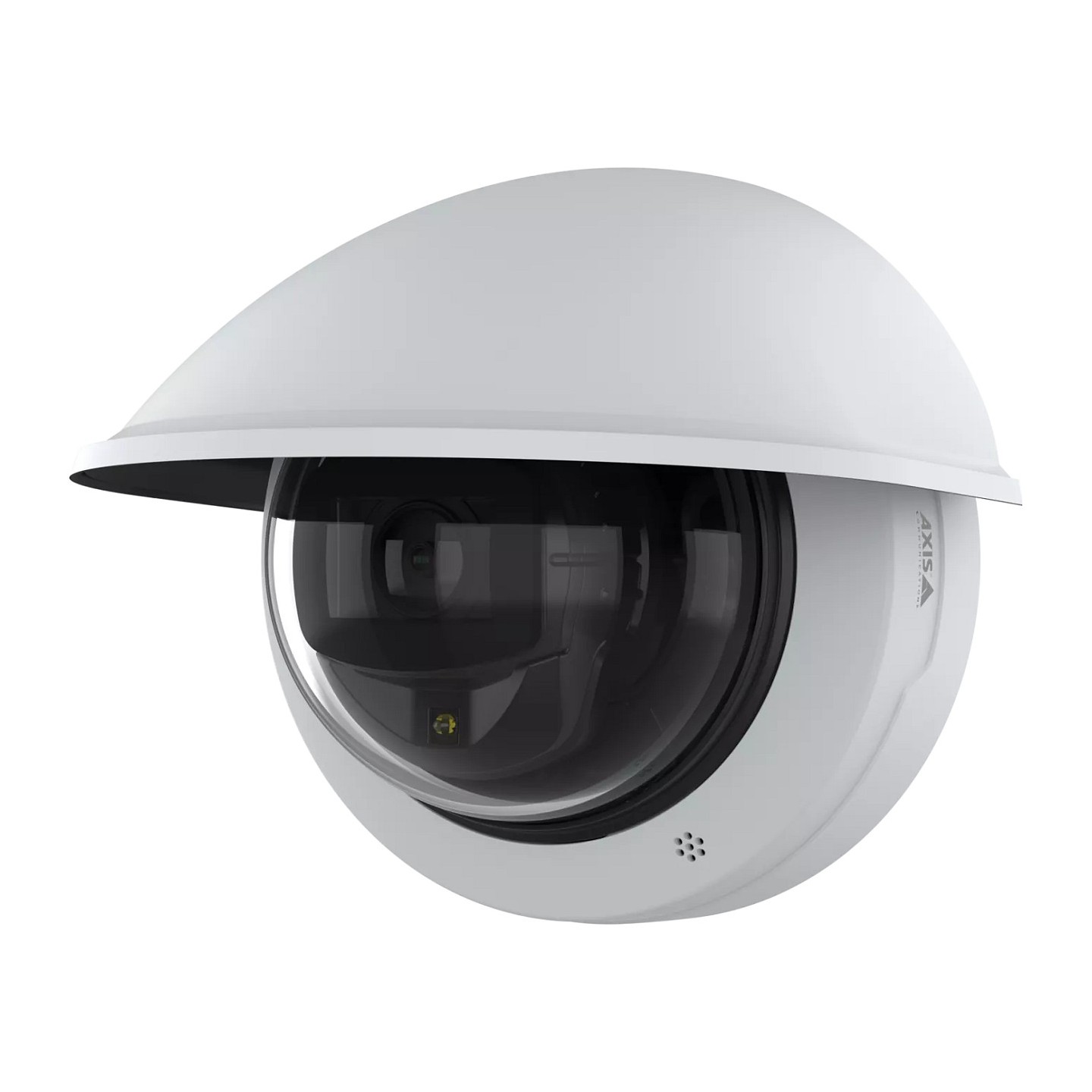

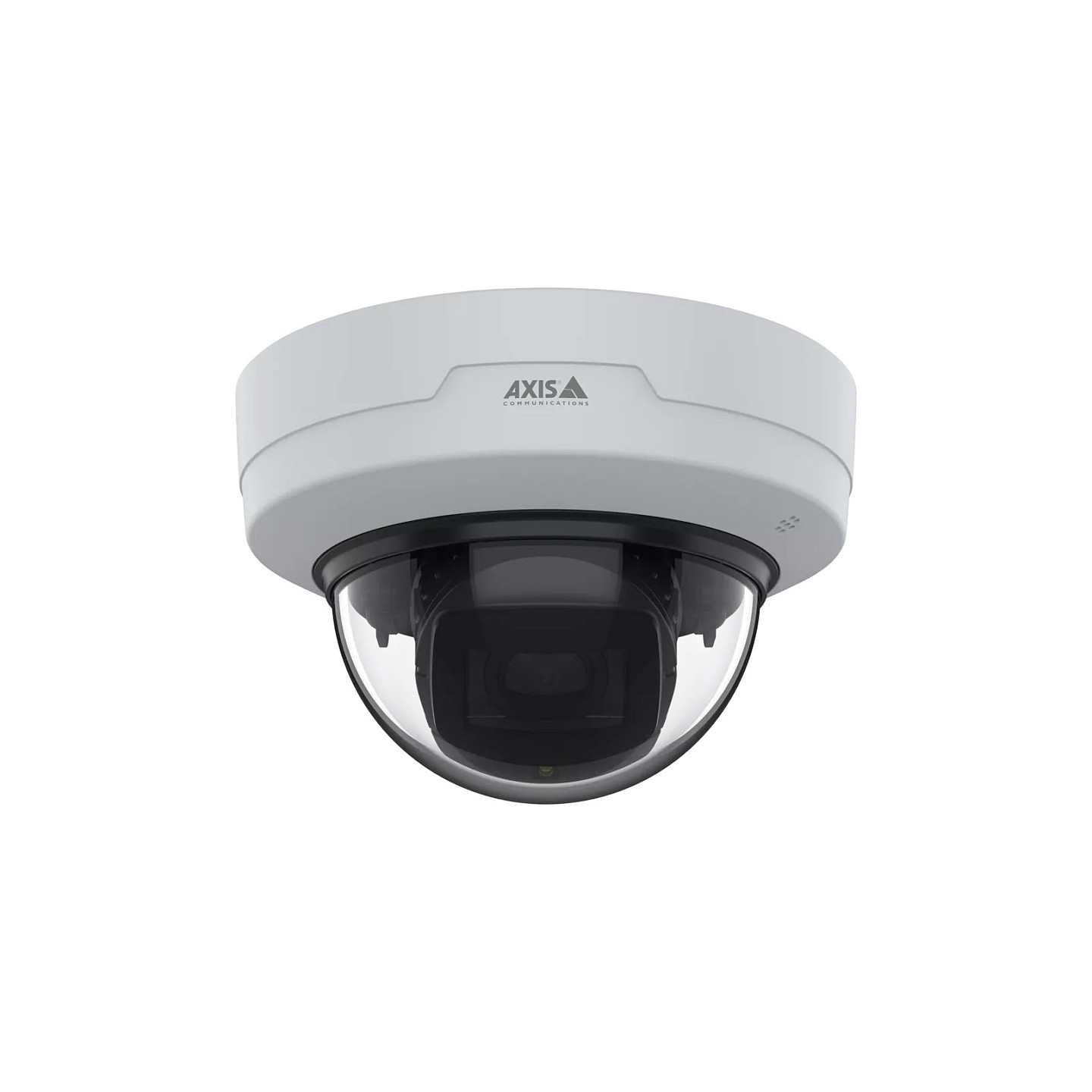

AXIS Netzwerkkamera Fix Dome M4225-LVE 2MP
Axis 02814-001. IP-Sicherheitskamera. Draußen. Kabelgebunden. Digitale PTZ. Wand. Schwarz. Weiß
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis 02814-001. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Draußen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Schwarz. Weiß. Formfaktor: Dome. Mindestbeleuchtung: 0.03 Lux. Drehungswinkel: 360°. Betrachtungswinkel (horizontal): 100°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 2.8 mm (1 / 2.8"). Signal-Rausch-Verhältnis (SNR) (Panoramakamera): 55 dB
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Betriebsanleitung |
| PTZ-Modi | Digitale PTZ |
| Formfaktor | Dome |
| Befestigungstyp | Wand |
| Produktfarbe | Schwarz. Weiß |
| Gehäusematerial | Kunststoff. Polycarbonat (PC) |
| Internationale Schutzart (IP-Code) | IP66 |
| IK-Kodex | IK10 |
| Mindestbeleuchtung | 0.03 Lux |
| Drehungswinkel | 360° |
| Betrachtungswinkel (horizontal) | 100° |
| Betrachtungswinkel (vertikal) | 52° |
| Neigungswinkelbereich | -10 - 65° |
| Schwenkbereich | -180 - 180° |
| Pixelgröße Kamera | 2.9 µm |
| Kamera Verschlusszeit | 1/20000 - 1.5 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor-Typ | CMOS |
| Signal-Rausch-Verhältnis (SNR) (Panoramakamera) | 55 dB |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 3.2 - 7.2 mm |
| Maximale Blendenzahl | 2.7 |
| Minimale Blendenzahl | 2.9 |
| Abstandsfeststellung (wide) | 43.7 m |
| Abstandsfeststellung (tele) | 101.8 m |
| Abstandsbeobachtung (wide) | 17.4 m |
| Abstandsbeobachtung (tele) | 40.4 m |
| Abstandserkennung (wide) | 8.8 m |
| Abstandserkennung (tele) | 20.4 m |
| Abstandsermittlung (wide) | 4.4 m |
| Abstandsermittlung (tele) | 10.2 m |
| Naheinstellgrenze | 1 m |
| Nachtsichtdistanz | 20 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Megapixel insgesamt | 2 MP |
| Unterstützte Videoformate | AVC. H.264. H.265. HEVC. M-JPEG. MPEG4 |
| Unterstützte Grafik-Auflösungen | 320 x 240. 640 x 360. 1280 x 960. 1920 x 1080 (HD 1080) |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Farbsättigung. Schärfe |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.1x. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt |
| Streaming-Verfahren | Multicasting |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher | 8000 MB |
| RAM-Kapazität | 1000 MB |
| Unterstützte Sicherheitsalgorithmen | EAP-TLS. HTTPS. MSCHAPv2. PEAP. TLS |
| Intelligent Video Surveillance-(IVS)-System-Eigenschaften | Verlassenes Objekt. Erkennung Leitungskreuzungen. Moving object |
| Energiequelle | PoE |
| Stromverbrauch (Standardbetrieb) | 2.7 W |
| Stromverbrauch (max.) | 10.5 W |
| Betriebstemperatur | -30 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 140 mm |
| Tiefe | 112 mm |
| Höhe | 126 mm |
| Gewicht | 540 g |
| Konformitätsbescheinigungen | BSMI. CE. EAC. RCM. REACH. RoHS. Gesetz über Handelsabkommen (TAA). UKCA. UL. VCCI. cUL |
| Anzahl der Kameras | 1 |
| Enthält nicht | Brominated Flame Retardant (BFR). CFR. PVC |
