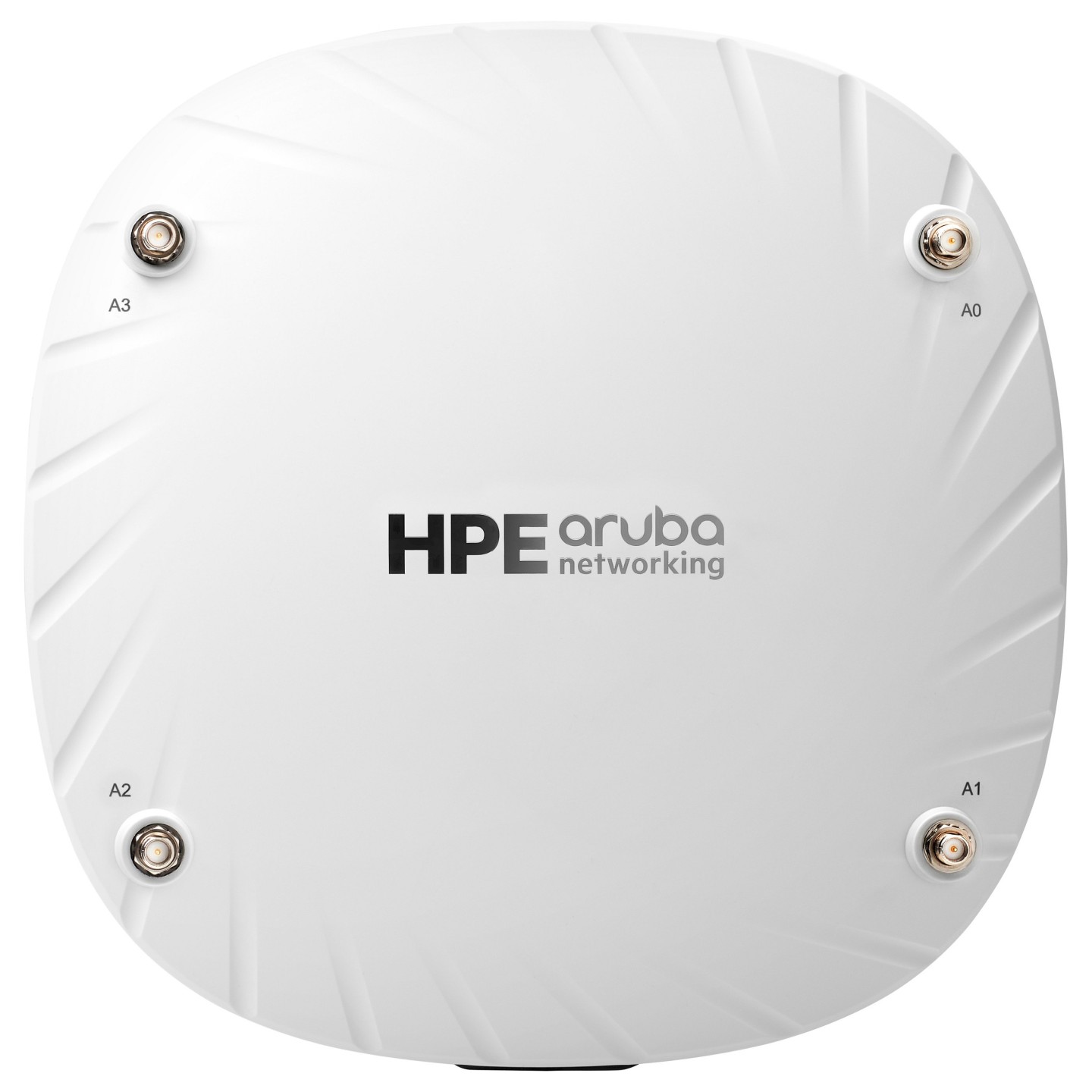

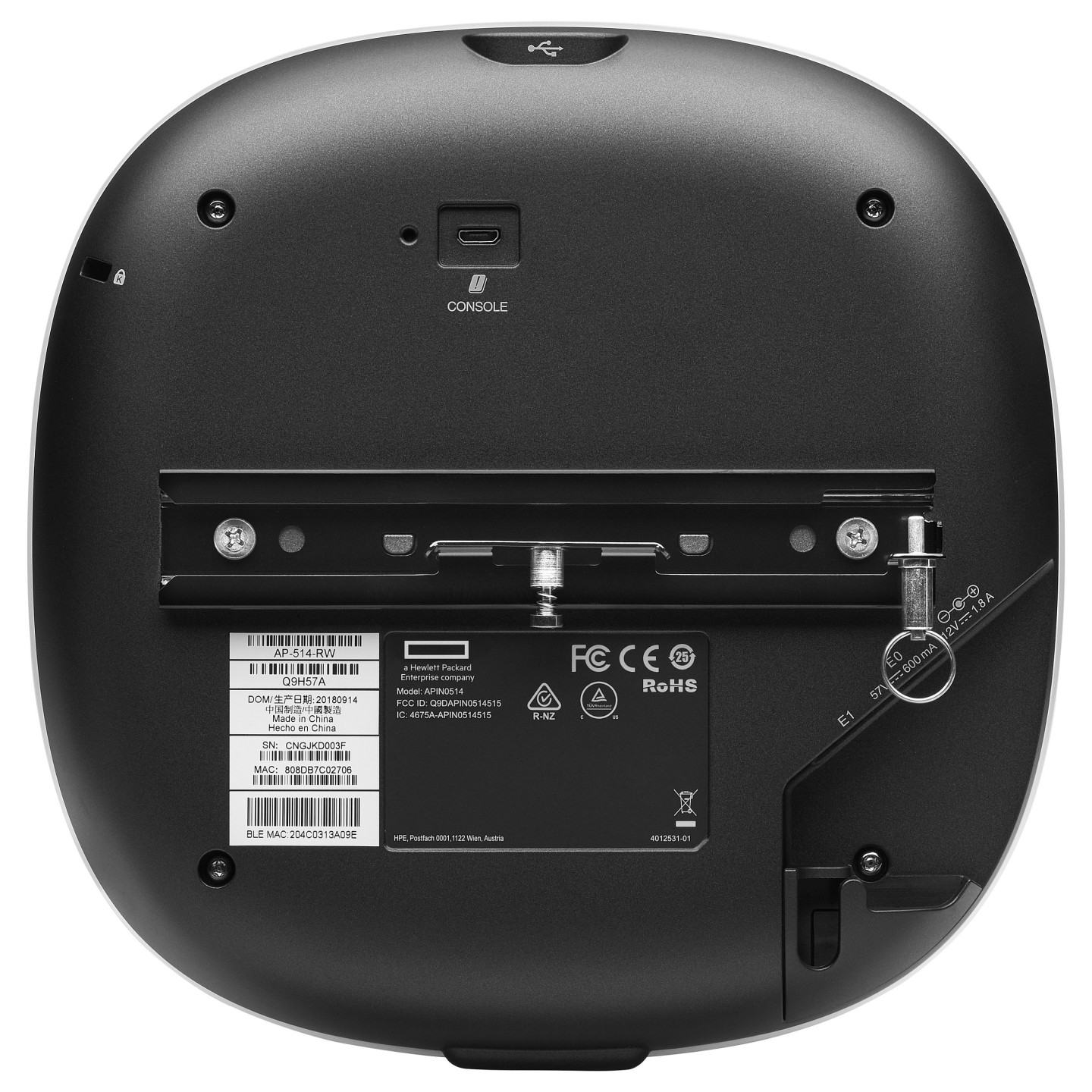

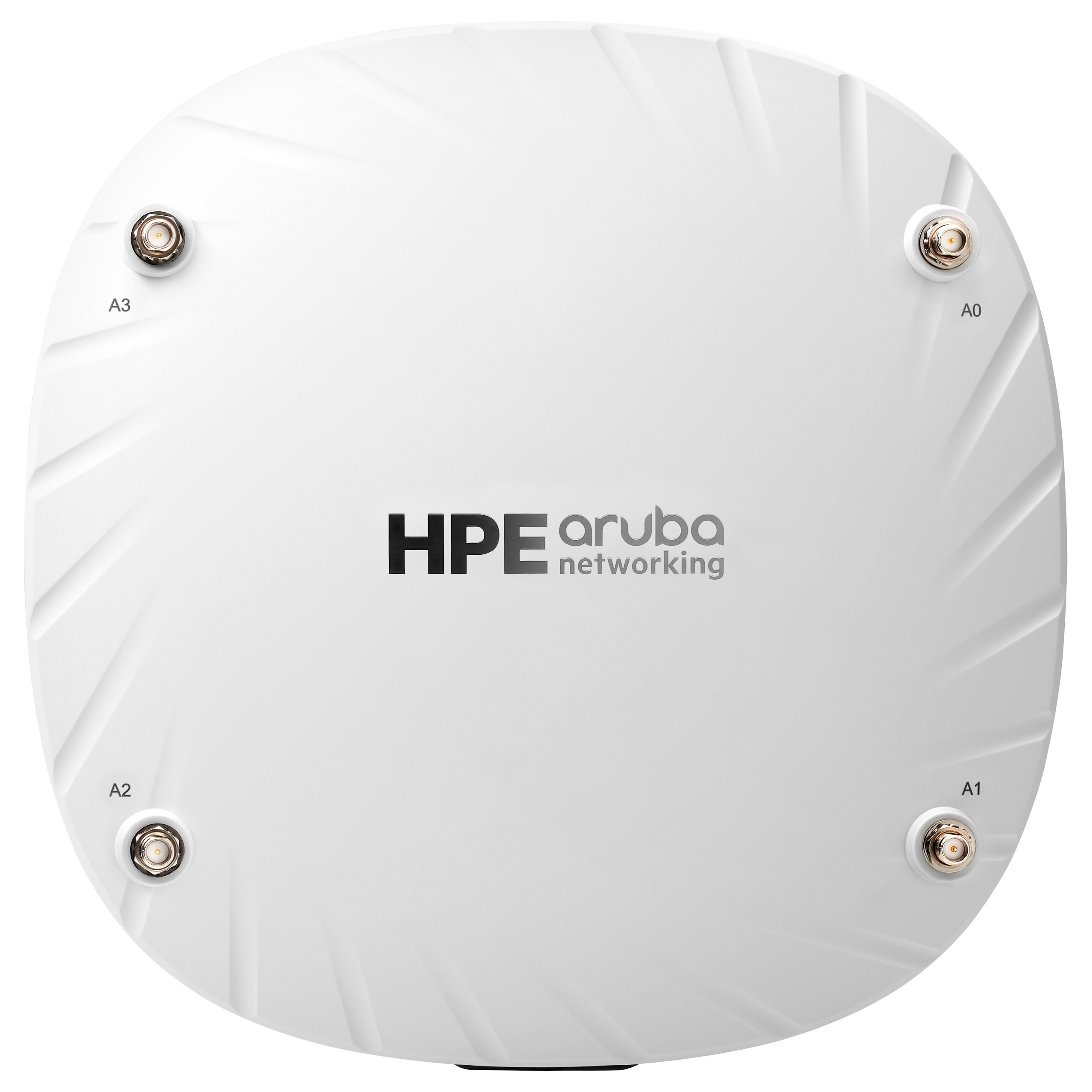

HPE Aruba AP-514 Access Point RW Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP. 2.4 GHz. 5 GHz. 5375 Mbit/s. WMM. WPA. WPA2. 1000.2500.5000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP. 2.4 GHz. 5 GHz. Maximale Datenübertragungsrate: 5375 Mbit/s. Unterstützte Sicherheitsalgorithmen: WMM. WPA. WPA2. Ethernet LAN Datentransferraten: 1000.2500.5000 Mbit/s. Power over Ethernet (PoE). Produktfarbe: Weiß
| Feature | Kabelsperre-Slot |
| Maximale Datenübertragungsrate | 5375 Mbit/s |
| Maximale Datenübertragungsrate (2.4 GHz) | 575 Mbit/s |
| Maximale Datenübertragungsrate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN Datentransferraten | 1000.2500.5000 Mbit/s |
| Frequenzband | 20/40 (2.4 GHz). 20/40/80/160 (5 GHz). and maximum peak data rate 2.69 Gbps |
| Netzstandard | IEEE 802.11ax. IEEE 802.11mc |
| Spread-Spectrum Methode | DSSS. OFDM |
| Modulation | 16-QAM. 64-QAM. 256-QAM. 1024-QAM. BPSK. CCK. QPSK |
| Unterstützte Sicherheitsalgorithmen | WMM. WPA. WPA2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB-Stecker | USB Typ-A |
| Stromverbrauch (Standardbetrieb) | 16 W |
| Platzierung | Zimmerdecke |
| Produktfarbe | Weiß |
| Slot-Typ Kabelsperre | Kensington |
| Empfohlene Nutzung | Drinnen |
| Antennentyp | Extern |
| Antenne Steckertyp | RP-SMA |
| Anzahl der Verbinder | 4 |
| Konformitätsbescheinigungen | Eidgenössische Kommunikationskommission (FCC). ISED. CE. Elektromagnetische Verträglichkeit (EMV). Niederspannungsrichtlinie (LVD) |
| Breite | 200 mm |
| Tiefe | 200 mm |
| Höhe | 46 mm |
| Gewicht | 810 g |
| Verpackungsbreite | 230 mm |
| Verpackungstiefe | 220 mm |
| Verpackungshöhe | 72 mm |
| Paketgewicht | 1.01 kg |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 93% |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 93% |
| Warentarifnummer (HS) | 85176990 |
