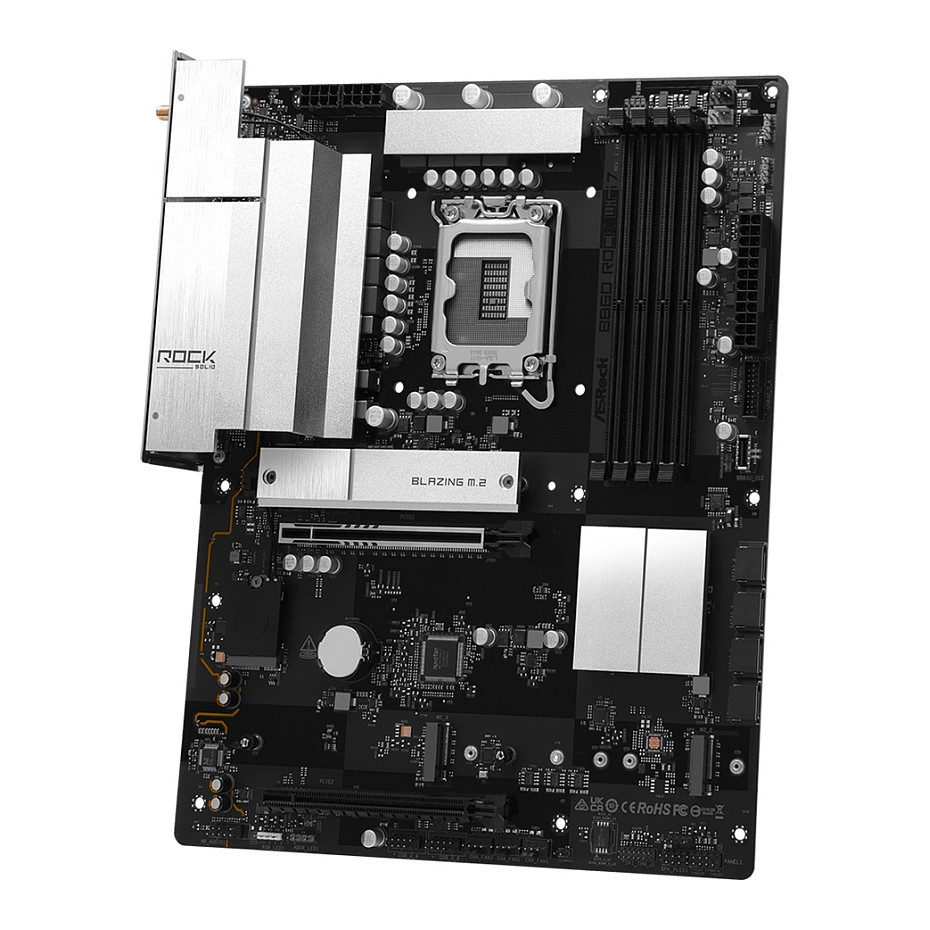

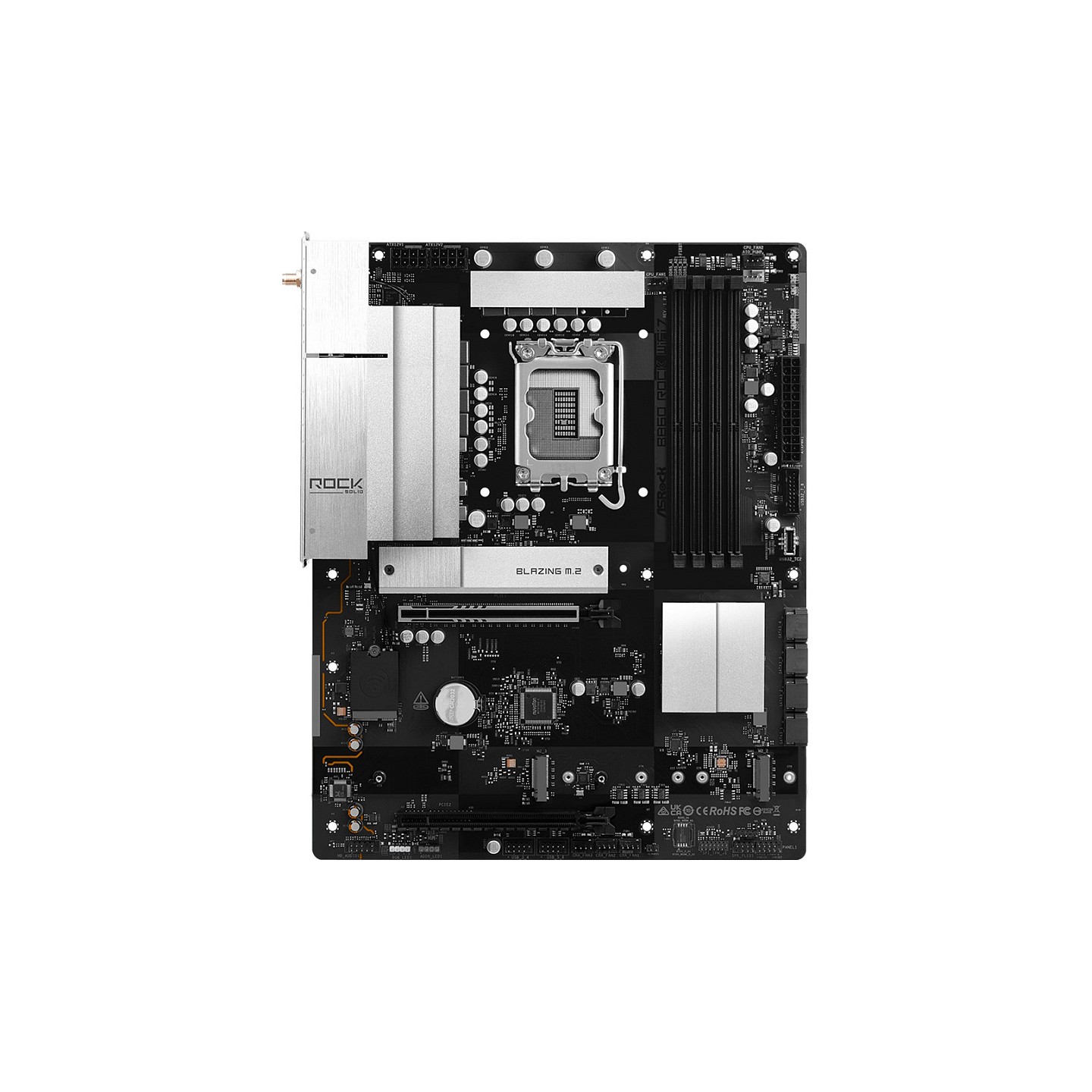

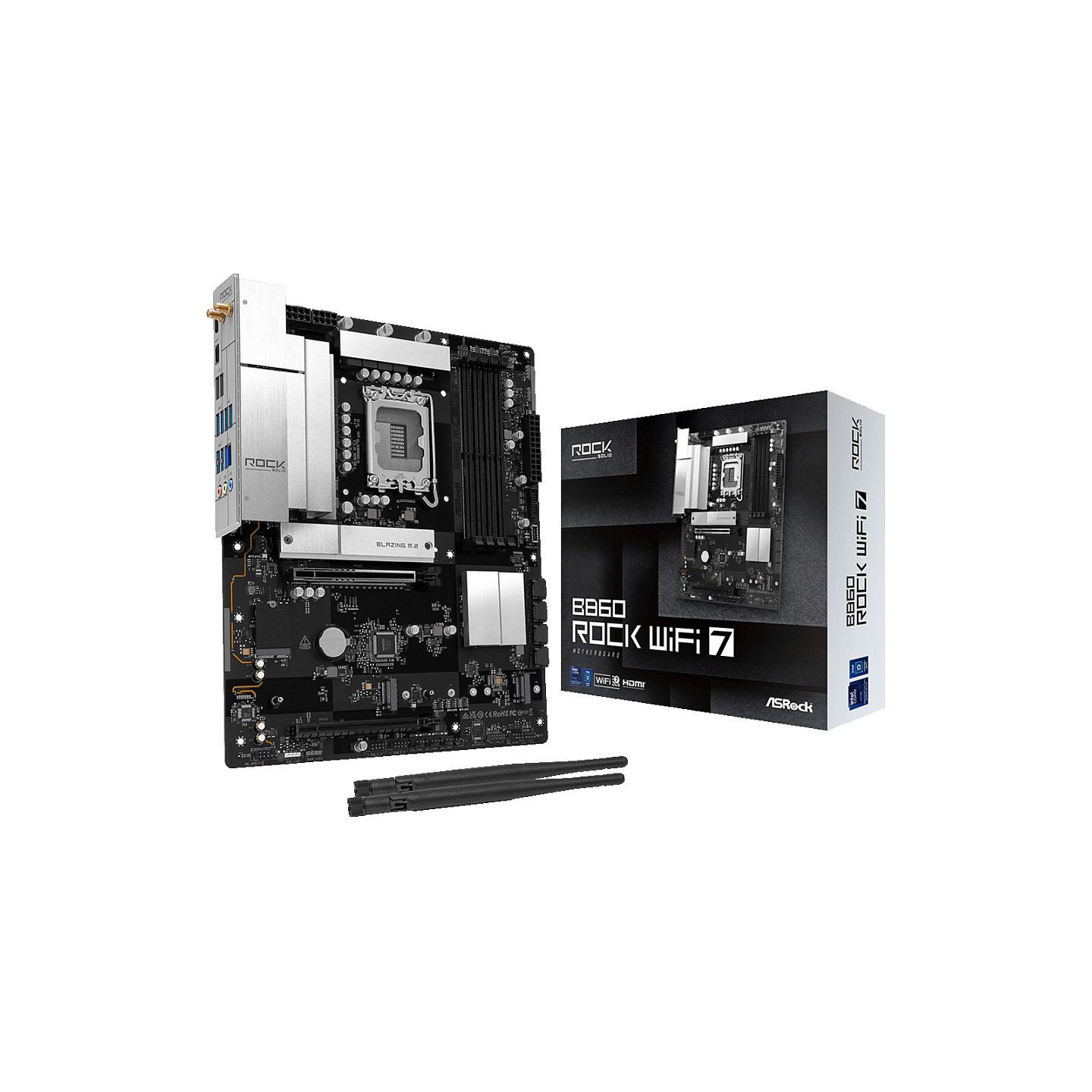

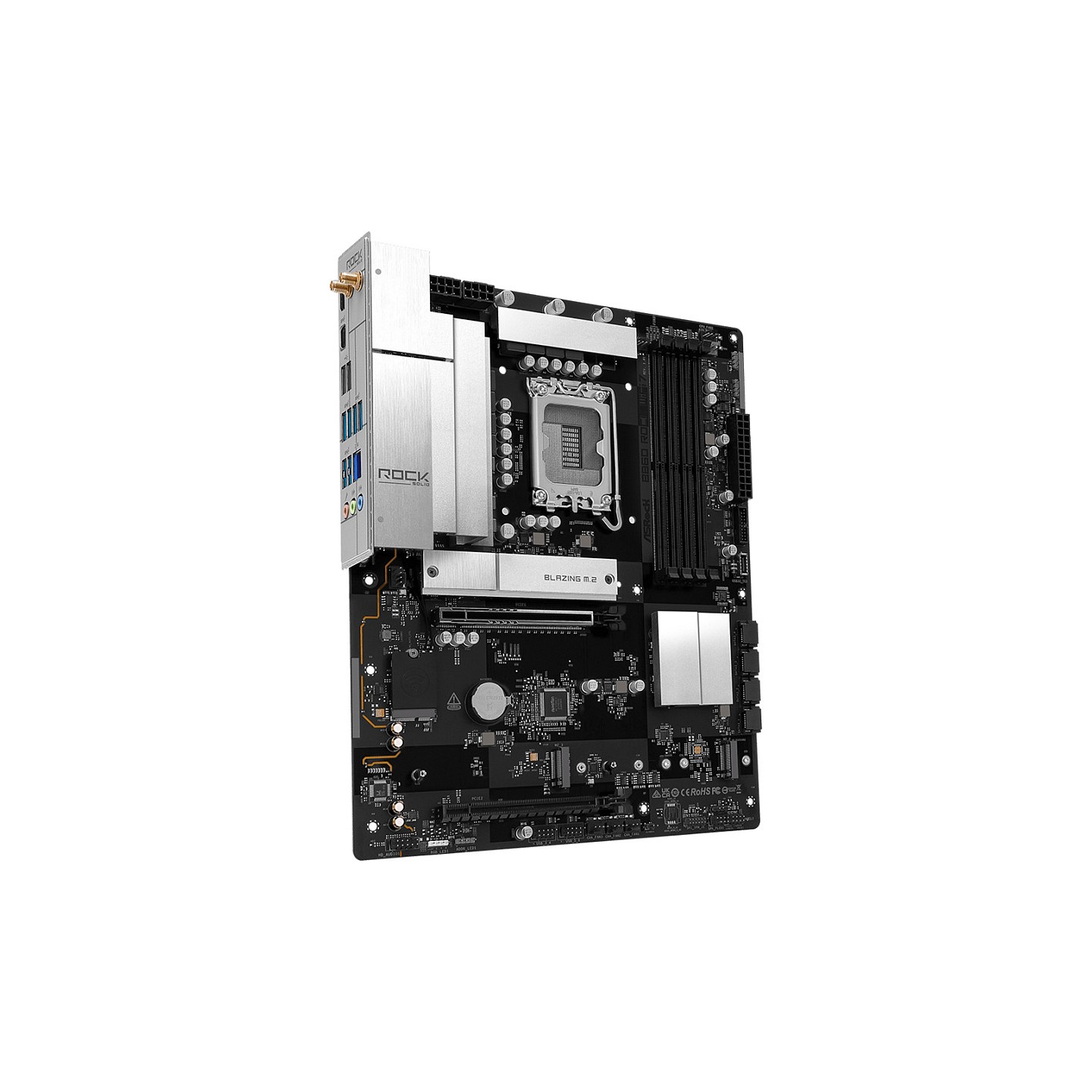

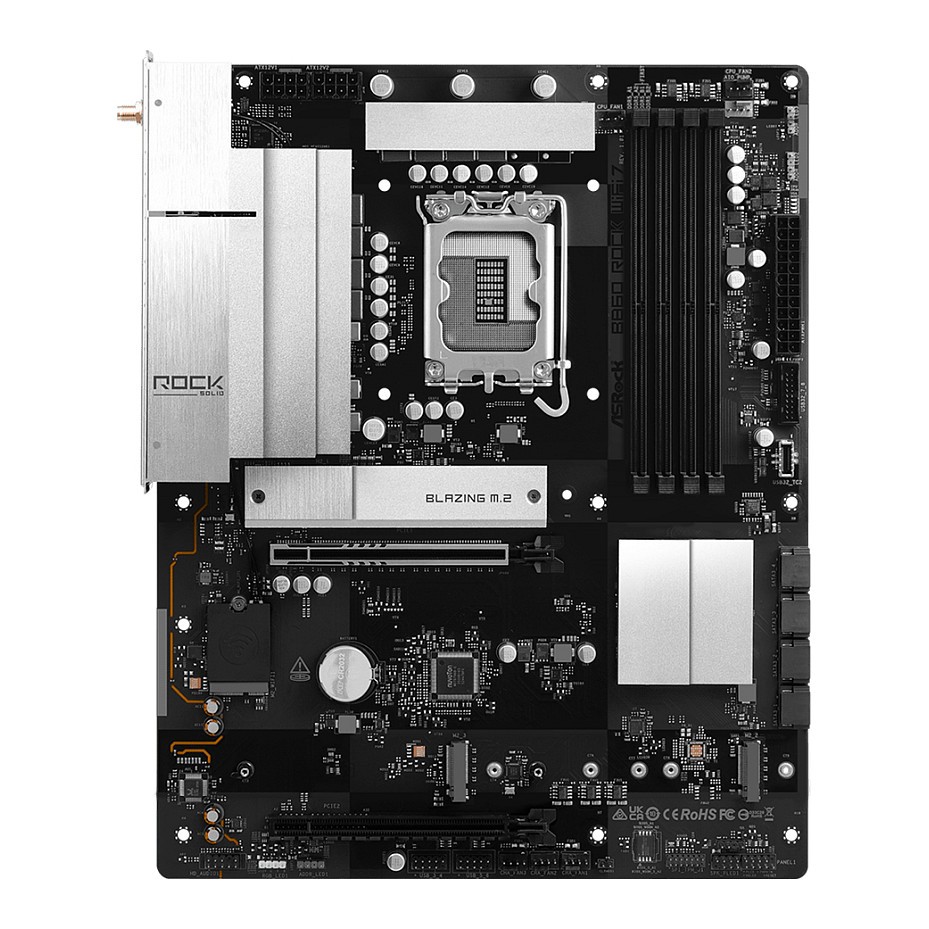

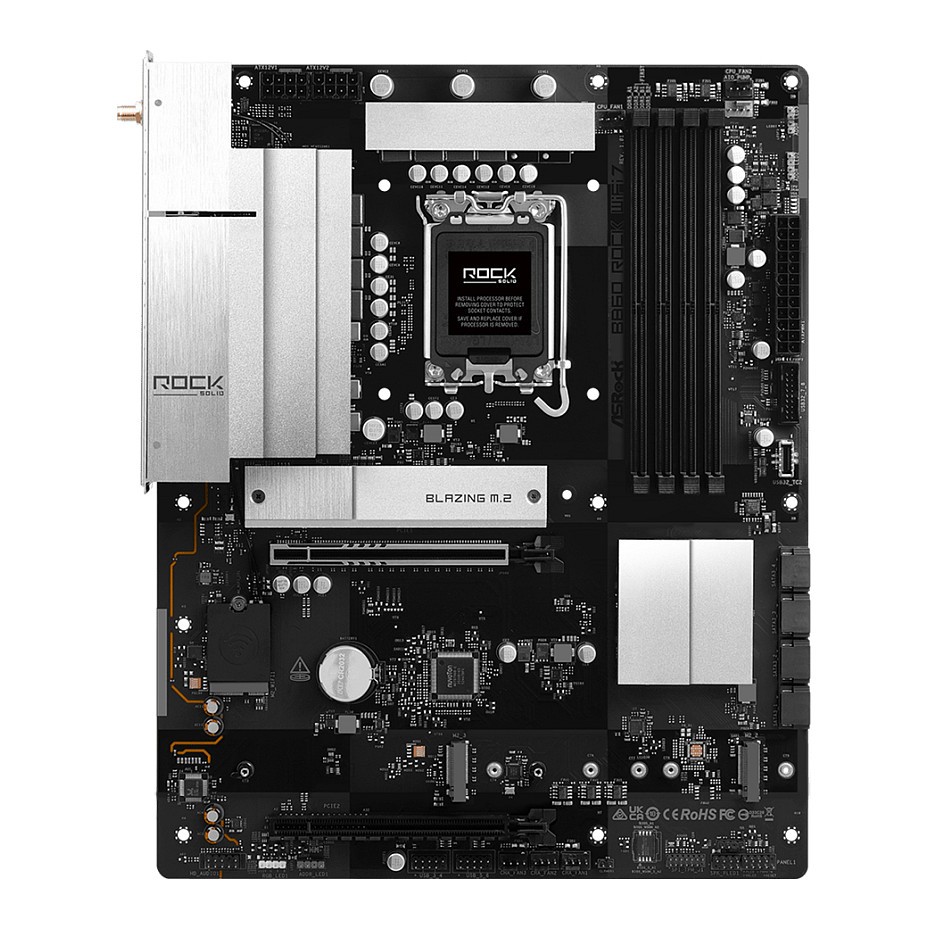

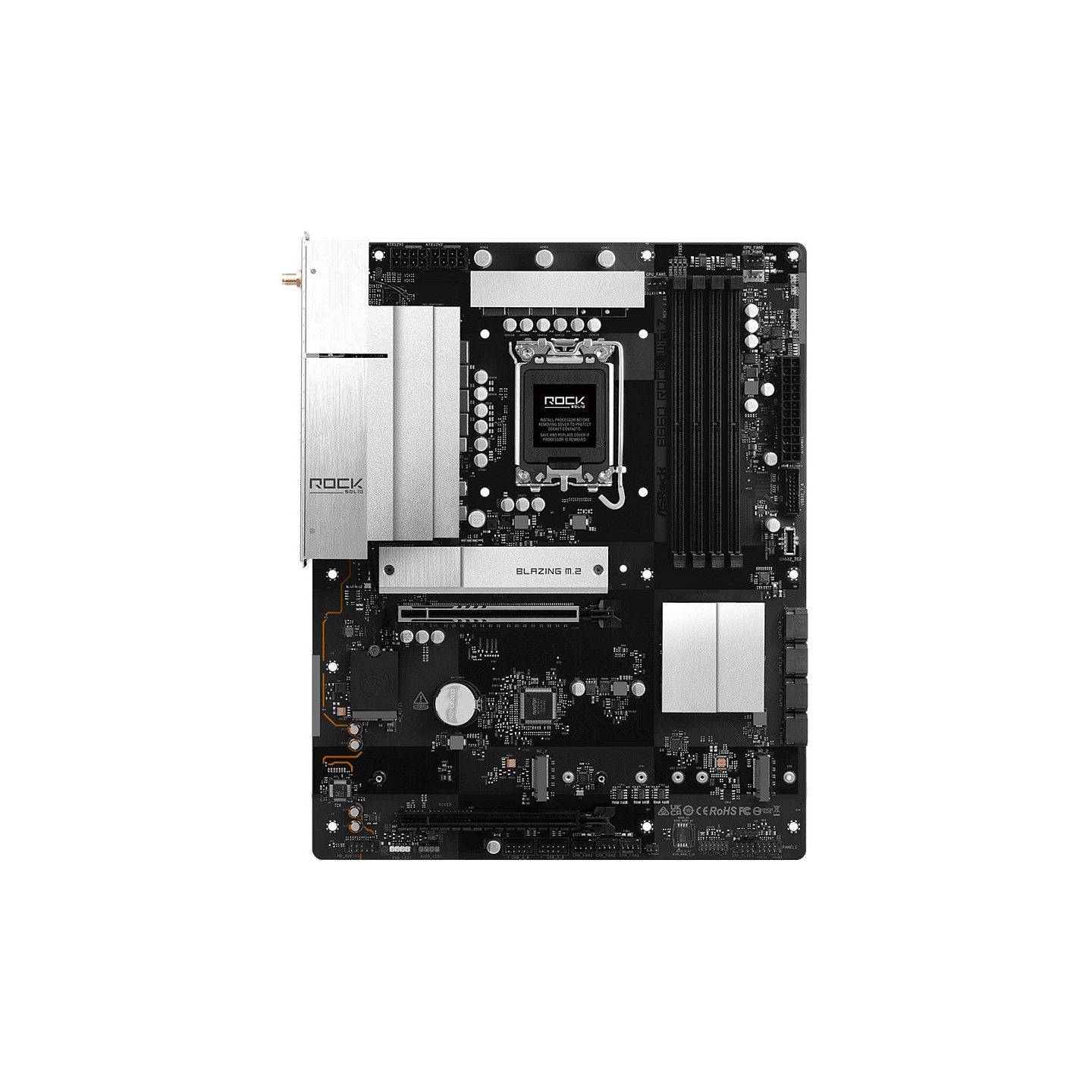

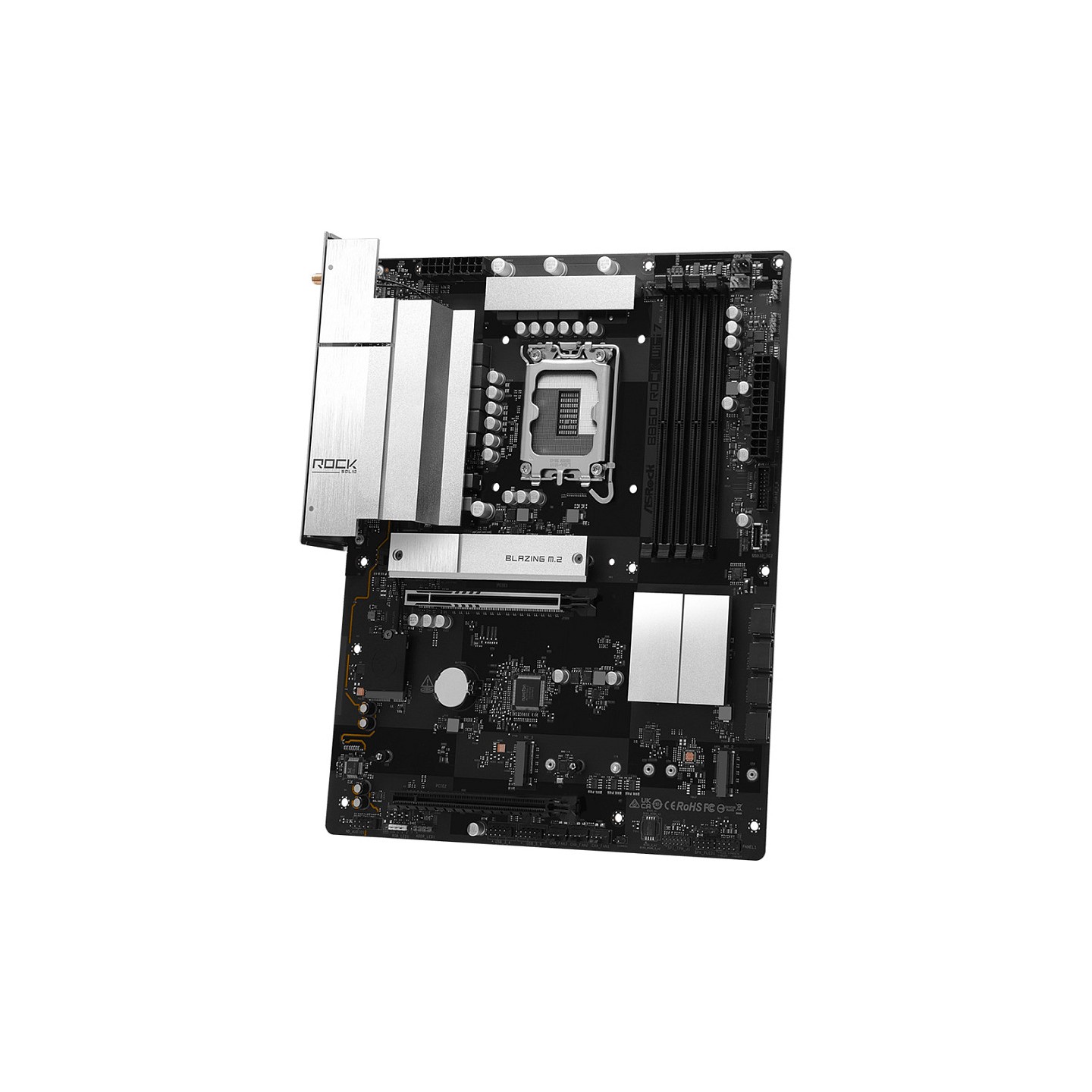

ASROCK B860 Rock WiFi 7 DDR5 Intel S1851 retail
Asrock B860 Rock WiFi 7. Intel. LGA 1851 (Socket V1). Intel Core Ultra (Series 2). LGA 1851. DDR5-SDRAM. 256 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock B860 Rock WiFi 7. Prozessorhersteller: Intel. Prozessorsockel: LGA 1851 (Socket V1). Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 256 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express 4.0. PCI Express 5.0. SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. RAID Level: 0. 1. 5. 10. Maximale Auflösung: 3840 x 2160 Pixel. USB-Stecker: USB Typ-A. USB Typ-C
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1851 (Socket V1) |
| Kompatible Prozessoren | Intel Core Ultra (Series 2) |
| Unterstützte Prozessorsteckplätze | LGA 1851 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Speichertaktrate (max.) | 8666 MHz |
| RAM-Speicher maximal | 256 GB |
| Feature | Antenne enthalten |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express 4.0. PCI Express 5.0. SATA III |
| Anzahl der unterstützten Speicherlaufwerke | 7 |
| RAID Level | 0. 1. 5. 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 3840 x 2160 Pixel |
| HDCP-Version | 2.3 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| Anzahl der CPU-Lüfteranschlüsse | 2 |
| Zahl der Chassisventilatorstecker | 4 |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 2 |
| Anzahl der Wasserpumpenanschlüsse | 1 |
| Anzahl der RGB-LED-Stiftleisten | 1 |
| Anzahl USB 2.0 Anschlüsse | 2 |

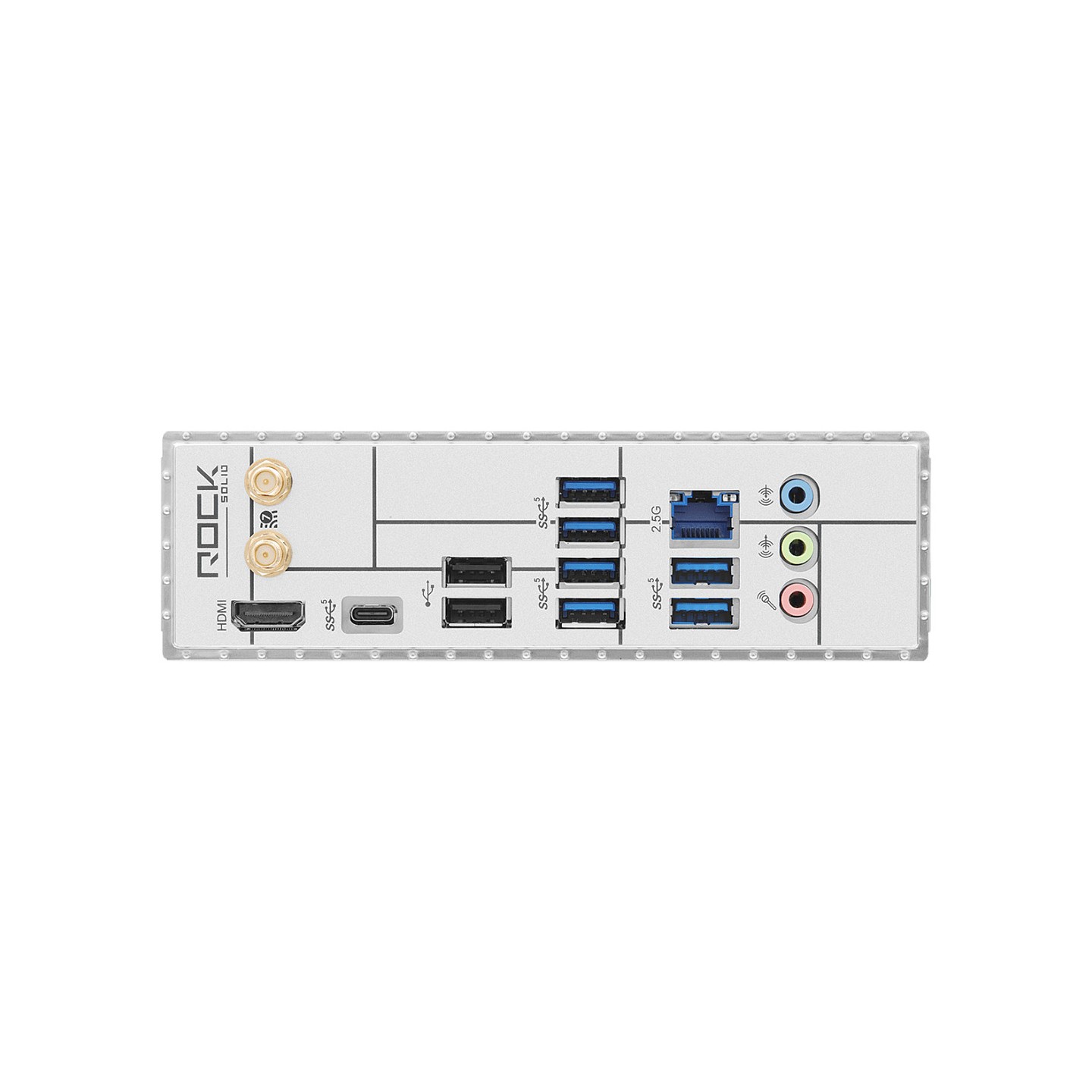

| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Kopfhörerausgänge | 3 |
| WiFi-AP-Antennenbuchse | 2 |
| USB-Stecker | USB Typ-A. USB Typ-C |
| Ethernet Schnittstellen Typ | Schnelles Ethernet. Gigabit Ethernet. 2.5 Gigabit Ethernet |
| LAN-Controller | Dragon RTL8125BG |
| Top WLAN-Standard | Wi-Fi 7 (802.11be) |
| WLAN-Standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax). Wi-Fi 7 (802.11be) |
| Bluetooth-Version | 5.4 |
| Motherboard Chipsatz | Intel B860 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 11 x64 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 3 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 5.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| 3. M.2 größte Schlüsselgröße | 2280 |
| 3. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| Breite | 305 mm |
| Tiefe | 244 mm |
| Mitgelieferte Kabel | SATA |
| Konformitätsbescheinigungen | Eidgenössische Kommunikationskommission (FCC). CE |
