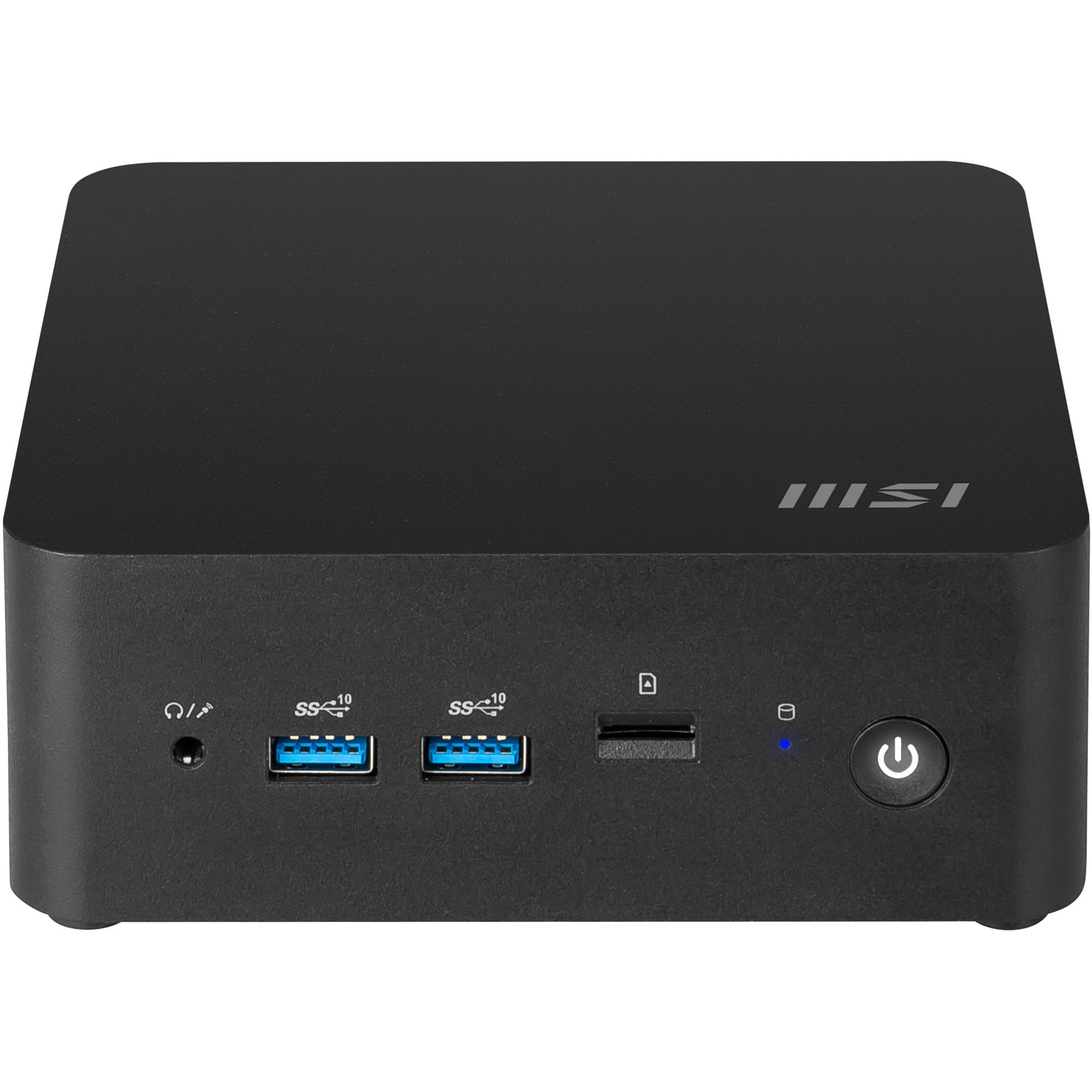

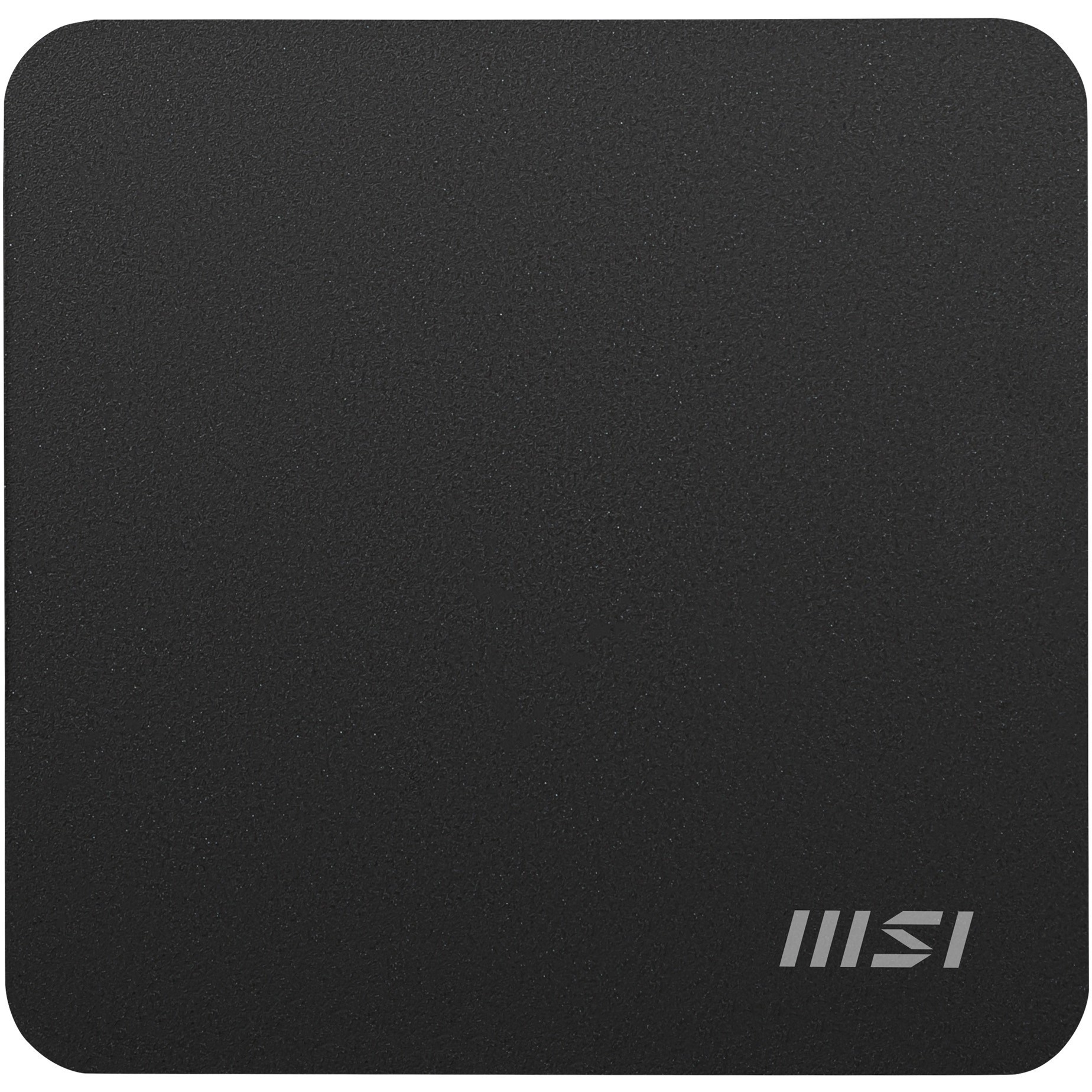

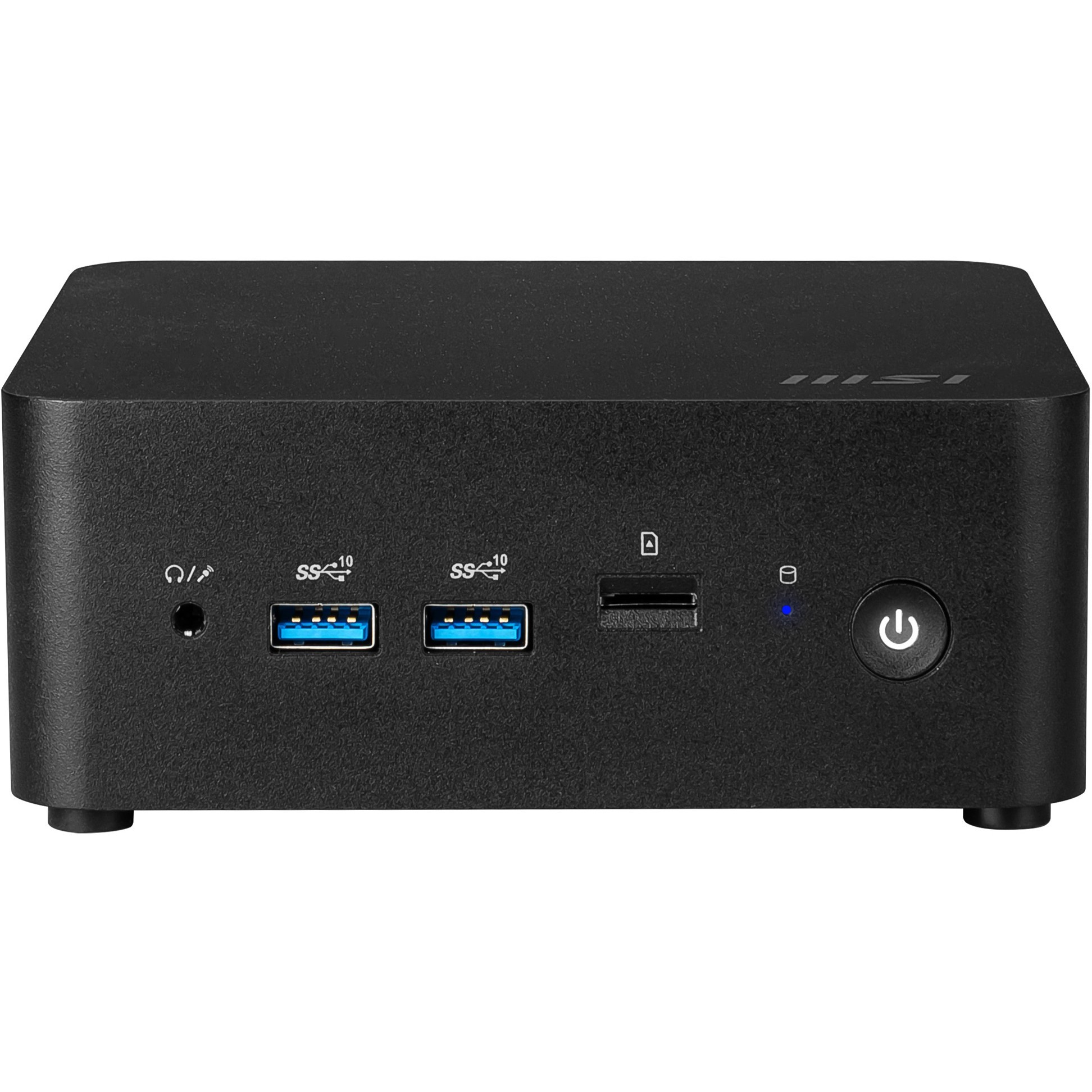

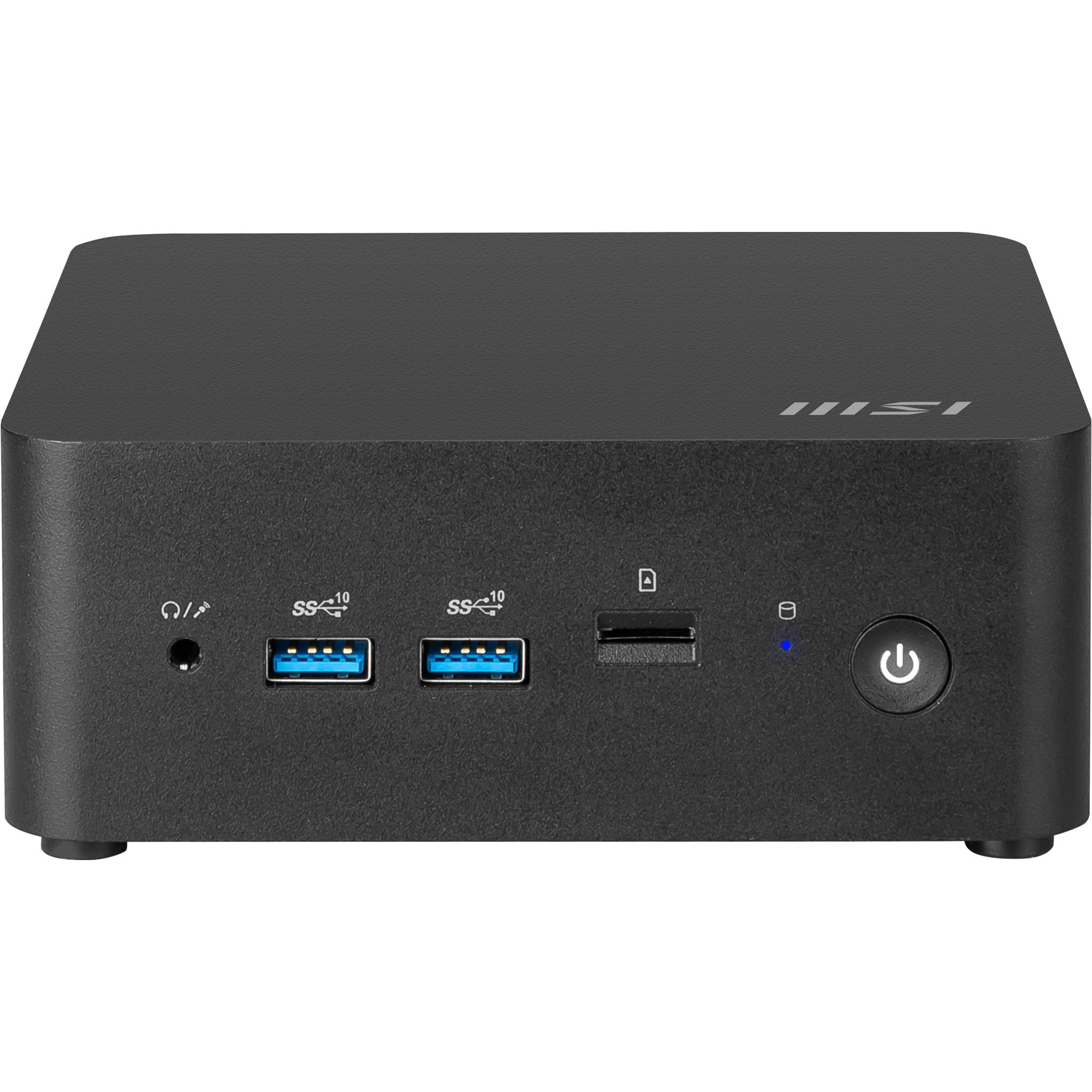

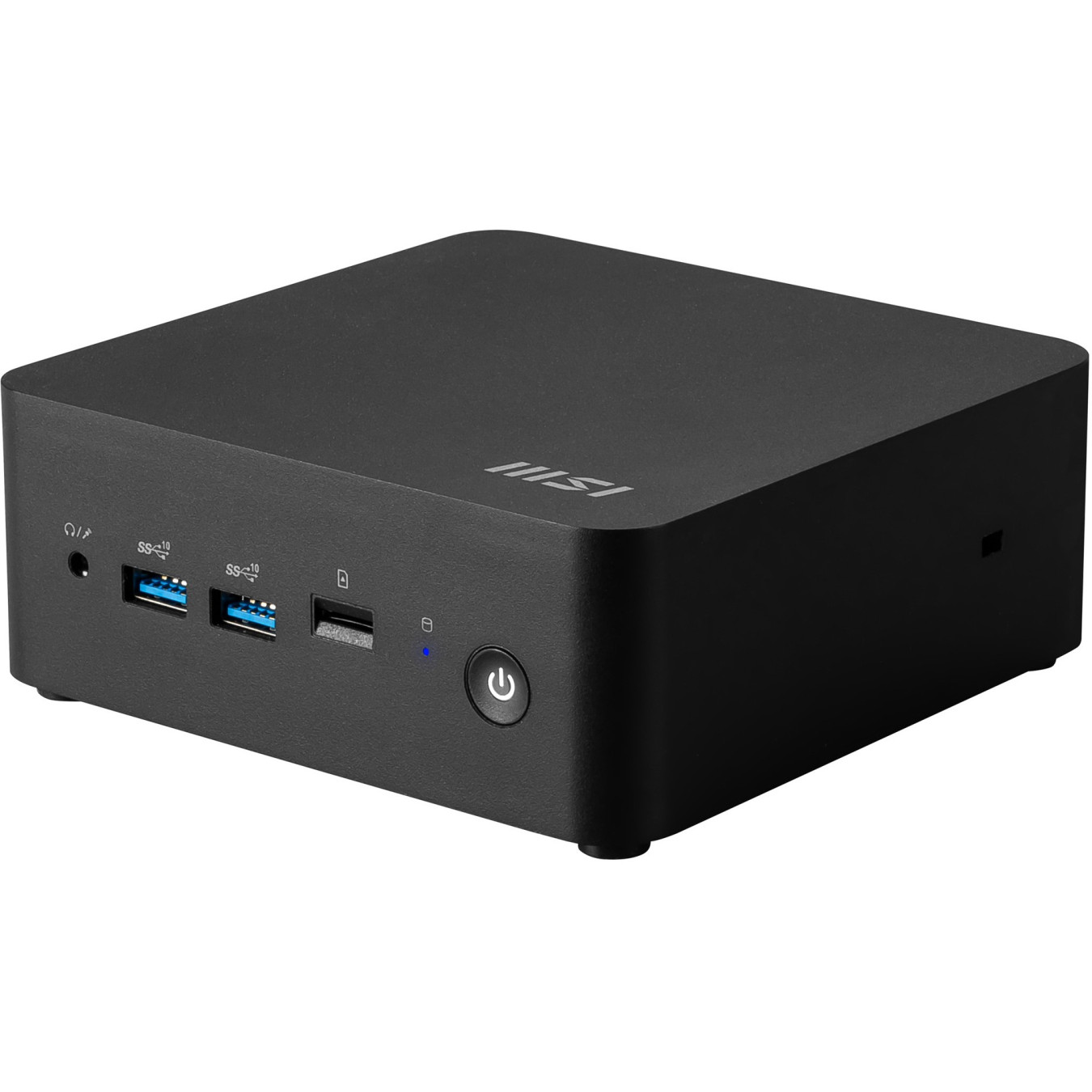

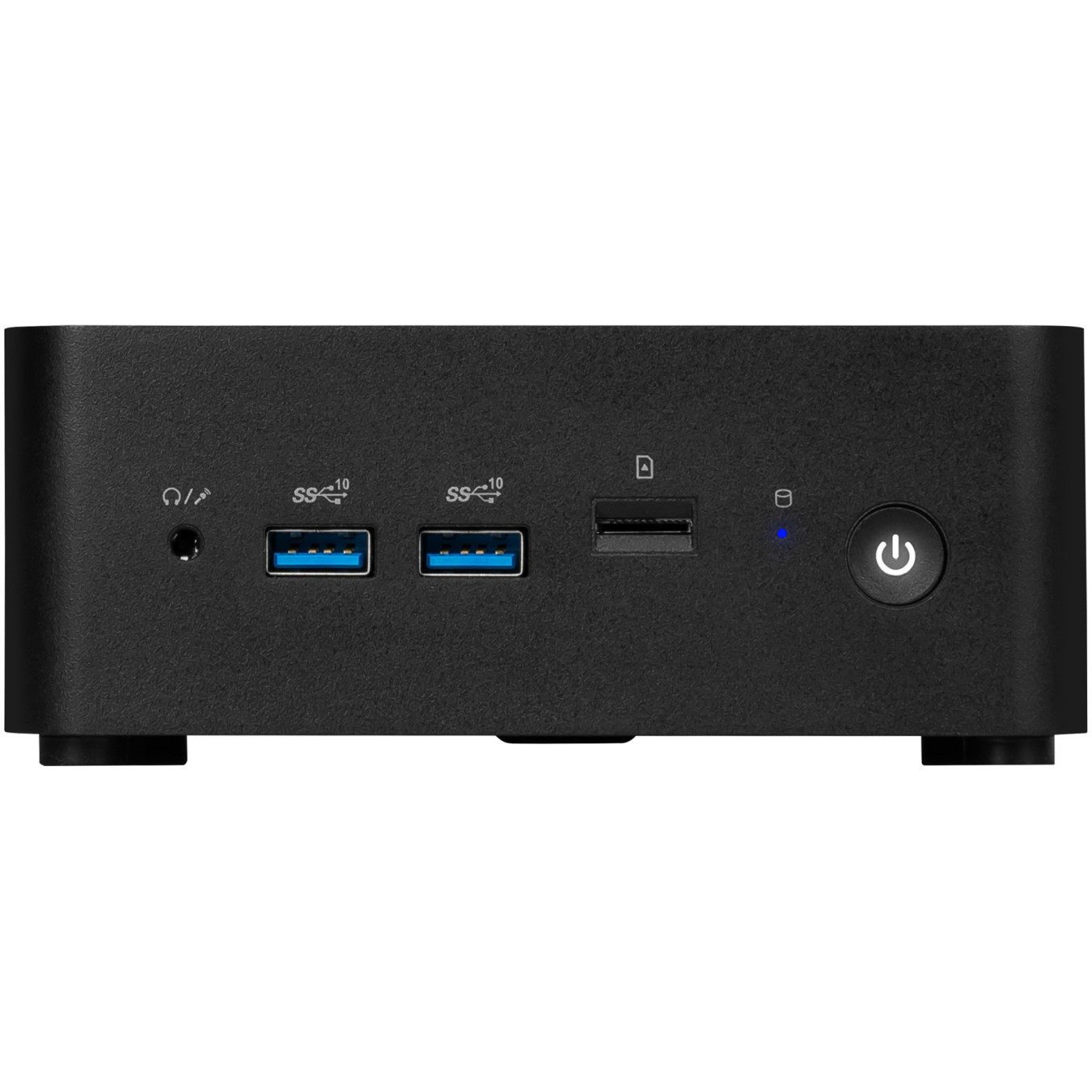

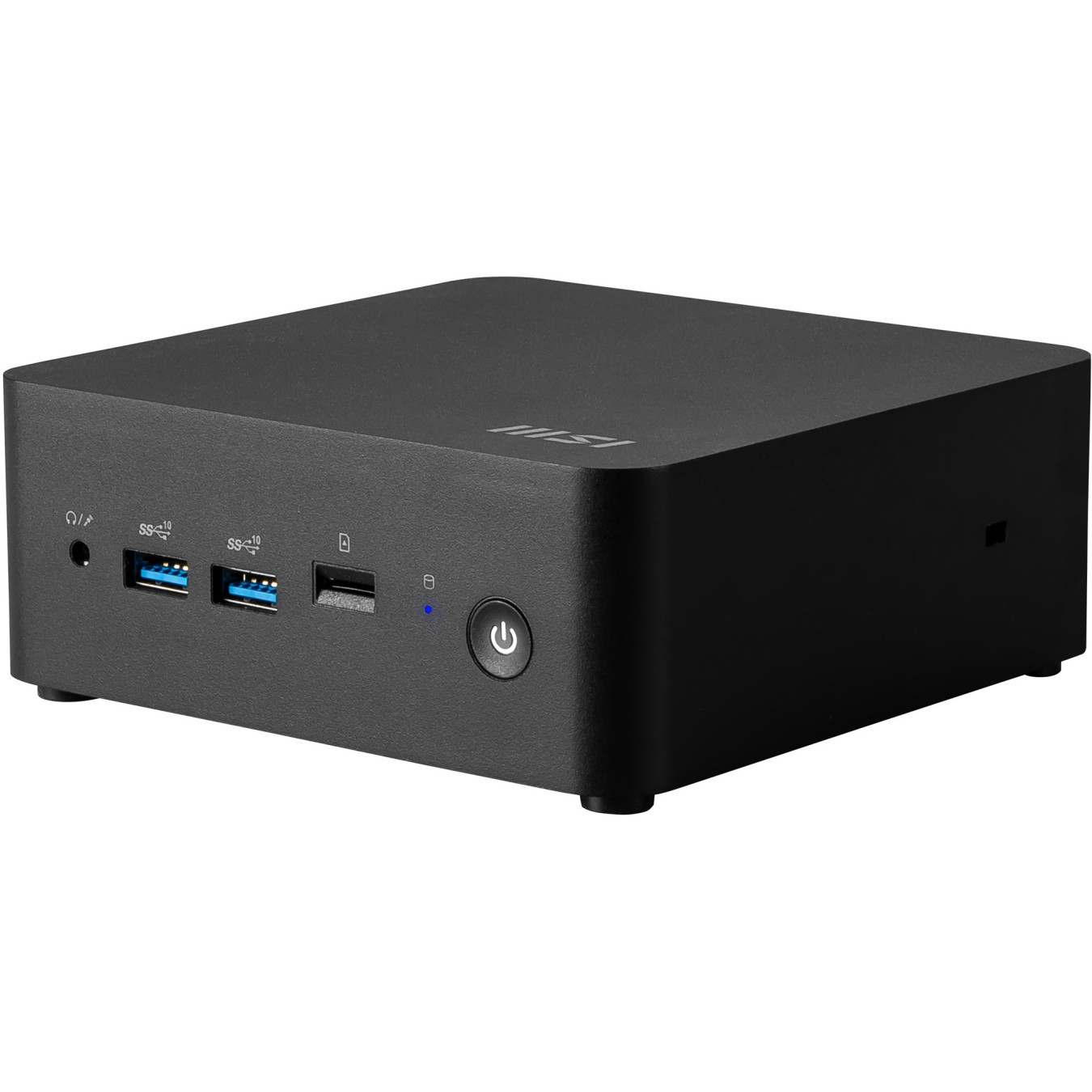

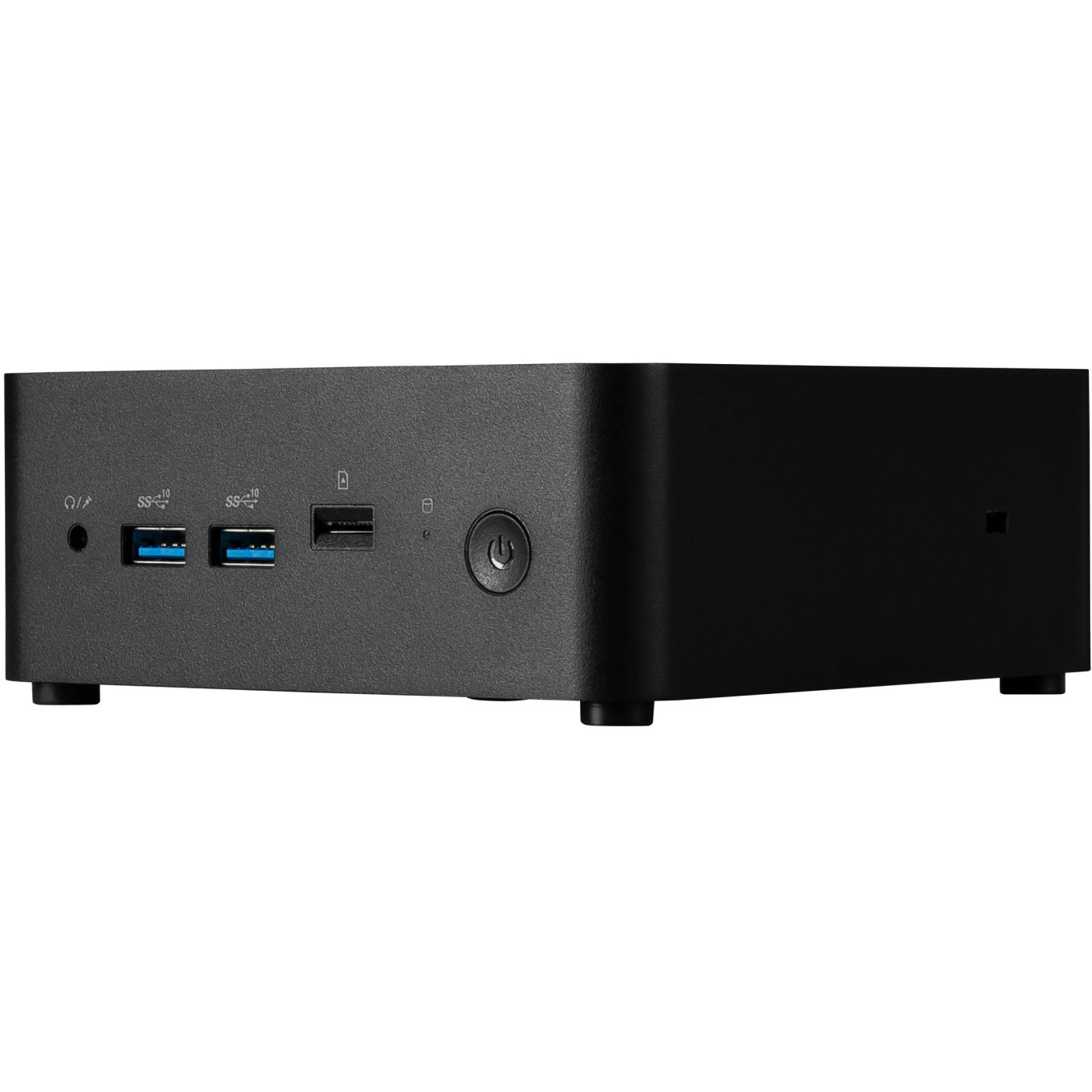

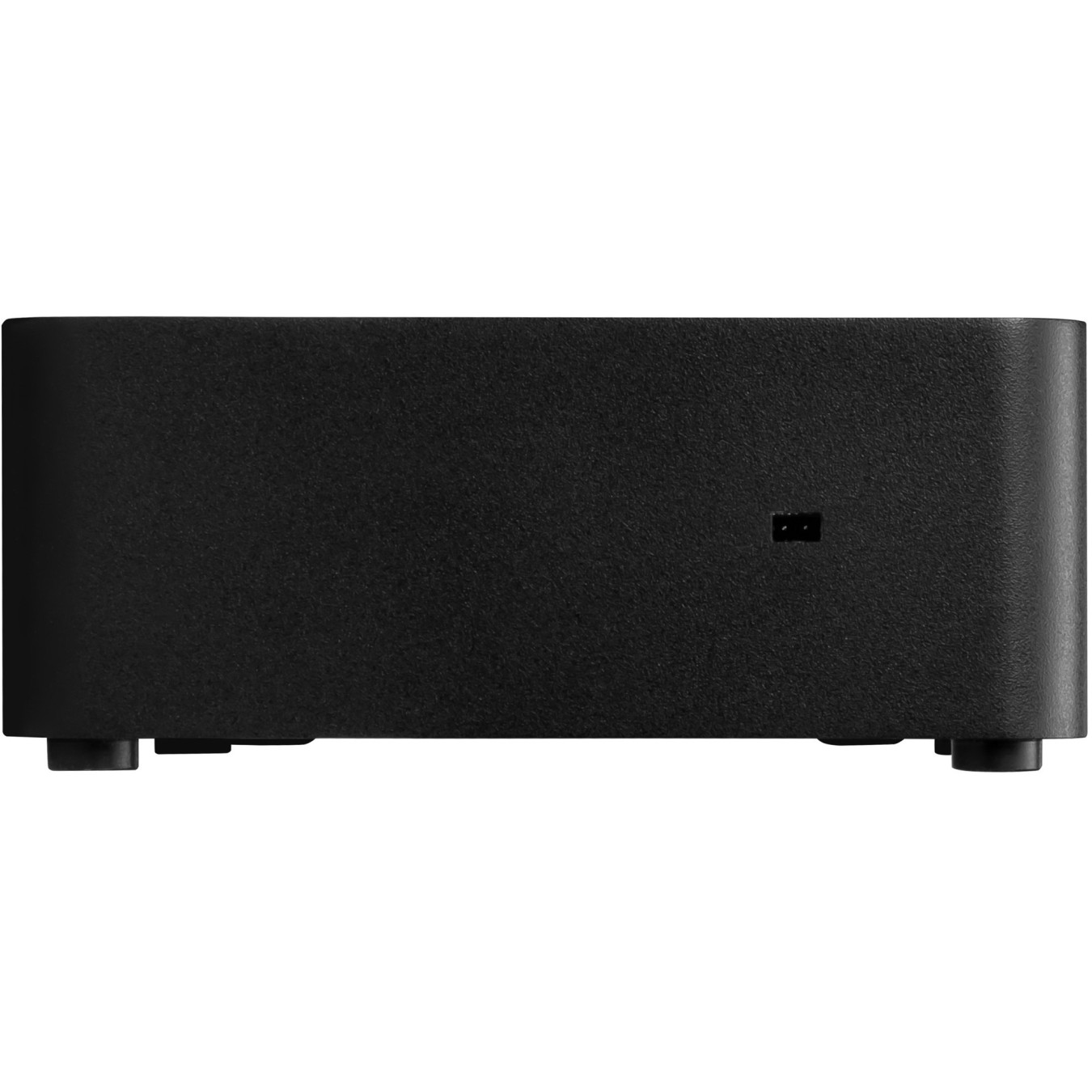

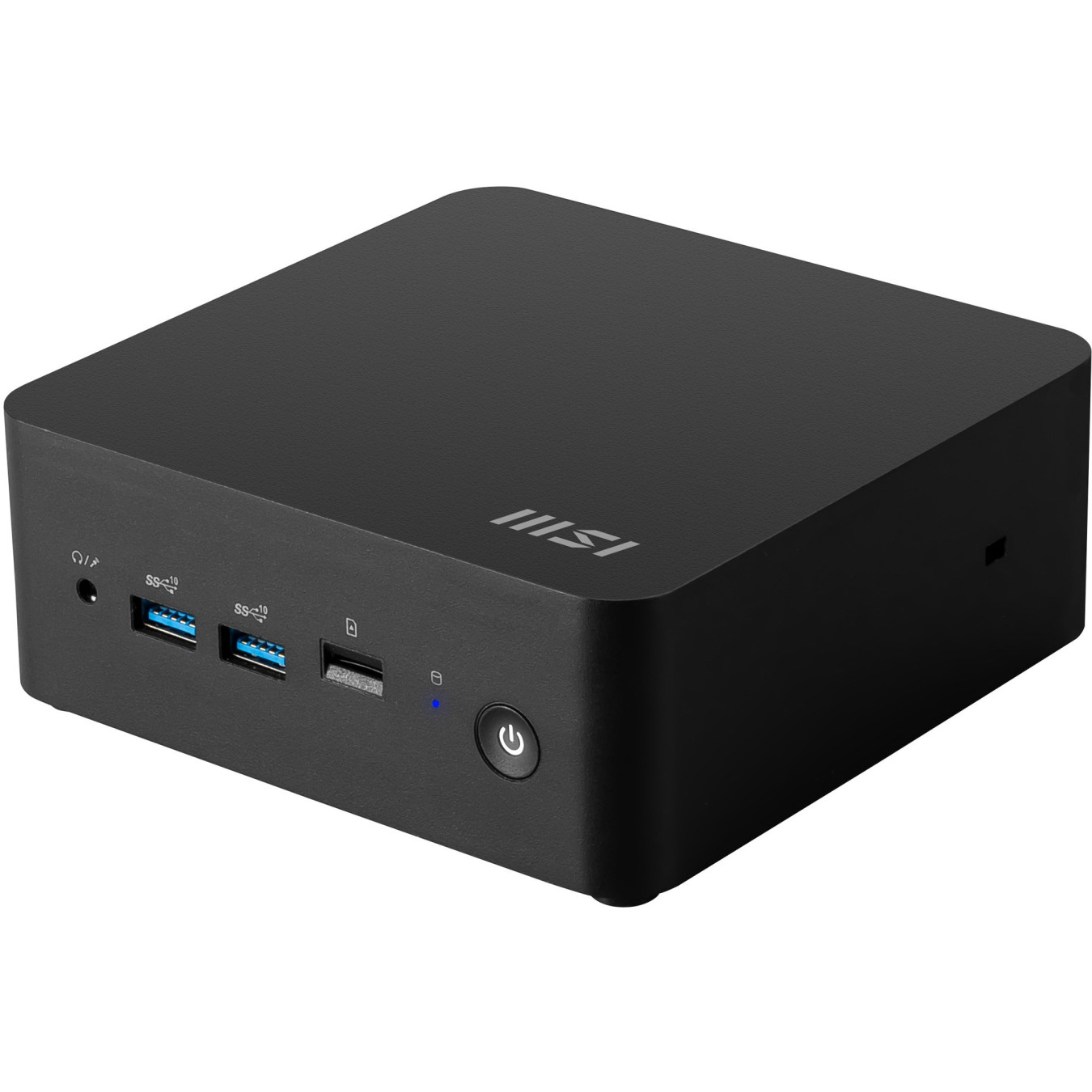

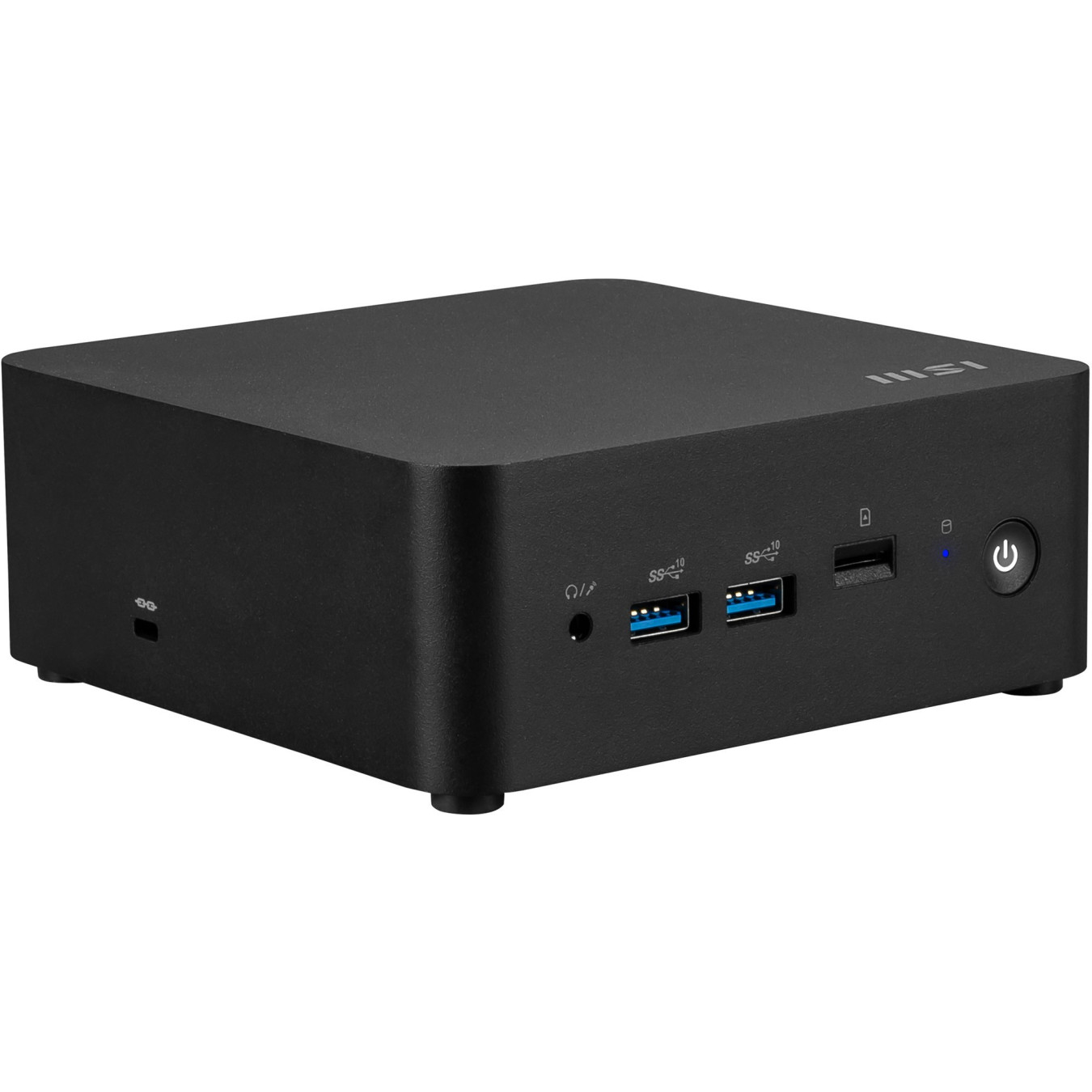

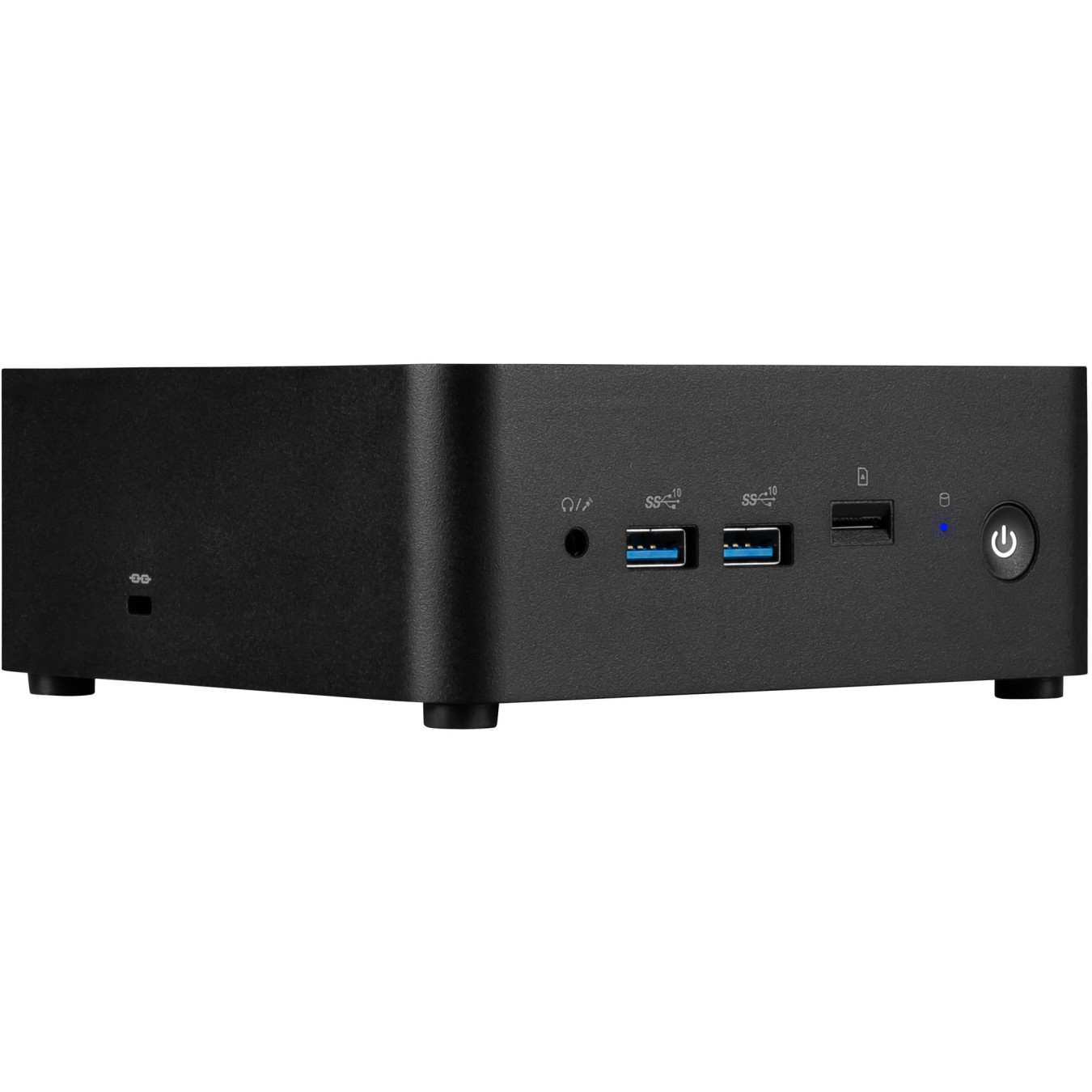

MSI Cubi NUC 1MG-008BDE - Barebone Mini PC, Intel Core i5-120U (up to 5.0GHz), Black, DDR5 up to 64GB, M.2, Wi‑Fi 6E
Compact 0.84L barebone mini PC with Intel Core i5-120U (up to 5.0 GHz), DDR5 SO-DIMM support up to 64GB, M.2 storage, dual RJ-45, Wi‑Fi 6E, Bluetooth 5.3, 120W PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Barebone Kit (No RAM/SSD) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i5 |
| Barebone & Mini PCs - Memory Type | DDR5 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - Wireless | Wi-Fi 6E |
| Barebone & Mini PCs - Bluetooth | 5.3 |
| Barebone & Mini PCs - OS | No OS |
MSI Cubi NUC 1MG-008BDE. Chassis type: 0.84L sized PC. Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM. Number of memory slots: 2. Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD. Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax). Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Feature | Quick start guide |
| Processor cache | 12 MB |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5.M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 3 |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Number of displays supported | 4 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| LAN controller | Intel I226-V |
| Bluetooth version | 5.3 |

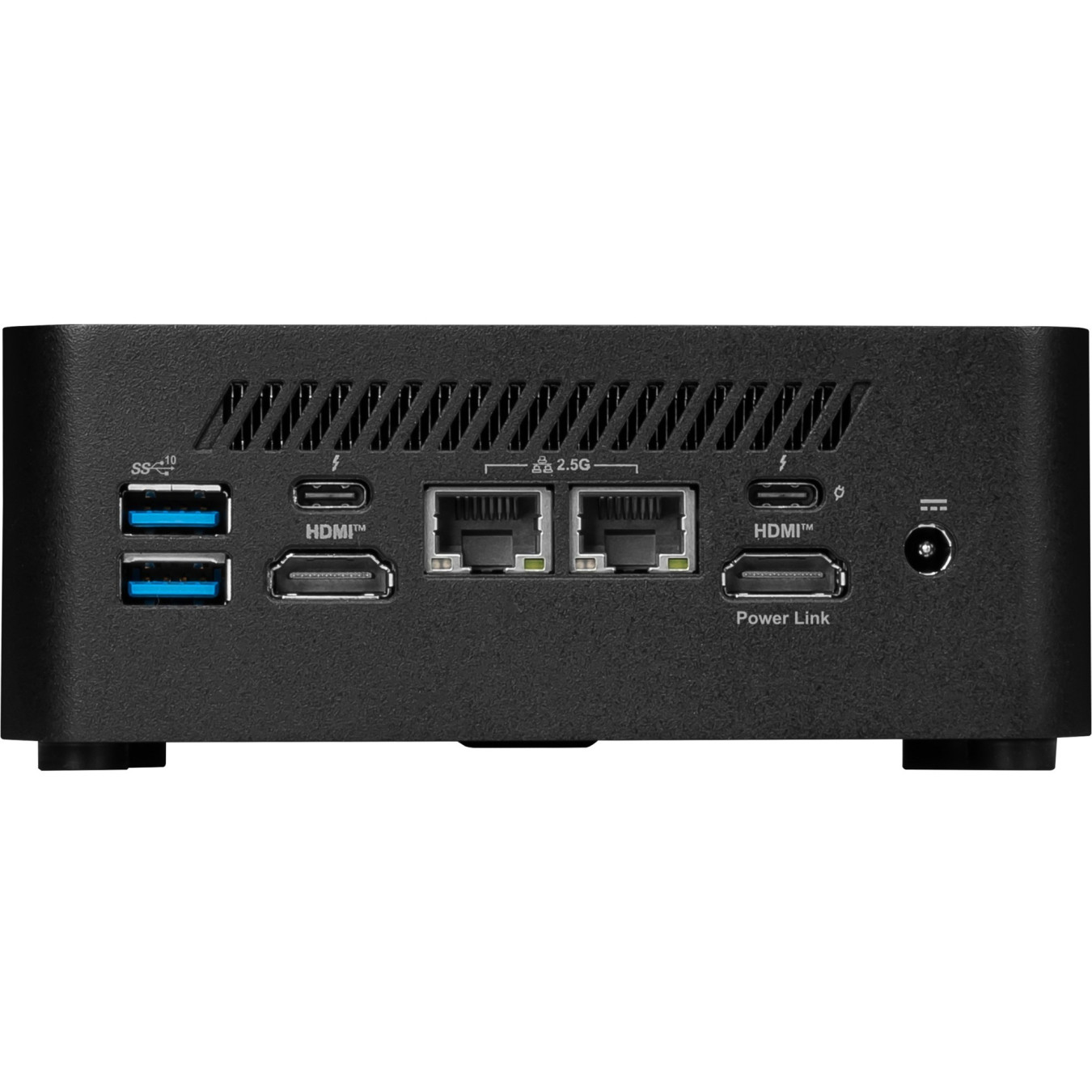

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 2 |
| Number of M.2 (M) slots | 2 |
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Housing material | Plastic |

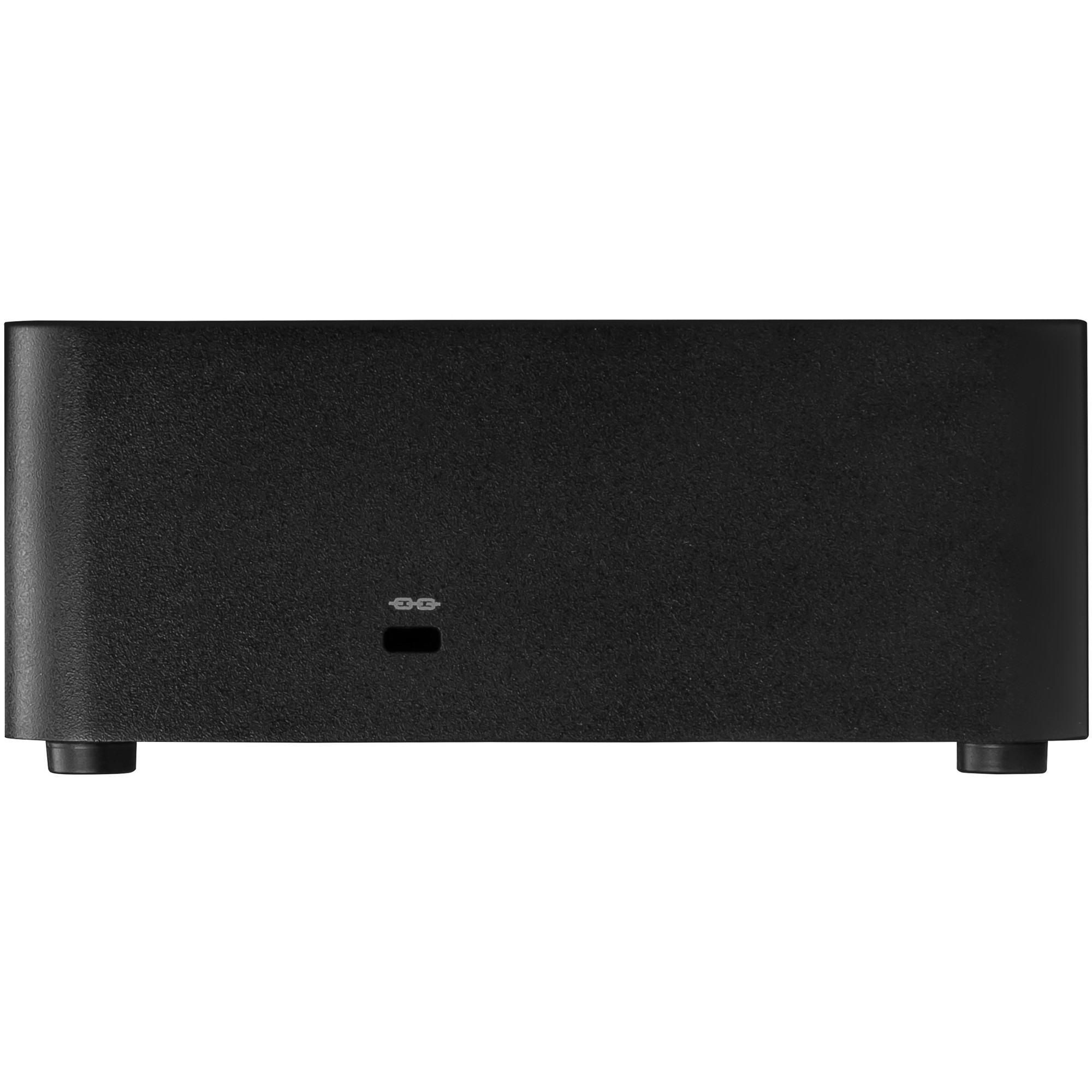

| Cable lock slot type | Kensington |

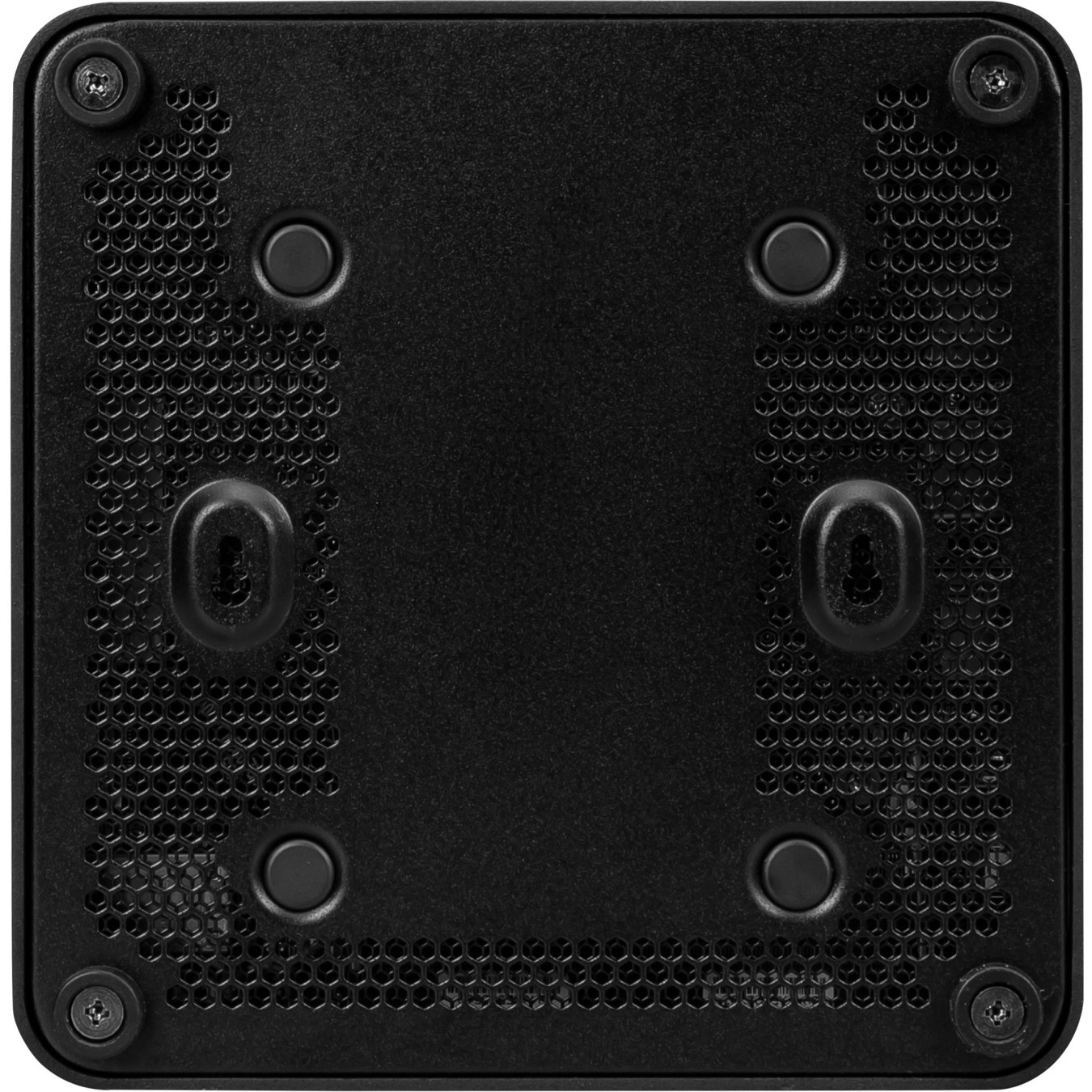

| Panel mounting interface | 75 x 75.100 x 100 mm |
| Product type | Mini PC barebone |
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) version | 2.0 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 630 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
| Country of origin | China |
| Warranty period | 3 year(s) |
