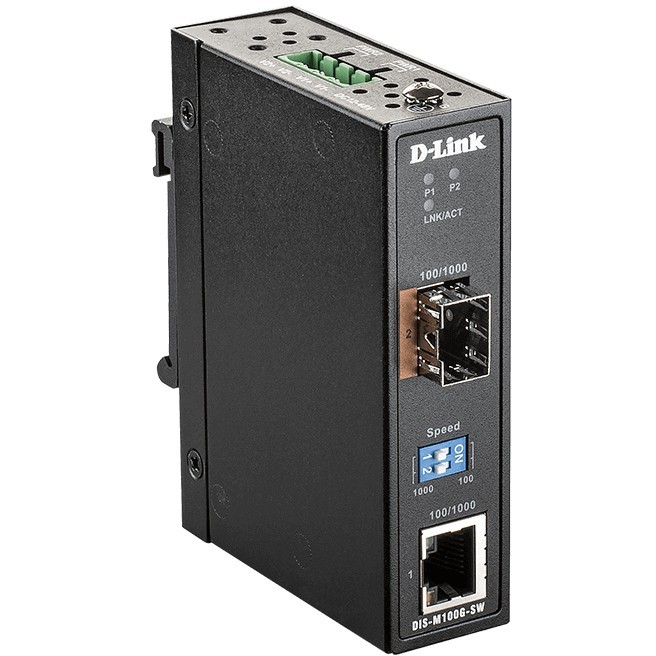

D-Link DIS-M100G-SW - Industrial Gigabit SFP Media Converter, Black, -40–70°C, 12–48V
Industrial Gigabit (100/1000 Mbps) SFP media converter; supports single-mode & multimode SFP, -40–70°C operating range, 12–48V input, IP30, ~3.6W typical.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Out of Stock
| SFP/SFP+ Modules - Interface | Other |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Multimode (MMF) |
D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range. Maximum data transfer rate: 4000 Mbit/s. Converter input interface: 100BASE-FX. 100Base-TX. 1000Base-T. 1000Base-X. Networking standards: IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Fiber mode structure: Multi-mode. Single-mode. LED indicators: Link. Network. Product colour: Black. International Protection (IP) code: IP30. Fiber optic connector: SFP. Connectivity technology: Wired. Output voltage: 12 - 48 V. Power consumption (typical): 3.6 W
| Maximum data transfer rate | 4000 Mbit/s |
| Converter input interface | 100BASE-FX. 100Base-TX. 1000Base-T. 1000Base-X |
| Networking standards | IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Packet forwarding rate (100 Mbps) | 2.976 pps |
| Feature | DC-in jack |
| Duplex system | Full. Half |
| Fiber mode structure | Multi-mode. Single-mode |
| LED indicators | Link. Network |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Output voltage | 12 - 48 V |
| Power consumption (typical) | 3.6 W |
| Width | 70 mm |
| Depth | 95 mm |
| Height | 26.1 mm |
| Weight | 190 g |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | CE. FCC |
| Harmonized System (HS) code | 85176990 |
