Fractal Design North XL RC Charcoal Black TG Mid-Tower E-ATX Case (Boxed)
Fractal Design North XL RC - Charcoal Black TG Mid-Tower E-ATX case for reverse-connection MBs. Supports GPU 413mm, CPU cooler 185mm, 420mm front rad. Includes 3x140mm PWM fans, USB-C. Wood-accent mesh design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal Vertical Supported |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black Wood Accent |
| PC Cases - CPU Cooler Clearance | 170+ mm |

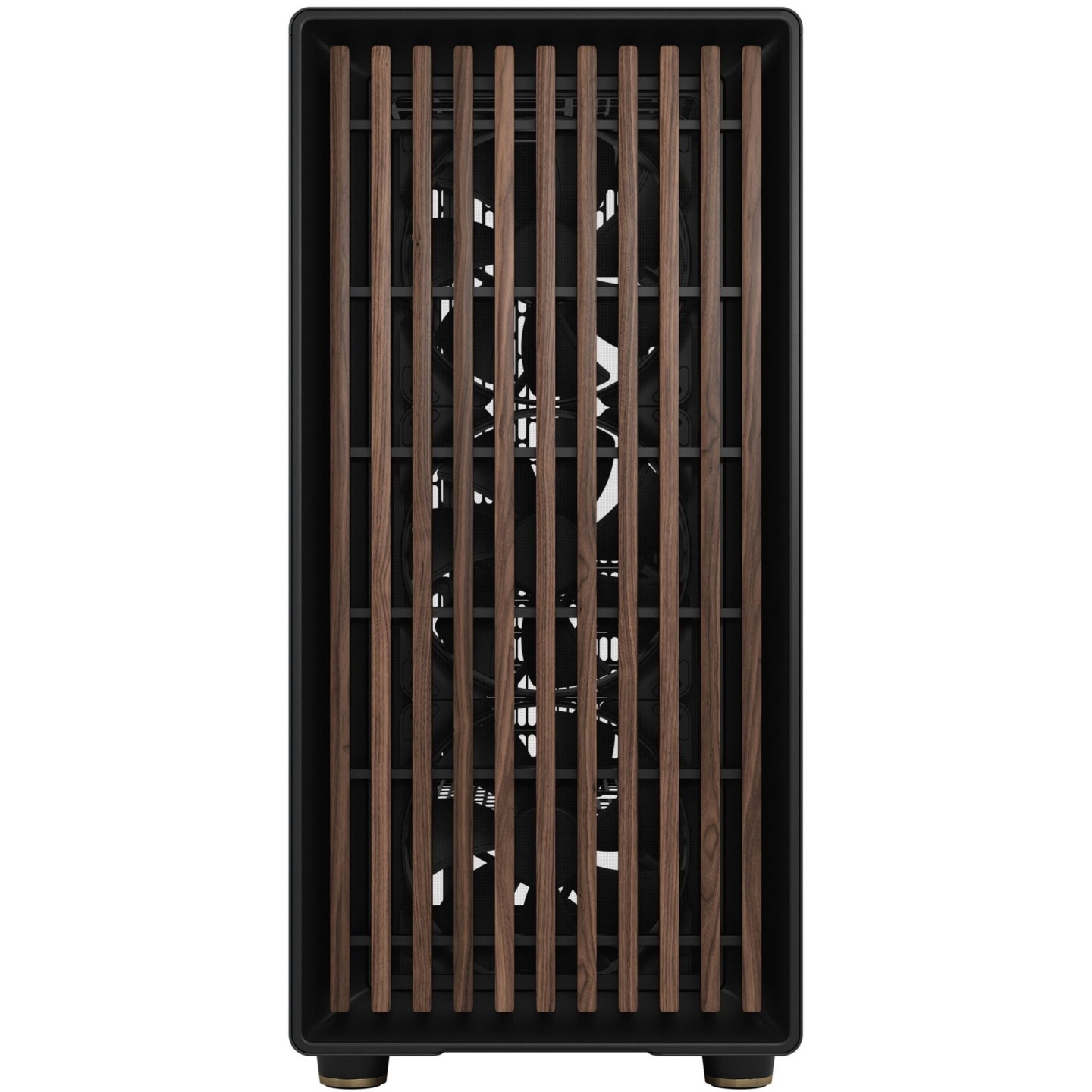

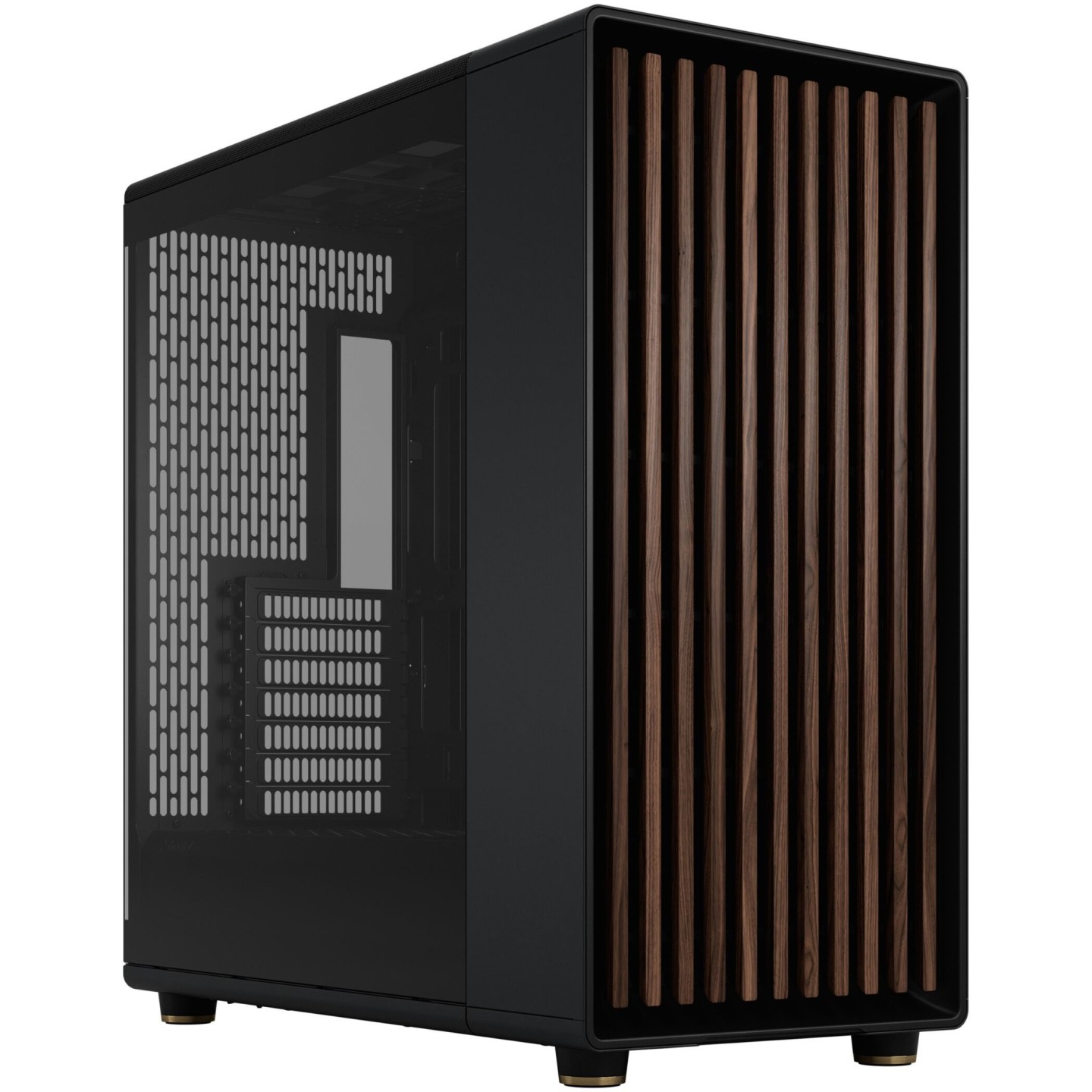

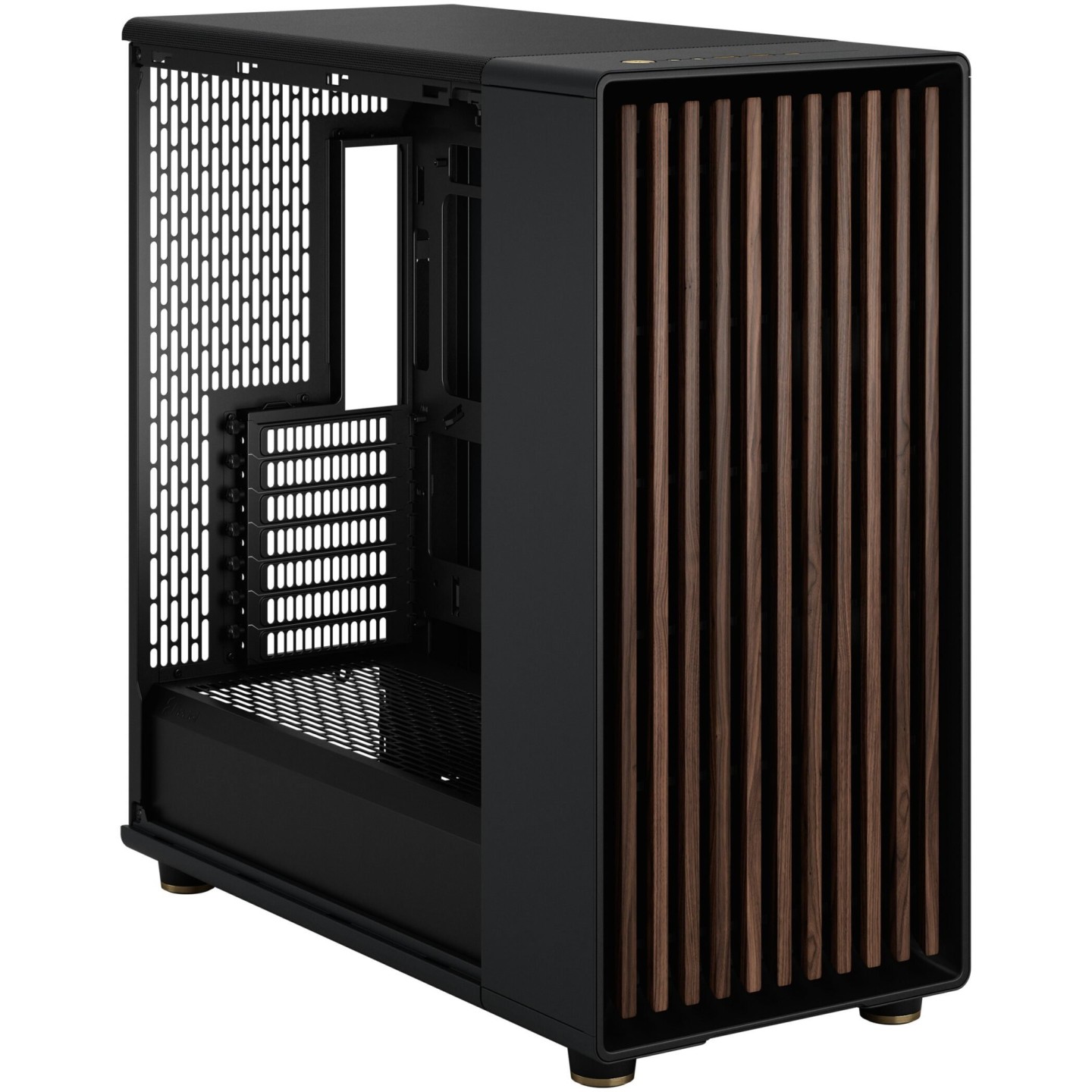

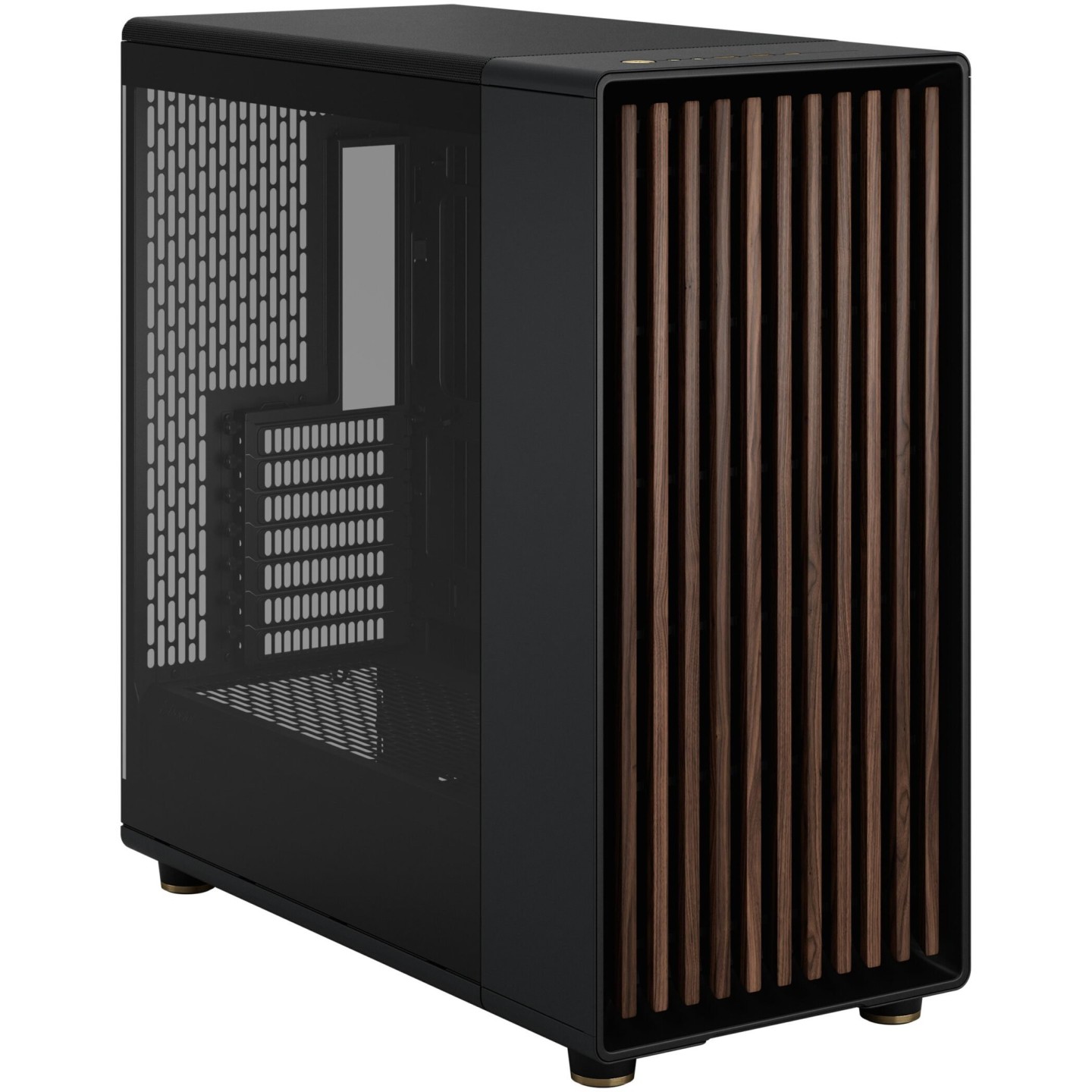

The Fractal Design North XL RC is a premium mid-tower ATX/E-ATX case optimized for reverse-connection (back-connect) motherboards, featuring a stunning Scandinavian design with genuine walnut wood front accents and open mesh for superior airflow.

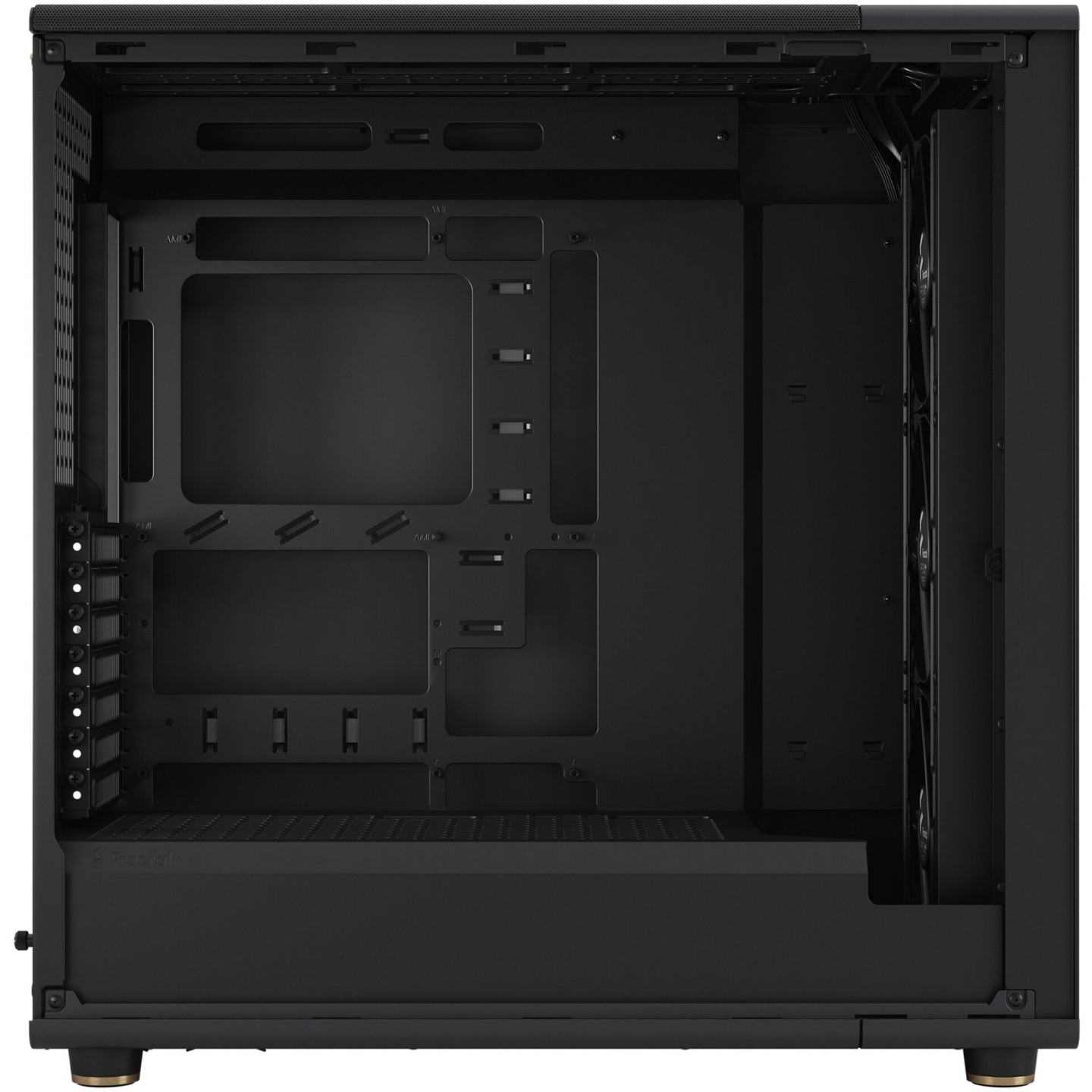

It offers generous space for high-end builds: GPU up to 413mm, CPU cooler up to 185mm, and comprehensive cooling support including 420mm front/360mm top radiators. Includes three Aspect 14 140mm PWM fans for quiet, effective cooling. Tool-less panels and RC cable routing enable clean, cable-free interiors.

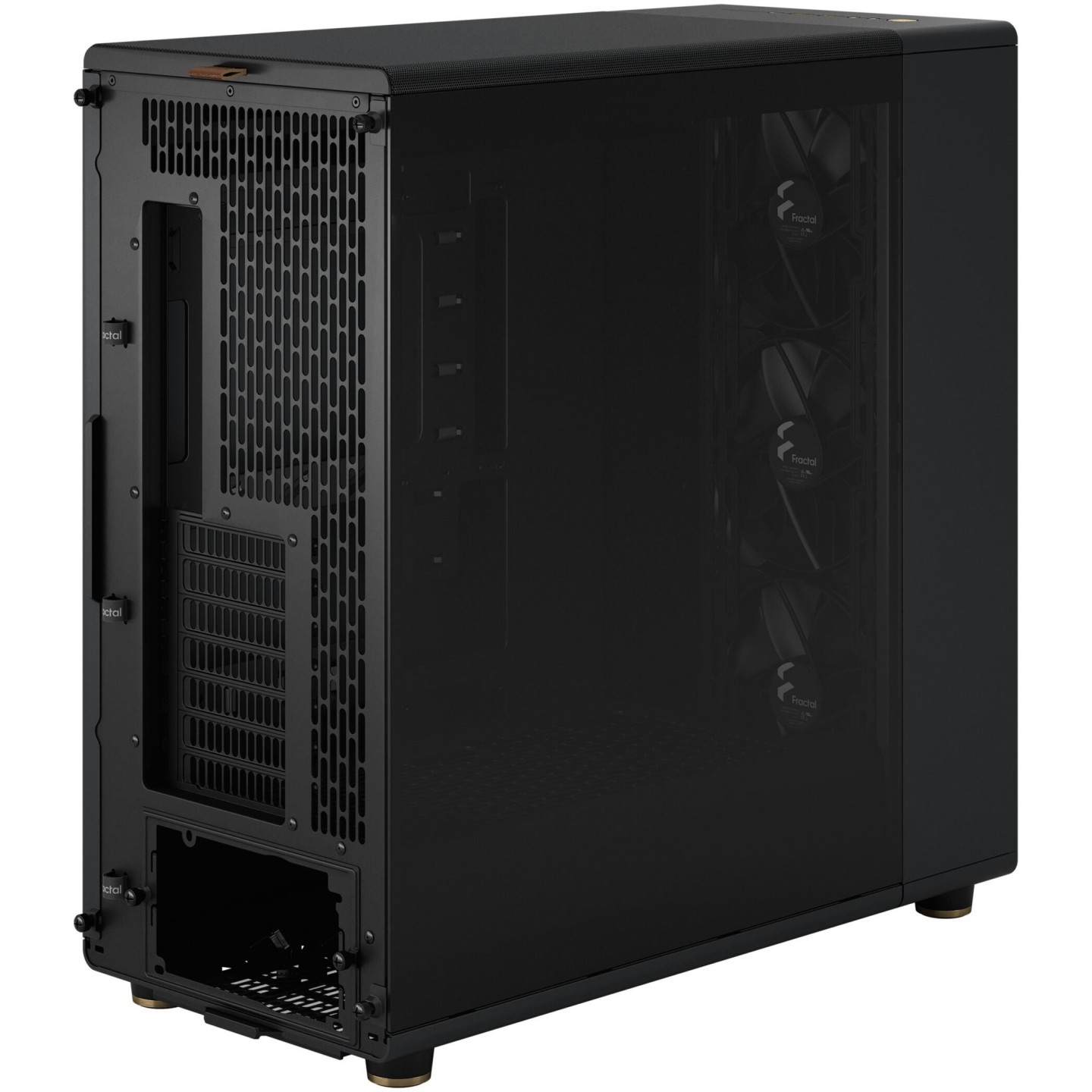

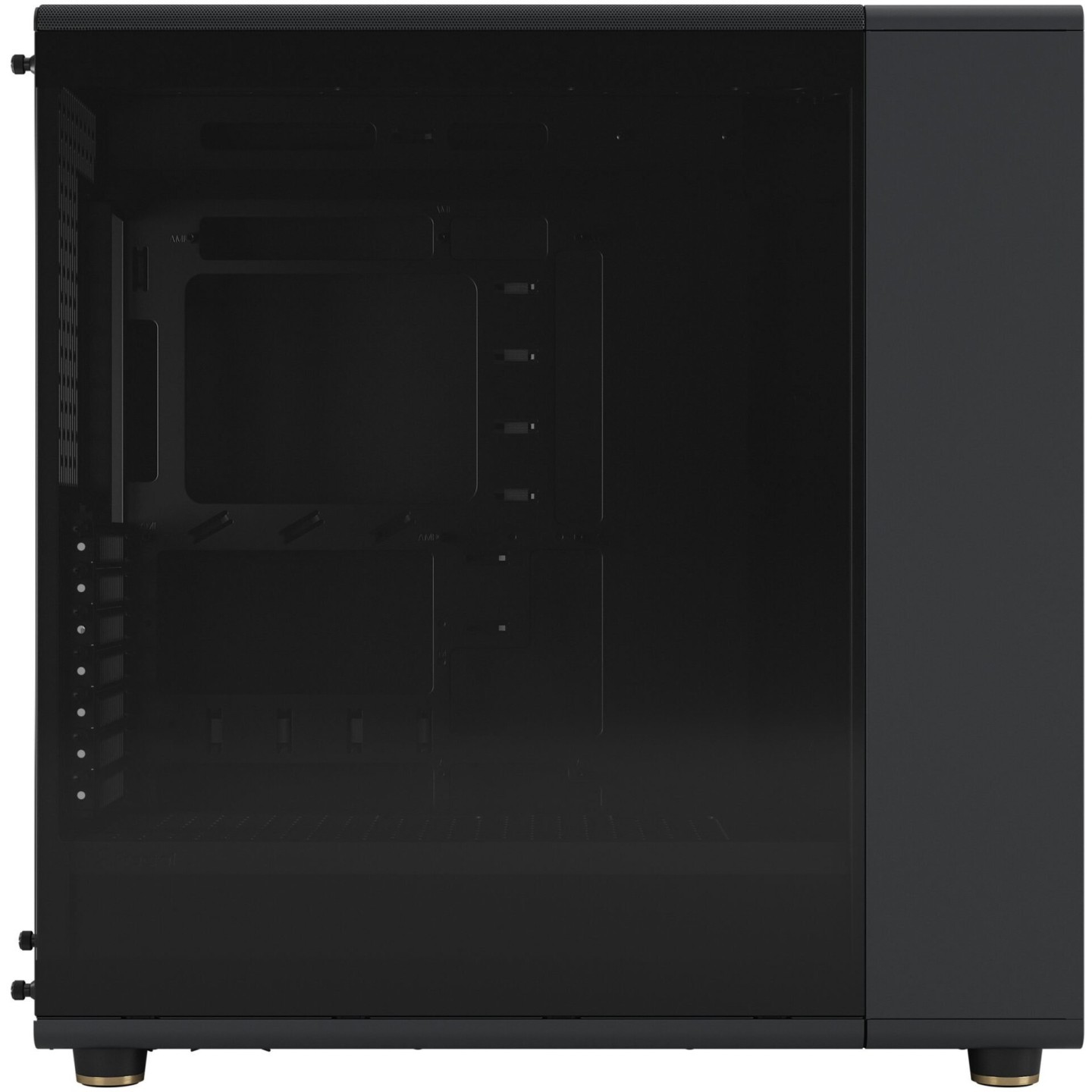

Charcoal Black tempered glass side showcases components; bottom PSU layout with 290mm max length. Dimensions: 240x509x503mm, 9.7kg net.
- Included: 3x 140mm Aspect 14 PWM fans (2 front intake, 1 rear exhaust)

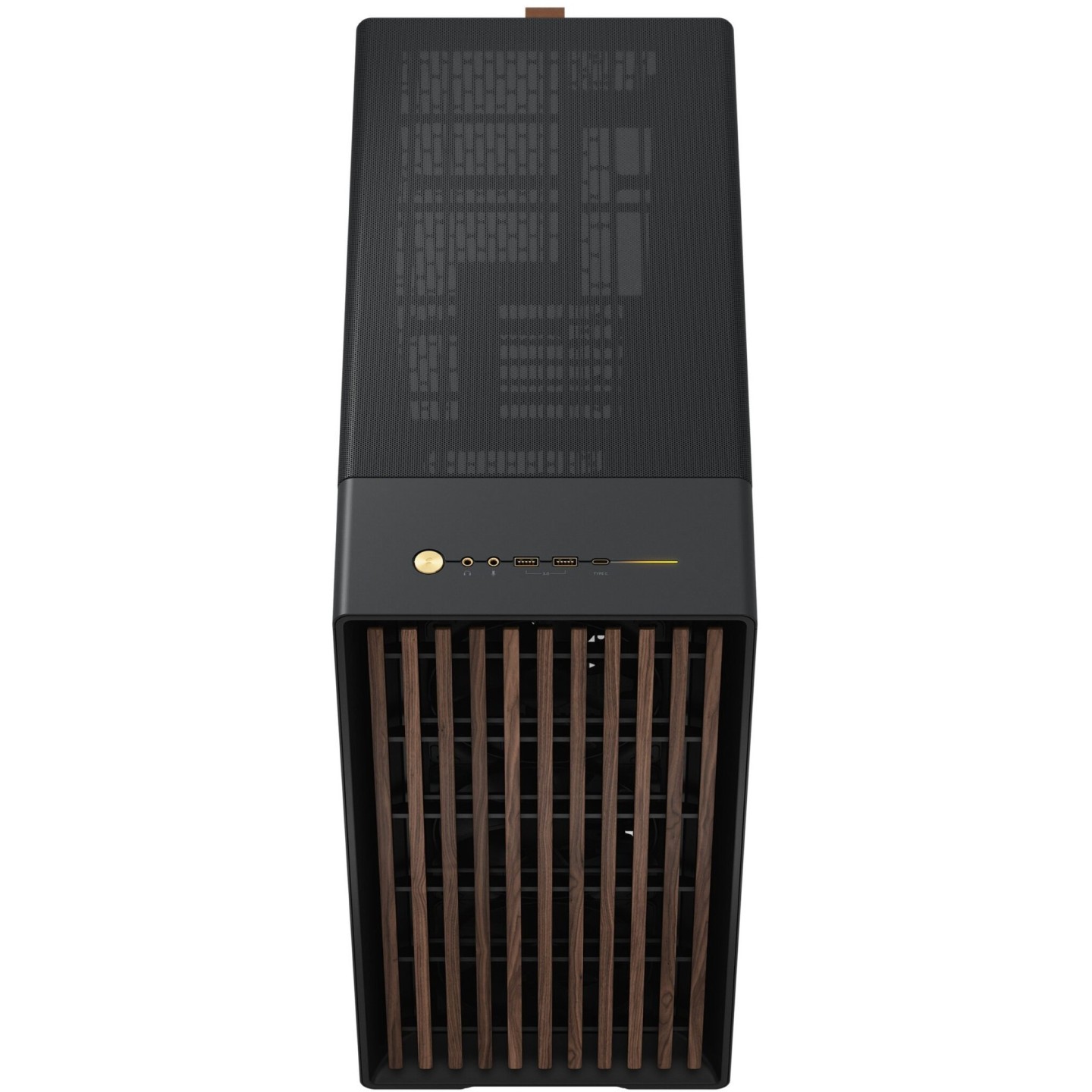

- I/O: 2x USB 3.2 Gen2x2 Type-A, 1x USB 3.2 Gen2x2 Type-C, audio combo

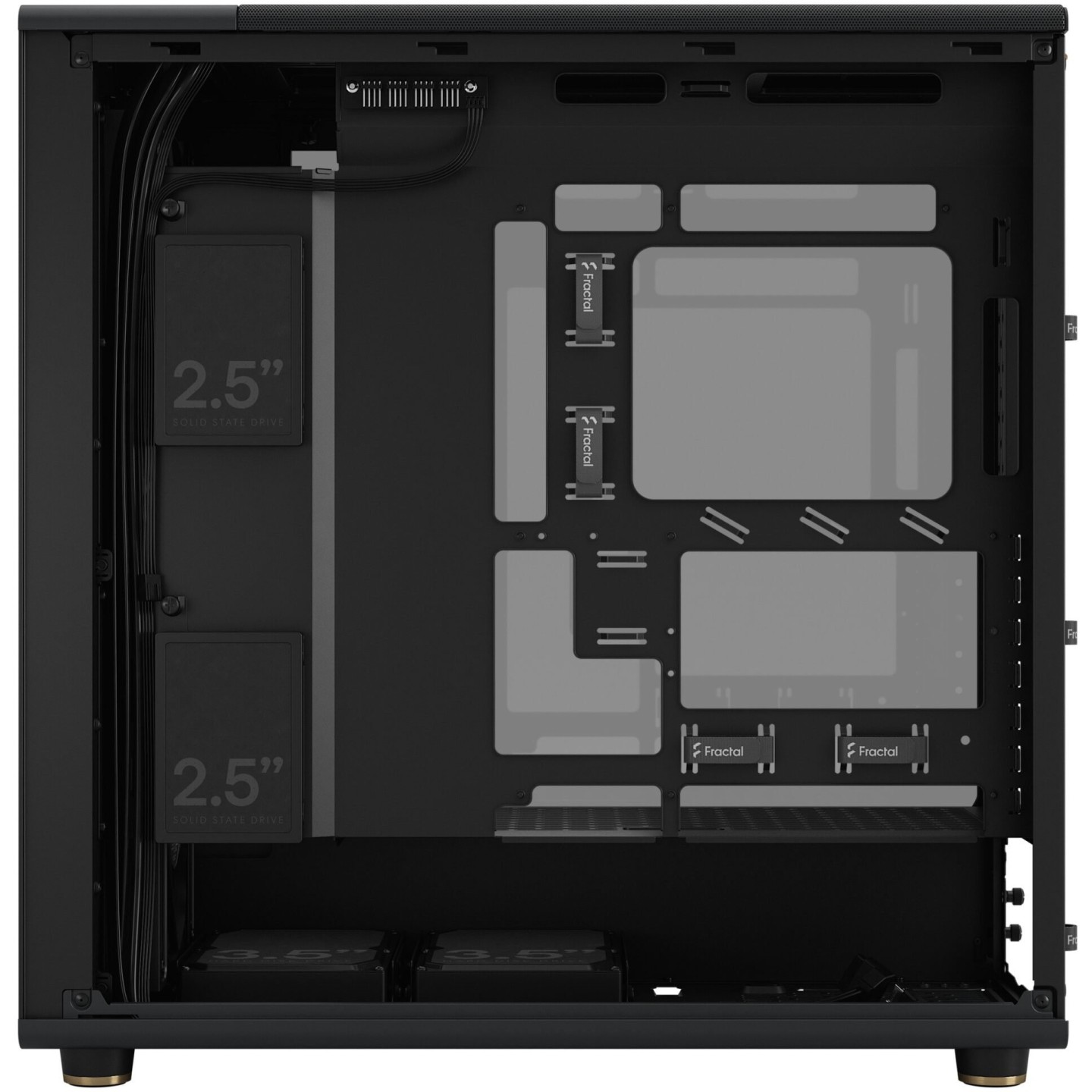

- Storage: 2x 3.5", 2x 2.5"
- Expansion: 7 slots
| Form factor | Desktop |
| Type | PC |
| Product colour | Charcoal Black |
| Supported motherboard form factors | E-ATX, ATX, mATX, Mini-ITX |
| Number of 3.5 | 2 |
| Number of 2.5 | 2 |
| Number of internal 3.5 | 2 |
| Number of expansion slots | 7 |
| Audio | Combo headphone/mic port |
| Maximum CPU cooler height | 185 mm |
| Maximum graphics card length | 413 mm |
| Maximum PSU length | 290 mm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120/140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120/140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120/140/180 mm |
| Front radiator sizes supported | 360/420 mm |
| Rear radiator sizes supported | 120/140 mm |
| Top radiator sizes supported | 280/360 mm |
| Number of HDDs supported | 2 |
| Width | 240 mm |
| Depth | 503 mm |
| Height | 509 mm |
| Weight | 9.7 kg |
| Included fans | 3x 140 mm Aspect 14 PWM |
| Reverse Connection support | Yes (RC model) |
| Side panel | Tempered Glass |
