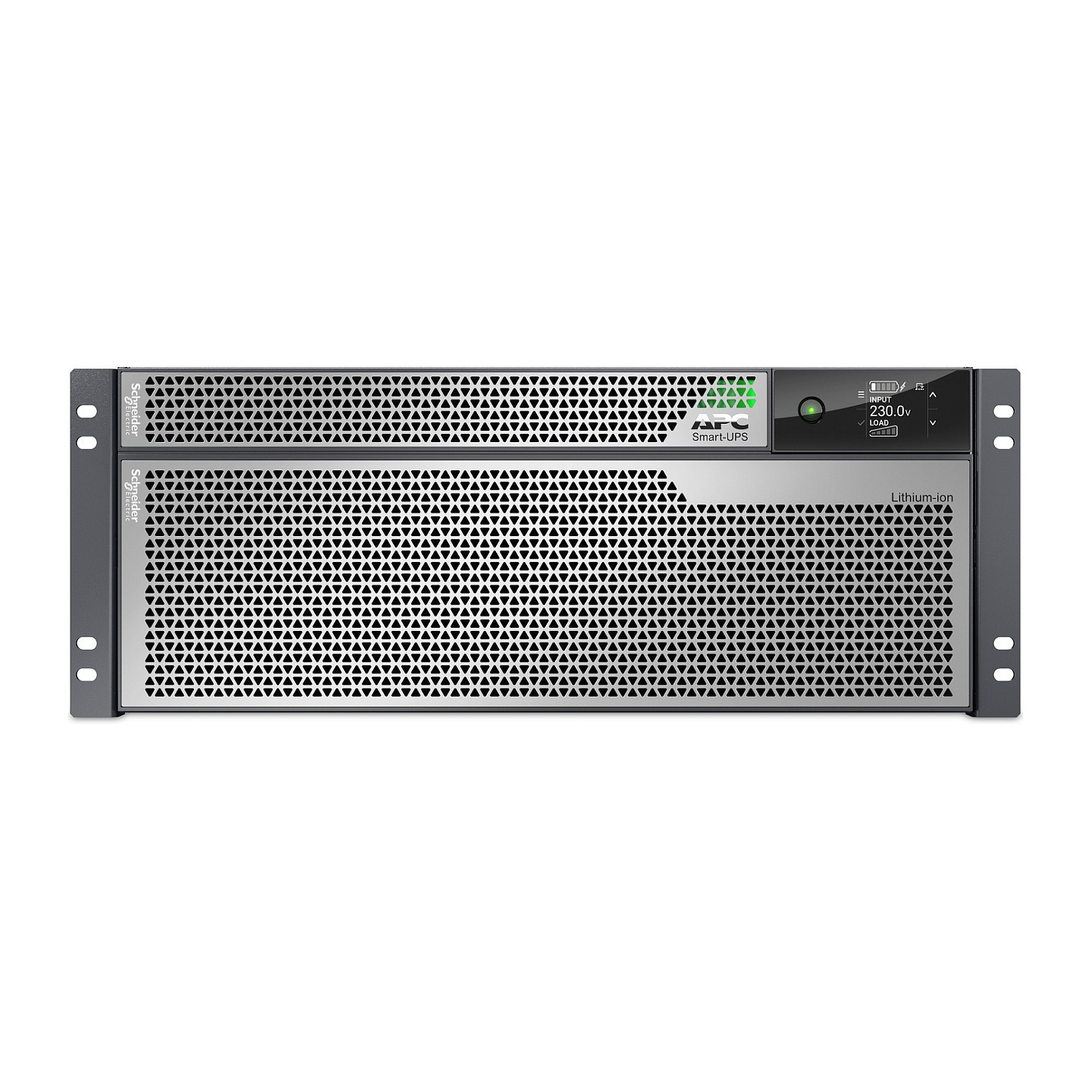

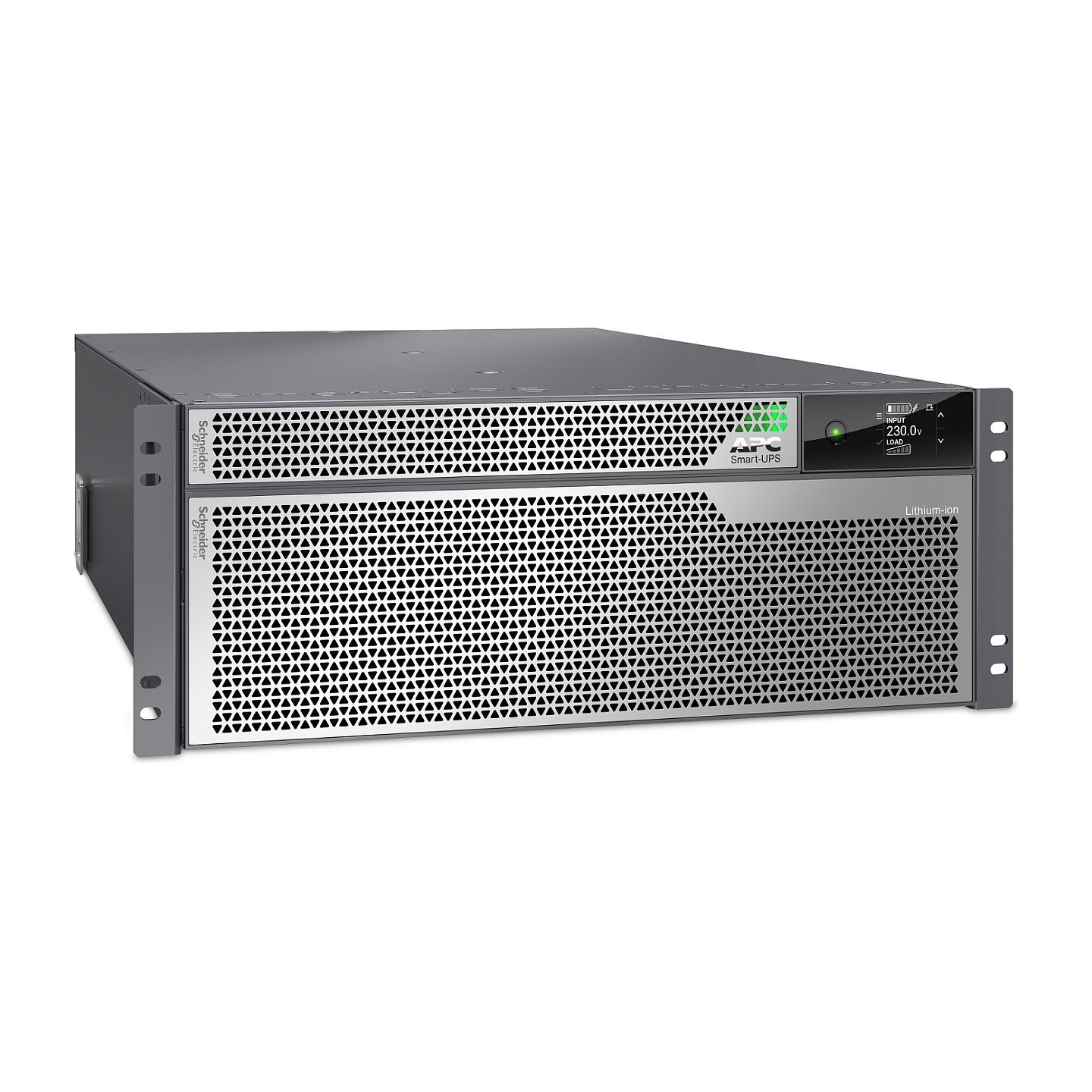

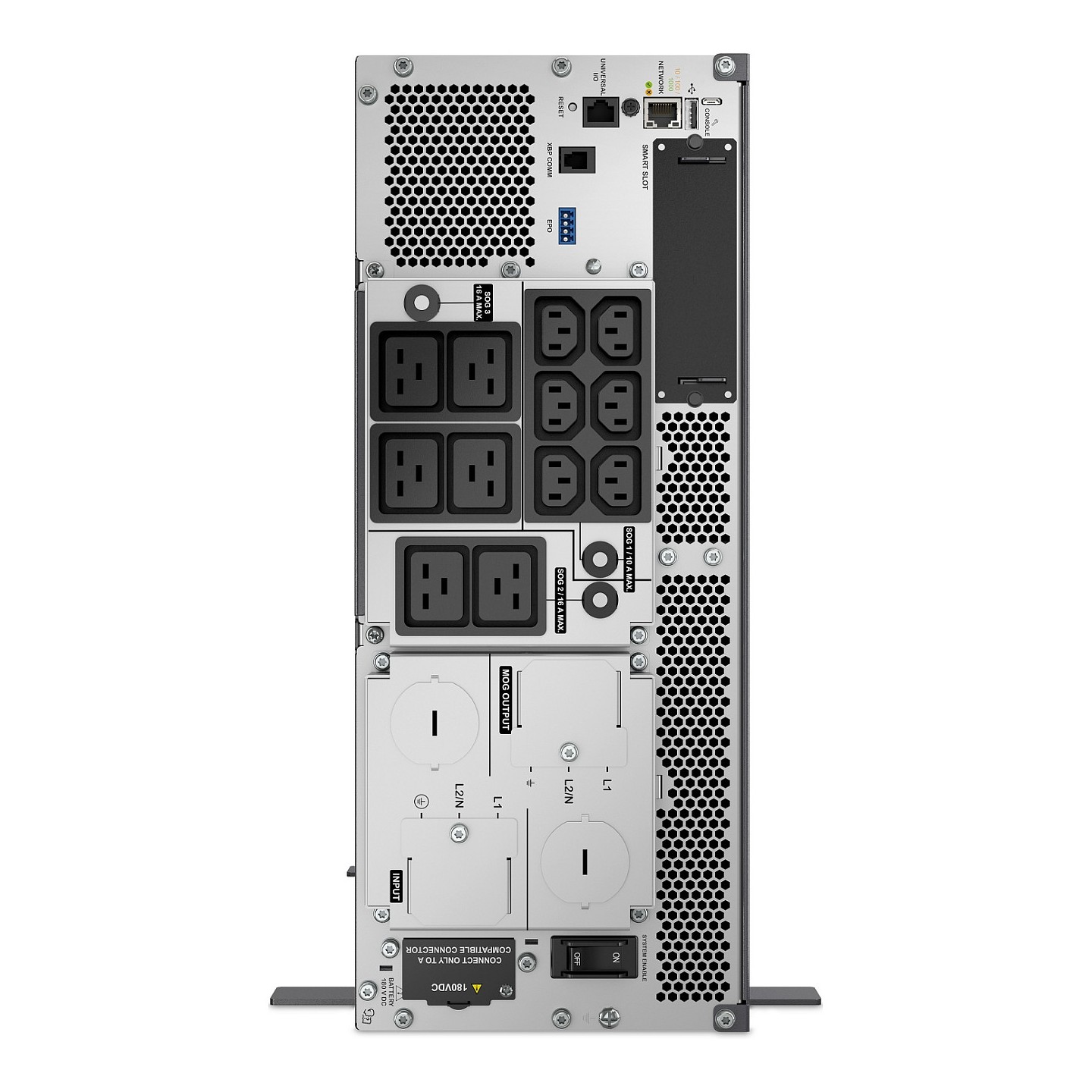

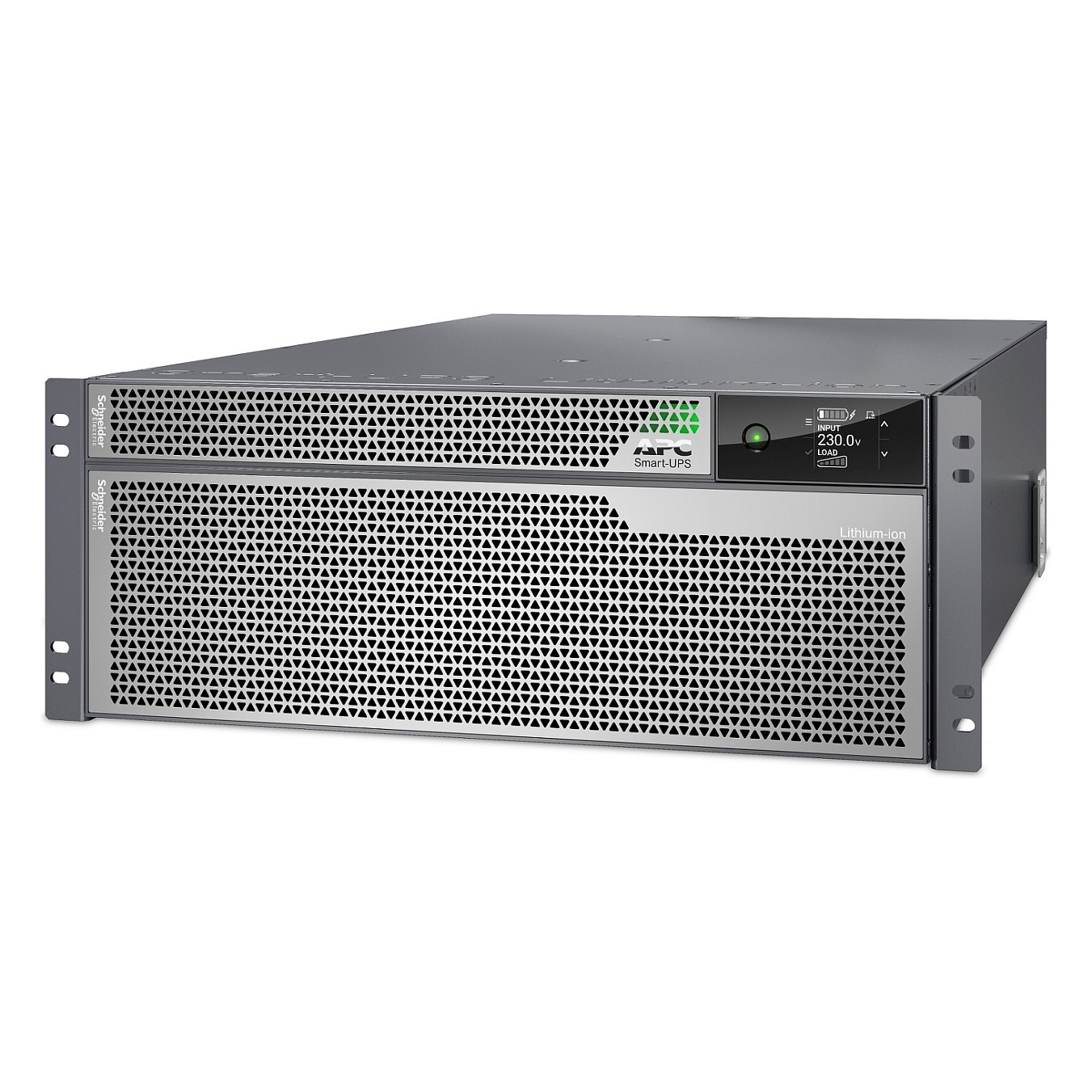

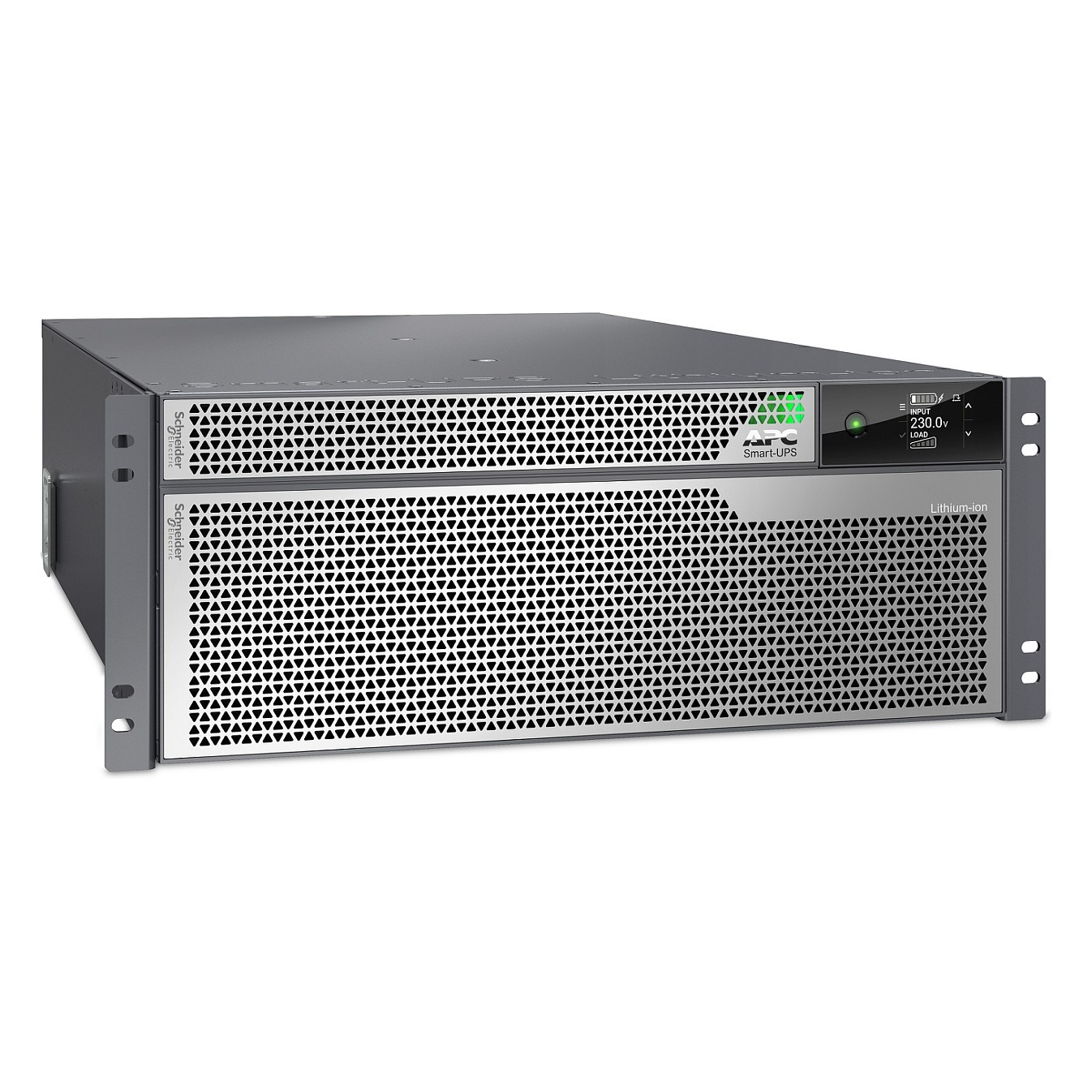

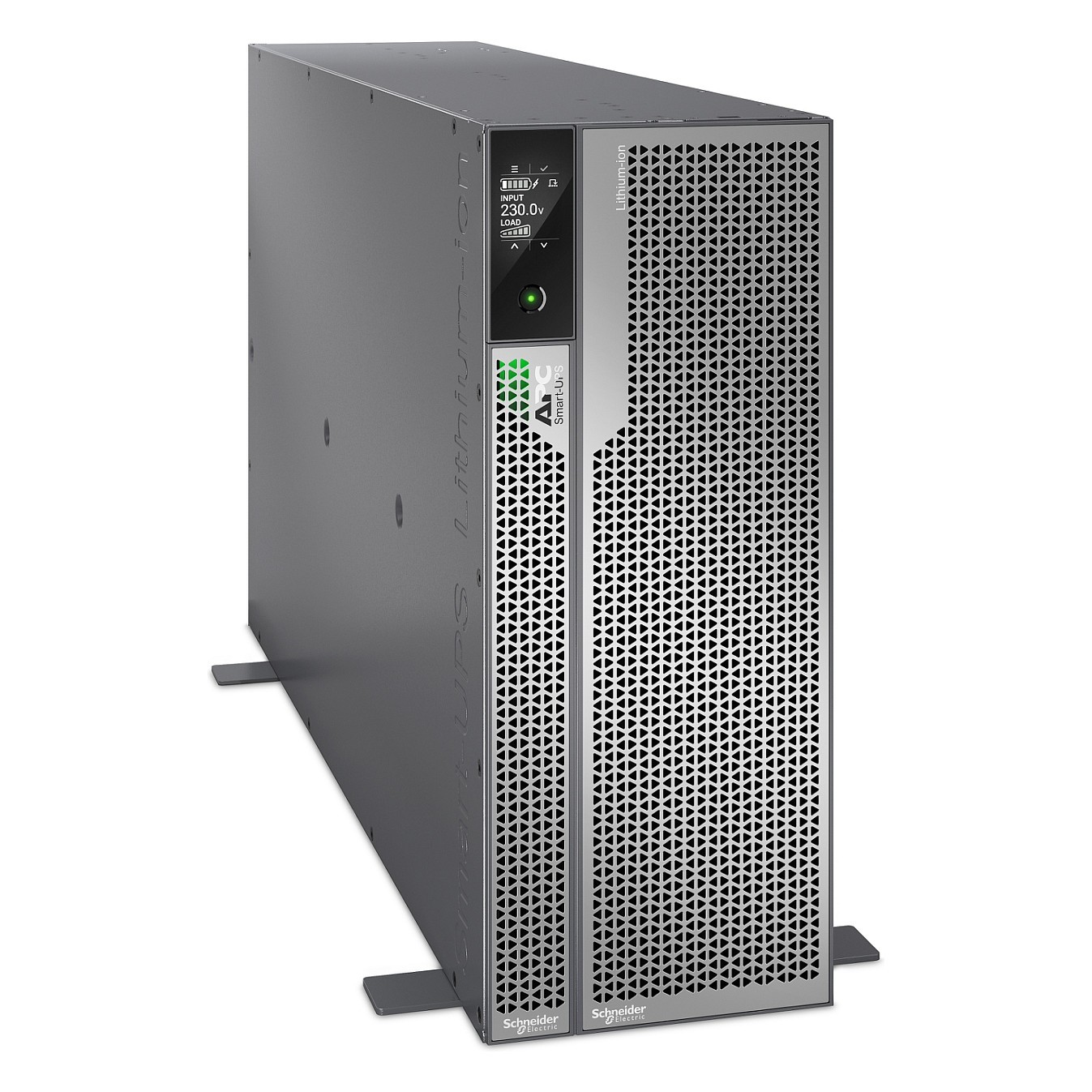

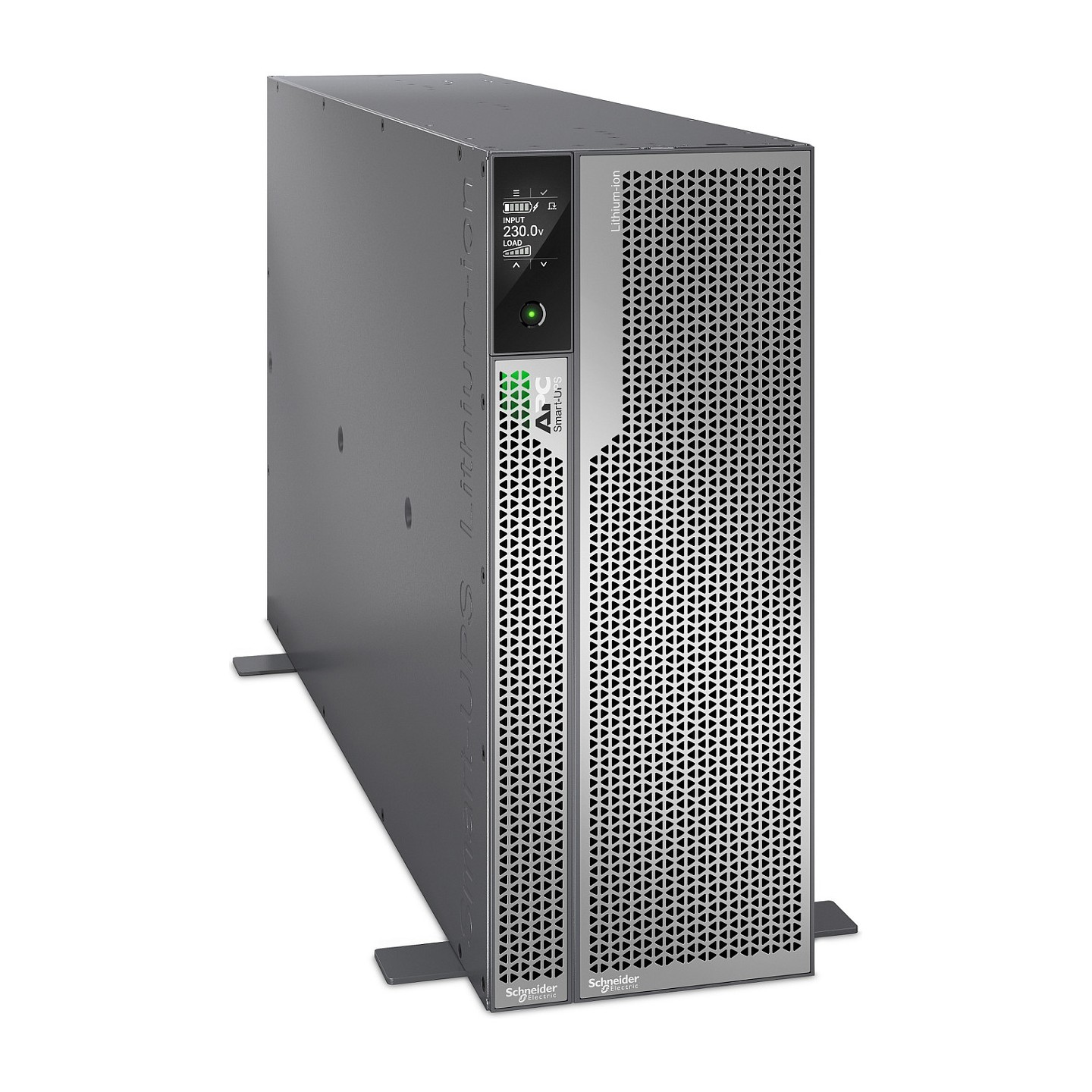

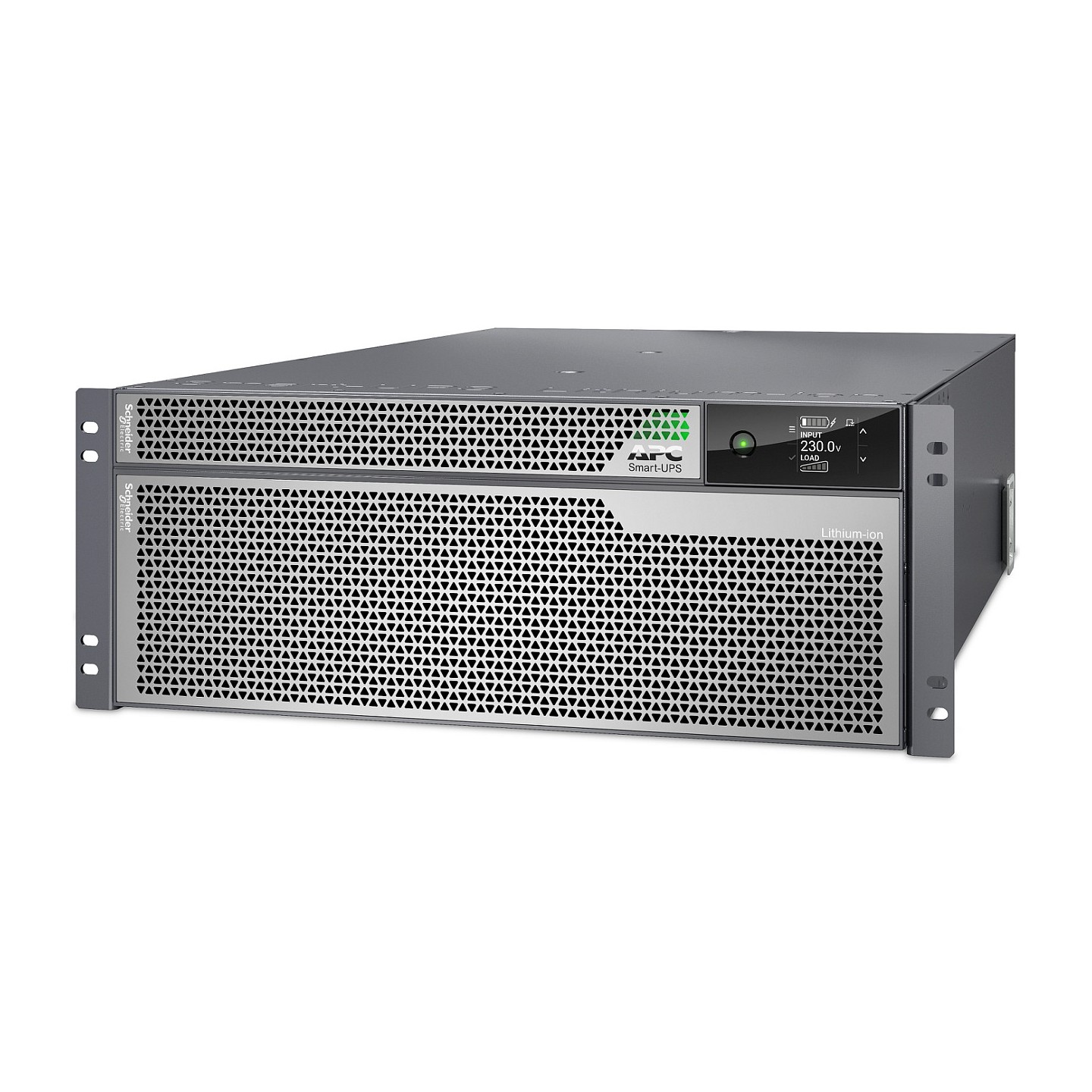

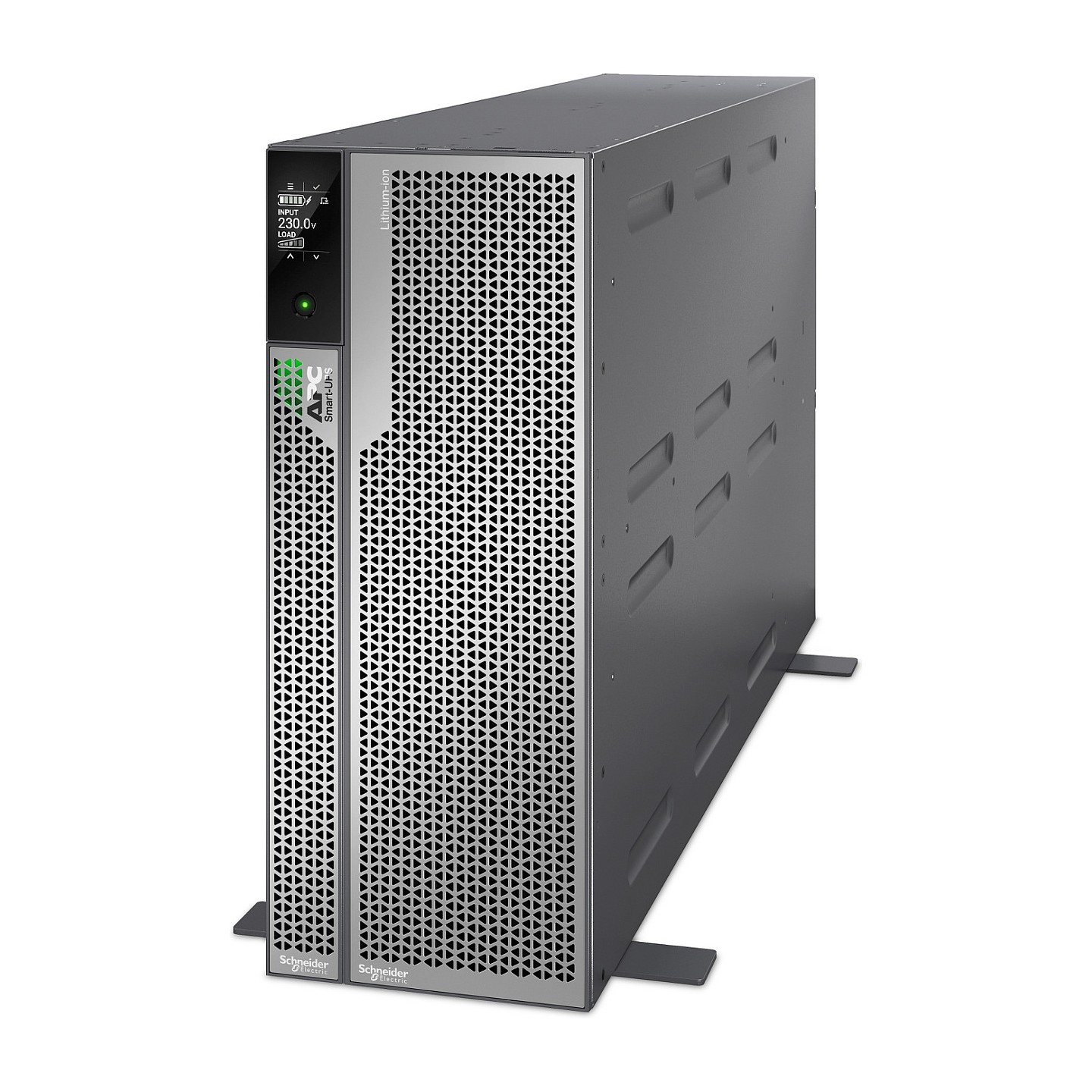

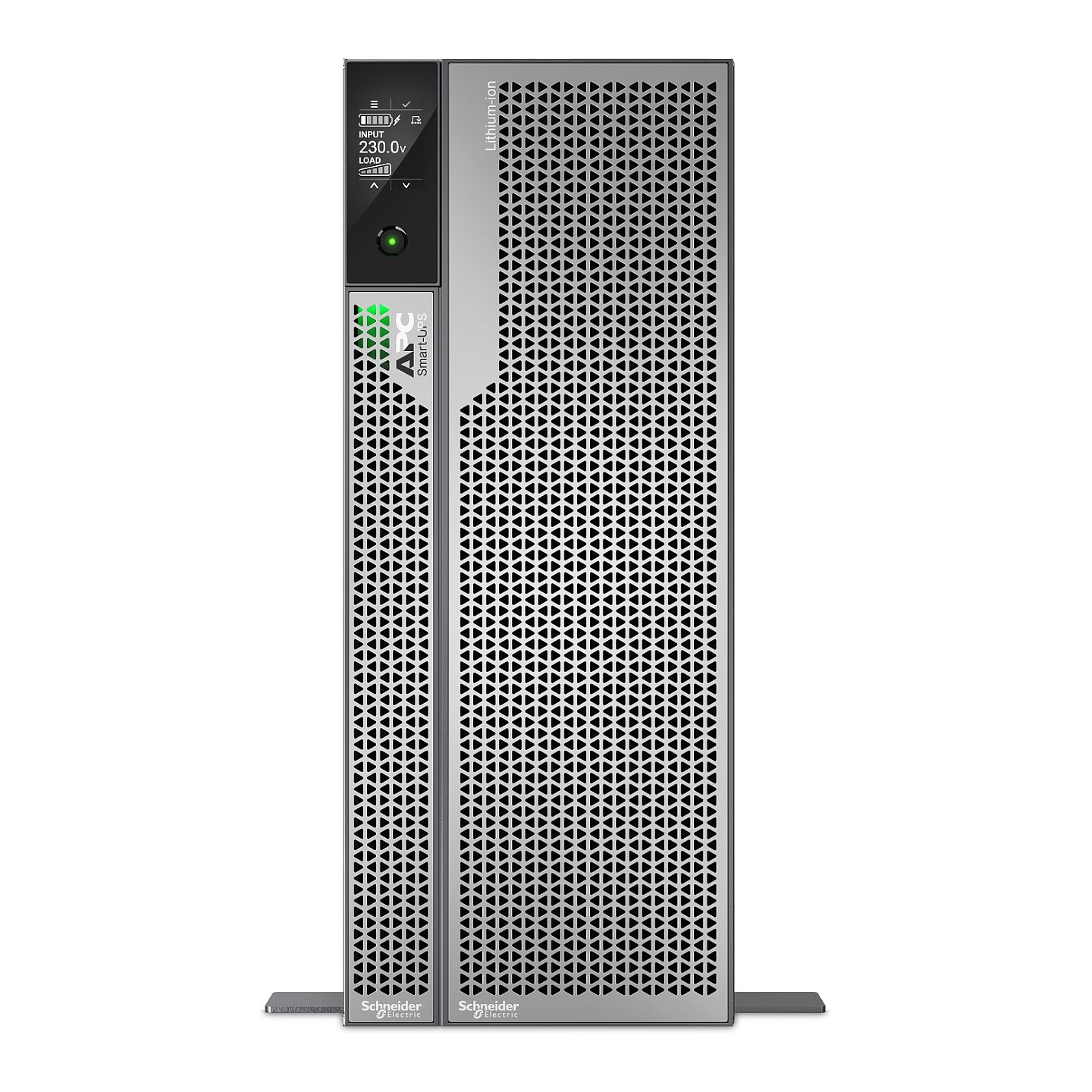

APC Smart-UPS Ultra On-Line Lithium ion. 8KVA 8KW. 4U
APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI. 8KW. 4U Rack/Tower. 6xC13 & 6xC19. NMC. Doppelwandler (Online). 8 kVA. 8000 W. Sine. 220 V. 240 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI. 8KW. 4U Rack/Tower. 6xC13 & 6xC19. NMC. USV-Topologie: Doppelwandler (Online). Ausgangskapazität: 8 kVA. Ausgangsleistung: 8000 W. AC-Steckertypen: Hard Wire 3-wire (1P + N + E). C13-Koppler. C19-Koppler. Hardwire. Stecker: Hardwire. Anzahl der AC-Ausgänge: 12 AC-Ausgänge. Akku-/Batterietechnologie: Lithium-Ion (Li-Ion). Akku-/Batteriespannung: 180 V. Typische Backup-Zeit bei voller Belastung: 7 min. Formfaktor: Rackmount/Tower. Produktfarbe: Grau. Rack-Kapazität: 4U. Konformitätsbescheinigungen: CE. REACH. RoHS. UKCA. VDE. Zertifizierung: EN/IEC 62040-1 IEC 62040-2
| USV-Topologie | Doppelwandler (Online) |
| Ausgangskapazität | 8 kVA |
| Ausgangsleistung | 8000 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 220 V |
| Eingangs-Betriebsspannung (max) | 240 V |
| Eingangsfrequenz | 40/70 Hz |
| Ausgangs-Betriebsspannung (min) | 220 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 50/60 Hz |
| Anstieg der Energiemenge | 1410 J |
| Wärmeableitung | 1900 BTU/h |
| Crest-Faktor | 3:1 |
| Feature | Nachhaltigkeitskonformität |
| Ausgangsspannung Gesamtverzerrungsfaktor THD | 5% |
| Geräuschpegel | 55 dB |
| Akustische Alarm-Modi | Alarm bei Batteriebetrieb. Warnung bei geringer Batterie |

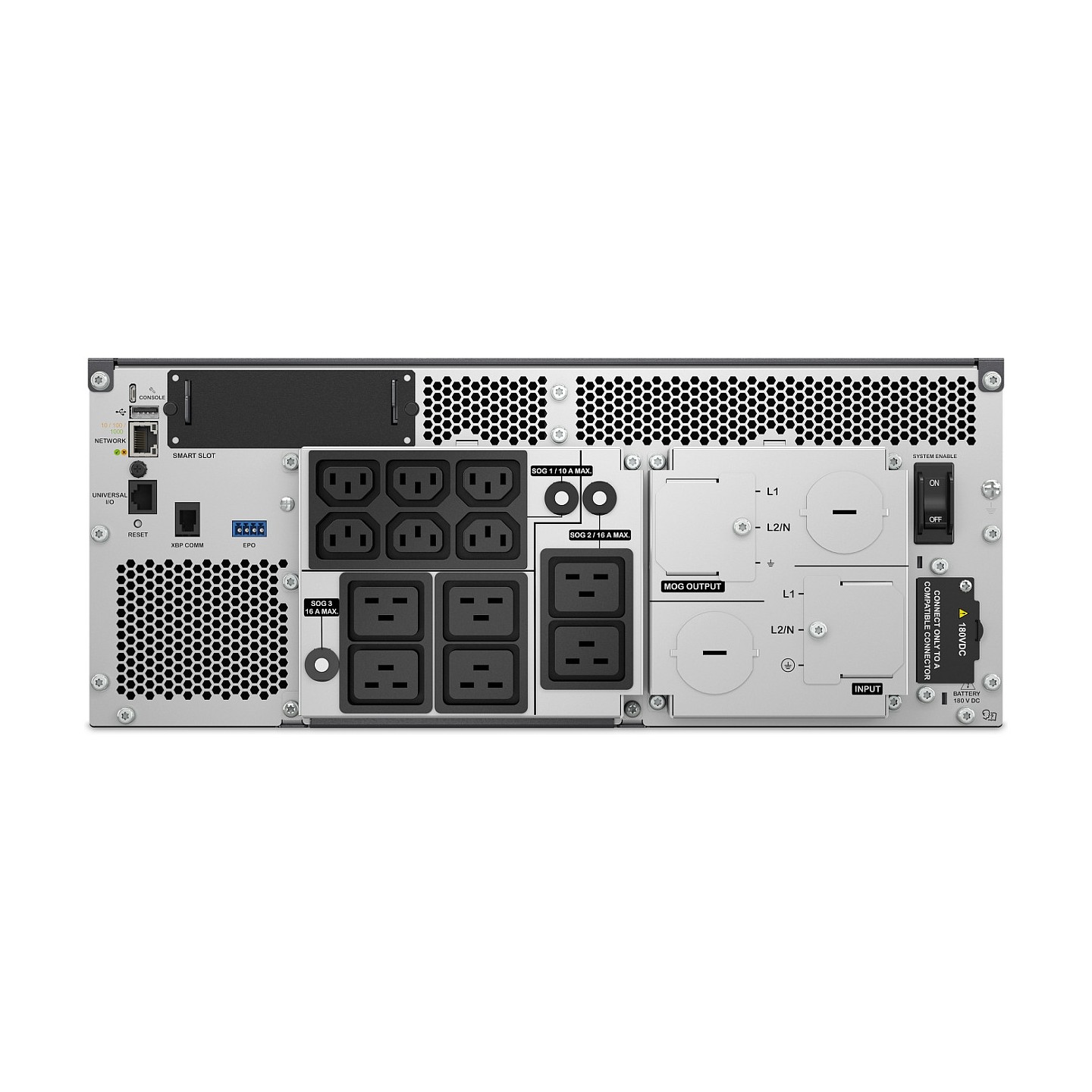

| AC-Steckertypen | Hard Wire 3-wire (1P + N + E). C13-Koppler. C19-Koppler. Hardwire |
| Stecker | Hardwire |
| Anzahl der AC-Ausgänge | 12 AC-Ausgänge |
| Akku-/Batterietechnologie | Lithium-Ion (Li-Ion) |
| Akku-/Batteriespannung | 180 V |

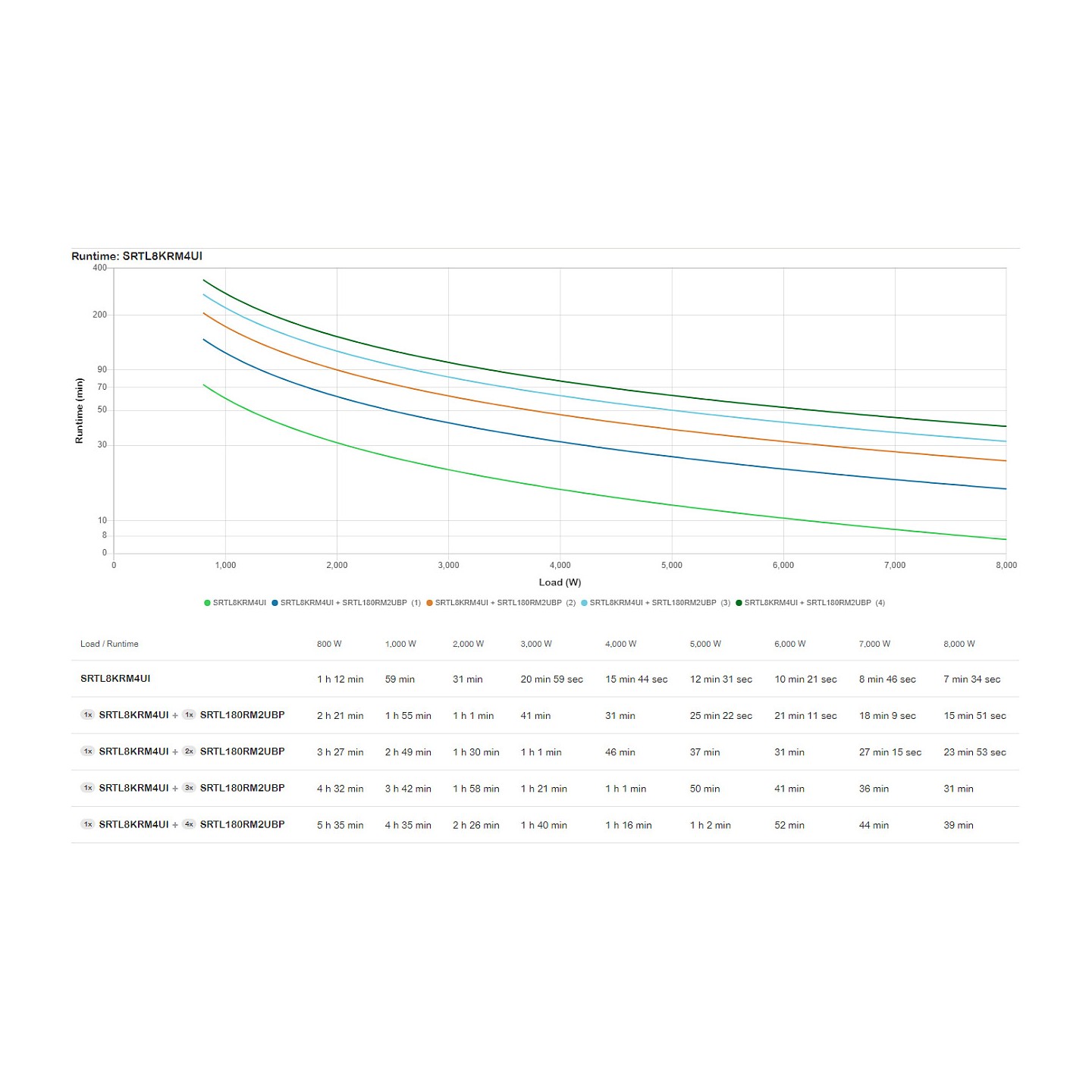

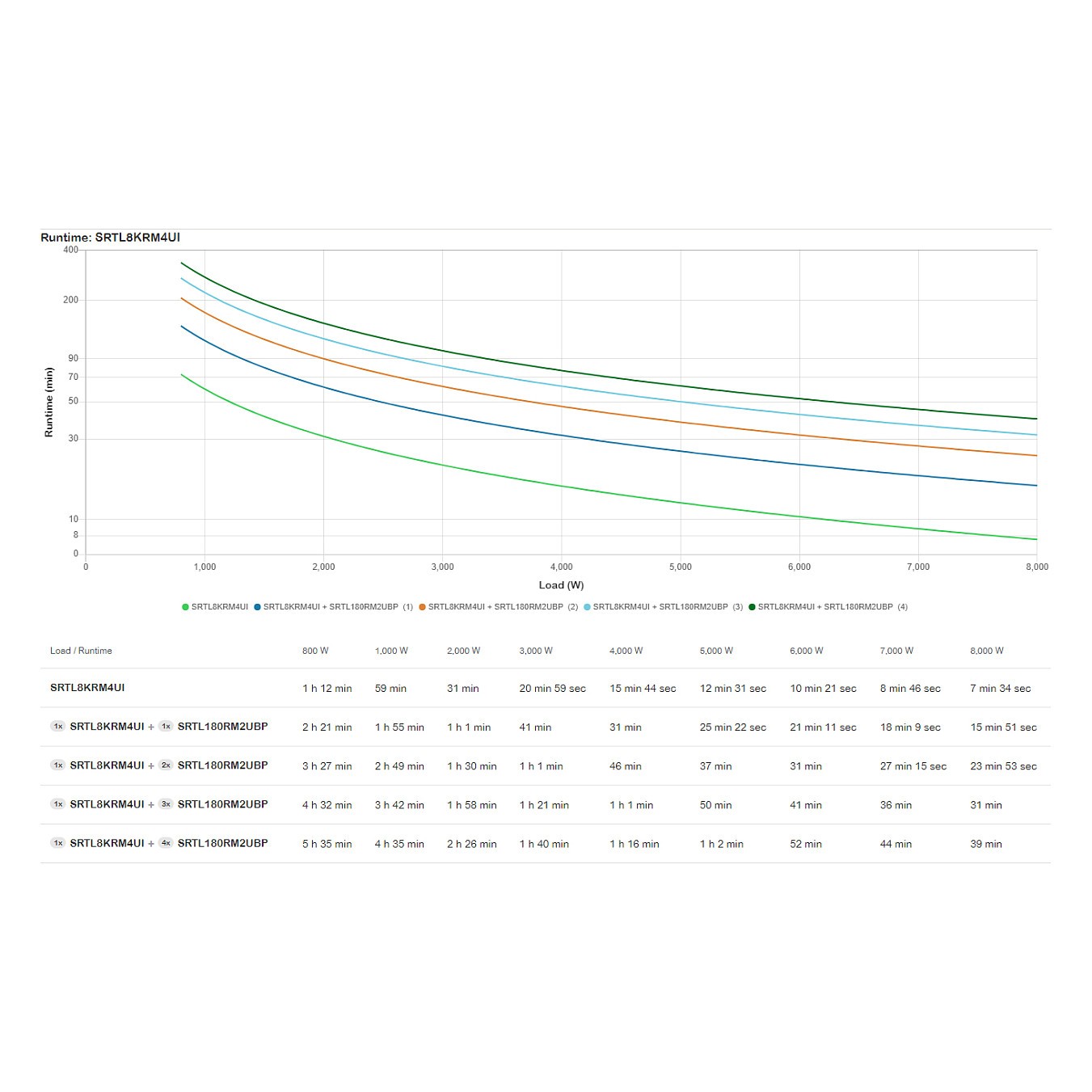

| Typische Backup-Zeit bei voller Belastung | 7 min |
| Typische Backup-Zeit bei halber Belastung | 15 min |
| Batterielebensdauer (max.) | 10 Jahr(e) |
| Akkuladezeit | 1.5 h |
| Formfaktor | Rackmount/Tower |
| Rack-Kapazität | 4U |
| Produktfarbe | Grau |
| Display-Typ | LCD |
| Internationale Schutzart (IP-Code) | IP20 |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -15 - 45 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Höhe bei Betrieb | 0 - 3000 m |
| Höhe bei Lagerung | 0 - 15240 m |
| Konformitätsbescheinigungen | CE. REACH. RoHS. UKCA. VDE |
| Zertifizierung | EN/IEC 62040-1IEC 62040-2 |
| Mitgelieferte Kabel | USB-Kabel |
| Nachhaltigkeitszertifikate | Green Premium |
| Breite | 432 mm |
| Tiefe | 832 mm |
| Höhe | 175 mm |
| Gewicht | 55 kg |
| Verpackungsbreite | 650 mm |
| Verpackungstiefe | 1000 mm |
| Verpackungshöhe | 630 mm |
| Paketgewicht | 88.5 kg |
