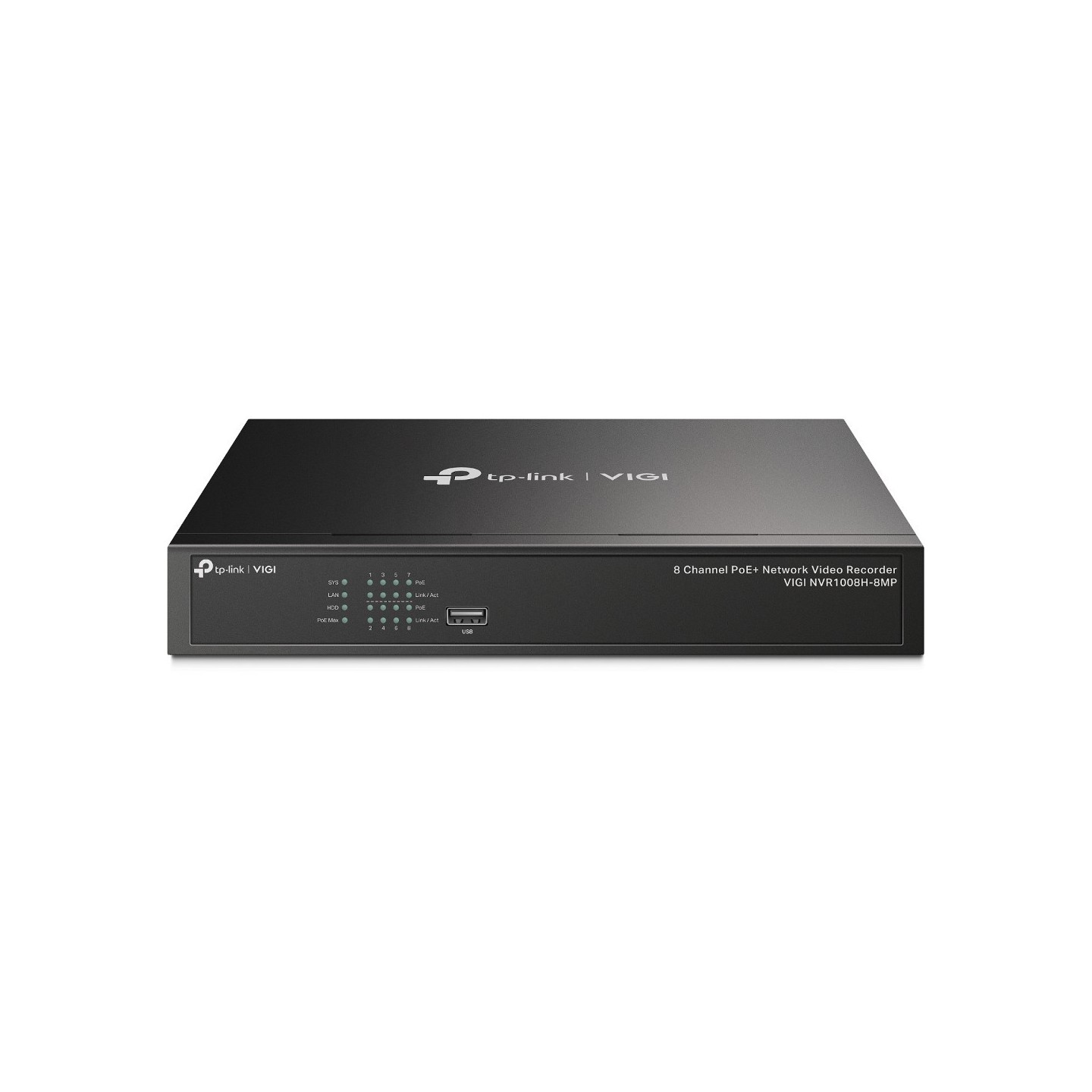

TP-Link VIGI NVR1008H - 8-Channel PoE+ NVR, 4K (3840x2160), SATA up to 10TB, Black
8-channel PoE+ NVR (NVR1008H) with 4K (3840x2160) recording, H.265/H.264 support, SATA HDD up to 10TB, HDMI+VGA outputs, 80 Mbps input bandwidth.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NVRs - Channels | 8 |
|---|---|
| NVRs - PoE Ports | 8xPoE |
| NVRs - Video Outputs | HDMI + VGA |
TP-Link VIGI 8 Channel PoE+ Network Video Recorder. Video input channels: 8 channels. Maximum resolution: 3840 x 2160 pixels. Video recording modes: 720p. 1080p. 2160p. Maximum storage capacity: 10 TB. HDD interface: SATA. Supported network protocols: TCP/IP. DHCP. DNS. NTP. UPnP. Product colour: Black. Power consumption (typical): 4.82 W. Output current: 2.43 A. Output voltage: 53.5 V
| Video input channels | 8 channels |
| Alarm input channels | 8 |
| Alarm output channels | 1 |
| Video recording modes | 720p. 1080p. 2160p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160.1920x1080. 1680x1050. 1440x900. 1280x1024. 1024x768. 1280x720 |
| Resolution at capture speed | 1280x720@60fps. 1920x1080@60fps. 3840x2160@30fps |
| Video formats supported | H.264. H.264+. H.265. H.265+ |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| HDD capacity | 0 GB |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Feature | LED indicators |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols | TCP/IP. DHCP. DNS. NTP. UPnP |
| Product colour | Black |
| Power consumption (typical) | 4.82 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 119 W |
| Operating temperature (T-T) | -10 - 55 °C |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 2.1 kg |
