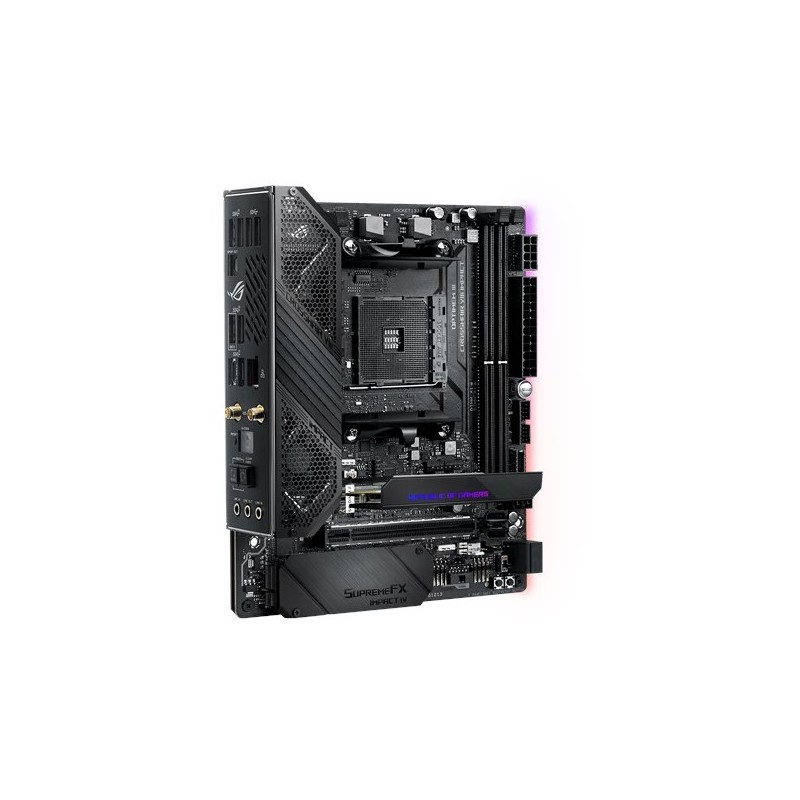

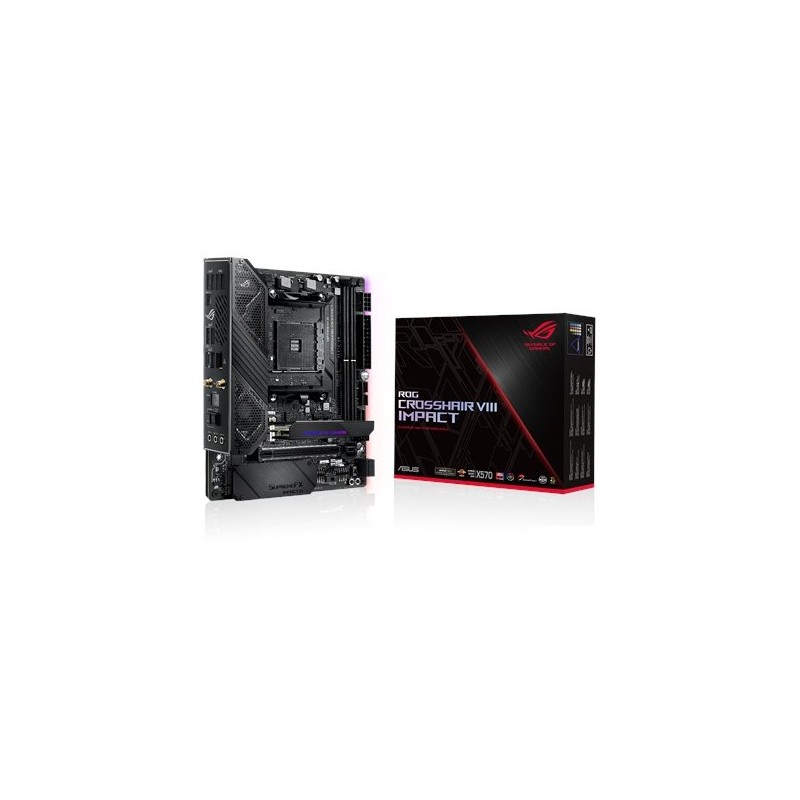

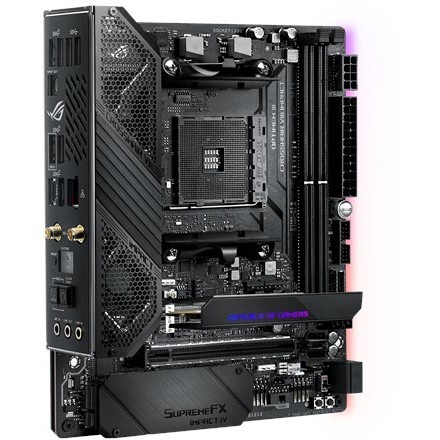

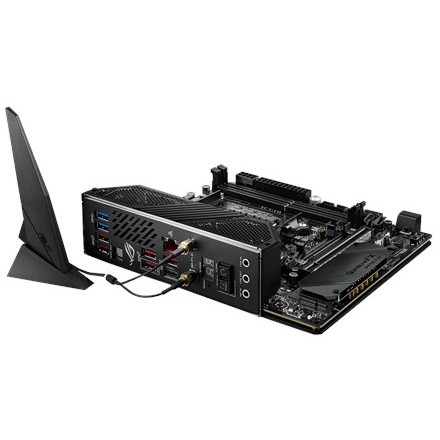

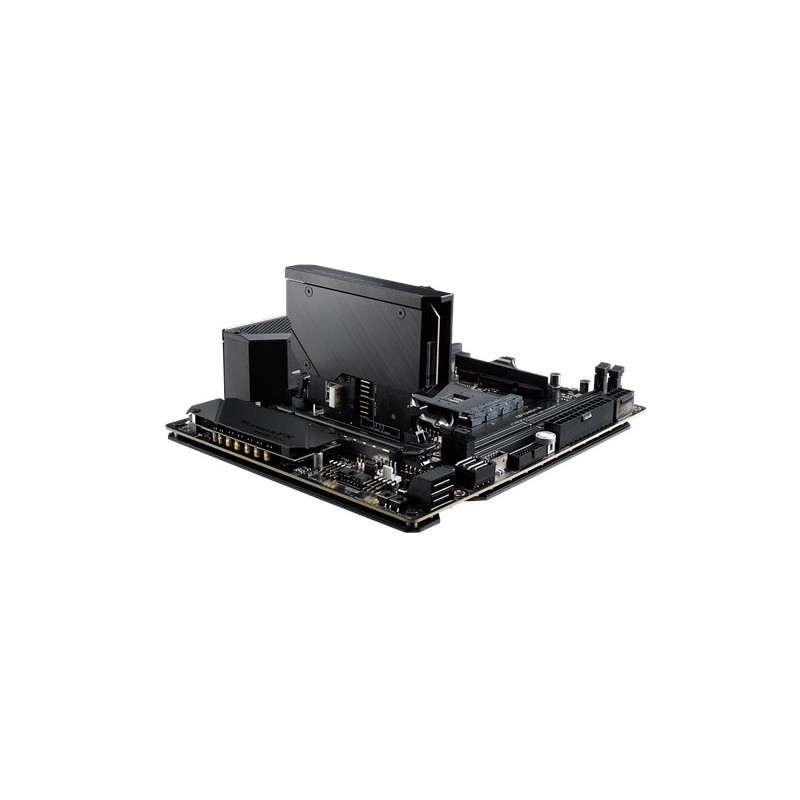

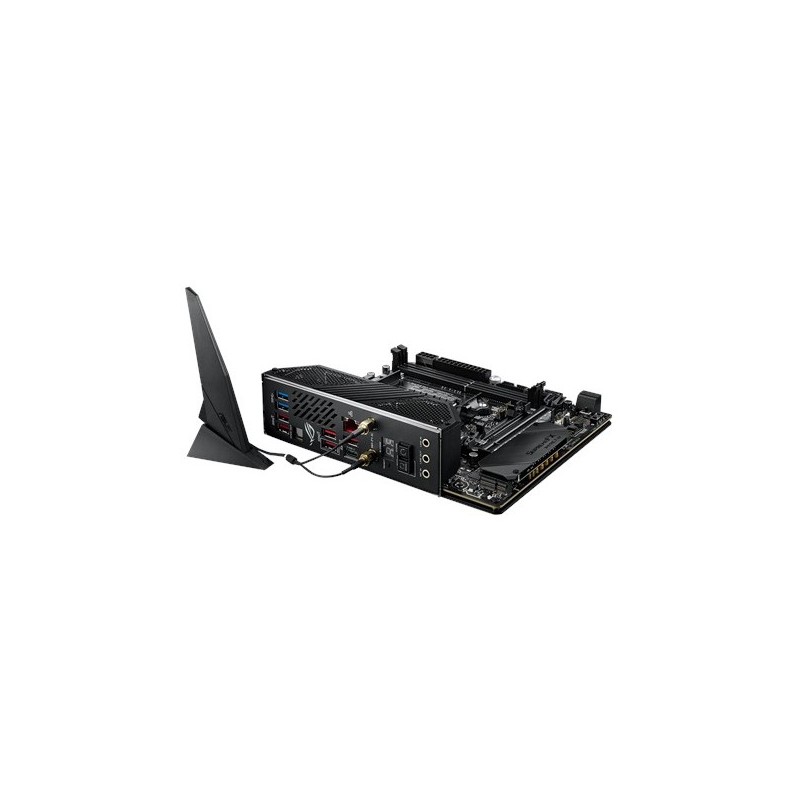

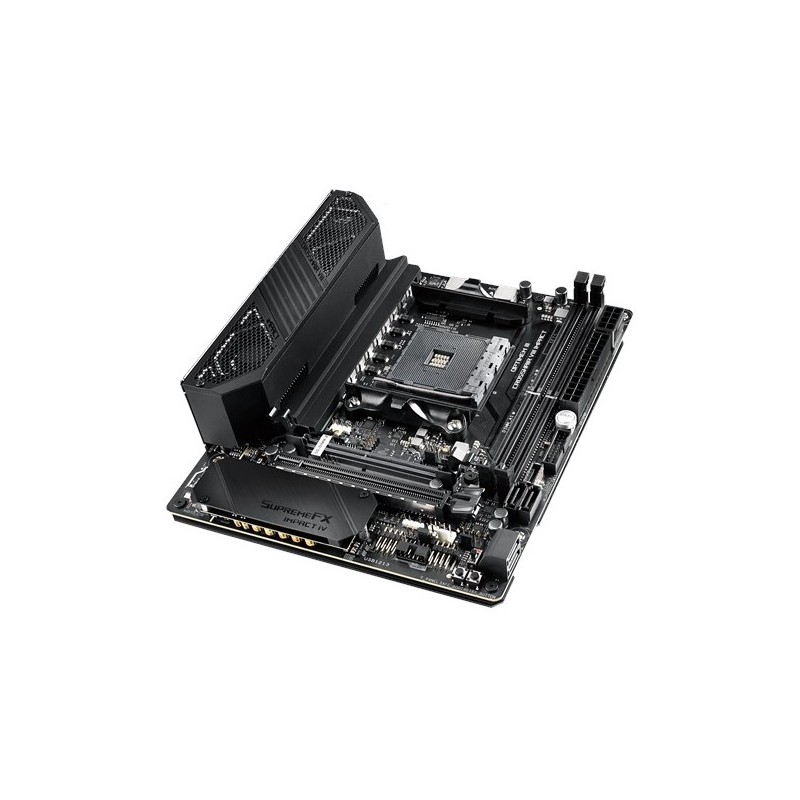

ASUS ROG Crosshair VIII Impact - X570 - AM4 DDR4 Gaming Motherboard, 64GB Max
High-end AMD X570 motherboard for AM4 Ryzen 2000/3000. Dual-channel DDR4 (2 DIMM) up to 64GB, SATA III, Intel I211-AT LAN, Wi-Fi 5/4 support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD X570 |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
ASUS ROG Crosshair VIII Impact. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 2000 Series. AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Ethernet interface type: 10 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet. LAN controller: Intel® I211-AT. Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Component for: Mini PC. Motherboard form factor: Mini DTX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 2000 Series. AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3000.3200.3400.3466.3600.3733.3866.4000.4133.4266.4400.4600.4800 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB. 8GB. 16GB. 32GB |
| Feature | BIOS switch button |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| Number of HDDs supported | 4 |
| RAID levels | 0. 1. 10 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Ethernet interface type | 10 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet |
| LAN controller | Intel® I211-AT |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Motherboard chipset | AMD X570 |
| Audio chip | SupremeFX S1220A |
| Audio output channels | 8.0 channels |
| Component for | Mini PC |
| Motherboard form factor | Mini DTX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Number of mounting holes | 4 |
| Windows operating systems supported | Windows 10 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.2 |
| System Management BIOS (SMBIOS) version | 3.2 |
| Harmonized System (HS) code | 84733020 |
| Width | 203 mm |
| Depth | 170 mm |
| Height | 82 mm |
| HDD size | 2.5/3.5" |
| Weight | 850 g |
