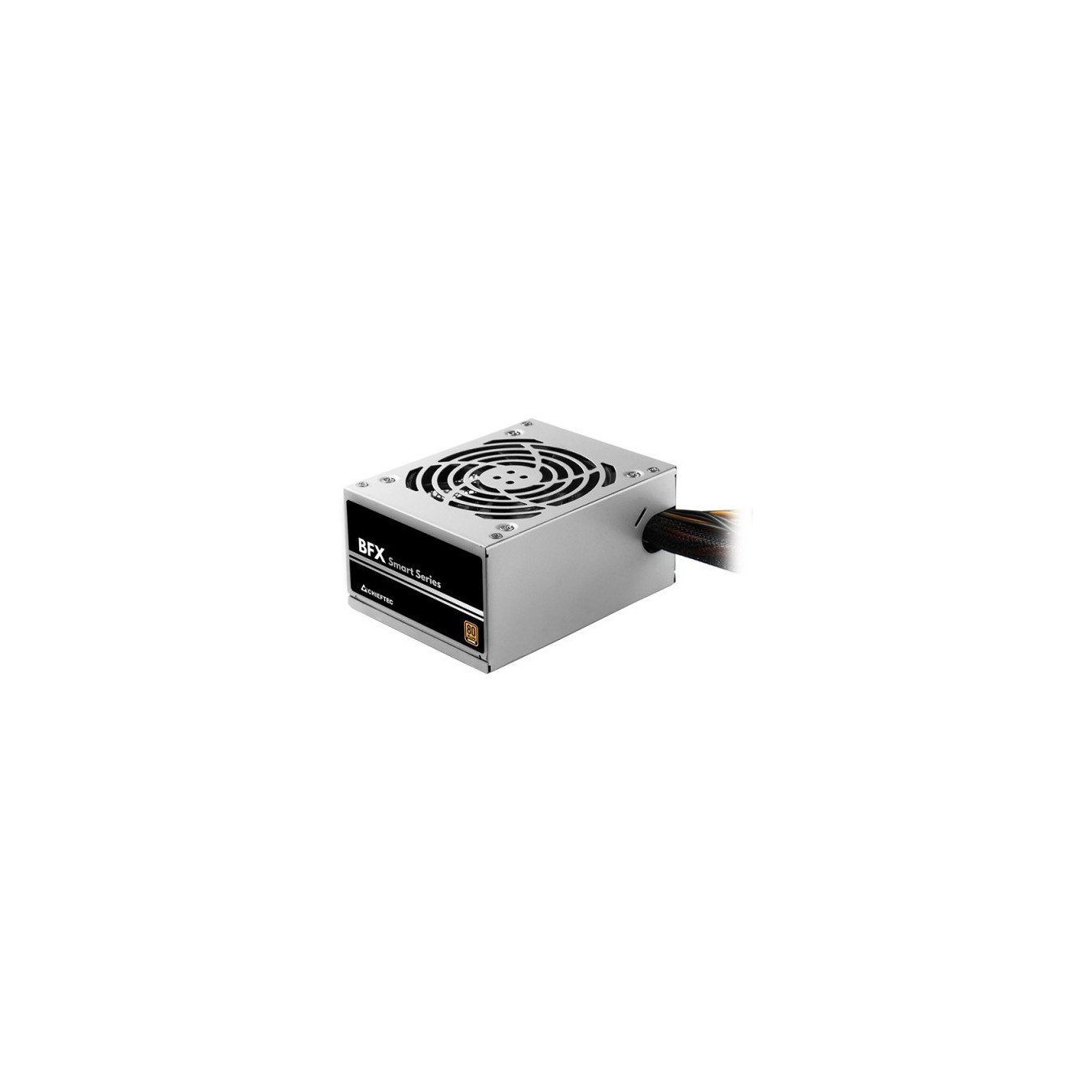

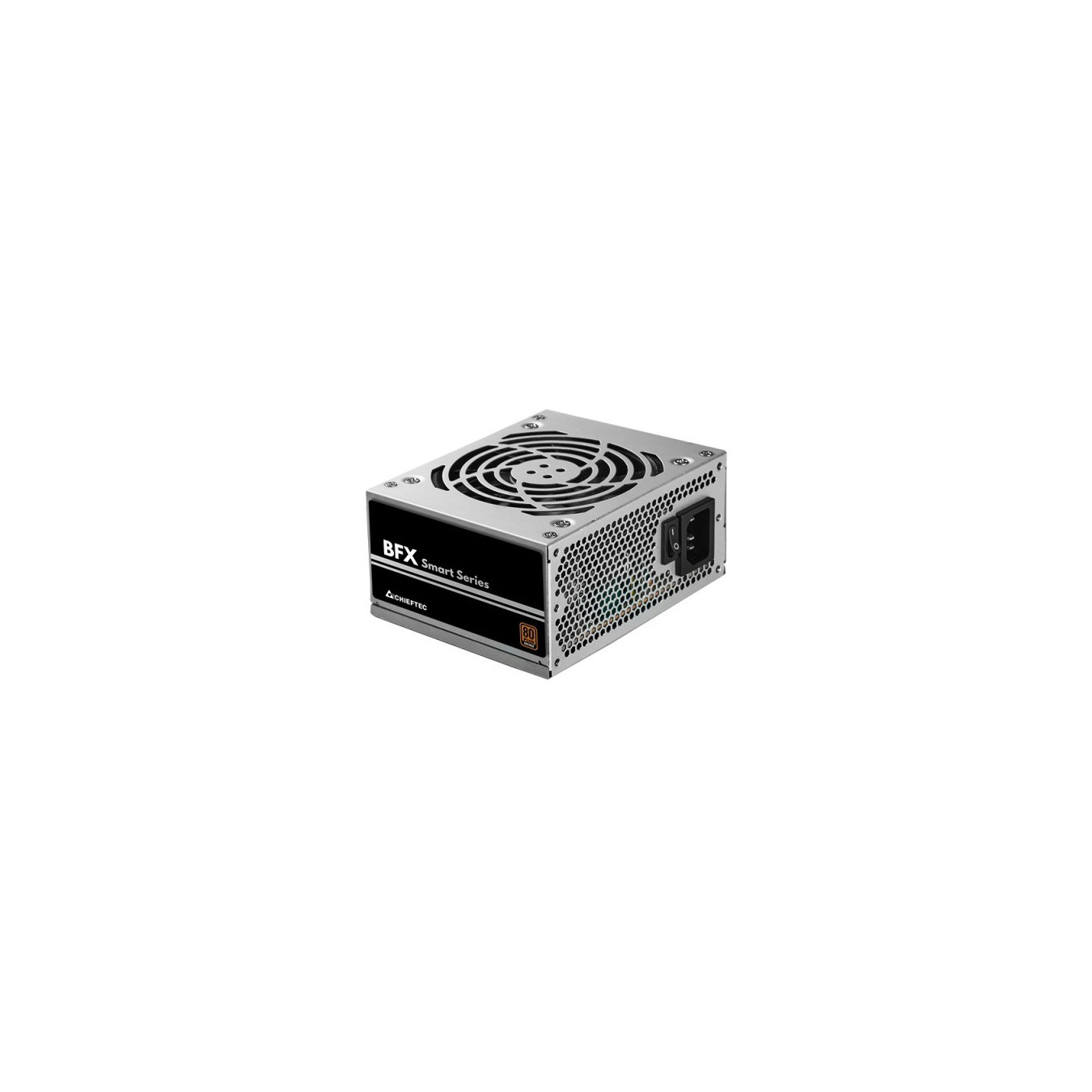

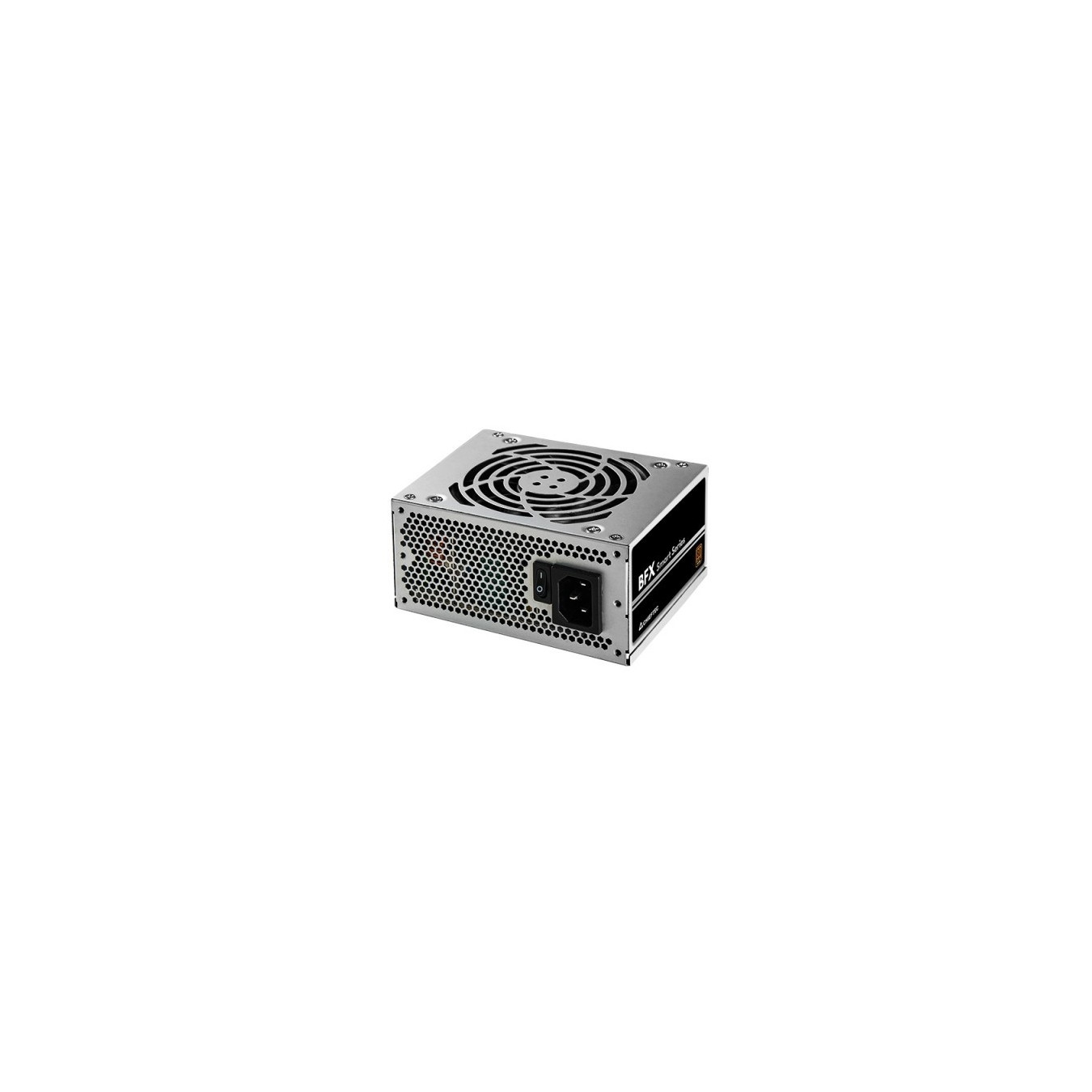

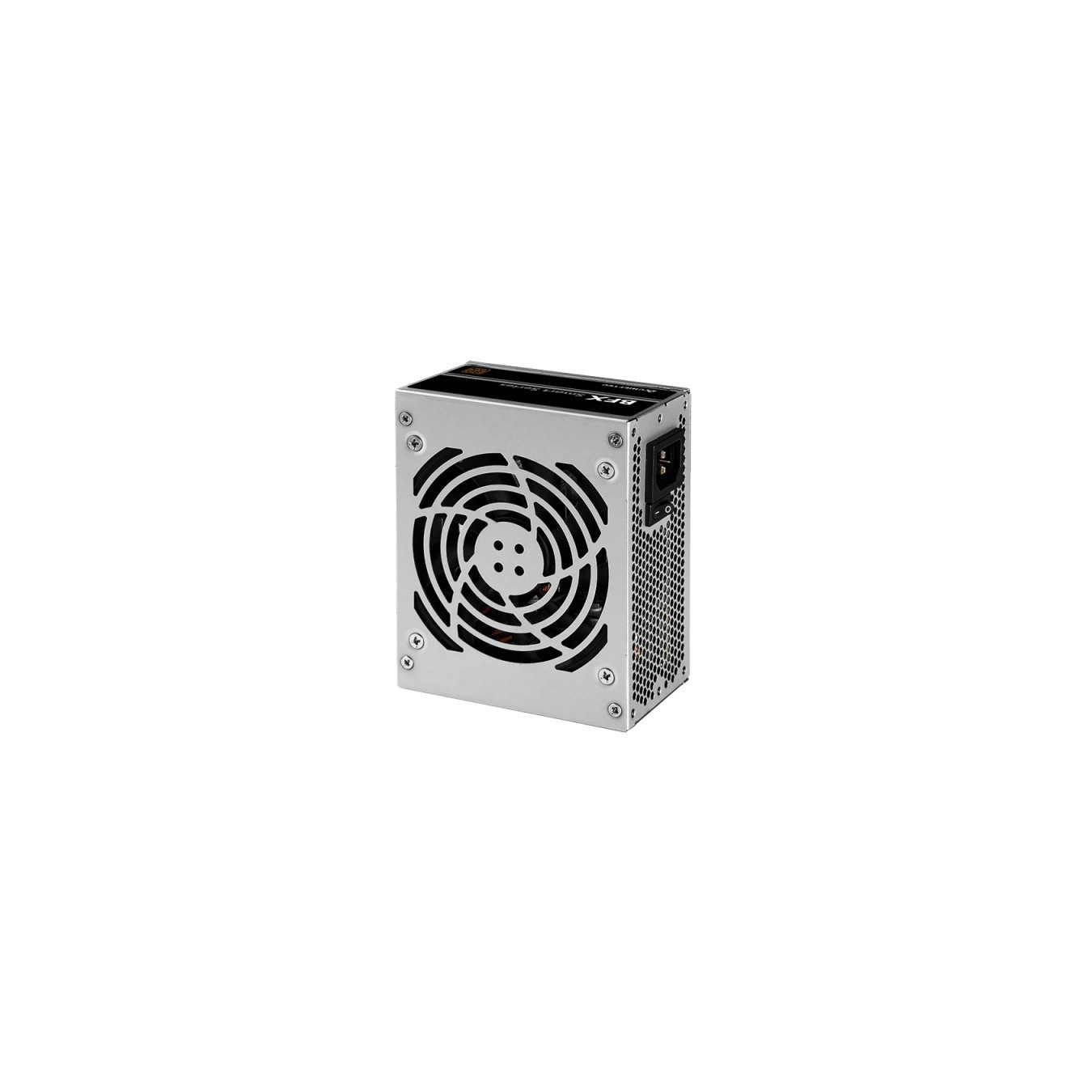

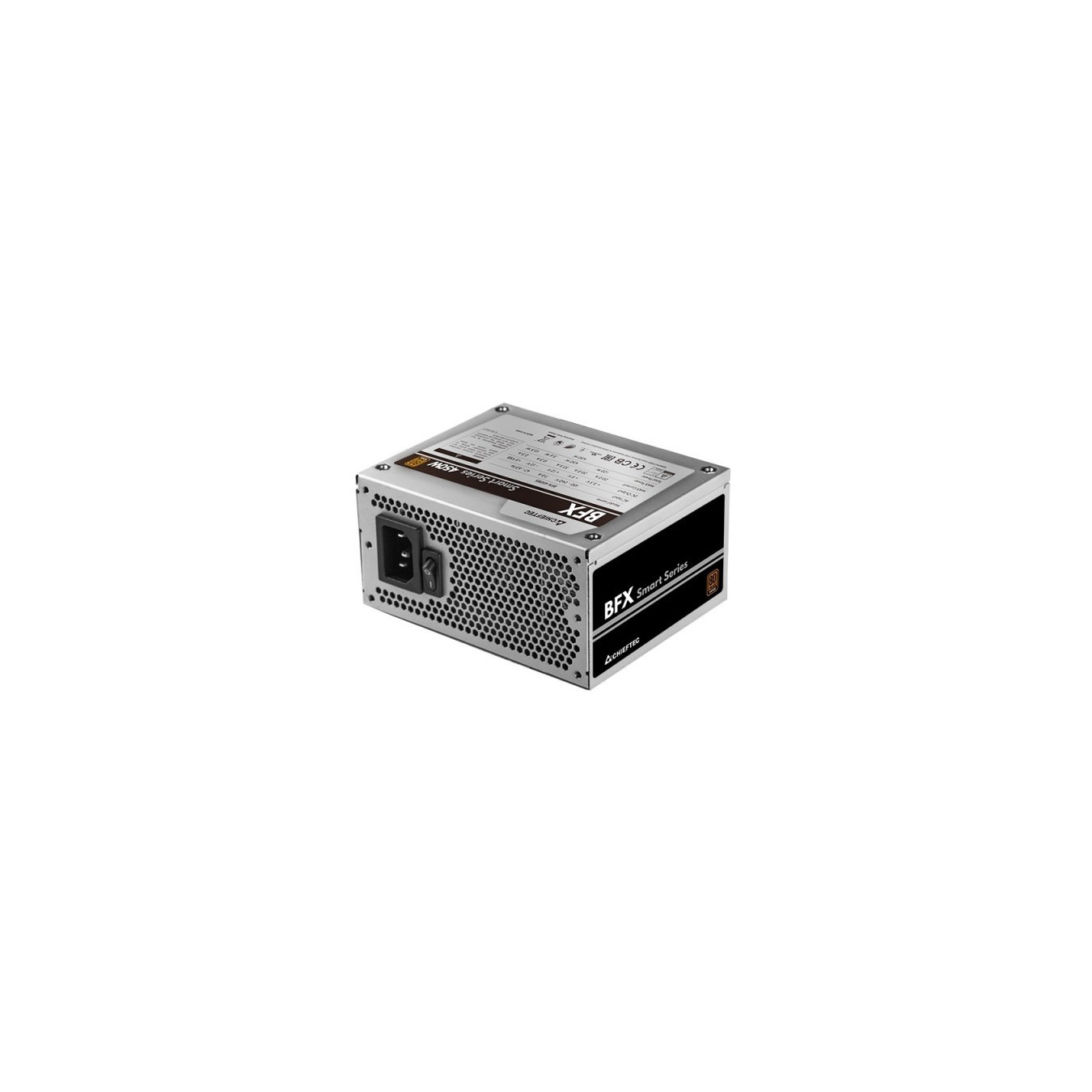

Chieftec BFX-350BS SFX 350W 80+ Bronze Active PFC (Boxed)
Chieftec BFX-350BS SFX 350W PSU, 80 PLUS Bronze efficiency, DC-to-DC design. Active PFC, 90mm fan, 1x PCIe 6+2pin, 3x SATA, protections: OVP/OCP/OTP/UVP/SCP. Compact 100x125x64mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | Under 400 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black Silver |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Chieftec BFX-350BS is a compact SFX power supply delivering 350W with 80 PLUS Bronze certification for reliable efficiency up to 85% at typical loads. Featuring DC-to-DC technology and active PFC (0.9), it ensures stable power delivery for small form factor PCs.
Equipped with a quiet 90mm fan with automatic speed control, the PSU maintains low noise while providing essential connectors: 20+4pin ATX, 4+4pin EPS, 1x 6+2pin PCIe for GPUs, 3x SATA, 2x Molex, and 1x Floppy. Full protections include OVP, OCP, OTP, UVP, SCP, OPP, and SIP for component safety. Non-modular cabling keeps it budget-friendly.
- 80 PLUS Bronze certified efficiency
- Compact SFX form factor: 100 x 125 x 64 mm
- 90mm silent fan with AFC
- DC-to-DC conversion technology
- Complete protection suite
- ATX 12V 2.3 compliant
| MPN | BFX-350BS |
| Total power | 350 W |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 2.3 |
| 80 PLUS certification | 80 PLUS Bronze |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| Combined power (+12V) | 349.92 W |
| Max output current (+12V1) | 29.16 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Motherboard power connector | 20+4 pin ATX |
| Feature | EPS power connector (4+4 pin) |
| PCI Express power connectors (6+2 pin) | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Cooling type | Active |
| Fan diameter | 9 cm |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 1.3 kg |
| Power protection features | OVP/OCP/OTP/UVP/SCP/OPP/SIP |
| Product colour | Black Silver |
