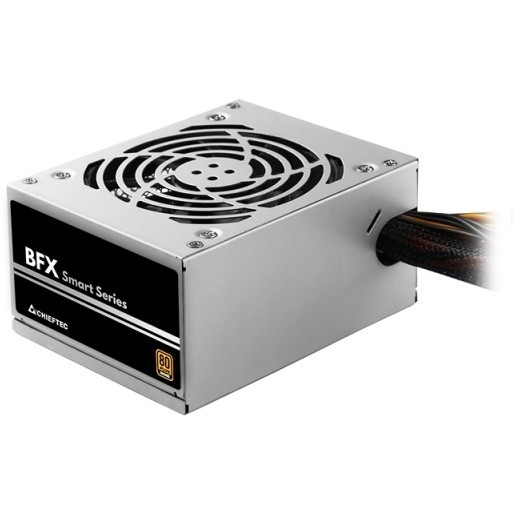

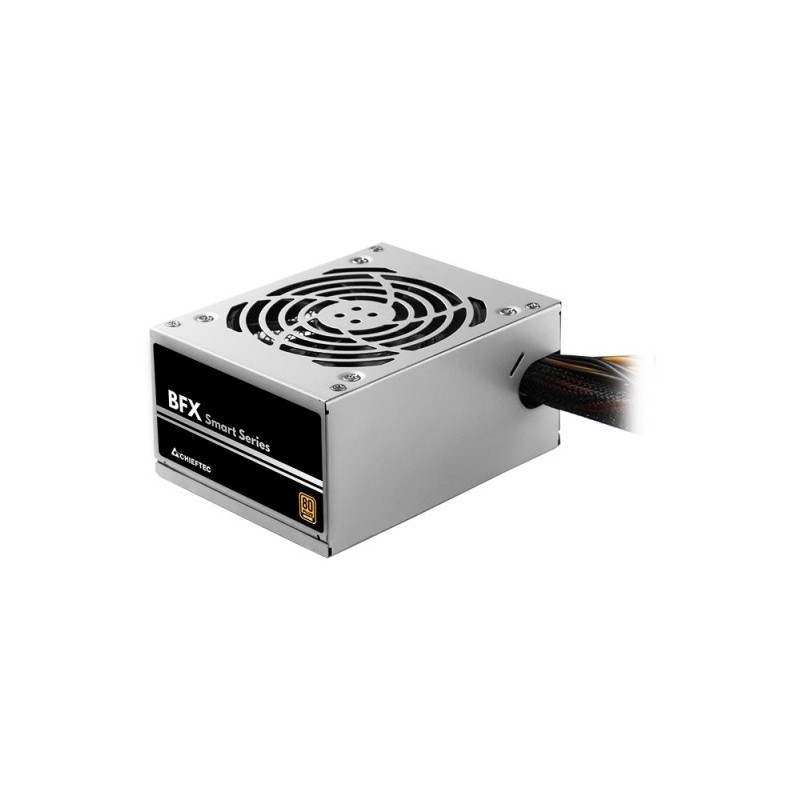

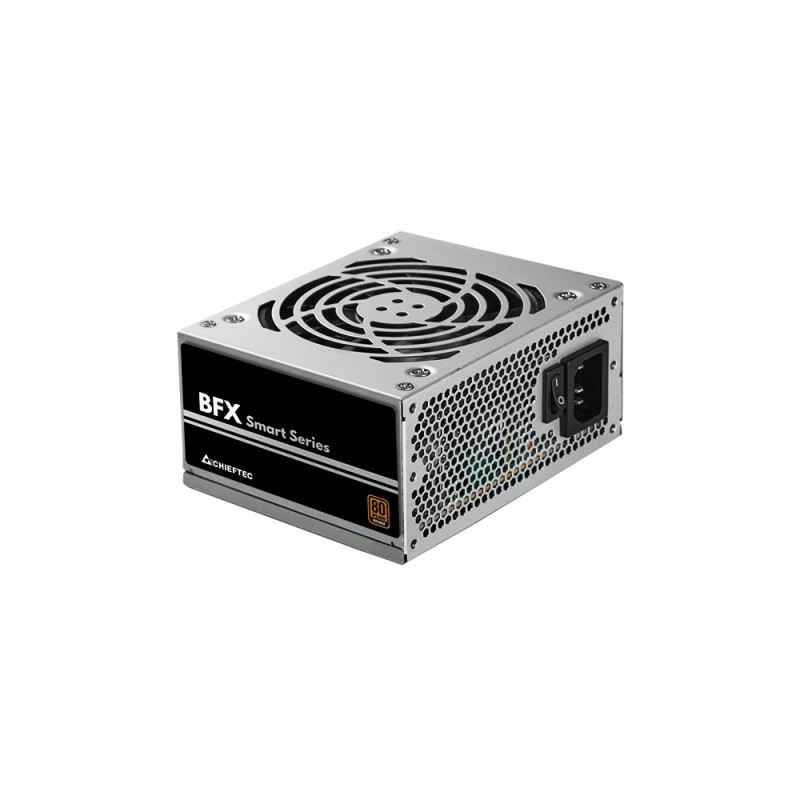

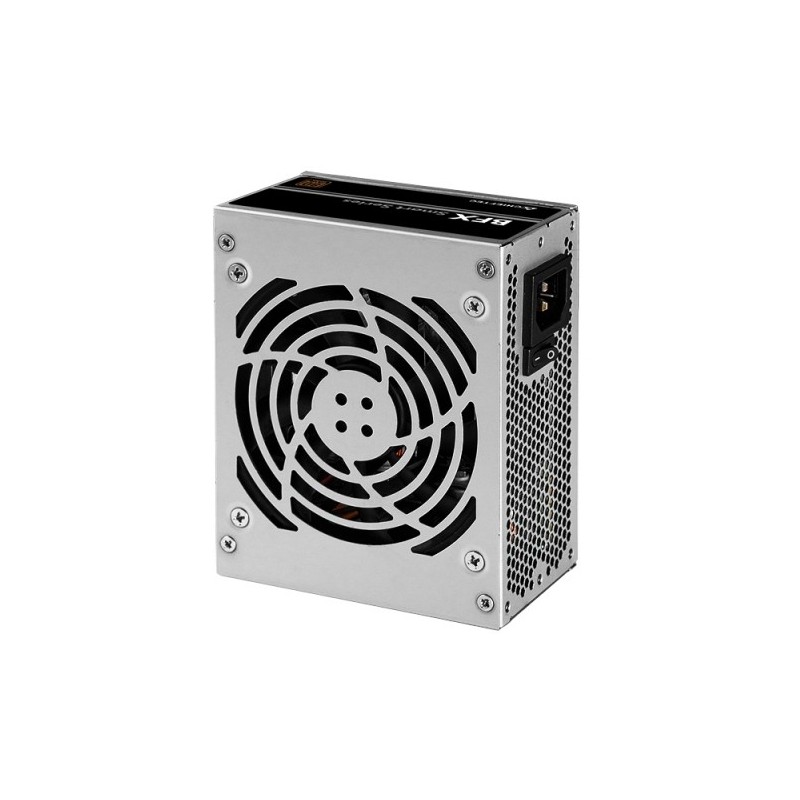

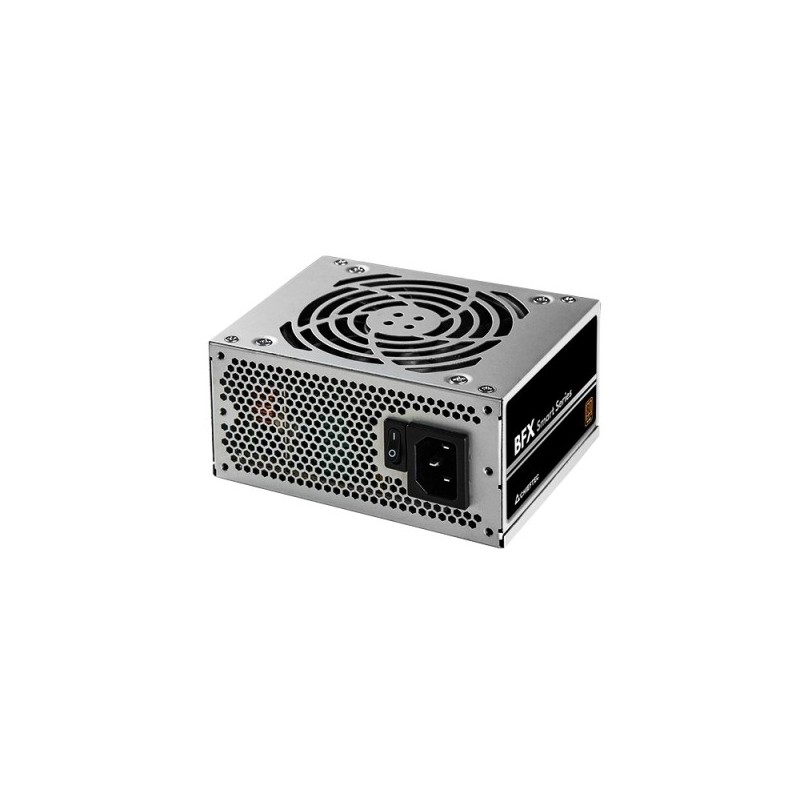

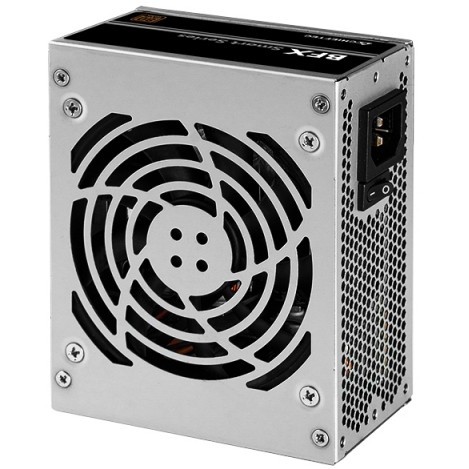

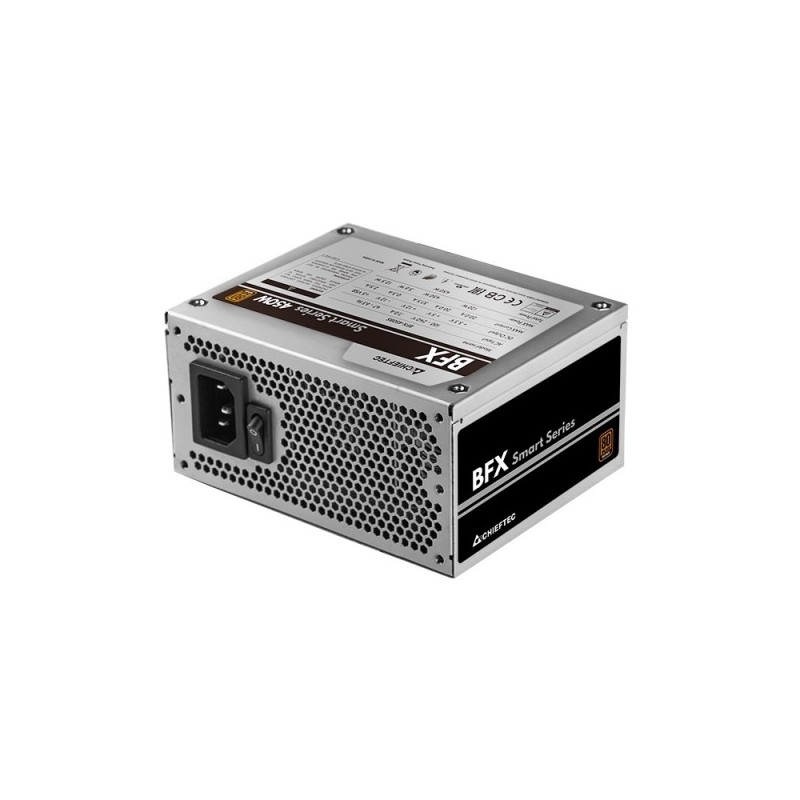

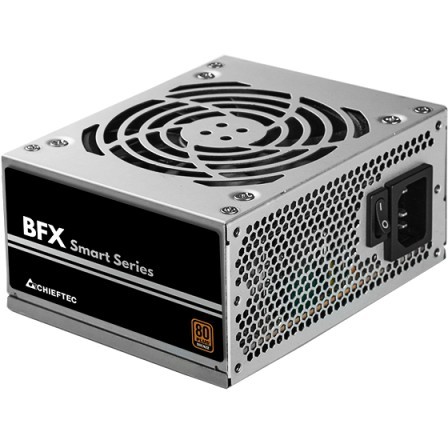

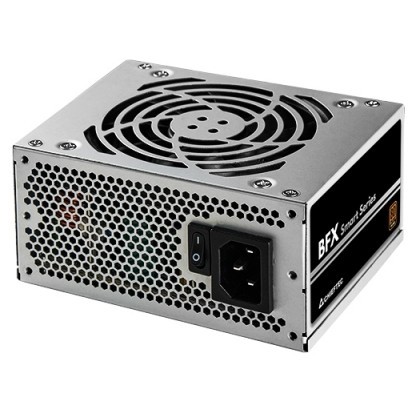

Chieftec BFX Smart SFX 350W - 80 PLUS Bronze - Black (20+4 ATX, Active PFC)
Chieftec BFX Smart 350W SFX PSU, 80 PLUS Bronze, 100–240V, active PFC, 20+4 ATX connector, SATA cables, 90mm fan, multi-protection (OVP/OCP/OTP/UVP/SCP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Chieftec Smart 350W. Total power: 350 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 35 cm. SATA power cable length: 250 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Silver. Cooling type: Active. Fan diameter: 9 cm. Width: 125 mm. Depth: 100 mm. Height: 64 mm
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 349.92 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 29.16 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current. Over voltage. Overheating. Overload. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 250 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150 mm |
| Feature | EPS power connector (4+4 pin) |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 35 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 15 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black. Silver |
| Cooling type | Active |
| Fan diameter | 9 cm |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 1.3 kg |
| Harmonized System (HS) code | 84733020 |
