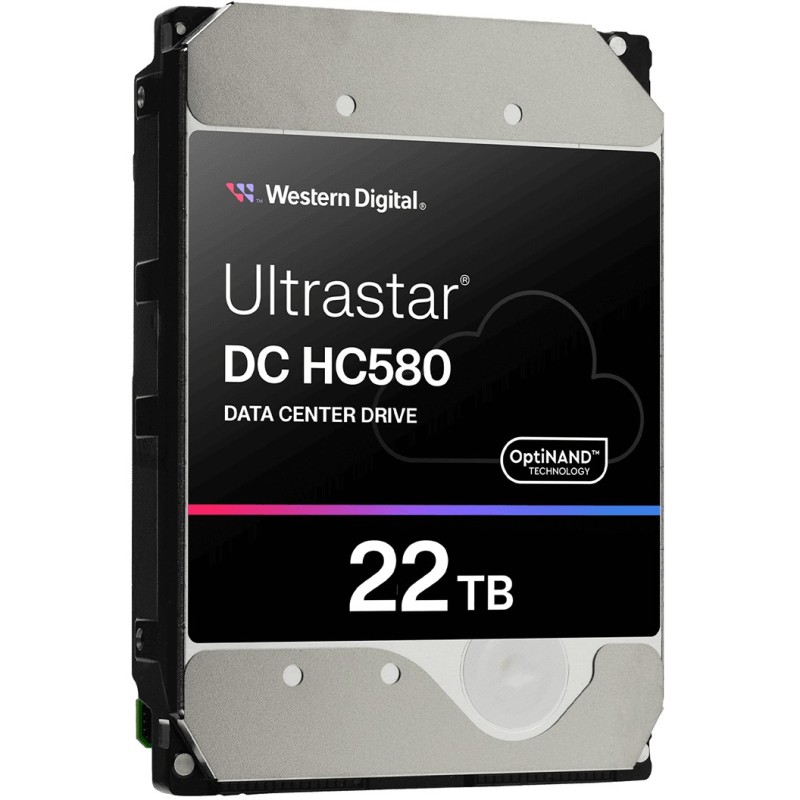

WD Ultrastar DC HC580 - 22TB Enterprise/Data Center HDD, 7200 RPM, 512MB Cache, SATA III, 3.5in
Western Digital Ultrastar DC HC580 22TB 3.5in Enterprise/Data Center HDD — 7200 RPM, 512MB cache, SATA III 6Gb/s, designed for servers with 2.5M hr MTBF.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | HDD |
|---|---|
| Storage (SSD & HDD) - Interface | SATA III 6Gb/s |
| Storage (SSD & HDD) - Form Factor | 3.5inch |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Intended Use | Data Center |
Western Digital Ultrastar DC HC580. HDD capacity: 22 TB. HDD speed: 7200 RPM. Storage drive buffer size: 512 MB. HDD size: 3.5". Interface: Serial ATA
| HDD capacity | 22 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5" |
| Interface | Serial ATA |
| Type | HDD |
| Component for | Server/workstation |
| HDD sustained transfer rate | 291 MiB/s |
| Average latency | 4.16 ms |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) | 2500000 h |
| Power consumption (read) | 8.5 W |
| Power consumption (write) | 8.5 W |
| Power consumption (idle) | 5.5 W |
| Operating voltage | 5 / 12 V |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 670 g |
| Quantity per pack | 1 pc(s) |
| Warranty period | 5 year(s) |
| Feature | Linux operating systems supported |
