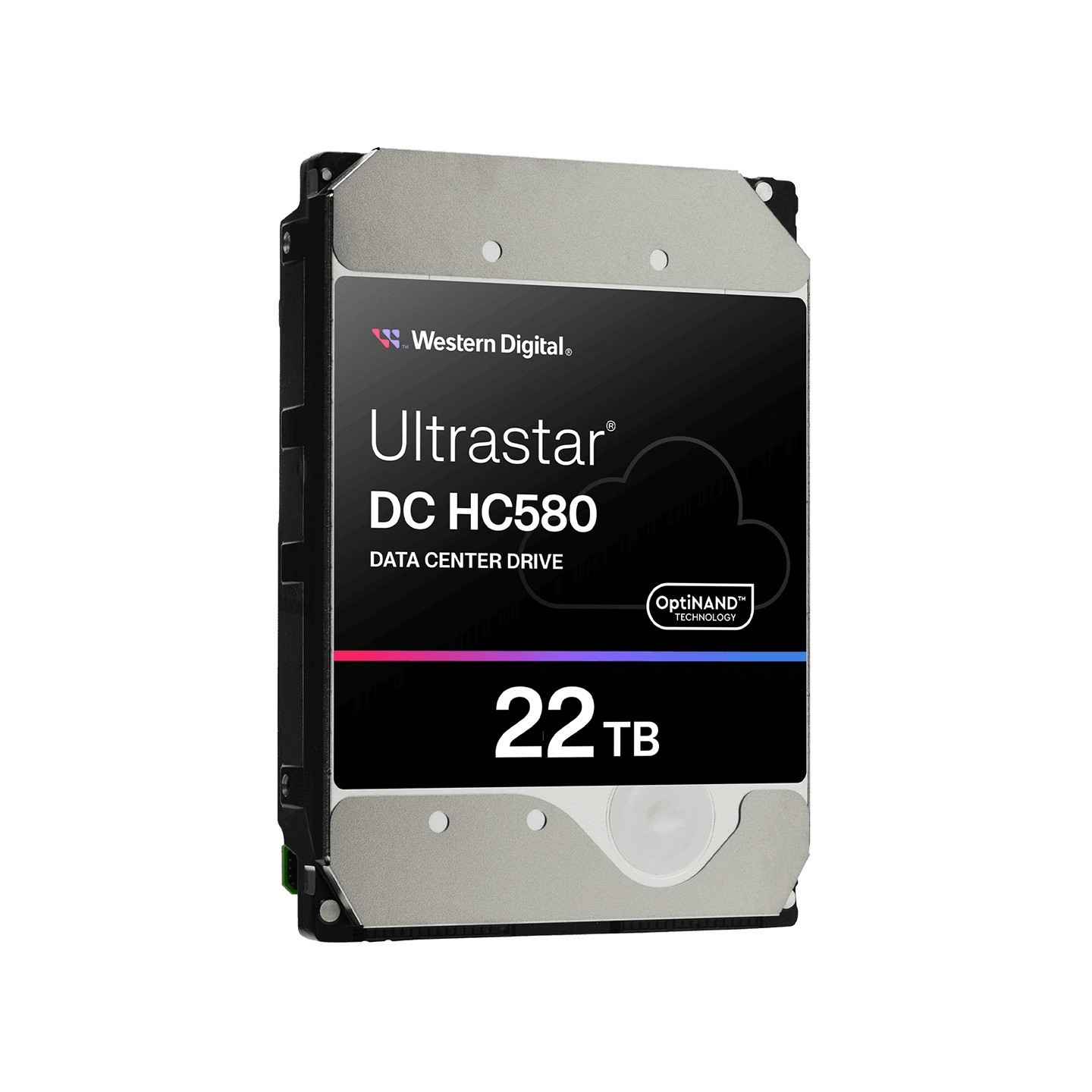

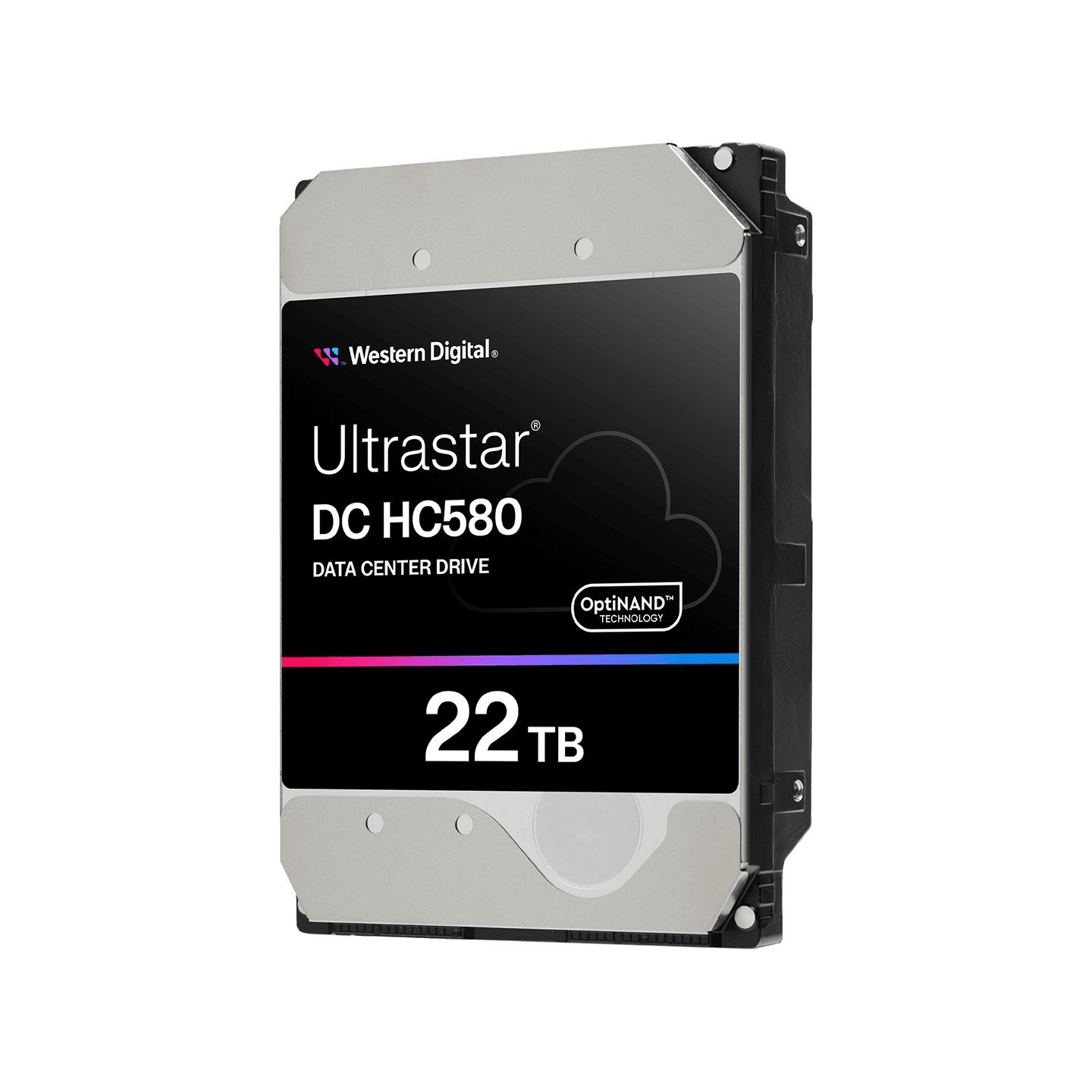

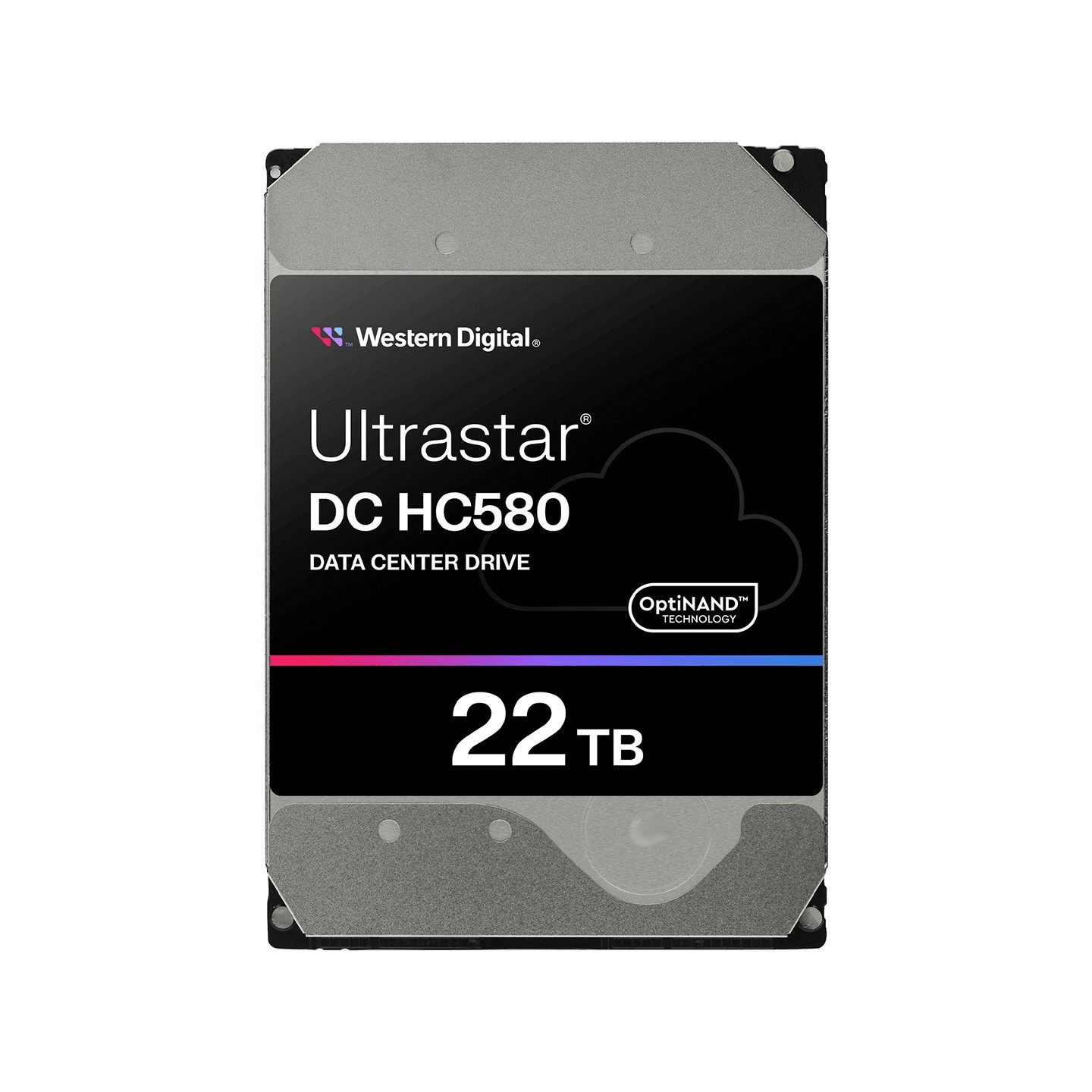

Western Digital Ultrastar DC HC580 22TB - 7200 RPM 512MB SATA III Enterprise HDD
Western Digital Ultrastar DC HC580 22TB enterprise HDD with 7200 RPM, 512MB cache, SATA III interface. Designed for data center workloads with 2.5M hour MTBF, 550TB/year workload rating, and 5-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 22TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
The Western Digital Ultrastar DC HC580 22TB is a high-capacity enterprise-grade hard drive engineered for demanding data center environments. This 3.5-inch HDD delivers 22TB of storage capacity using conventional magnetic recording (CMR) technology, making it ideal for hyperscale storage, cloud infrastructure, and distributed file systems. With a 7200 RPM spindle speed and 512MB cache, the drive provides sustained performance suitable for heavy application workloads up to 550TB per year.
Built with reliability and efficiency in mind, the HC580 incorporates advanced technologies including OptiNAND for improved storage density, Energy-Assisted Magnetic Recording (EAMR) for higher capacity with lower power consumption, and ArmorCache for enhanced performance and enterprise power loss protection. The drive is rated for 2.5 million hours MTBF (Mean Time Between Failures) and comes with a comprehensive 5-year limited warranty. It supports multiple operating systems including Windows, Windows Server, and Linux, making it compatible with diverse enterprise infrastructure.
The Ultrastar DC HC580 is optimized for cloud and hyperscale storage, massive scale-out (MSO) high-density data centers, Apache Hadoop Big Data analytics, hybrid cloud environments, and hyperconverged infrastructure servers. Its robust construction and enterprise-class specifications make it a cost-effective solution for organizations requiring reliable, high-capacity storage in 24/7 operational environments.
- Capacity: 22TB with CMR technology
- Speed: 7200 RPM with 512MB cache
- Interface: SATA III 6Gb/s
- Reliability: 2.5M hours MTBF, 5-year warranty
- Workload: Up to 550TB per year
- Advanced Features: OptiNAND, EAMR, ArmorCache, HelioSeal
- Operating Systems: Windows, Windows Server, Linux
| HDD Capacity | 22 TB |
| HDD Speed | 7200 RPM |
| Storage Drive Buffer Size | 512 MB |
| HDD Size | 3.5 inch |
| Interface | SATA III 6Gb/s |
| Type | HDD |
| Component For | Enterprise/Data Center Server |
| Recording Technology | CMR (Conventional Magnetic Recording) |
| HDD Sustained Transfer Rate | 291 MiB/s |
| Average Latency | 4.16 ms |
| Workload Rate Limit | 550 TB/year |
| Mean Time Between Failures (MTBF) | 2,500,000 hours |
| Power Consumption (Read) | 8.5 W |
| Power Consumption (Write) | 8.5 W |
| Power Consumption (Idle) | 5.5 W |
| Operating Voltage | 5V / 12V |
| Operating Temperature | 5°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Vibration | 0.7 G |
| Non-Operating Vibration | 1.04 G |
| Operating Shock | 40 G |
| Non-Operating Shock | 200 G |
| Drive Dimensions (W x H x D) | 101.6 mm x 26.1 mm x 147 mm |
| Drive Weight | 670 g |
| Warranty Period | 5 years limited |
| Advanced Features | OptiNAND technology, Energy-Assisted Magnetic Recording (EAMR), Triple-Stage Actuator (TSA), HelioSeal, ArmorCache |
| Supported Operating Systems | Windows, Windows Server, Linux |
| Load/Unload Cycles | 600,000 |
| Non-Recoverable Errors Per Bits Read | <10 in 10^17 |
