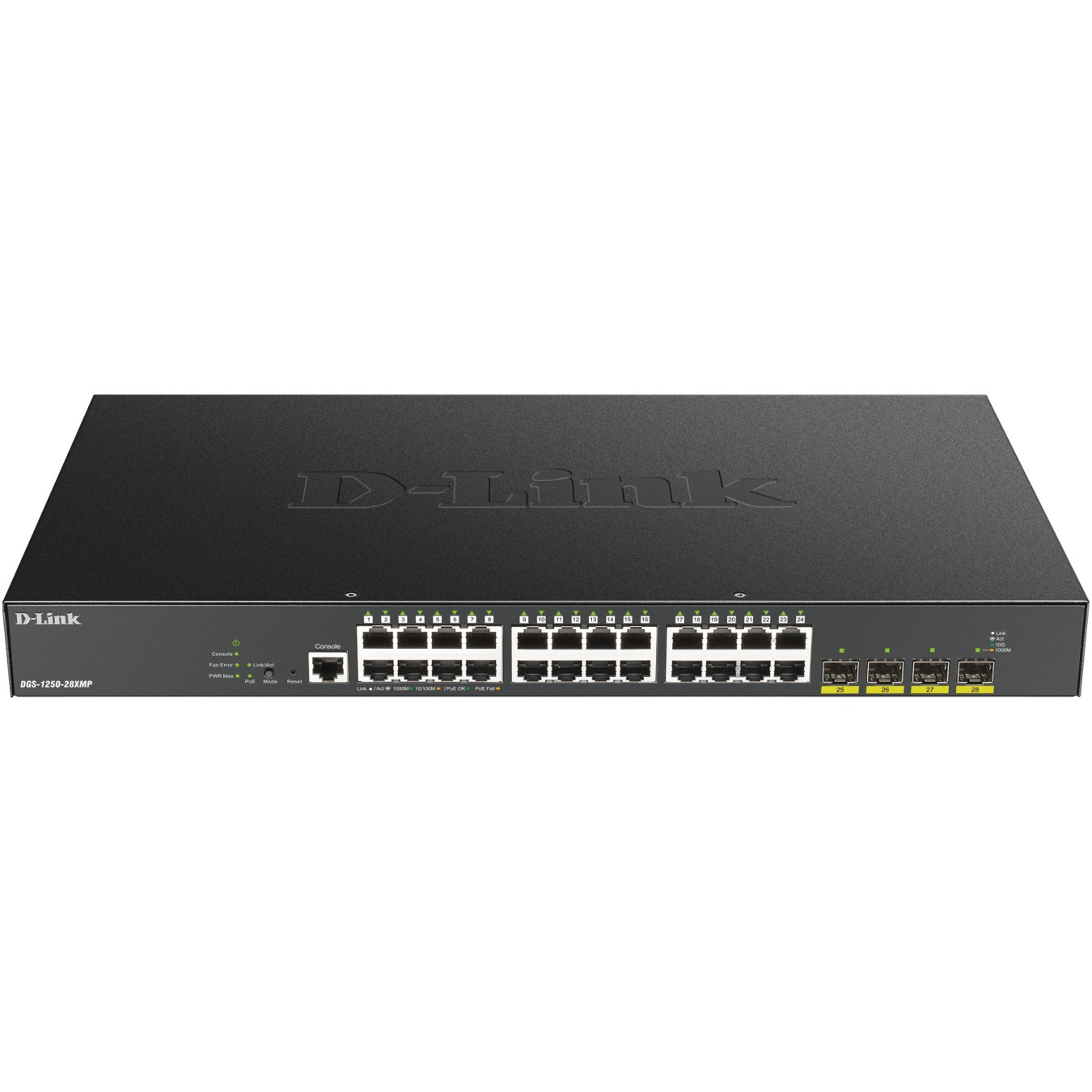

D-Link DGS-1250-28XMP-E - 28-Port Smart Managed PoE+ Switch, 24x Gigabit RJ45 & 4x 10G SFP+, 370W
24x Gigabit RJ45 PoE+ ports, 4x 10G SFP+, 370W PoE budget, Smart Managed L3 switch with 128 Gbps switching capacity, rack-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
D-Link 24-port Gigabit PoE Smart Managed Switch with 4x 10G SFP+. 370Watts. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45. Full duplex. MAC address table: 16000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af. IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat5. Cat5e |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| Fiber ethernet cabling technology | 100BASE-FX. 1000BASE-LHX. 1000BASE-X. 1000BASE‑LX. 1000BASE‑SX. 1000BASE‑ZX |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.24 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 124 |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 768 |
| Security algorithms | EAP. LEAP. MD5. PEAP. SSH. SSL/TLS. TTLS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
| LED indicators | Activity. Link. Power. Speed |
| Electromagnetic compatibility | CE A. VCCI A. FCC A. IC. BSMI |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Noise level | 50.8 dB |
| Mean time between failures (MTBF) | 463430.16 h |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 455.1 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1551.891 BTU/h |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.46 kg |
| Package width | 393 mm |
| Package depth | 563 mm |
| Package height | 89 mm |
| Package weight | 4.76 kg |
| Certification | CB. UL. BSMI. CCC |
