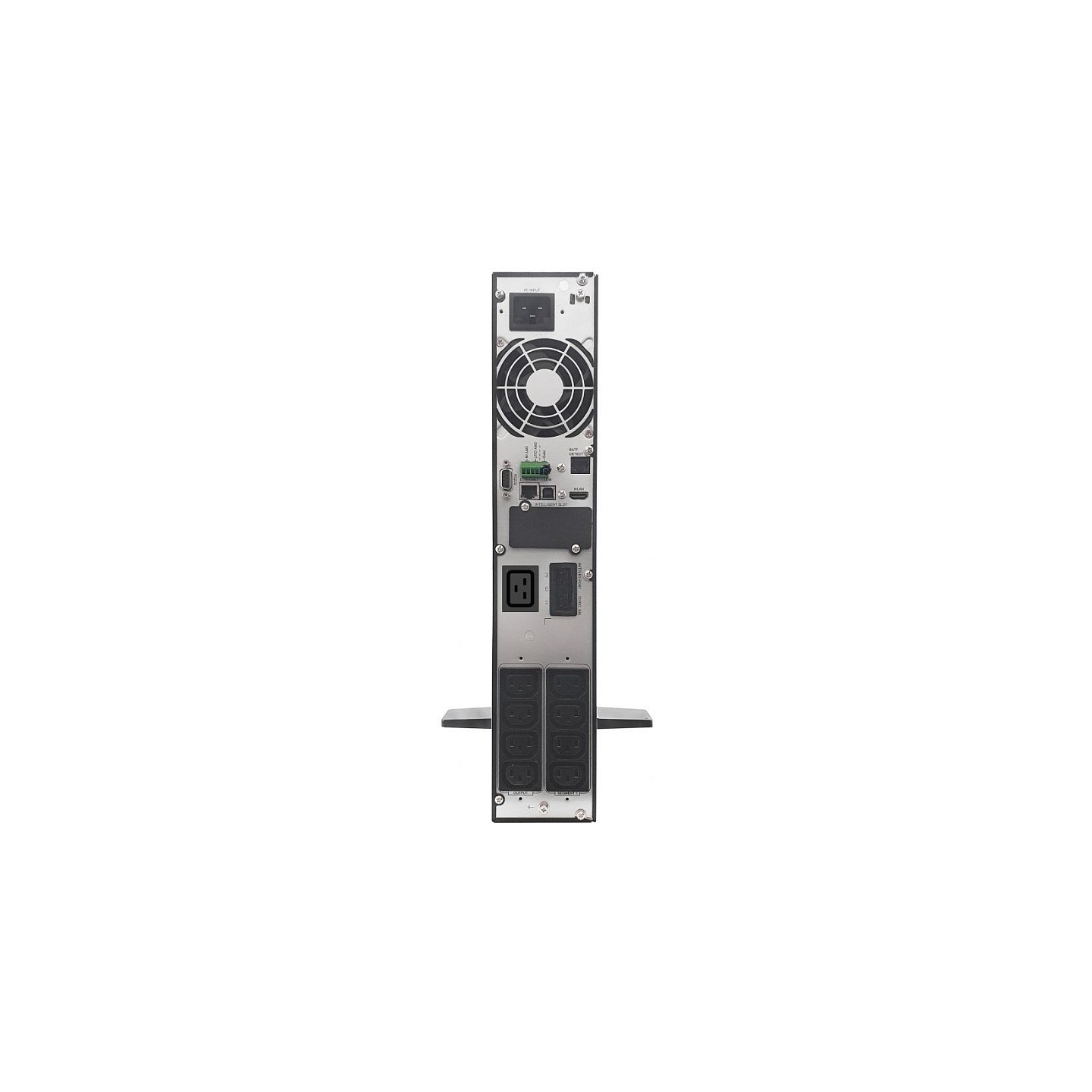

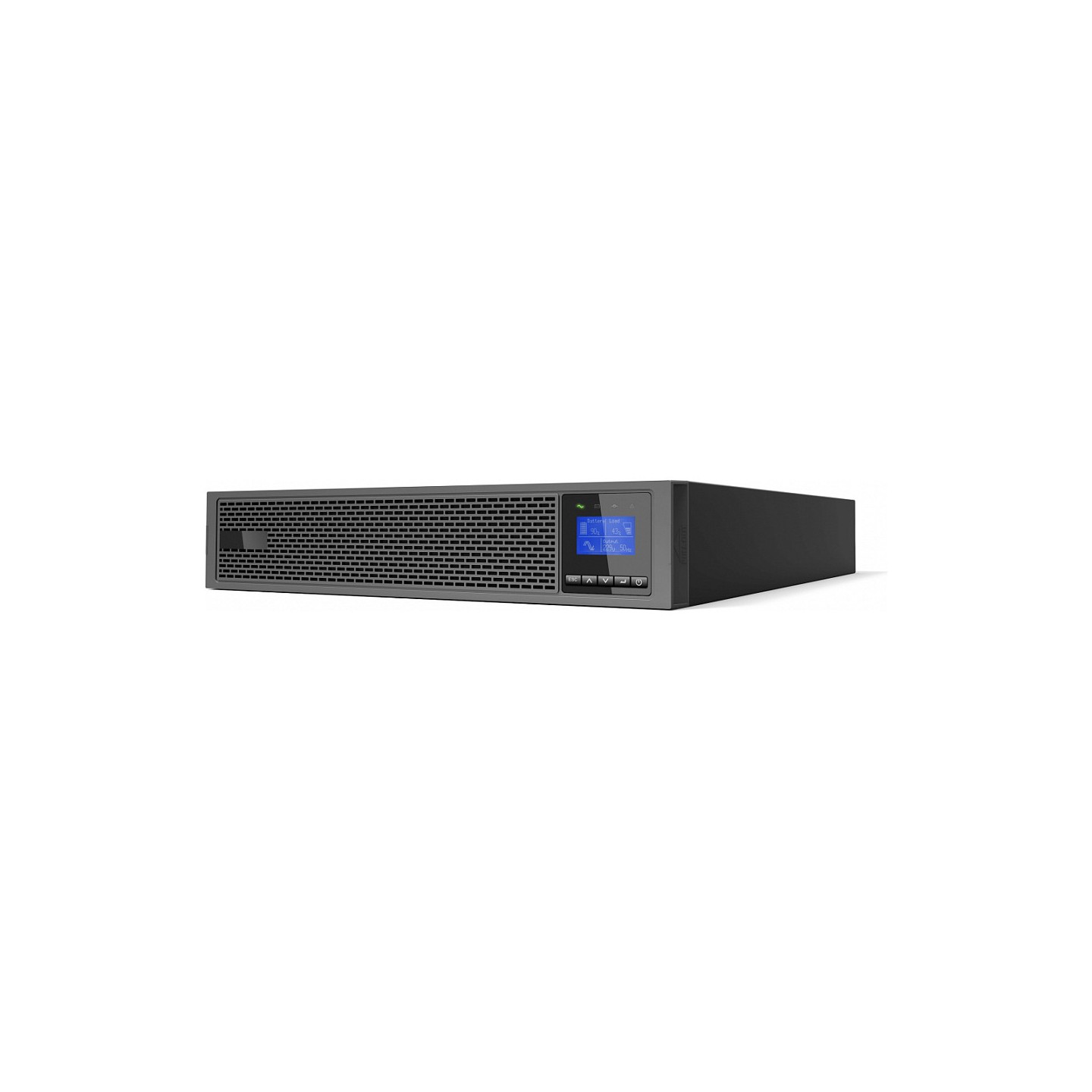

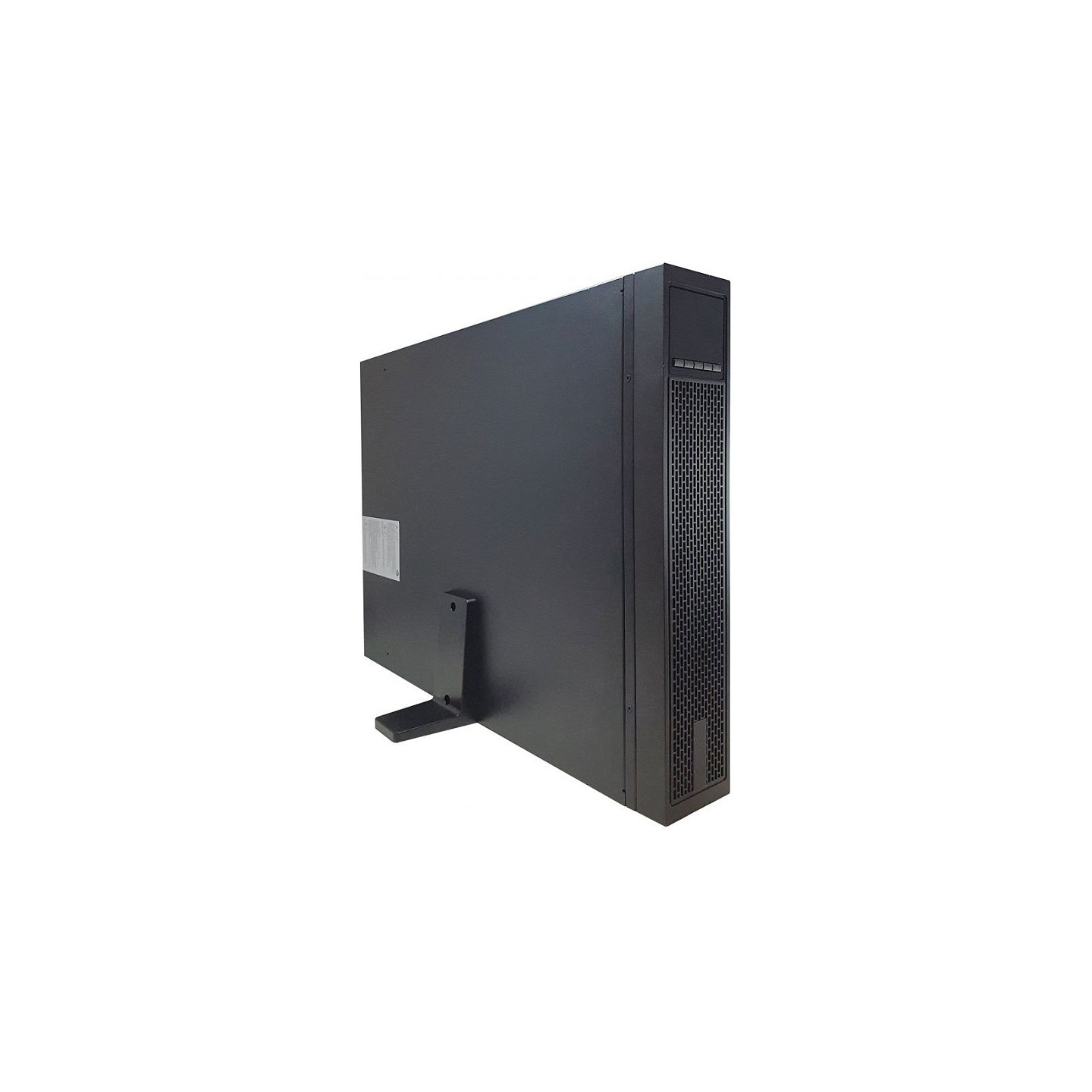

UPS USV Online IOT 3KVA 3000W schwarz
LevelOne UPS-2103. Doppelwandler (Online). 3 kVA. 3000 W. Sine. 160 V. 300 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne UPS-2103. USV-Topologie: Doppelwandler (Online). Ausgangskapazität: 3 kVA. Ausgangsleistung: 3000 W. AC-Steckertypen: C13-Koppler. C19-Koppler. Anzahl der AC-Ausgänge: 8 AC-Ausgänge. USB-Port-Typ: USB Typ-B. Akku-/Batterietechnologie: Bleisäure. Batteriekapazität: 9000 Ah. Akku-/Batteriespannung: 72 V. Formfaktor: Rackmount/Tower. Produktfarbe: Schwarz. Steuerung: Tasten. Konformitätsbescheinigungen: CE. Eidgenössische Kommunikationskommission (FCC). RoHS
| USV-Topologie | Doppelwandler (Online) |
| Ausgangskapazität | 3 kVA |
| Ausgangsleistung | 3000 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 160 V |
| Eingangs-Betriebsspannung (max) | 300 V |
| Eingangsfrequenz | 50/60 Hz |
| Ausgangs-Betriebsspannung (min) | 200 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 50/60 Hz |
| Leistungsfaktor | 1 |
| Feature | Schnellinstallationsanleitung |
| Akustische Alarm-Modi | Alarm bei Batteriebetrieb. Störung. Warnung bei geringer Batterie. Überlastungsalarm |
| AC-Steckertypen | C13-Koppler. C19-Koppler |
| Anzahl der AC-Ausgänge | 8 AC-Ausgänge |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB-Port-Typ | USB Typ-B |
| Serielle Schnittstelle | RS-232 |
| Anzahl serielle Anschlüsse | 1 |
| RS-232 port | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Akku-/Batterietechnologie | Bleisäure |
| Batteriekapazität | 108 Wh |
| Akku-/Batteriespannung | 72 V |
| Anzahl enthaltener Akkus/Batterien | 6 Stück(e) |
| Akku-Ladezeit (90 %) | 3 h |
| Formfaktor | Rackmount/Tower |
| Produktfarbe | Schwarz |
| Steuerung | Tasten |
| Display-Typ | LCD |
| Internationale Schutzart (IP-Code) | IP20 |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
| Mitgelieferte Kabel | Eingangskabel. USB-Kabel |
| Breite | 600 mm |
| Tiefe | 438 mm |
| Höhe | 85.5 mm |
| Gewicht | 26.3 kg |
| Verpackungsart | Box |
