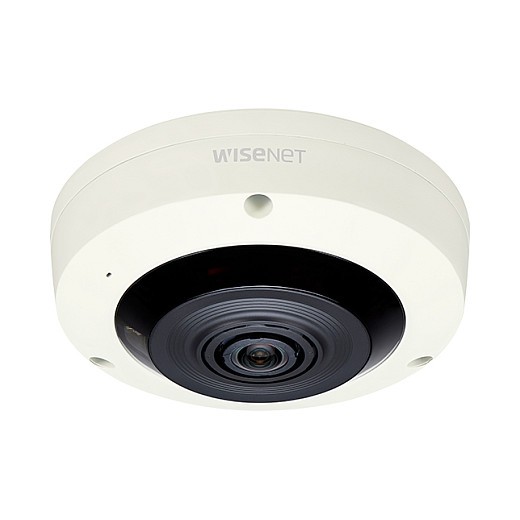

Hanwha Techwin IP-Cam Fixed Dome 360° XNF-8010RP
Hanwha XNF-8010R. IP-Sicherheitskamera. Innen & Außen. Kabelgebunden. Vereinfachtes Chinesisch. Tschechisch. Dänisch. Deutsch. Englisch. Spanisch. Französisch..... FCC. CE. Zimmerdecke
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hanwha XNF-8010R. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Innen & Außen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Zimmerdecke. Produktfarbe: Elfenbein. Formfaktor: Dome. Betrachtungswinkel (horizontal): 192°. Betrachtungswinkel (vertikal): 192°. Betrachtungswinkel des Objektivs. diagonal: 192°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 1.8 mm (1 / 1.8"). Anzahl der effektiven Pixel (H x V): 3096 x 2094 Pixel. Digitaler Zoom: 8x. Fokus: Manuell. Feste Brennweite: 1.6 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Farbe |
| Zertifizierung | FCC. CE |
| Formfaktor | Dome |
| Befestigungstyp | Zimmerdecke |
| Produktfarbe | Elfenbein |
| Gehäusematerial | Aluminium |
| Mindestbeleuchtung | 0 Lux |
| Betrachtungswinkel (horizontal) | 192° |
| Betrachtungswinkel (vertikal) | 192° |
| Betrachtungswinkel des Objektivs. diagonal | 192° |
| Weißabgleich | ATW. AWC. Drinnen. Manuell. Quecksilberlampe. Draußen. Natriumlampe |
| Verschlusstyp | Elektronisch |
| Kamera Verschlusszeit | 2 - 1/12000 s |
| Größe des Bildsensors | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor-Typ | CMOS |
| Anzahl der effektiven Pixel (H x V) | 3096 x 2094 Pixel |
| Digitaler Zoom | 8x |
| Fokus | Manuell |
| Maximale Blendenzahl | 1.6 |
| Feste Brennweite | 1.6 mm |
| Nachtsichtdistanz | 15 m |
| LED Typ | IR |
| Maximale Auflösung | 2048 x 2048 Pixel |
| Megapixel insgesamt | 6 MP |
| Videokompressionsformate | H.264. H.265. M-JPEG |
| Unterstützte Grafik-Auflösungen | 640 x 480 (VGA). 704 x 576. 800 x 600 (SVGA). 960 x 960. 1024 x 768 (XGA). 1280 x 960. 1600 x 1200 (UXGA). 1920 x 480. 2048 x 1536 (QXGA) |
| Unterstützte Video-Modi | 480p. 768p. 960p |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Audio input Kanäle | 1.0 Kanäle |
| Unterstützte Audioformate | G.711. G.726. LC-AAC |
| Rauschverhältnis (SNR) | 50 dB |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.3af |
| Verkabelungstechnologie | 10/100Base-T(X) |
| Zahl der Benutzer | 20 Benutzer |
| Streaming-Verfahren | Multicasting. Unicast |
| Kompatible Speicherkarten | SD. SDHC. SDXC |
| Max. Speicherkartengröße | 512 GB |
| Schnittstelle | RJ-45 |
| Warnbenachrichtigungstyp | |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (max.) | 11 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 12 W |
| DC-Ausgang Volt | 12 |
| Betriebstemperatur | -10 - 55 °C |
| Temperaturbereich bei Lagerung | -50 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Luftfeuchtigkeit bei Lagerung | 0 - 90% |
| Unterstützt Mac-Betriebssysteme | Mac OS X 10.10 Yosemite. Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra |
| Höhe | 54.8 mm |
| Durchmesser | 14.6 cm |
| Gewicht | 730 g |
| Anzahl der Kameras | 1 |
| Objektivanschluss | Plattenmontage |
