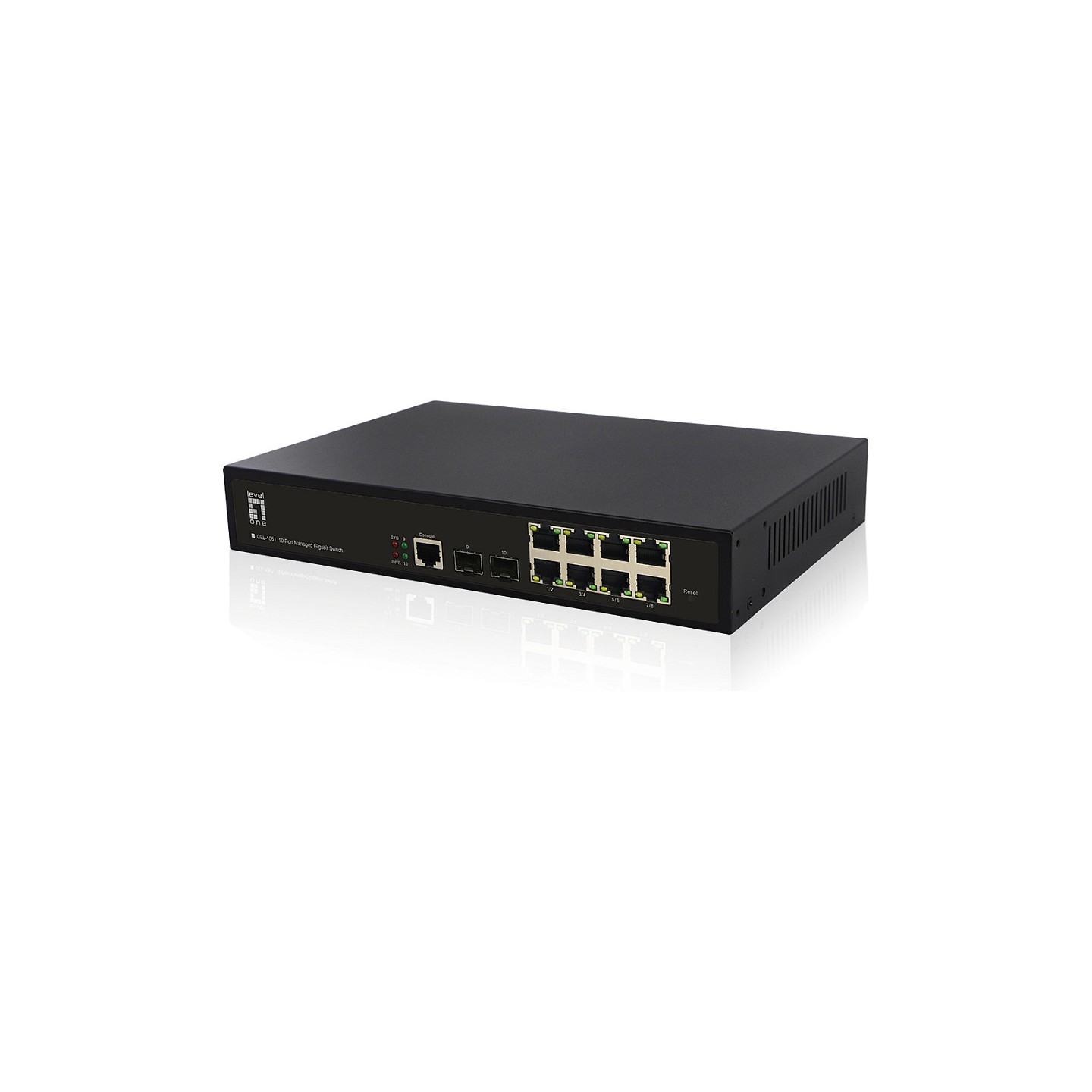

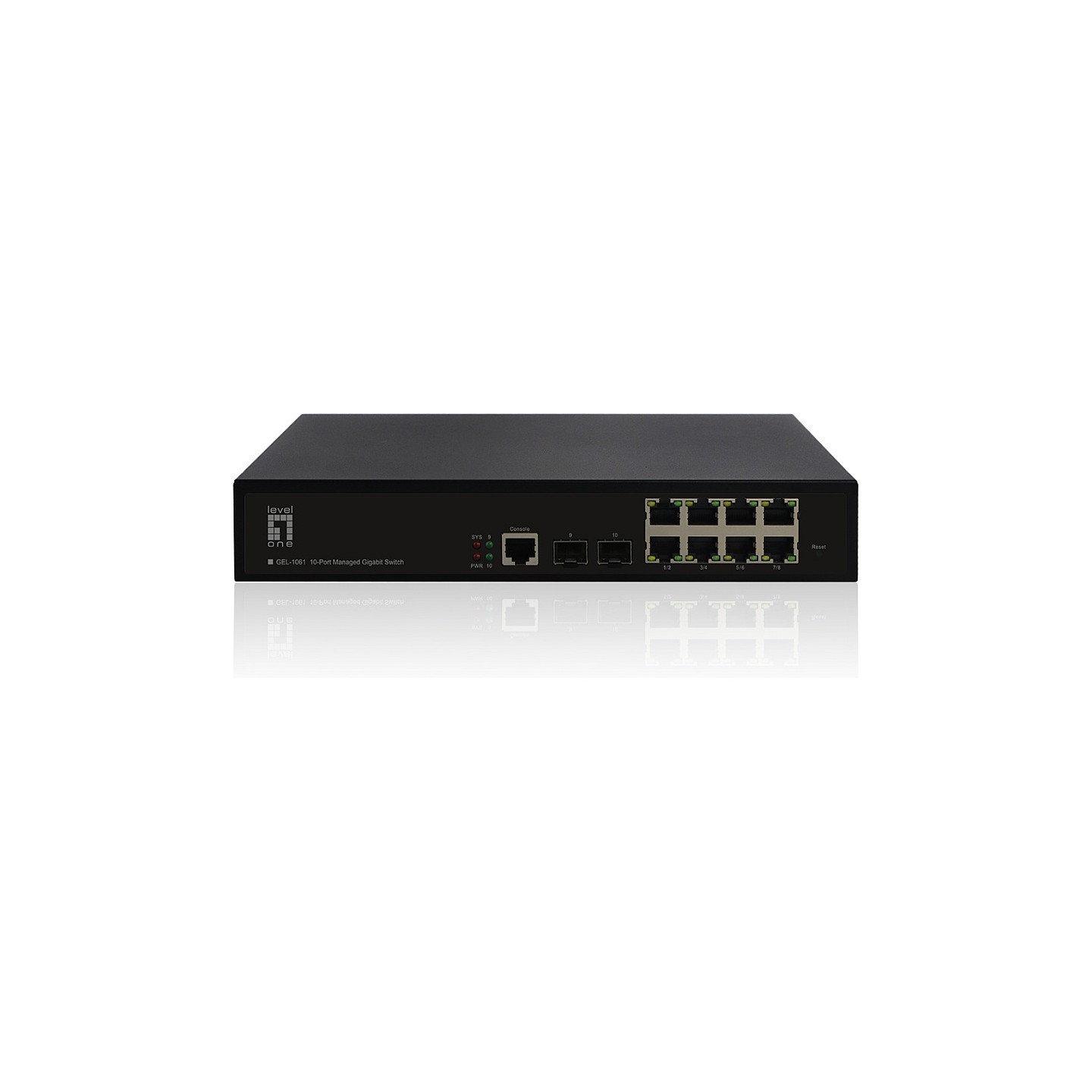

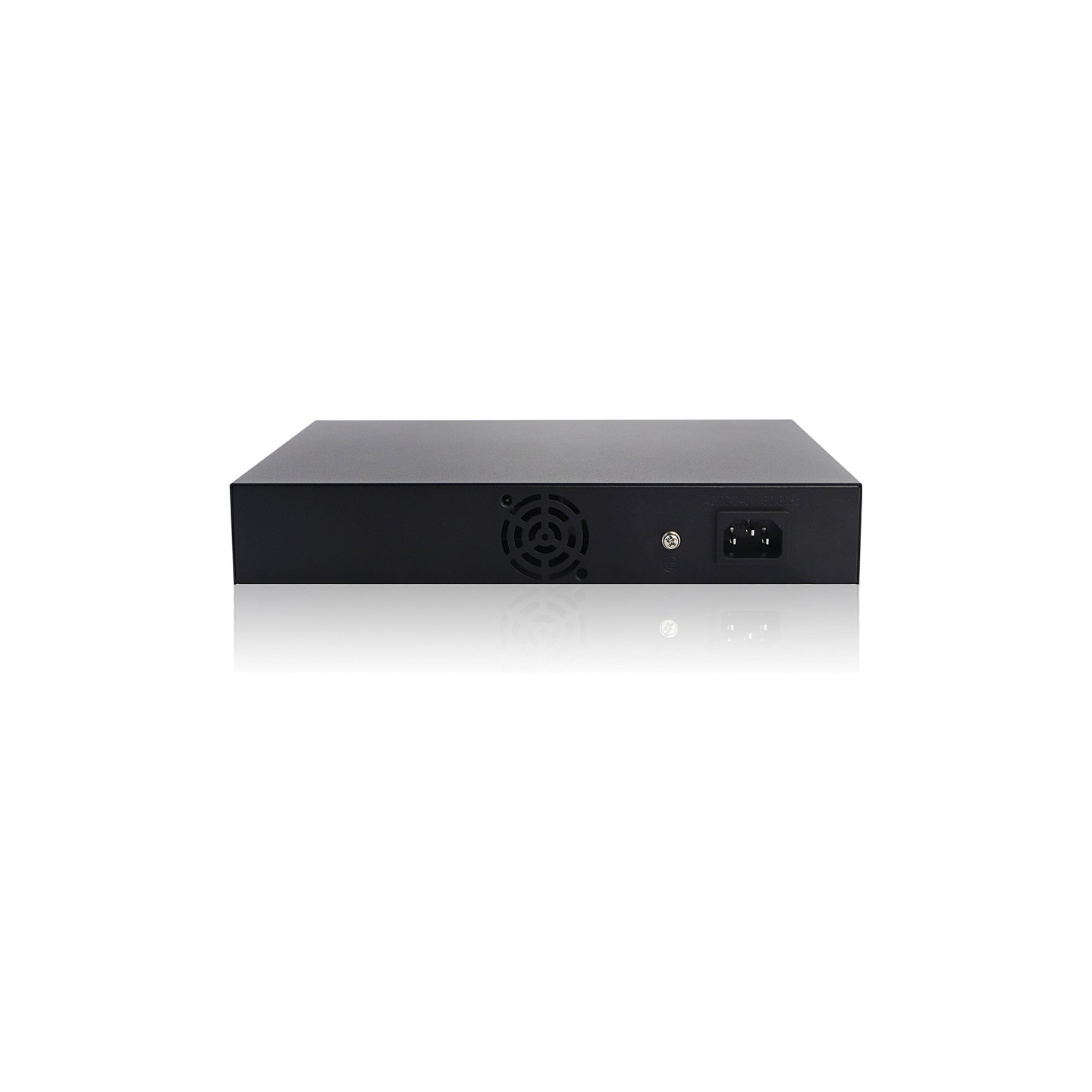

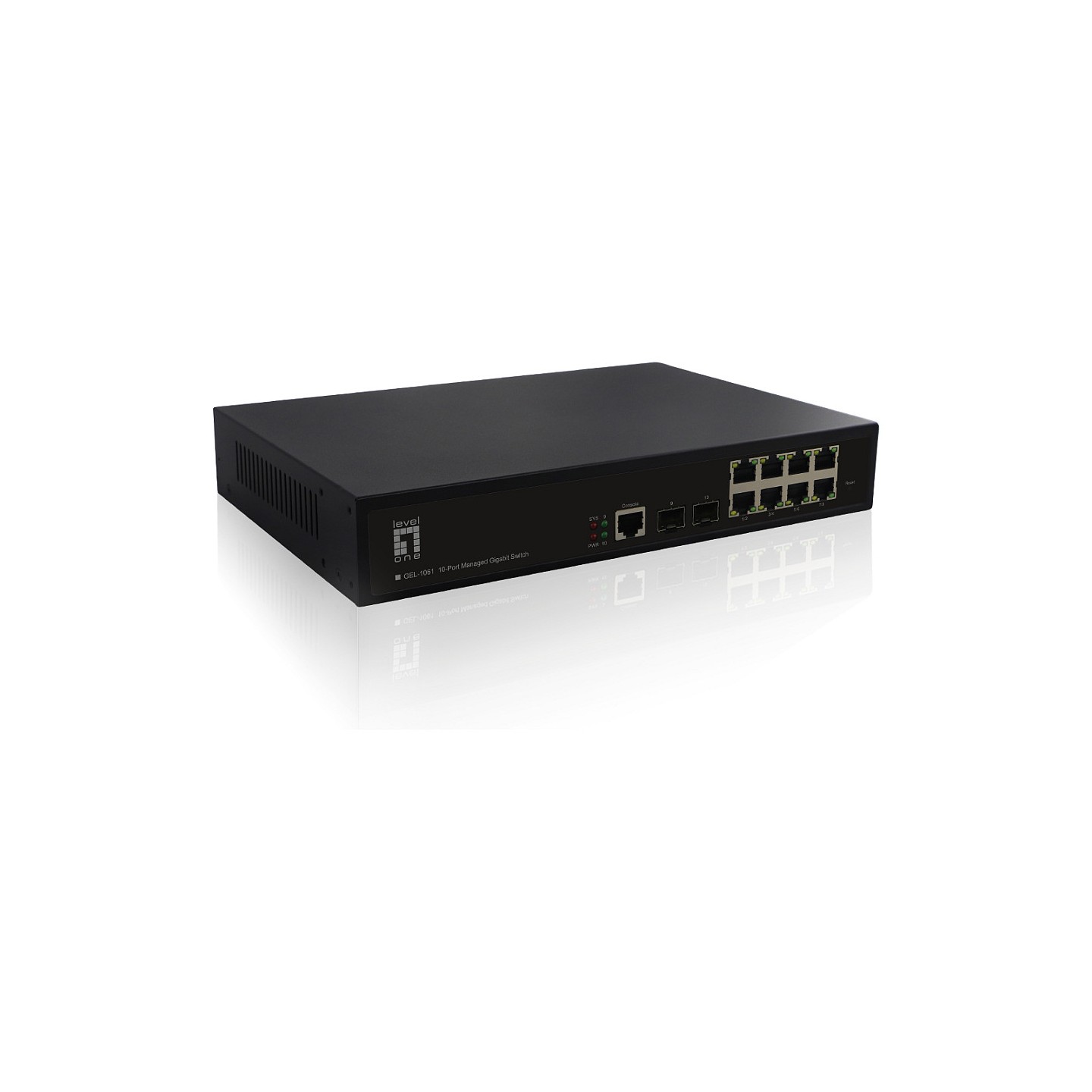

Switch 8x GE GEL-1061 2xGSFP 19'
LevelOne GEL-1061. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEL-1061. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 20 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Netzstecker: AC-Eingangsbuchse. Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Schnellstartübersicht |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Optischer Kabelverbinder | SFP |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC-Eingangsbuchse |
| Virtuelle LAN-Funktionen | Port-based VLAN. Tagged VLAN |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-X. 1000BASE-X |
| Routing-/Switching-Kapazität | 20 Gbit/s |
| Durchgang | 14.9 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 1 MB |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Speicherkapazität | 128 MB |
| Flash-Speicher | 16 MB |
| Mindestsystemvoraussetzungen | CERoHS |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 15 W |
| Betriebstemperatur | -10 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 270 mm |
| Tiefe | 181 mm |
| Höhe | 44 mm |
| Gewicht | 800 g |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Verpackungsbreite | 345 mm |
| Verpackungstiefe | 255 mm |
| Verpackungshöhe | 82 mm |
| Paketgewicht | 2 kg |
| Warentarifnummer (HS) | 85176990 |
