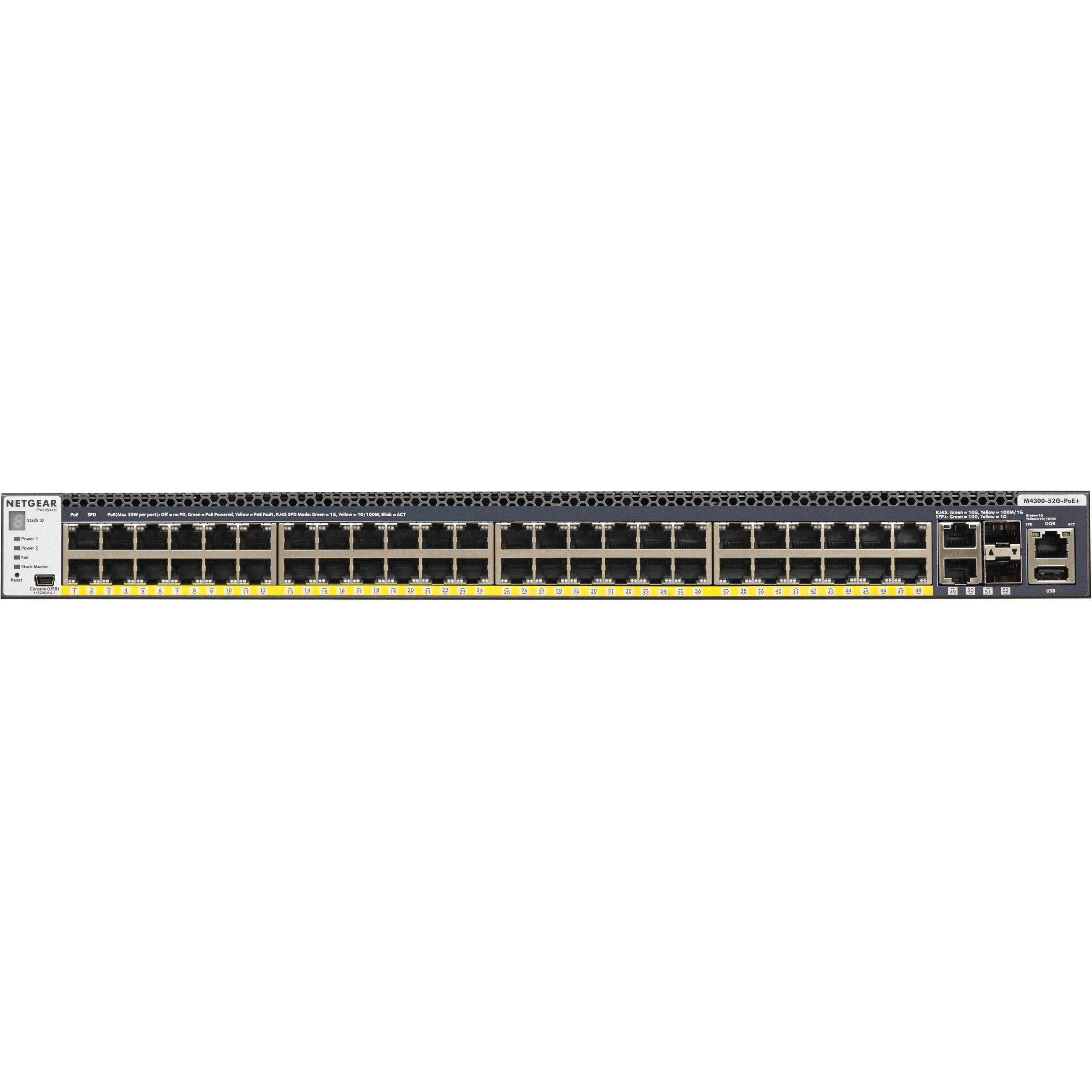

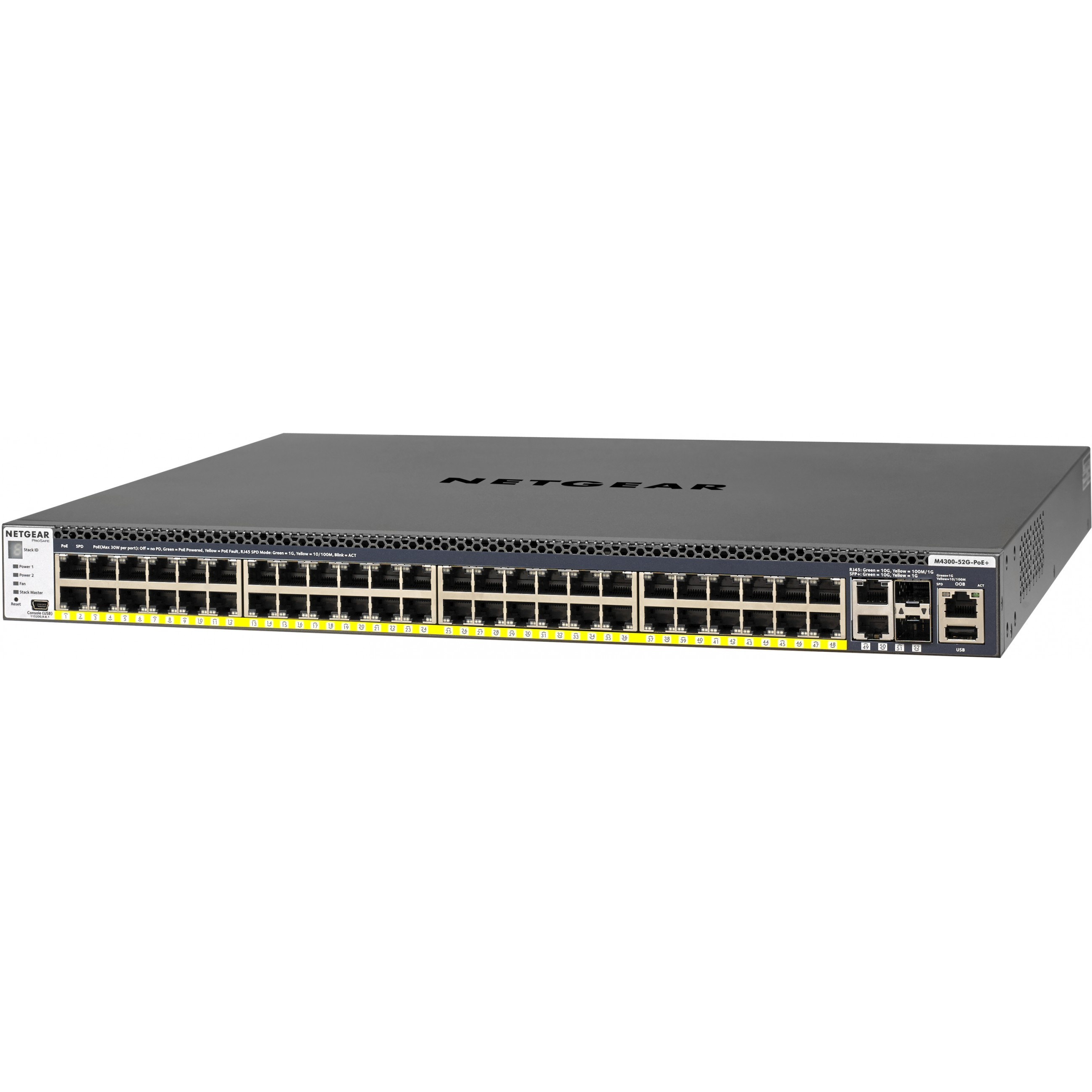

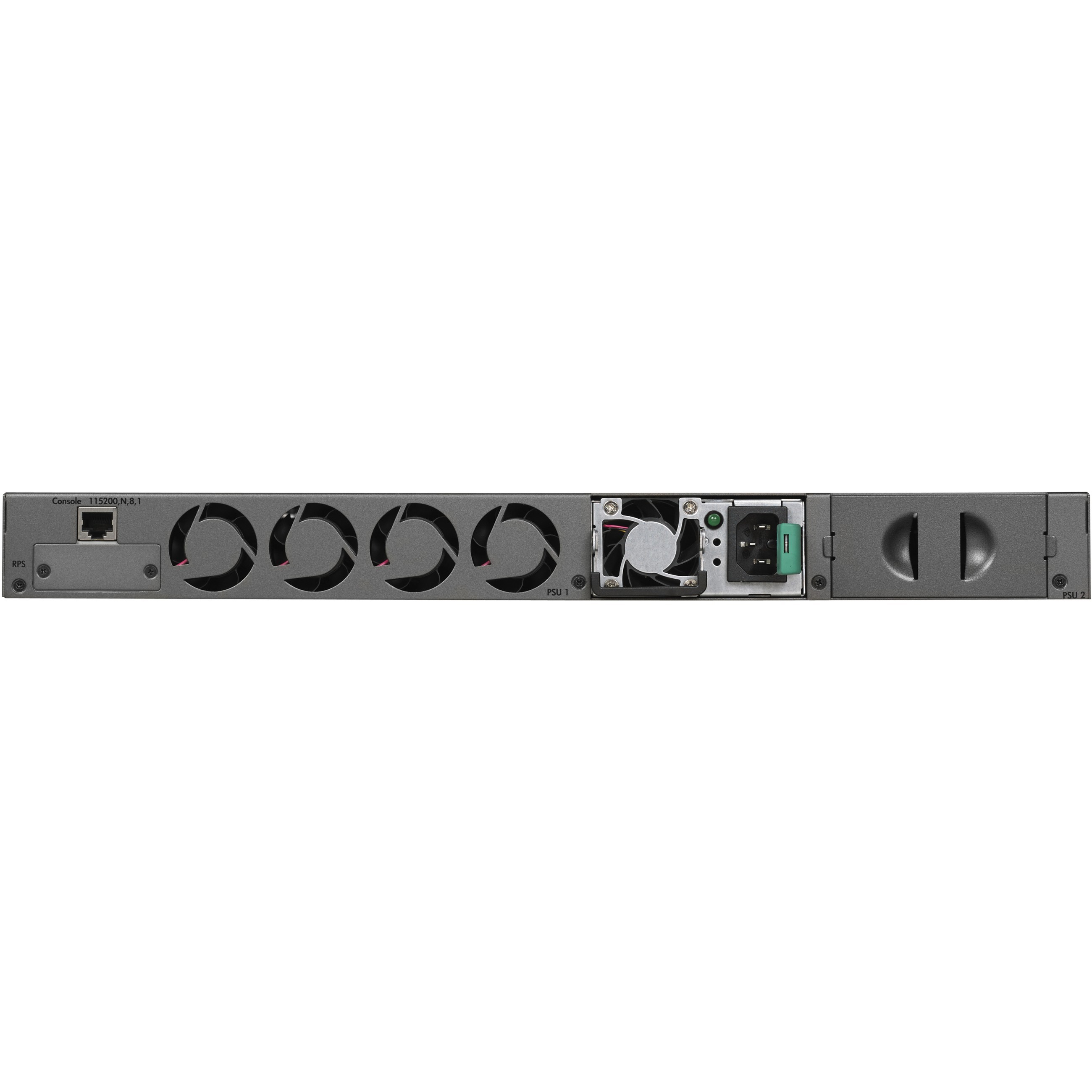

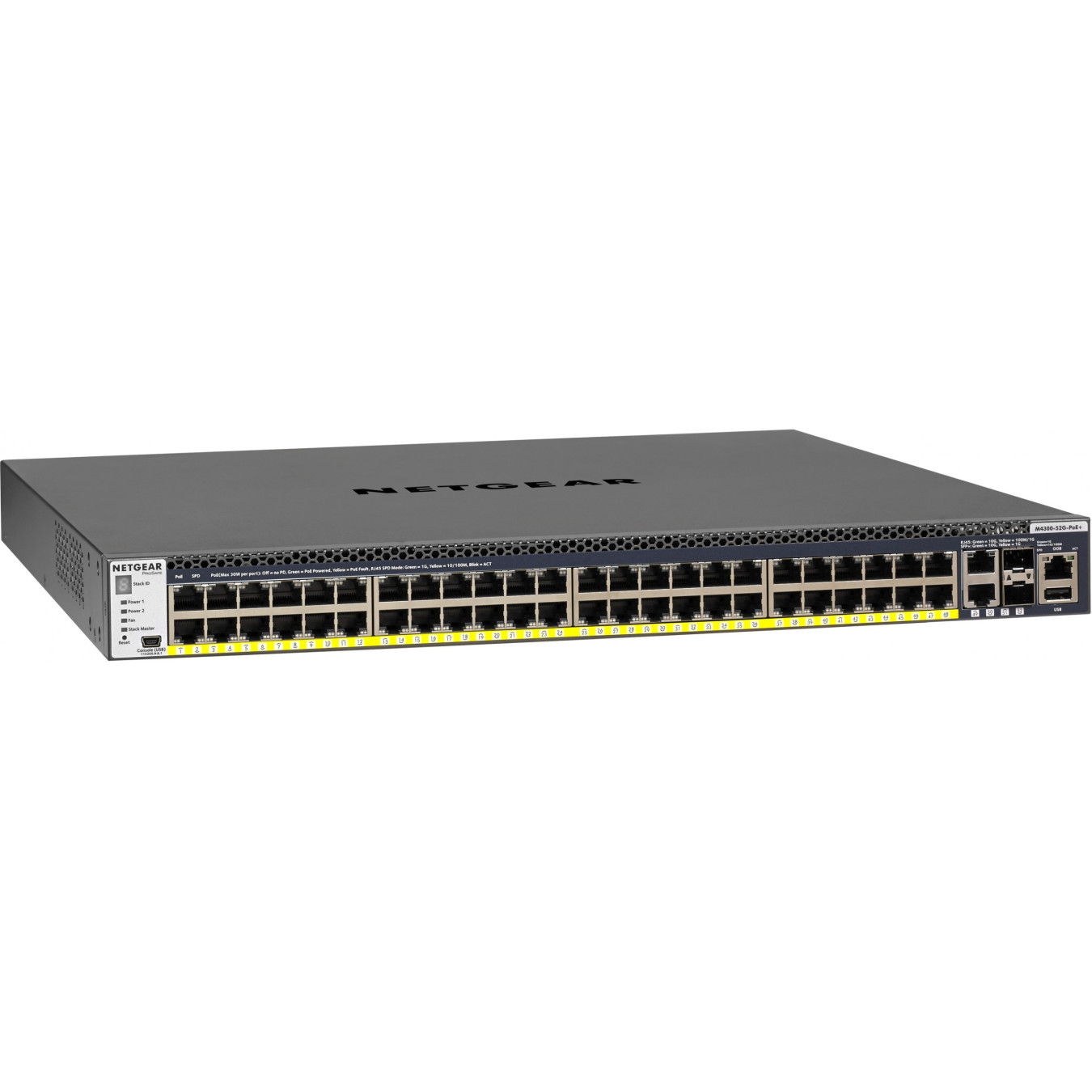

NETGEAR M4300-52G-PoE+ - 52-Port Gigabit PoE+ Managed Switch, 1000W PSU, 1U Rackmount
NETGEAR M4300-52G-PoE+ 52-port Gigabit L2/L3/L4 managed switch — 48x Gigabit RJ45, SFP+ uplinks, PoE+ with 1000W PSU, 1U rackmount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
NETGEAR M4300-52G-PoE+ 1000W PSU. Switch type: Managed. Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. USB 2.0 ports quantity: 1. Console port: RJ-45/Mini-USB. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.11ad. IEEE 802.11az. IEEE 802.3ad. IEEE 802.3az. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Feature | Resource CD |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.11ad. IEEE 802.11az. IEEE 802.3ad. IEEE 802.3az |
| Cable types supported | Cat5. Cat5e. Cat6. Cat7. Fiber |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Fiber ethernet cabling technology | 10GBASE-LR. 10GBASE-LRM. 10GBASE-SR |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 357 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 64 |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP server. DHCP client |
| Security algorithms | HTTPS. SNMP. SSH |
| Number of multicast groups filtered | 4000 |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity. Power. Speed |
| Safety | CSA 22.2 #950. UL 1950)/cUL IEC 950/EN 60950 |
| Electromagnetic compatibility | CE. FCC 15 A. VCCI A. A EN 55022. (CISPR 22) A. EN 50082-1. EN 55024 |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 39.8 dB |
| Mean time between failures (MTBF) | 673207 h |
| Number of power supply units | 1 |
| AC input voltage | 120 - 230 V |
| Power consumption (max) | 888 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 591 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 303163 BTU/h |
| Width | 440 mm |
| Depth | 388 mm |
| Height | 44 mm |
| Weight | 6.67 kg |
| Cables included | AC. LAN (RJ-45). Mini-USB |
| Harmonized System (HS) code | 85176990 |
