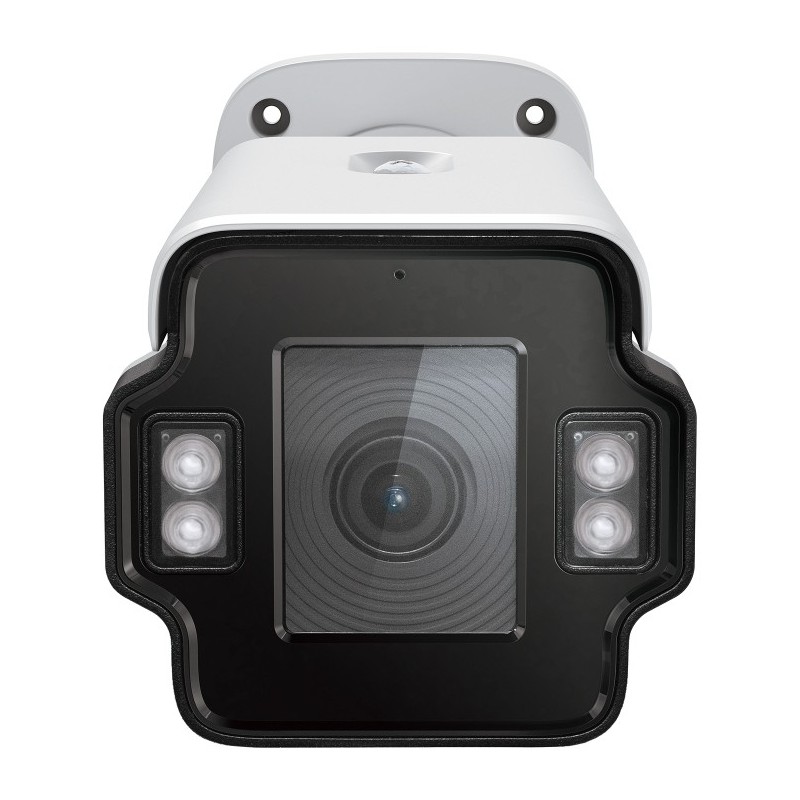

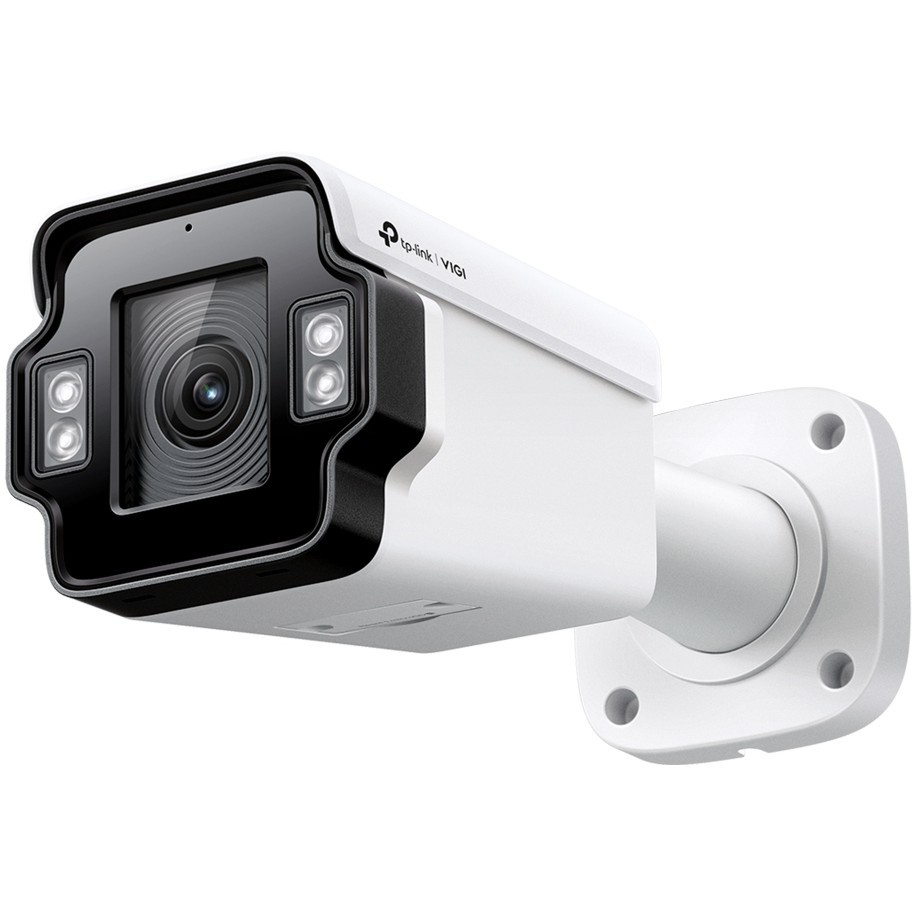

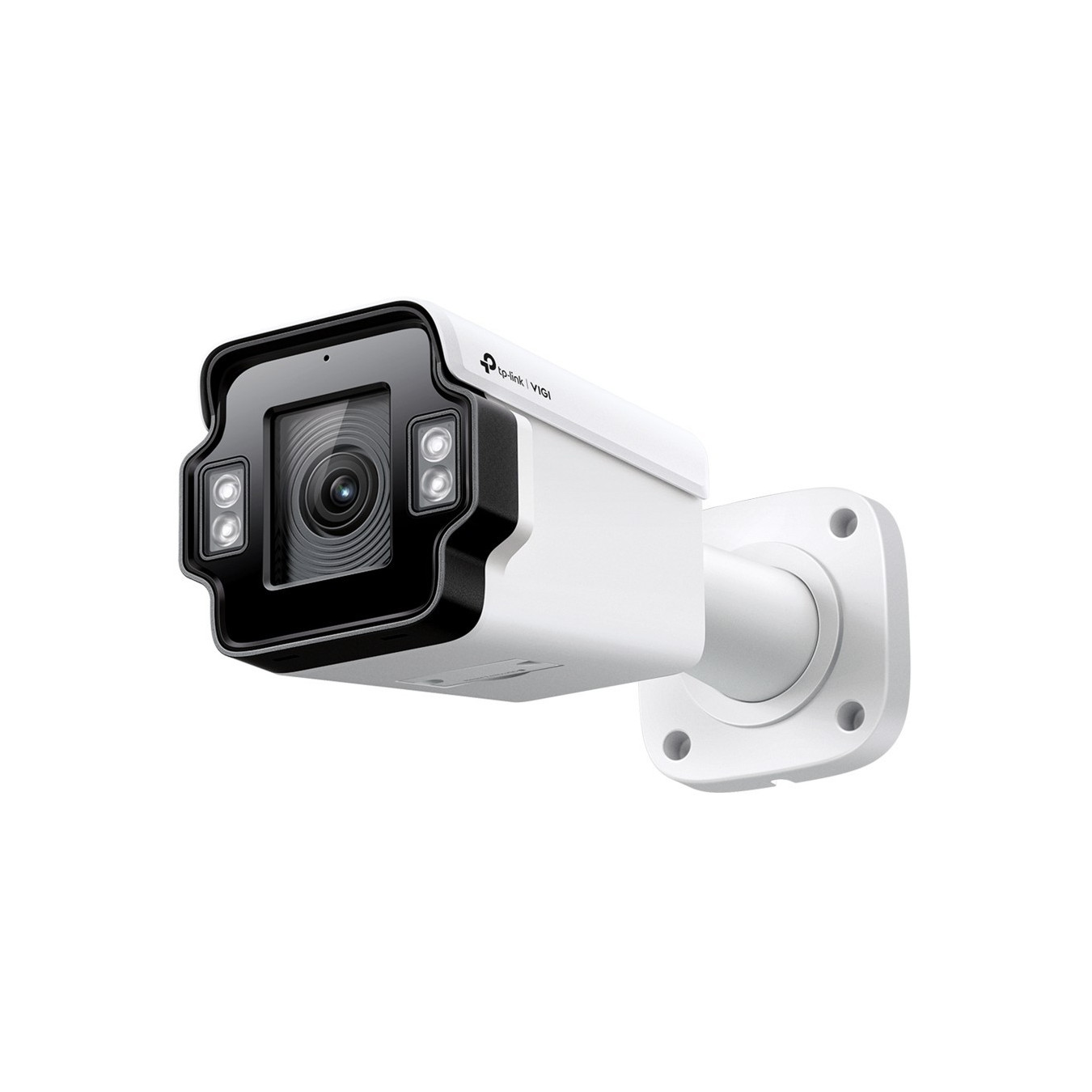

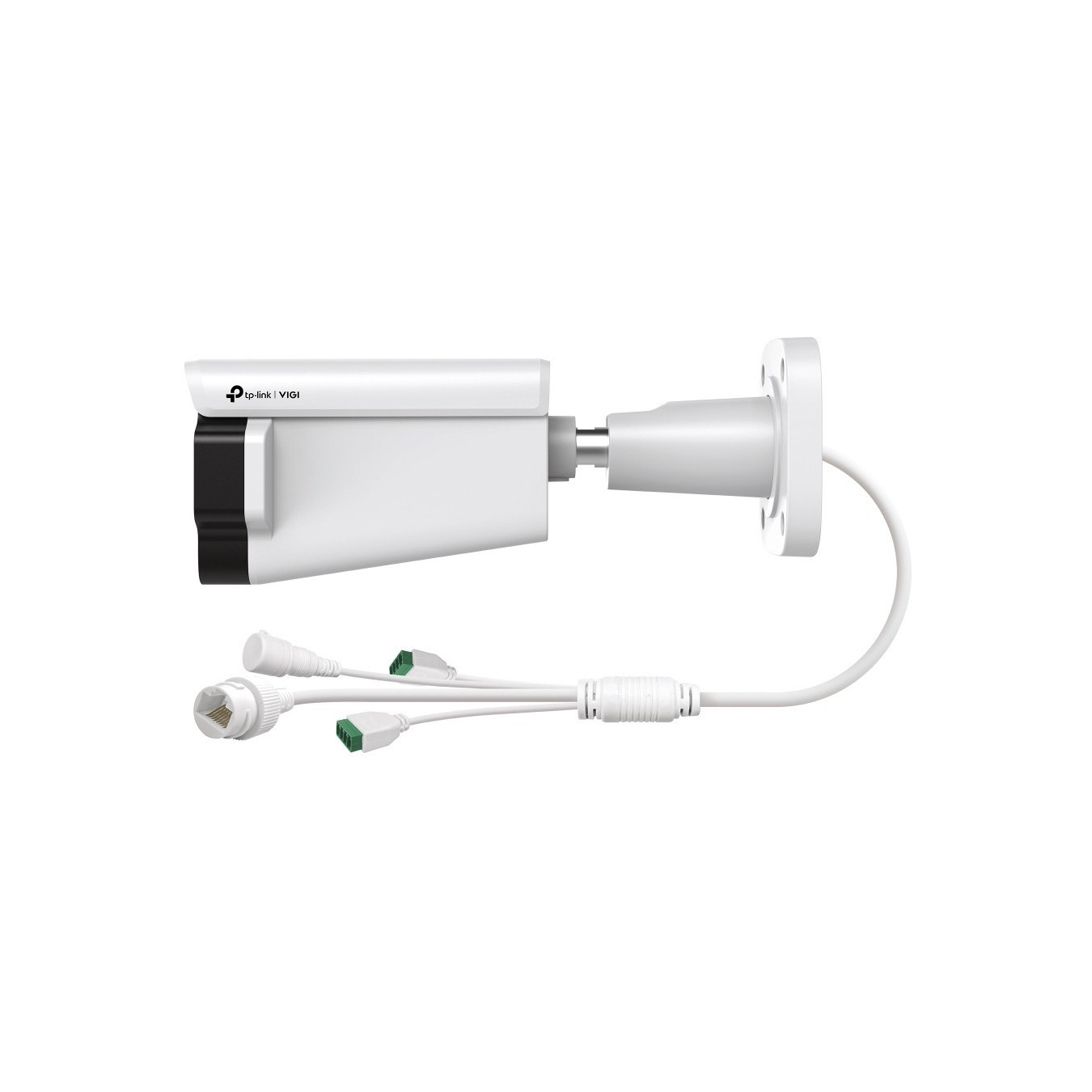

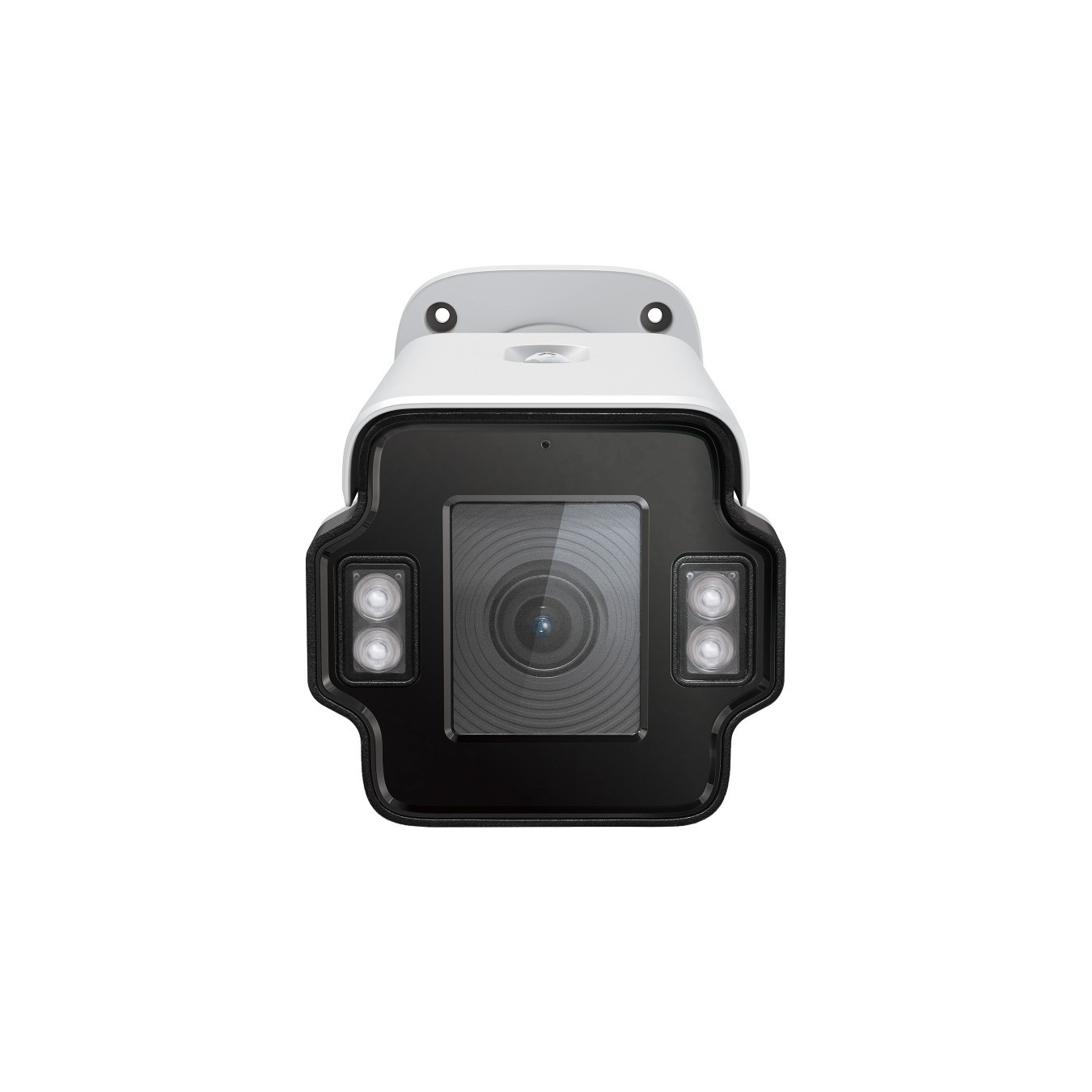

TP-Link VIGI InSight S345ZI - 4MP Full-Color Outdoor Bullet Camera - White, Wired
4MP full-color outdoor bullet camera (VIGI InSight S345ZI). 5x optical zoom, motorized focus, IP67 waterproof, wired wall-mount, 0 lx color night capability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
| IP Cameras - Weather Rating | IP67 |
TP-Link VIGI InSight S345ZI. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Wall. Product colour: White. Form factor: Bullet. Angle of rotation: 360°. Lens viewing angle. horizontal: 29.6–102. Lens viewing angle. vertical: 16.8–53.8. Sensor type: CMOS. Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 5x. Focal length range: 2.7 - 13.5 mm. Focus: Motorized
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Feature | Reset button |
| Dynamic range | 120 dB |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle. horizontal | 29.6–102 |
| Lens viewing angle. vertical | 16.8–53.8 |
| Lens viewing angle. diagonal | 34.1–122.8 |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/3 to 1/10000 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Optical zoom | 5x |
| Number of lenses | 1 |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Motorized |
| Maximum aperture number | 1.6 |
| Detect distance (wide) | 66 m |
| Detect distance (tele) | 207 m |
| Observe distance (wide) | 28 m |
| Observe distance (tele) | 86 m |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 41 m |
| Identify distance (wide) | 7 m |
| Identify distance (tele) | 21 m |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520 |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps. Sub-Stream: 512 Kbps to 1024 Kbps |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Number of simultaneous live view channels | 6 channels |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 100 mm |
| Height | 101 mm |
| Length | 256 mm |
| Weight | 1.04 kg |

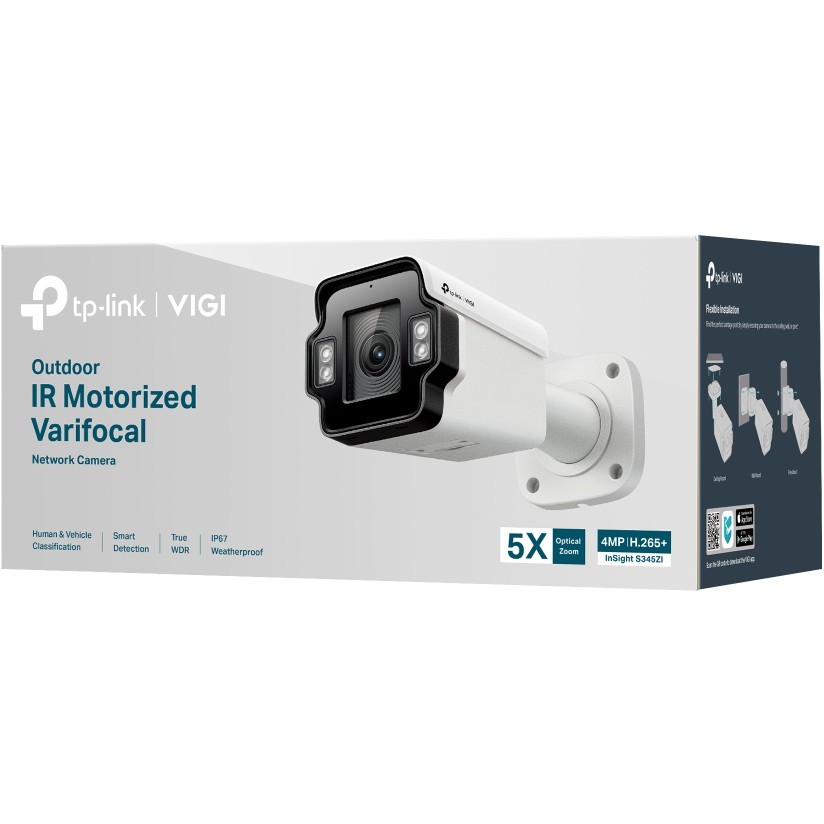

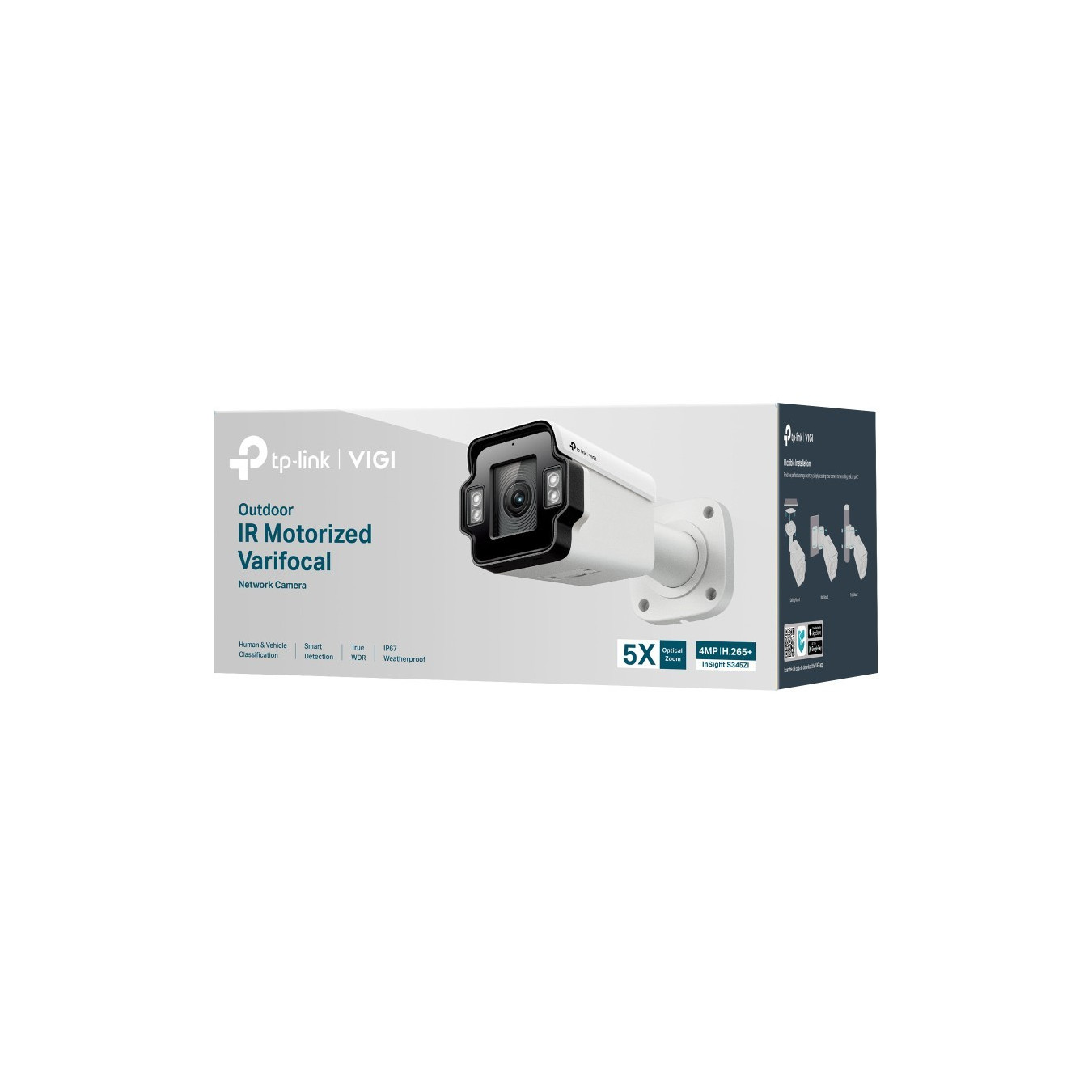

| Package type | Box |
| Number of cameras | 1 |
