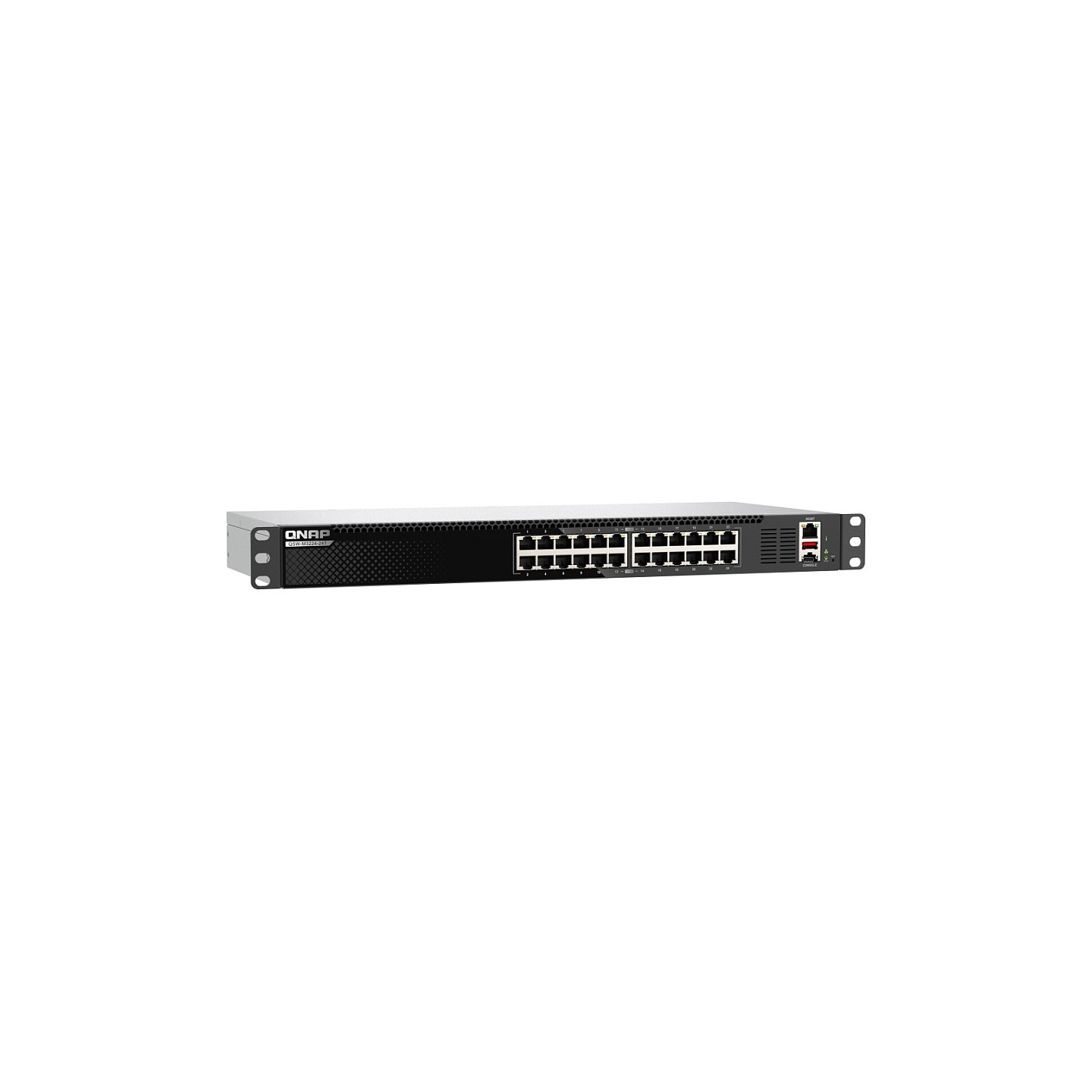

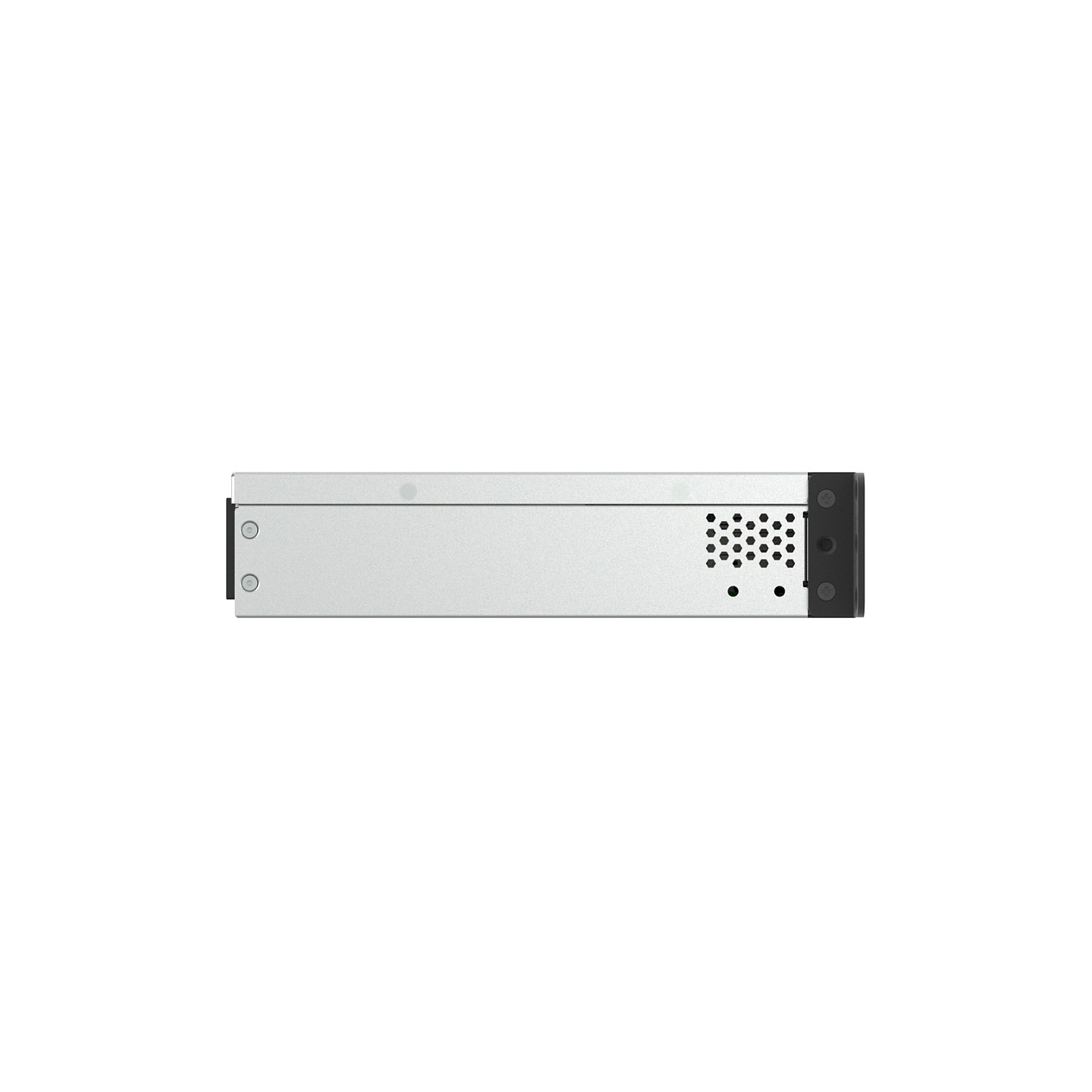

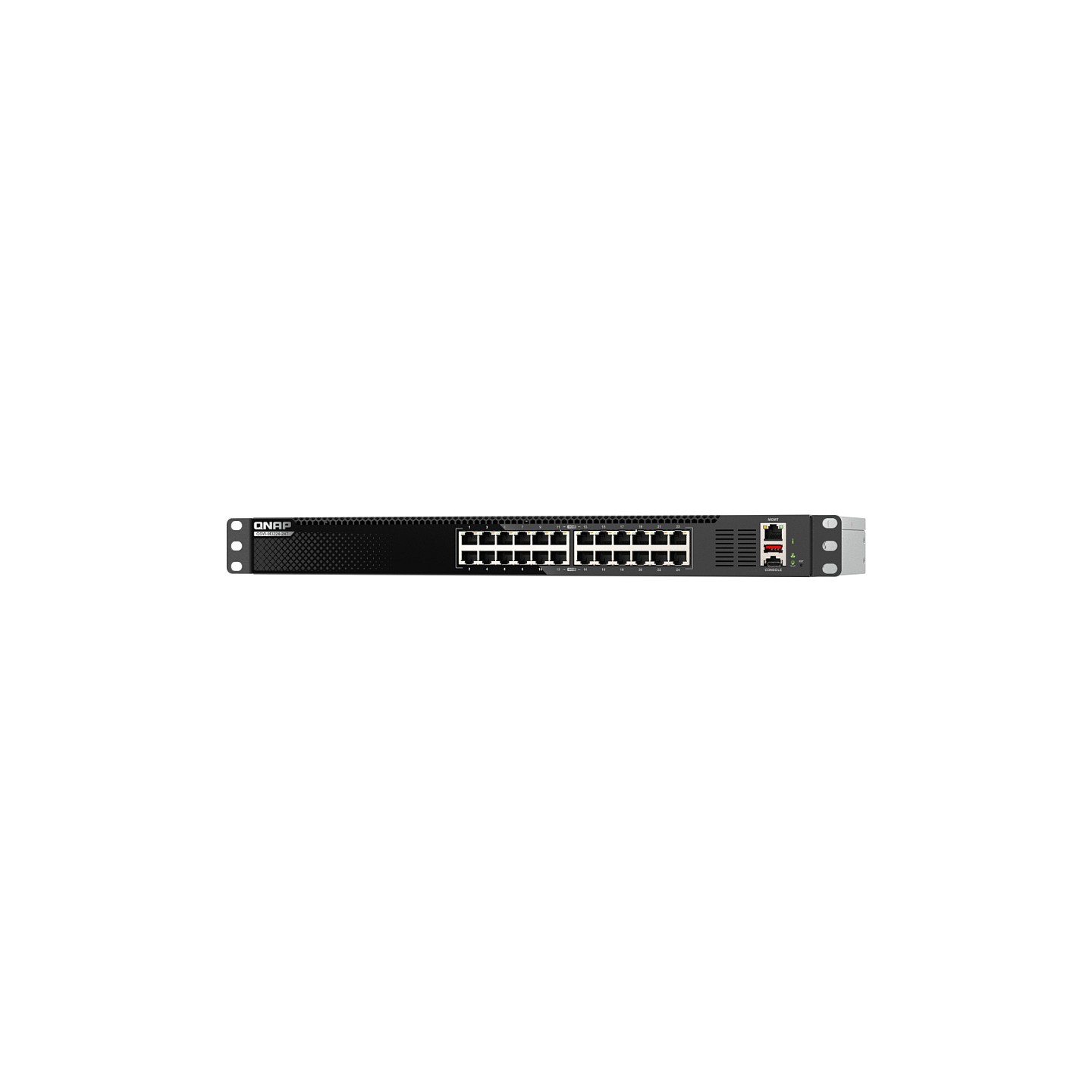

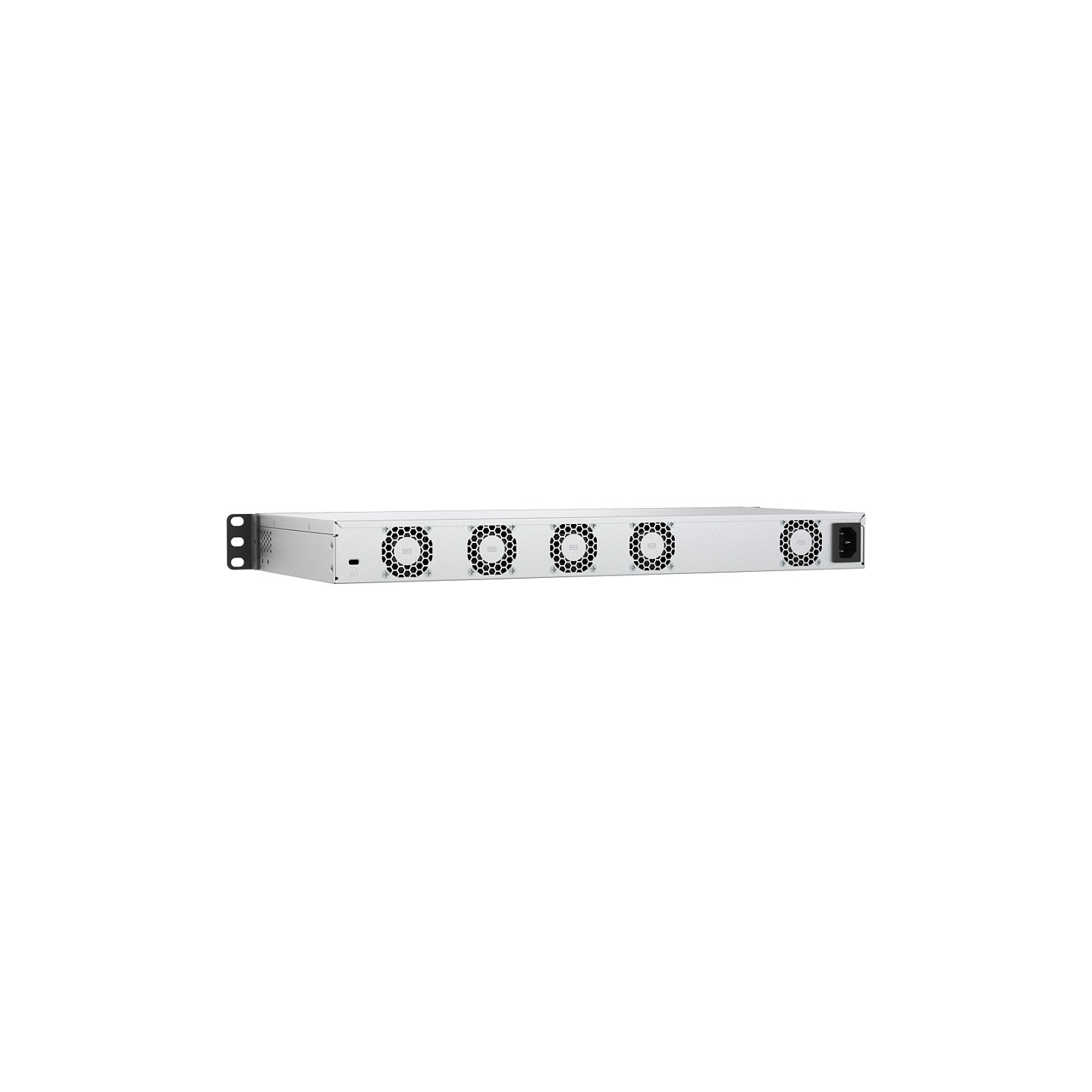

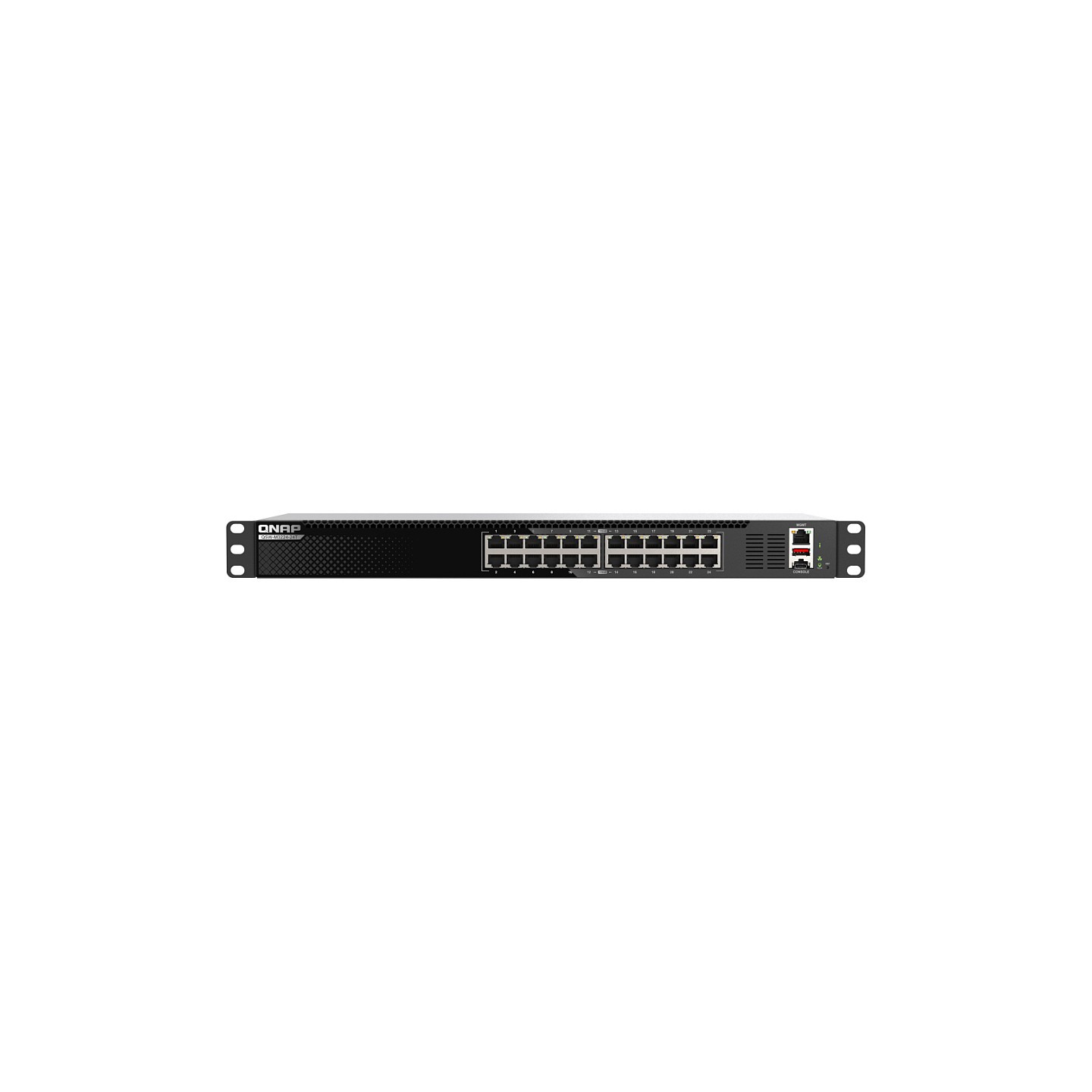

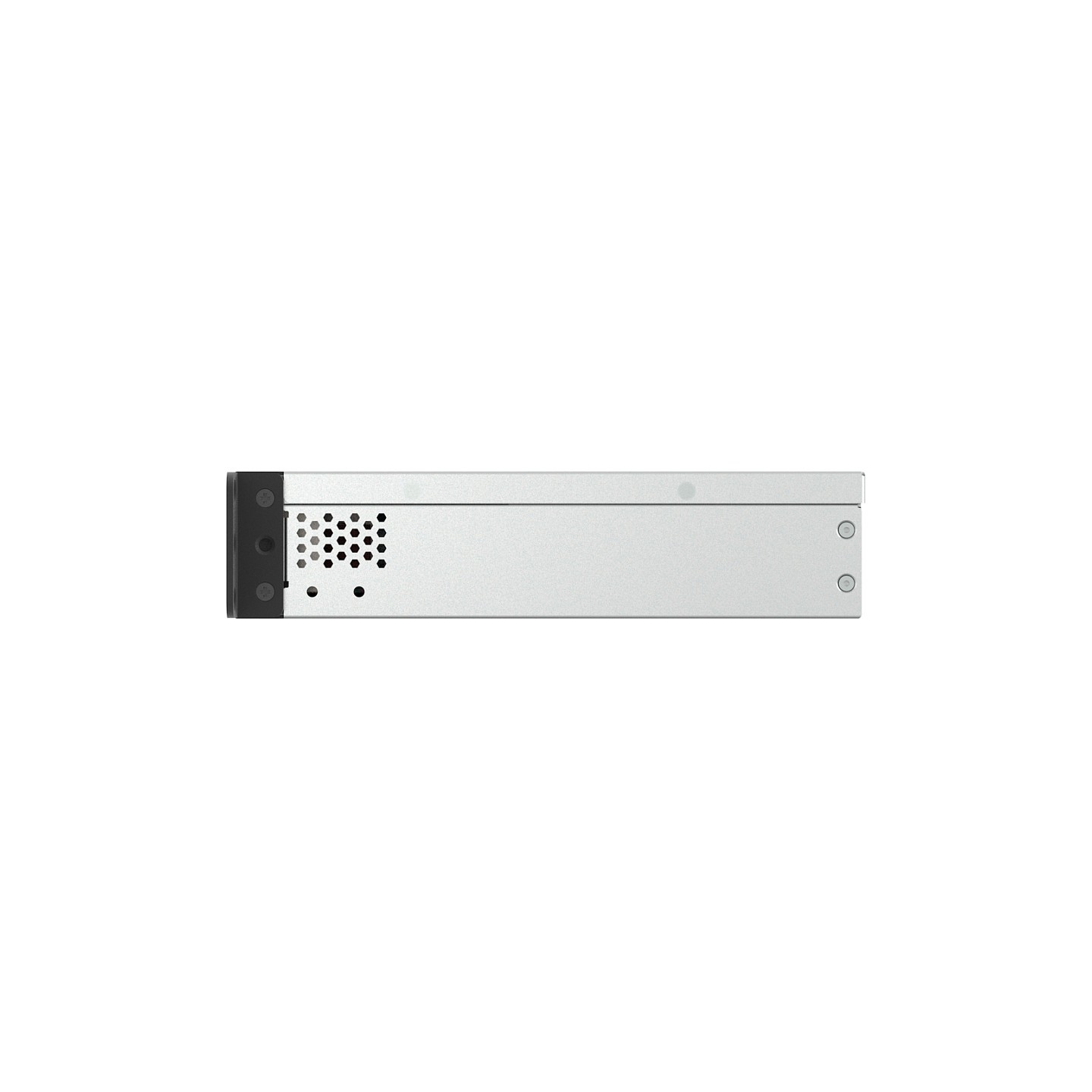

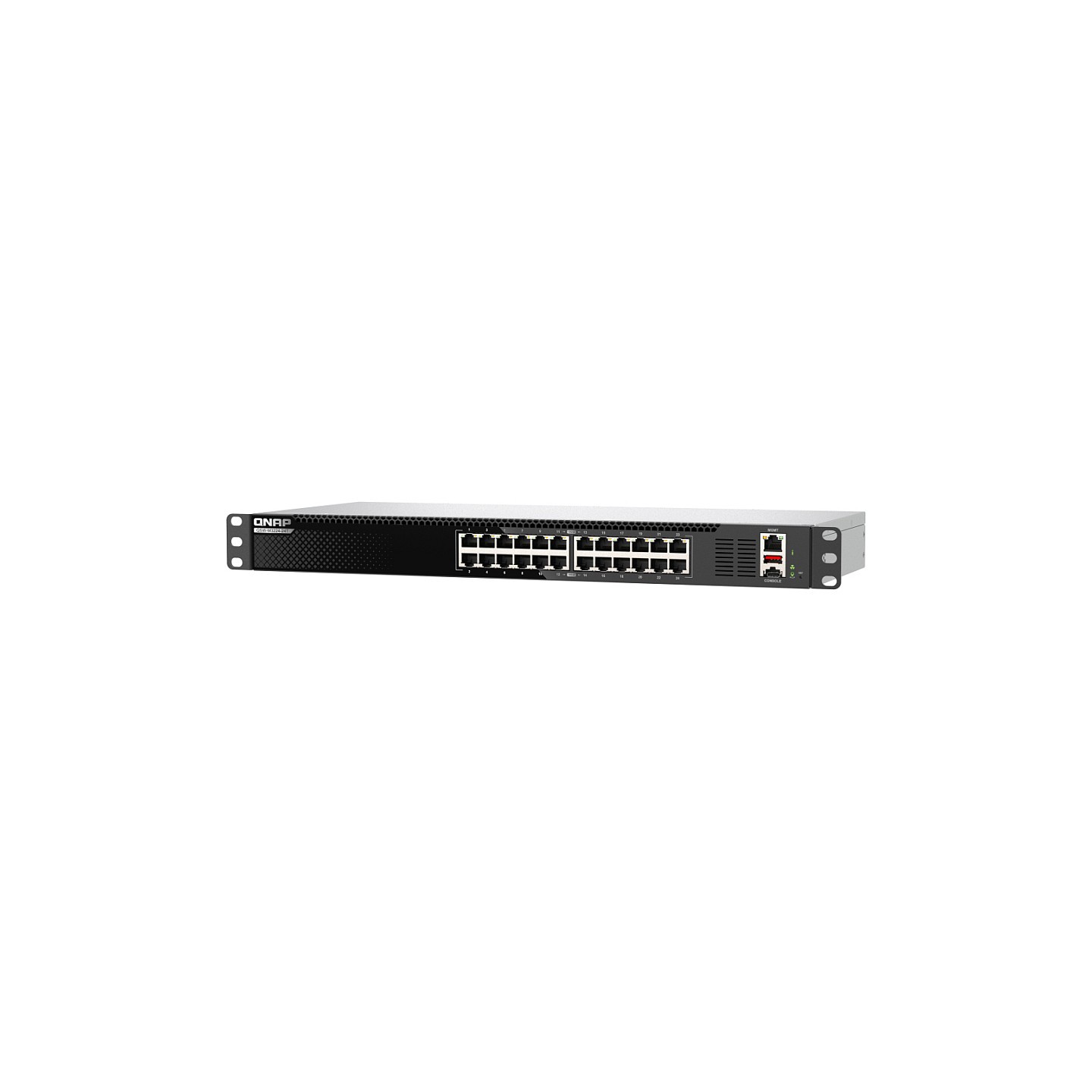

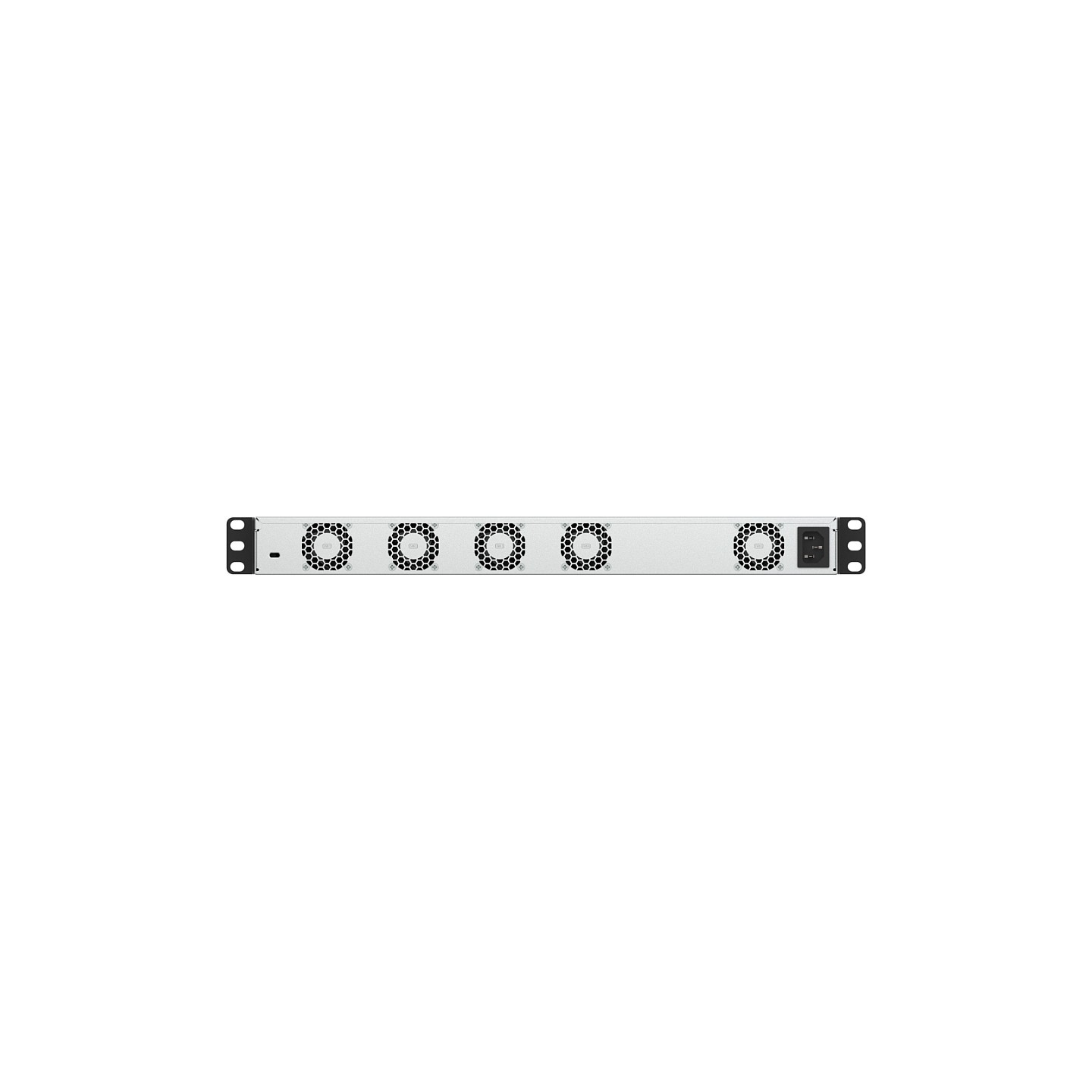

QNAP QSW-M3224-24T 24 port 10GbE RJ45 managed Switch
QNAP QSW-M3224-24T. Managed. L3. 10G Ethernet (100/1000/10000). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
QNAP QSW-M3224-24T. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 480 Gbit/s. Netzstandard: IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3an. IEEE.... Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Rackmontageset |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 10G Ethernet (100/1000/10000) |
| Anzahl der Management-Ports | 1 Stück(e) |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3an. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x |
| Routing-/Switching-Kapazität | 480 Gbit/s |
| Durchsatz | 240 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Jumbo-Frames | 9000 |
| DHCP-Funktionen | DHCP server |
| Formfaktor | 1U |
| Produktfarbe | Schwarz. Silber |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 116.9 W |
| Garantiezeit | 2 Jahr(e) |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 438.5 mm |
| Tiefe | 190 mm |
| Höhe | 44.2 mm |
| Gewicht | 2.93 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Verpackungsbreite | 582 mm |
| Verpackungstiefe | 362 mm |
| Verpackungshöhe | 170 mm |
| Paketgewicht | 4.45 kg |
| Zertifizierung | CE. FCC. VCCI. BSMI |
| Ursprungsland | Taiwan |
| Anzahl Produkte pro Versandkarton | 1 Stück(e) |
