NVR-0411 32-Kanal Netzwerk Videorek. PoE H.265 10TB
LevelOne NVR-0411. 32 Kanäle. 4096 x 2160 Pixel. 256 Kanäle. 2MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC. H.264. H.264+. H.265. H.265+. 30 fps
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne NVR-0411. Video-Eingangskanäle: 32 Kanäle. Maximale Auflösung: 4096 x 2160 Pixel. Anzahl der gleichzeitig abgespielten Kanäle: 256 Kanäle. Max. Speicherkapazität: 10 TB. HDD Schnittstelle: SATA. Produktfarbe: Schwarz. Grau. Stromverbrauch (max.): 200 W. Stromverbrauch (Standardbetrieb): 20 W. Power over Ethernet (PoE) Leistung pro Anschluss: 16 W. Unterstützter Browser: IE11. Chrome V57. Firefox V52. Safari V12. Edge V889
| Video-Eingangskanäle | 32 Kanäle |
| Anzahl der gleichzeitig abgespielten Kanäle | 256 Kanäle |
| Maximale Auflösung | 4096 x 2160 Pixel |
| Unterstütze Auflösung | 2MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC |
| Feature | Schnellinstallationsanleitung |
| Unterstützte Videoformate | H.264. H.264+. H.265. H.265+ |
| Maximale Framerate | 30 fps |
| Eingangsbandbreite | 256 Mbit/s |
| Ausgangsbandbreite | 160 Mbit/s |
| Maximale unterstützte Anzahl der HDD | 4 |
| Max. Speicherkapazität | 10 TB |
| HDD Schnittstelle | SATA |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 17 |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 16 |
| Anzahl HDMI-Anschlüsse | 1 |
| VGA (D-Sub)-Ausgangsanschlüsse | 1 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Audio-RCA-Eingänge | 1 |
| Audio-RCA-Ausgänge | 1 |
| Anzahl eSATA-Anschlüsse | 1 |
| RS-485-Anschlüsse | 1 |
| RS-232 port | 1 |
| Produktfarbe | Schwarz. Grau |
| Stromverbrauch (max.) | 200 W |
| Stromverbrauch (Standardbetrieb) | 20 W |
| Power over Ethernet (PoE) Leistung pro Anschluss | 16 W |
| Unterstützter Browser | IE11. Chrome V57. Firefox V52. Safari V12. Edge V889 |
| Betriebstemperatur | -10 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Konformitätsbescheinigungen | BIS. CB. CE. Eidgenössische Kommunikationskommission (FCC). Industry Canada (IC). KC. RCM. REACH. RoHS. UKCA. UL. WEEE |
| Breite | 445 mm |
| Tiefe | 400 mm |
| Höhe | 75 mm |
| Gewicht | 5 kg |
| Verpackungsart | Box |

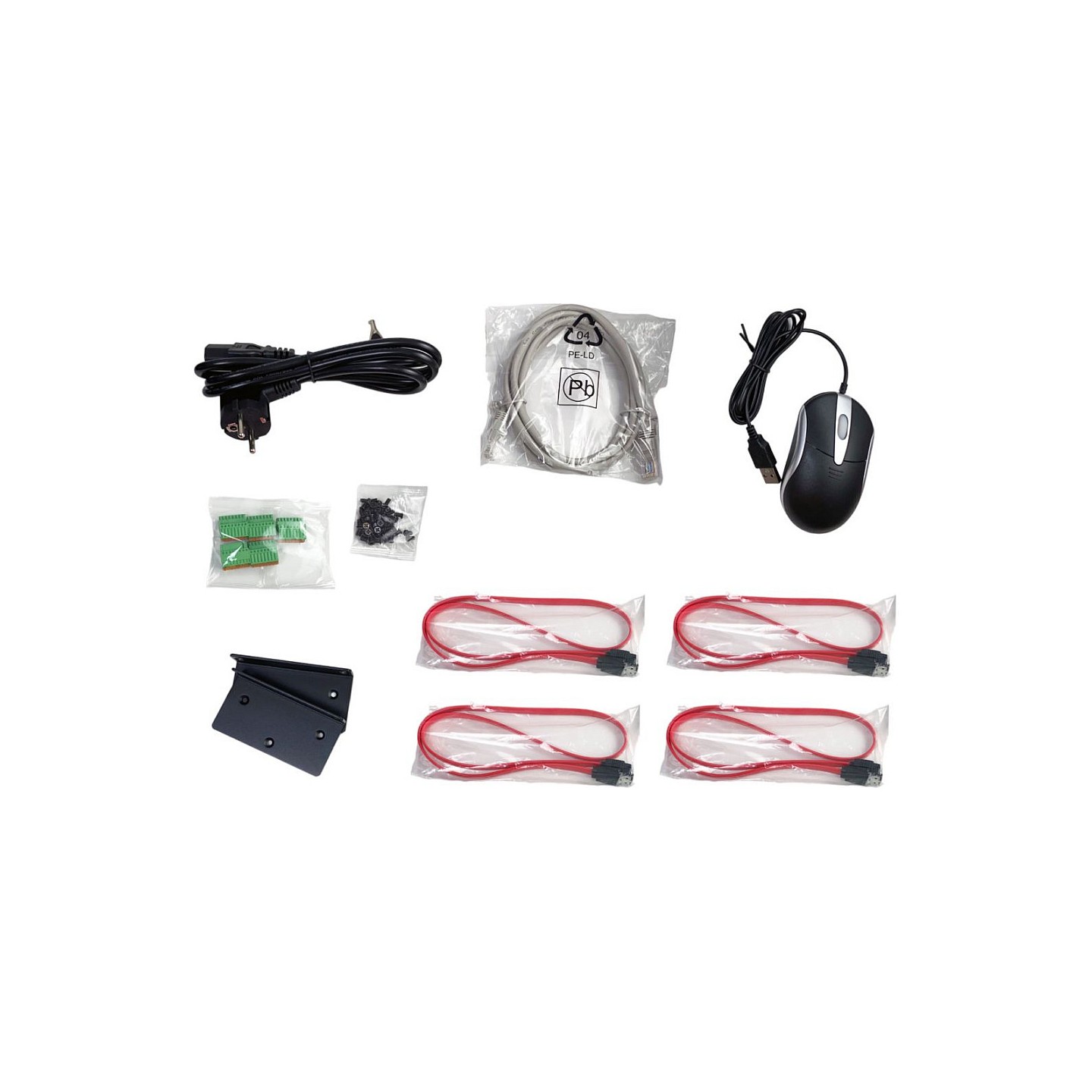

| Mitgelieferte Kabel | AC. SATA |
