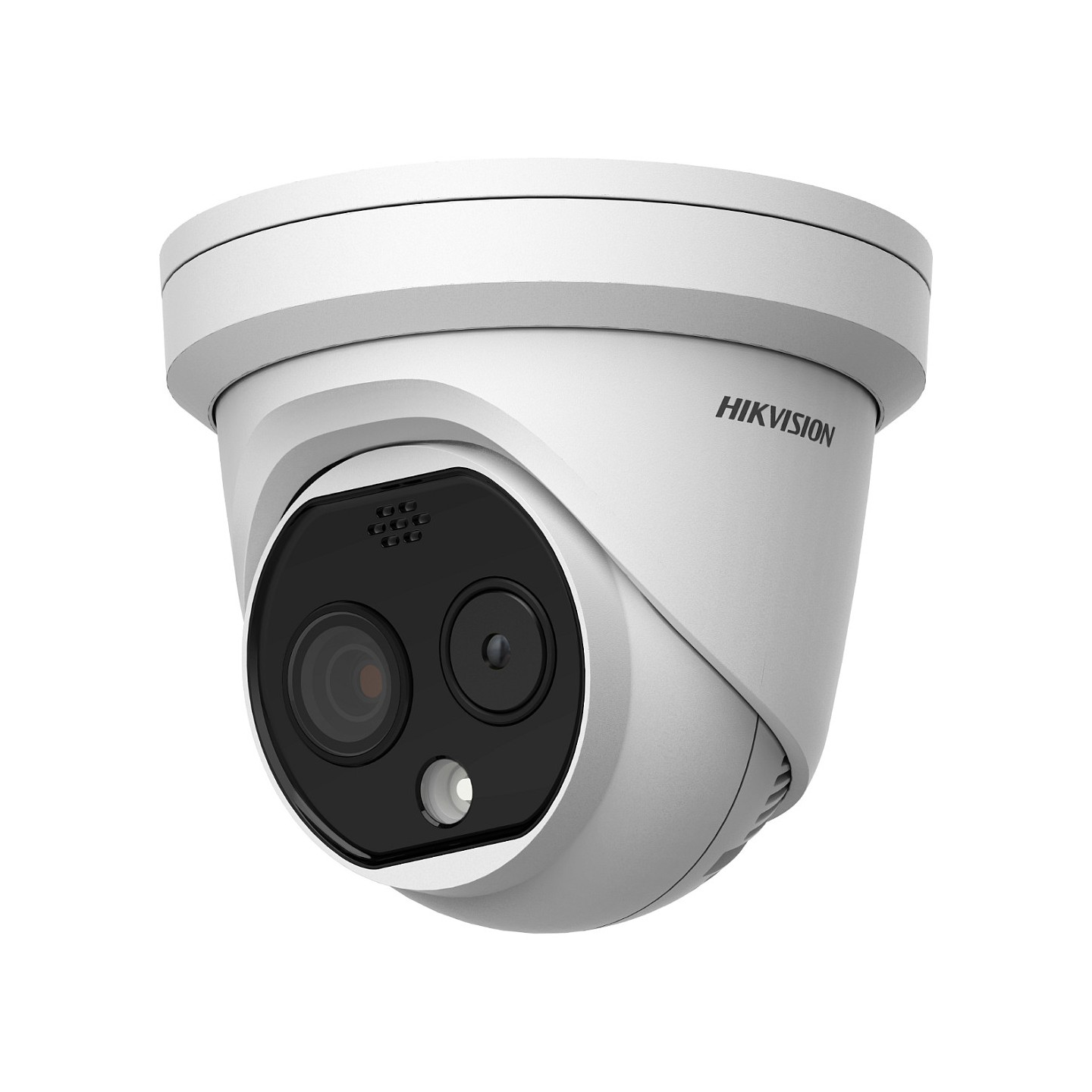

HIKVISION DS-2TD1217B-6 PA(B)Thermal 160x120 Bi-SpekBodyscan
Hikvision DS-2TD1217B-6/PA. IP-Sicherheitskamera. Innen & Außen. Kabelgebunden. Bulgarisch. Traditionelles Chinesisch. Tschechisch. Dänisch. Deutsch. Niederländisch. Englisch..... 40 mK. 2.74 mRad
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision DS-2TD1217B-6/PA. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Innen & Außen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Zimmerdecke. Produktfarbe: Weiß. Formfaktor: Dome. Mindestbeleuchtung: 0.0089 Lux. Blickwinkel (FOV): 39.42°. Sichtfeldwinkel (FOV) (thermisches Modul): 25 x 18.7°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 2.7 mm (1 / 2.7"). Sensortyp (Thermomodul): Vanadium Oxide Uncooled Focal Plane Arrays. Feste Brennweite: 8 mm. Naheinstellgrenze: 0.6 m. Feste Brennweite (thermisches Modul): 6.2 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Webbrowser |
| Anzahl der Sprachen | 32 |
| Thermische Empfindlichkeit (NETD) | 40 mK |
| IFOV (räumliche Auflösung) | 2.74 mRad |
| Formfaktor | Dome |
| Befestigungstyp | Zimmerdecke |
| Produktfarbe | Weiß |
| Internationale Schutzart (IP-Code) | IP66 |
| Mindestbeleuchtung | 0.0089 Lux |
| Blickwinkel (FOV) | 39.42° |
| Sichtfeldwinkel (FOV) (thermisches Modul) | 25 x 18.7° |
| Weißabgleich | ATW. Auto. Tageslicht. Drinnen. Manuell. Draußen. Natriumlampe |
| Kamera Verschlusszeit | 1 - 1/100000 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25.4 / 2.7 mm (1 / 2.7") |
| Sensortyp (Thermomodul) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effektive Sensorauflösung (thermisches Modul) | 160 x 120 Pixel |
| Sensor-Typ | CMOS |
| Anzahl der effektiven Pixel (H x V) | 2688 x 1520 Pixel |
| Anzahl der Linsen | 1 |
| Feste Brennweite | 8 mm |
| Naheinstellgrenze | 0.6 m |
| Feste Brennweite (thermisches Modul) | 6.2 mm |
| Infrarot-Spektralband | 8 - 14 µm |
| Blendenzahl (thermisches Modul) | 1.1 |
| Nachtsichtdistanz | 15 m |
| Maximale Auflösung | 2688 x 1520 Pixel |
| Megapixel insgesamt | 4 MP |
| Videokompressionsformate | H.264. H.265. M-JPEG |
| Unterstützte Grafik-Auflösungen | 176 x 120. 176 x 144. 320 x 240. 352 x 240. 352 x 288. 640 x 480 (VGA). 704 x 480. 704 x 576. 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2688 x 1520 |
| Unterstützte Video-Modi | 240p. 480p. 576p. 720p. 1080p. 1520p |
| Bis zu 30 Frames pro Sekunde | 25 fps |
| Audio-Codec | G .711u. G.711a. G.722.1. MP2L2. G.726. PCM |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.1x. IEEE 802.3af |
| Zahl der Benutzer | 32 Benutzer |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Max. Speicherkartengröße | 256 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-485-Anschlüsse | 1 |
| Kopfhörerausgänge | 1 |
| Passwortschutz-Art | Supervisor. Benutzer |
| Unterstützte Sicherheitsalgorithmen | EAP-LEAP. EAP-MD5. EAP-TLS. HTTPS |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (max.) | 6.5 W |
| DC-Ausgang Volt | 12 |
| Betriebstemperatur | 10 - 35 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 138.3 mm |
| Tiefe | 138.3 mm |
| Höhe | 123.1 mm |
| Gewicht | 940 g |
| Anzahl der Kameras | 1 |
