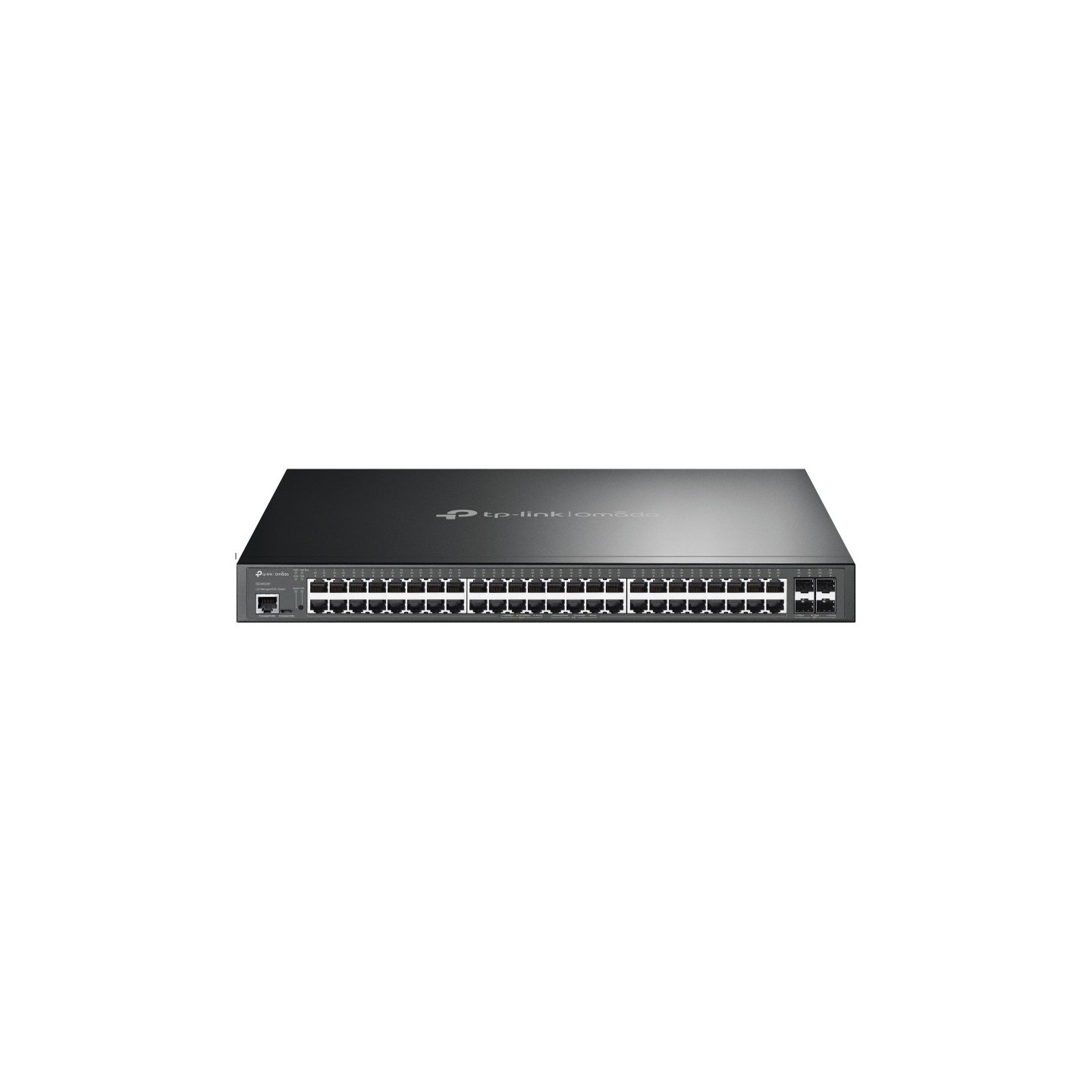

TP-Link Omada 48-Port PoE+ Managed Switch - SG3452XP - 48x Gigabit RJ45 + 4x 10G SFP+, Rackmount 1U
L2+ managed 48-port Gigabit switch with 48 PoE+ ports, 4x 10G SFP+ uplinks, 1U rackmount, RJ45/Micro-USB console, 176 Gbps switching capacity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Console port: RJ-45/Micro-USB. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3z |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP client. DHCP relay. DHCP server |
| Authentication | Auto VLAN. Guest VLAN |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 635.7 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2169.2 BTU/h |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | AC |
| Certification | CE. FCC. RoHS |
