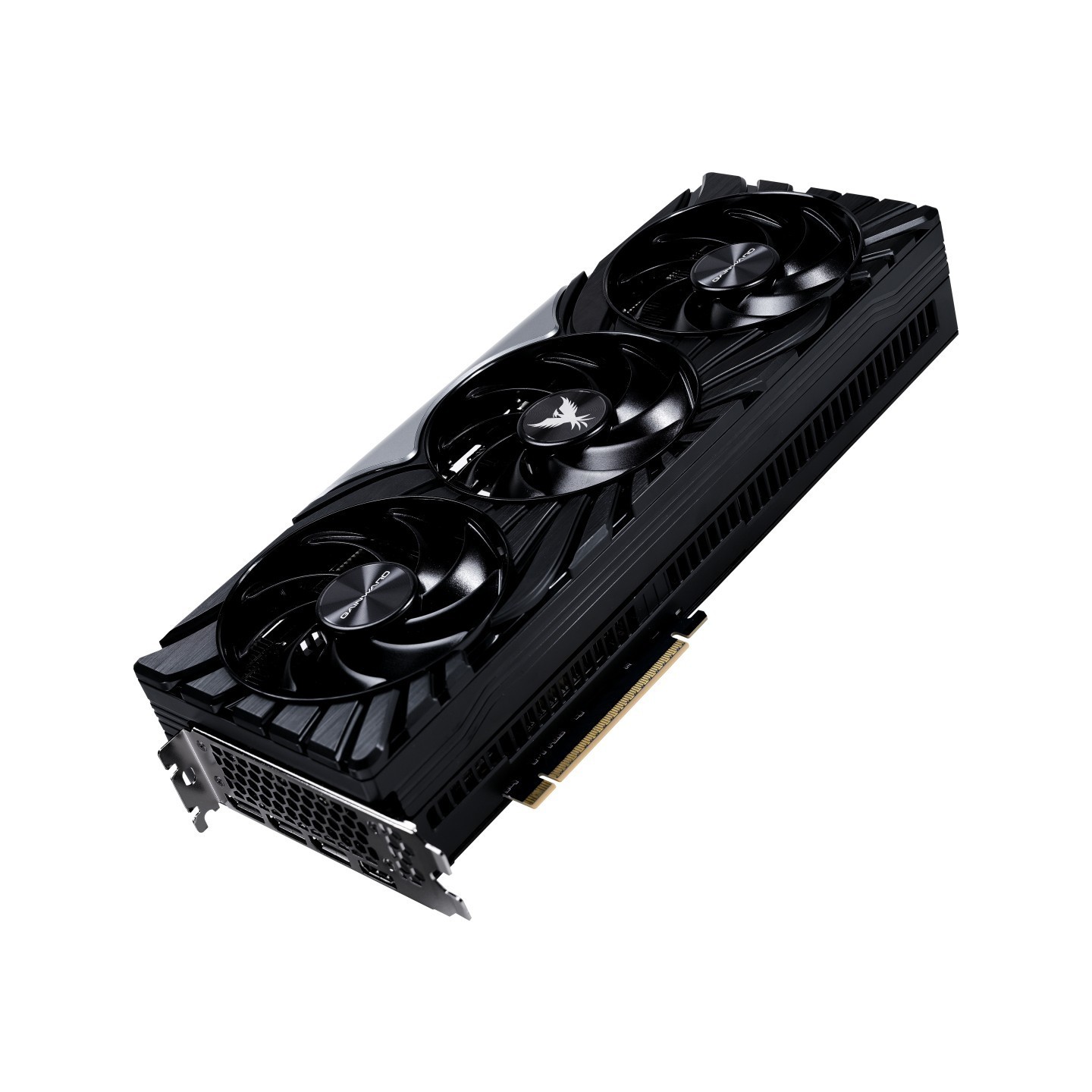

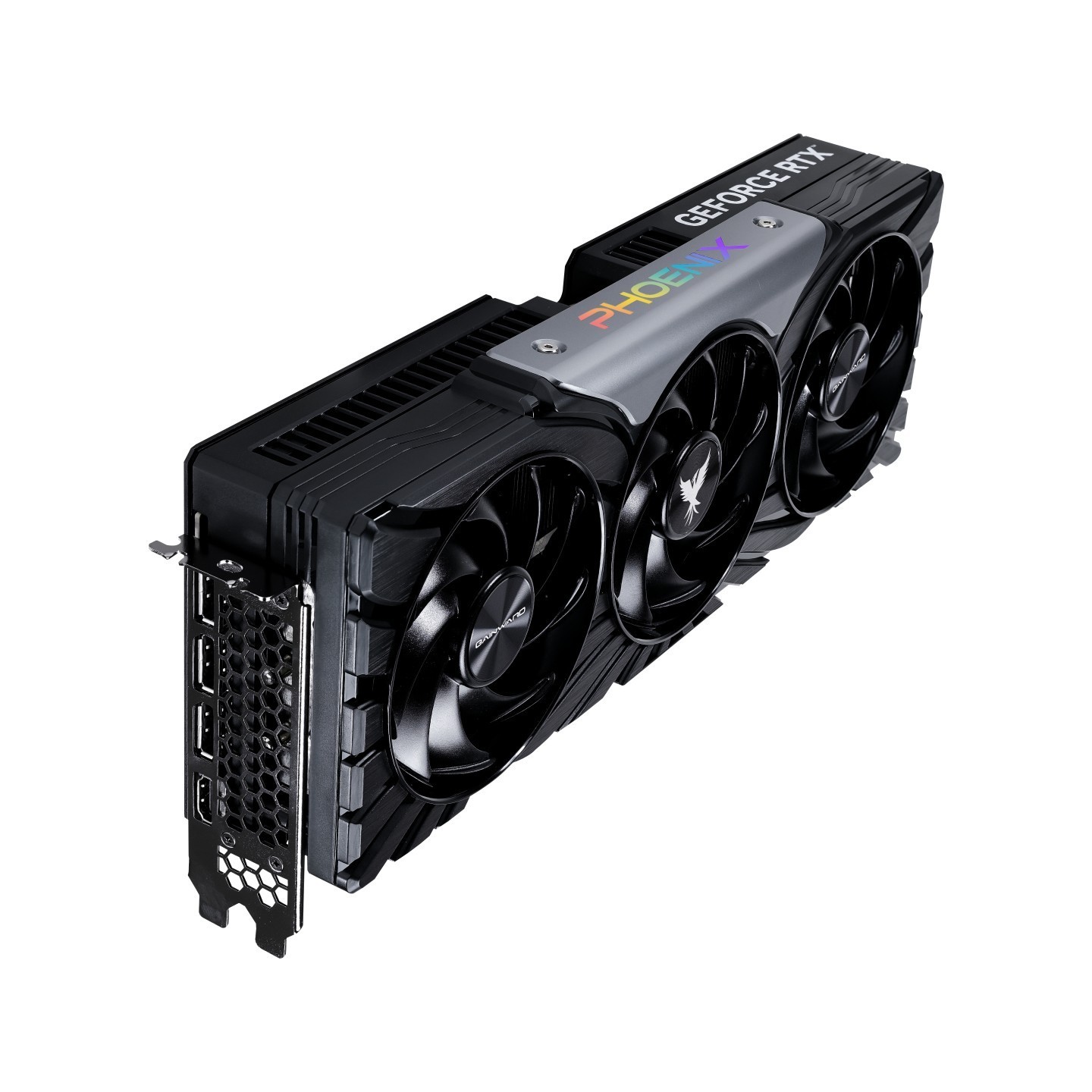

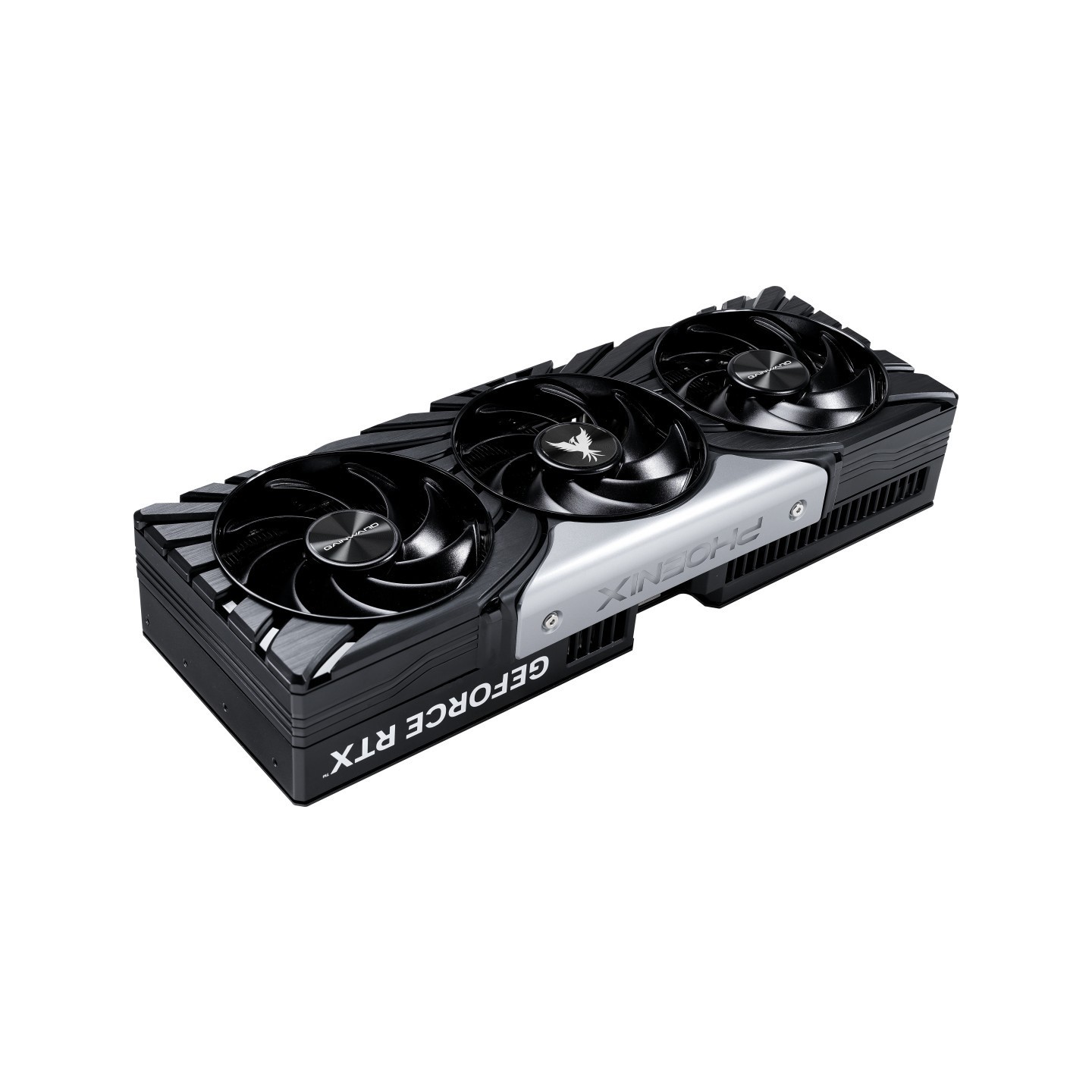

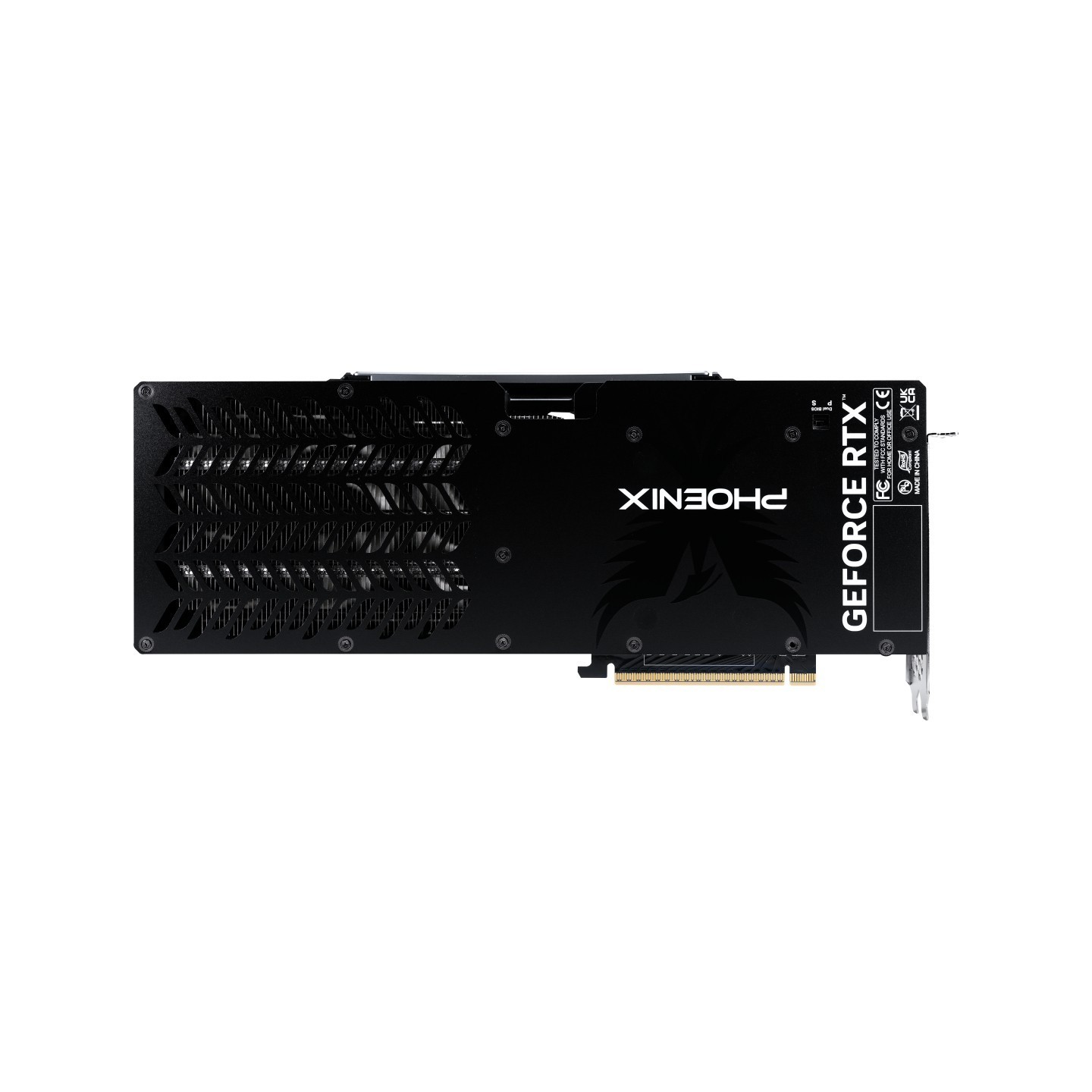

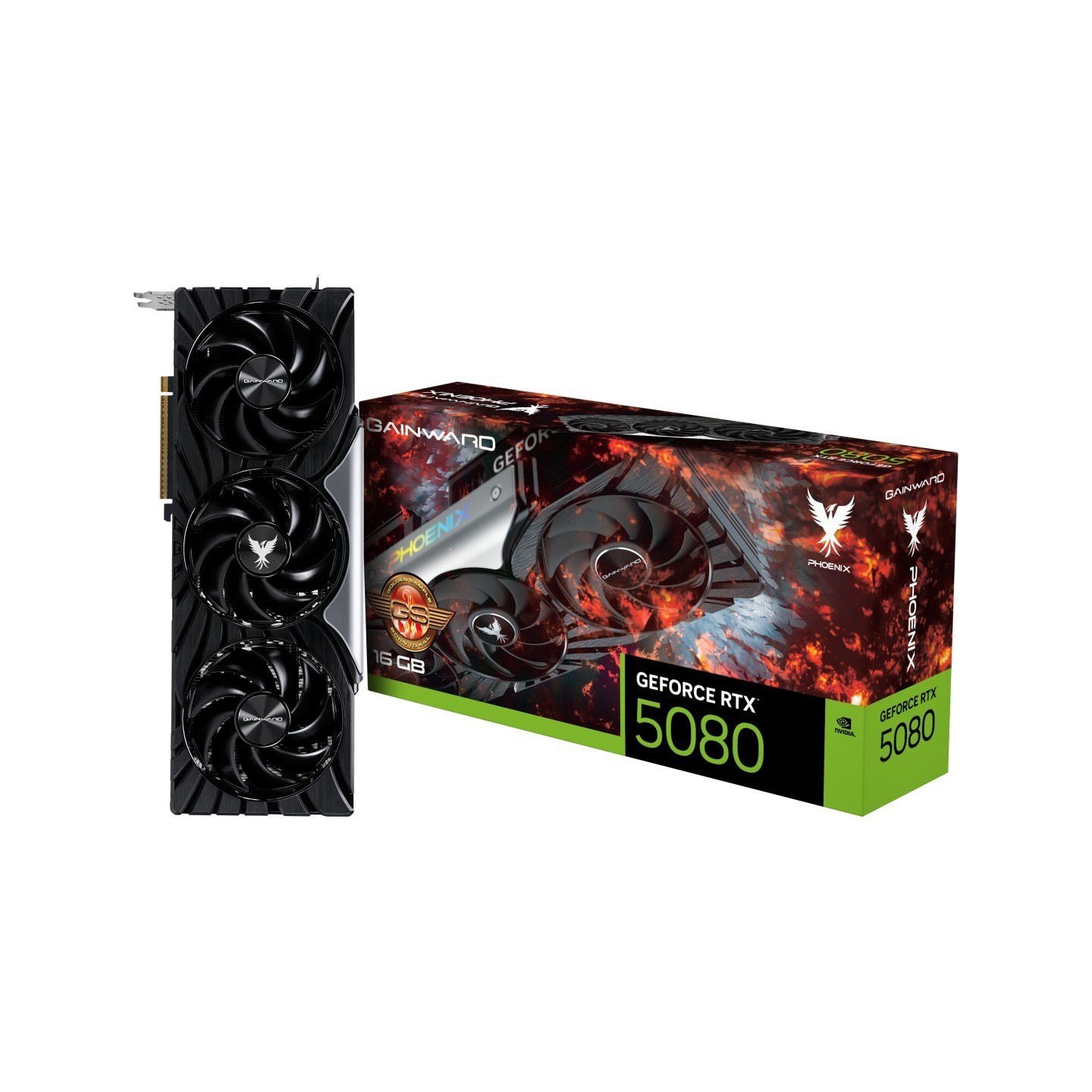

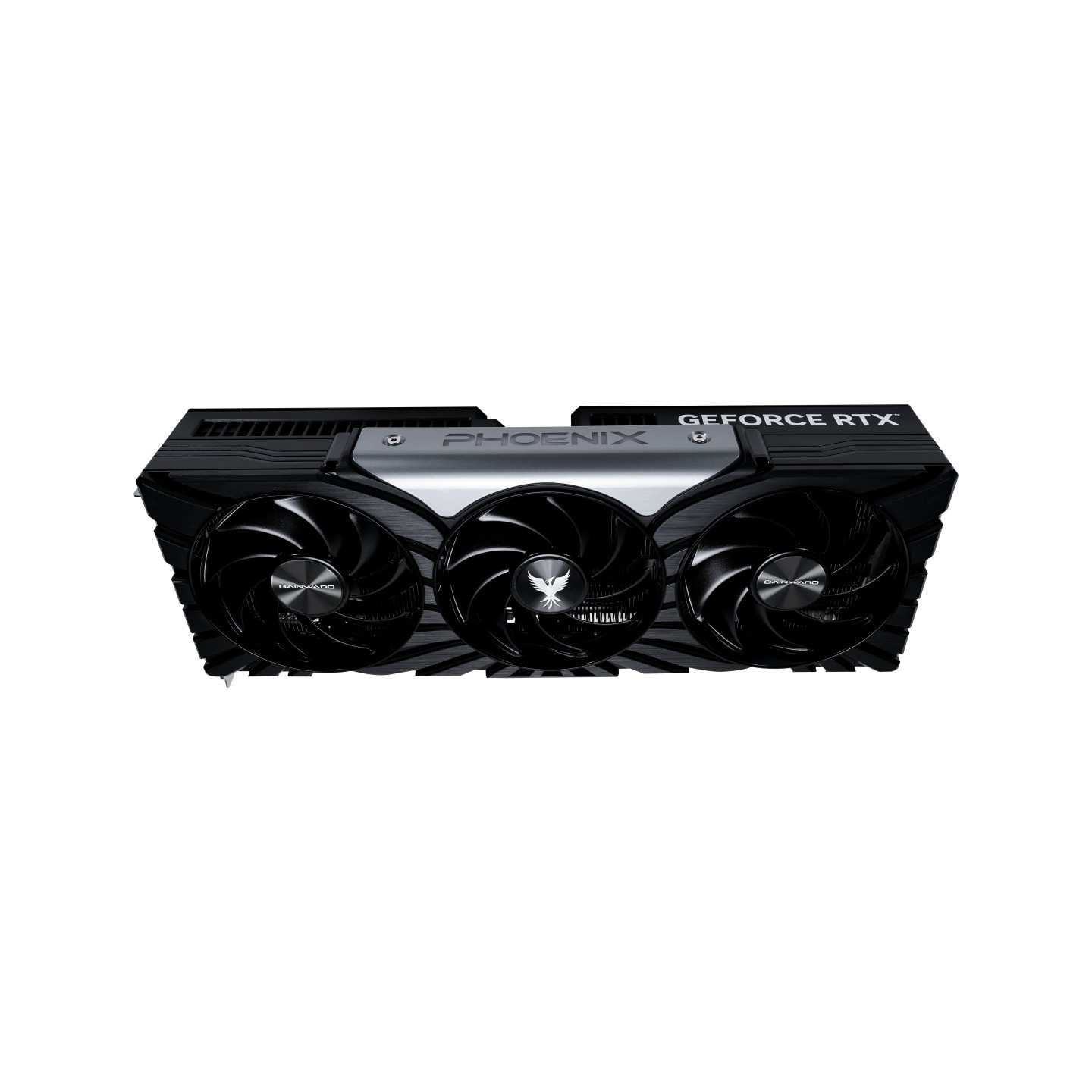

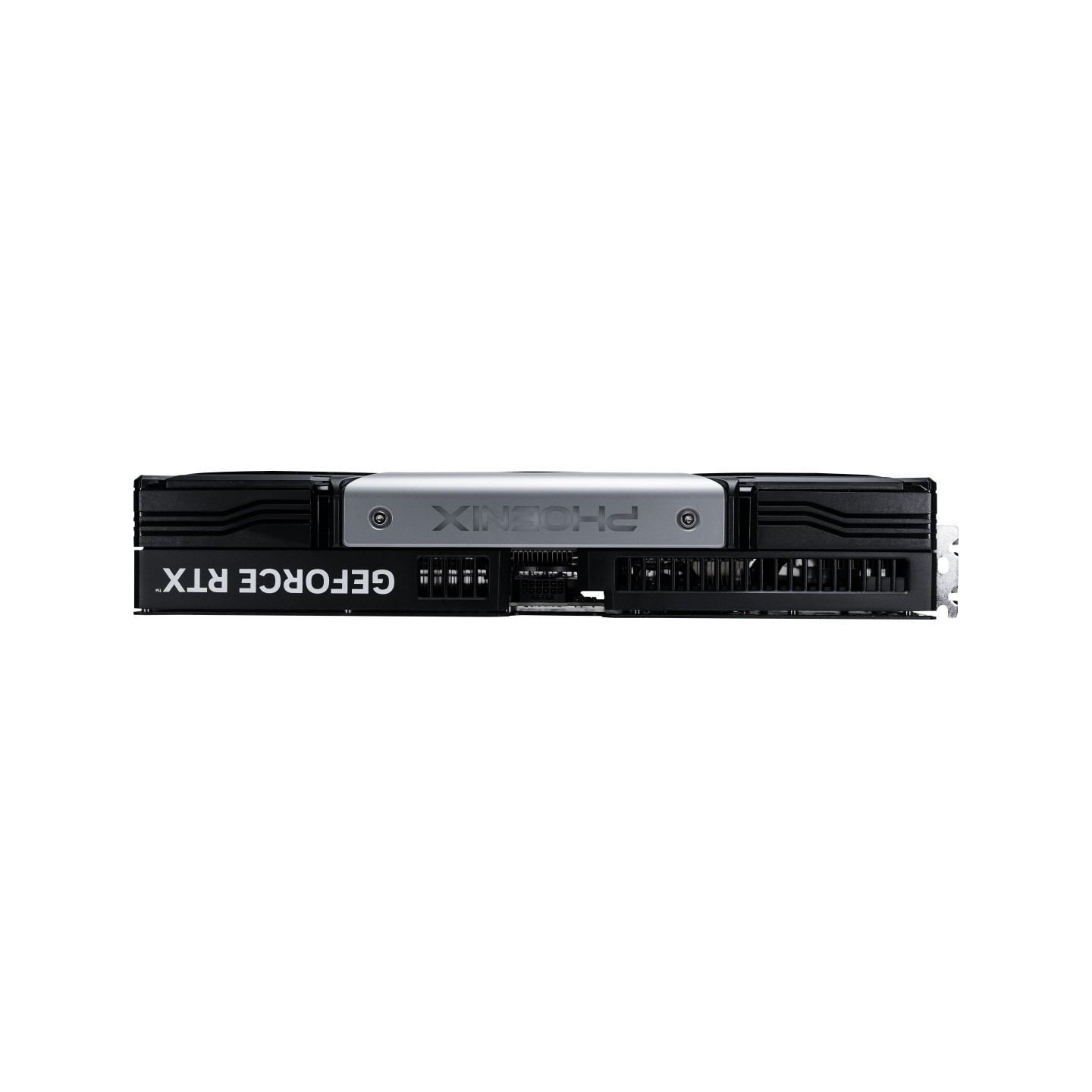

Gainward GeForce RTX 5080 Phoenix GS - 16GB GDDR7 - PCIe 5.0, Triple-Fan (Boxed)
Gainward GeForce RTX 5080 Phoenix GS: 16GB GDDR7 (256-bit, 30Gbps), PCIe 5.0, 2700MHz boost, 10752 CUDA cores. Triple-fan cooling, Dual BIOS (P/S modes), 3xDP 2.1b + HDMI 2.1b. Supports DLSS 4, Reflex 2 for 4K gaming/AI.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Ultra (321-340 mm) |
The Gainward GeForce RTX 5080 Phoenix GS is a high-performance graphics card powered by NVIDIA's Blackwell architecture with 10,752 CUDA cores and 16GB GDDR7 memory at 30Gbps on a 256-bit bus, delivering 960 GB/s bandwidth. Boost clock reaches 2700 MHz for exceptional 4K gaming, ray tracing, and AI workloads with DLSS 4 Multi Frame Generation and Reflex 2.

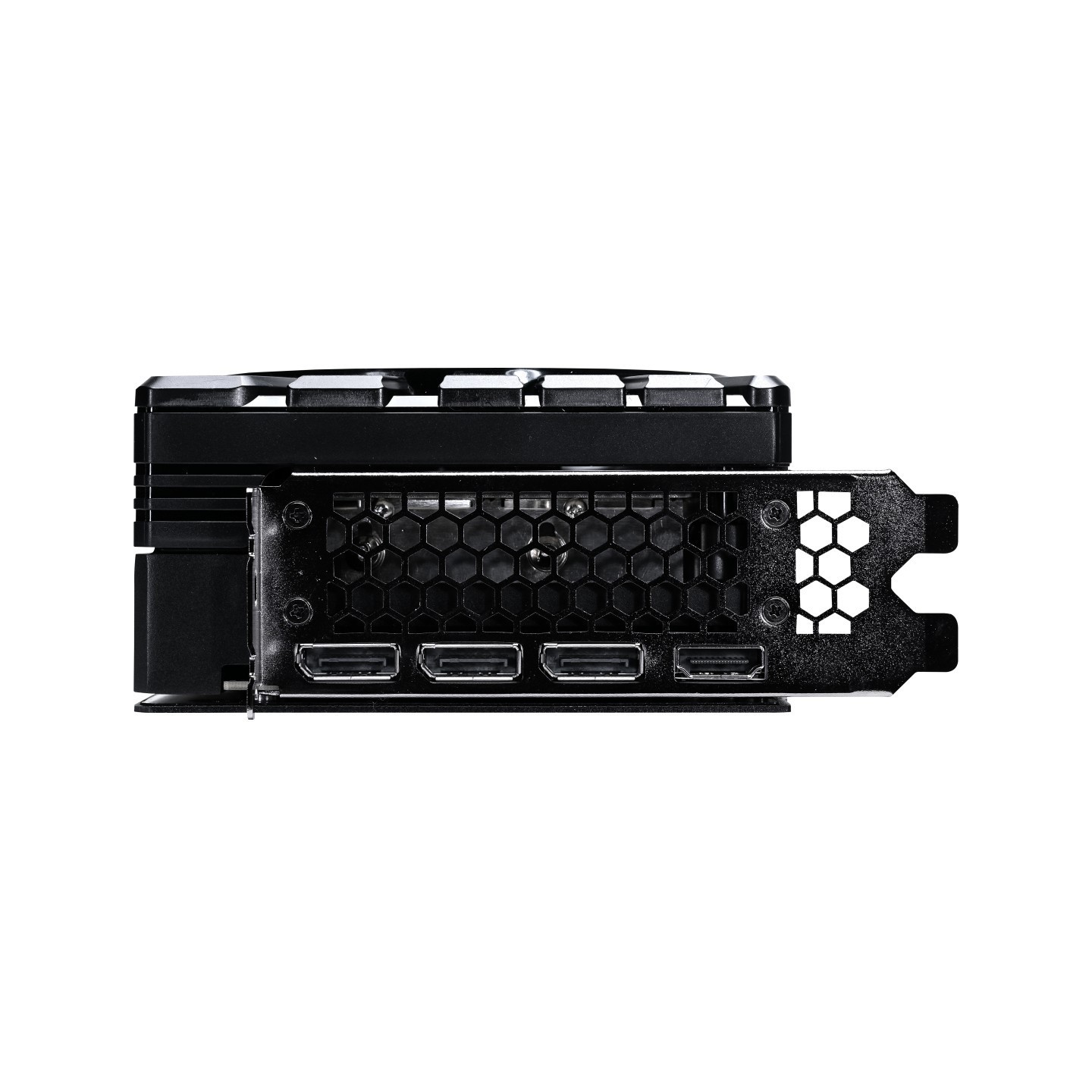

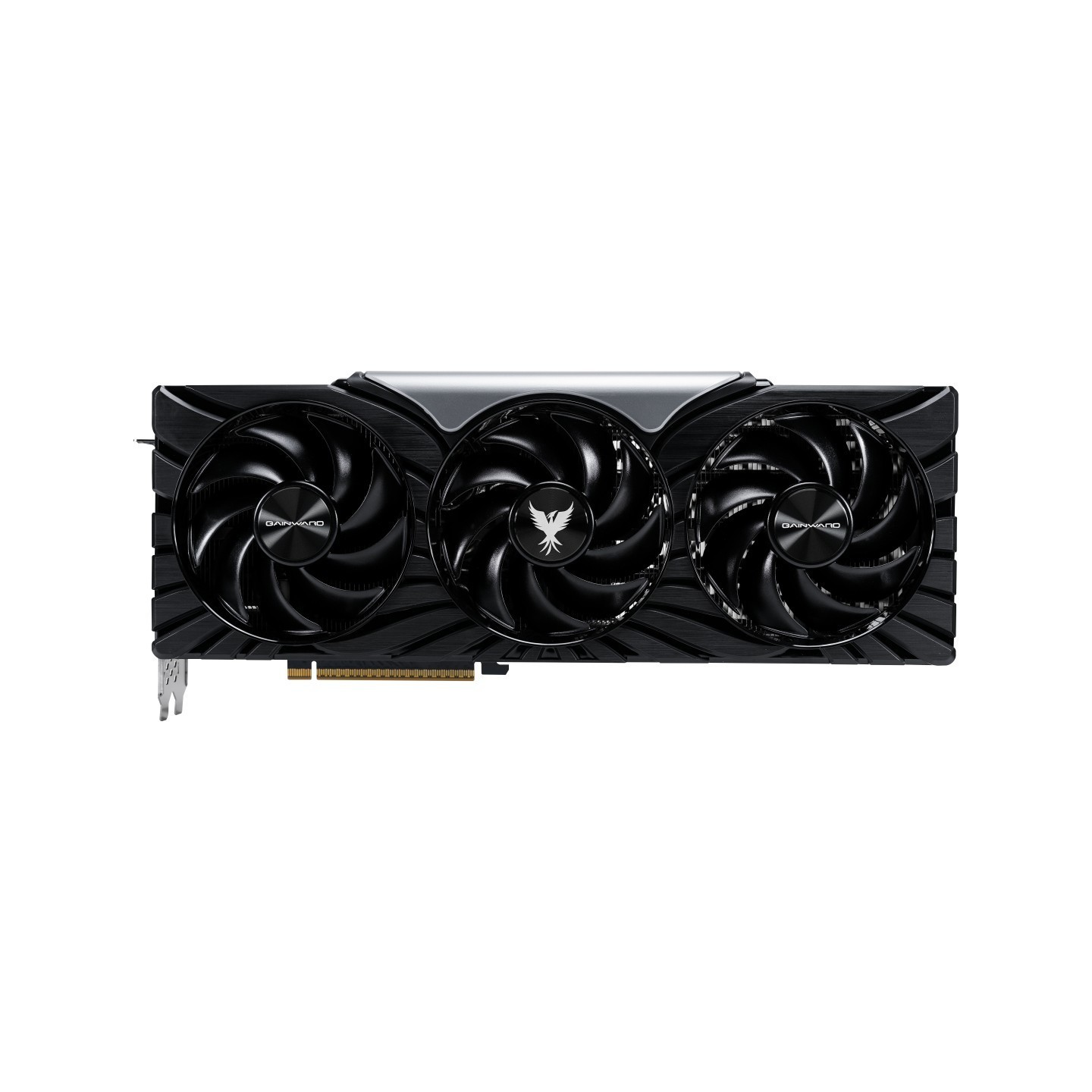

Featuring triple-fan open-air cooling with zero-RPM mode for silent operation during light loads, Dual BIOS (Performance/Silent modes switchable via rear toggle), and 5V ARGB header for lighting sync. Compact at 331.9 x 133.1 x 60 mm, it fits most builds while requiring 1x 16-pin power connector and 360W TBP. Outputs include 3x DisplayPort 2.1b and HDMI 2.1b for up to 8K resolution.
- PCIe 5.0 x16 interface
- DirectX 12 Ultimate, OpenGL 4.6
- Multi-color RGB illumination
- Full-height/full-length form factor, 3-slot
- Supports NVIDIA Broadcast, ACE, Studio tools
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| CUDA cores | 10752 |
| Processor boost clock speed | 2700 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 15000 MHz |
| Data transfer rate | 30 Gbit/s |
| Memory bandwidth (max) | 960 GB/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3 |
| Illumination colour | Multi |
| Product colour | Black, Silver |
| Supplementary power connectors | 1x 16-pin |
| Length | 331.9 mm |
| Depth | 60 mm |
| Height | 133.1 mm |
| Total board power (TBP) | 360 W |
| Dual BIOS | Yes (Performance/Silent) |
| ARGB header | Yes (5V) |
