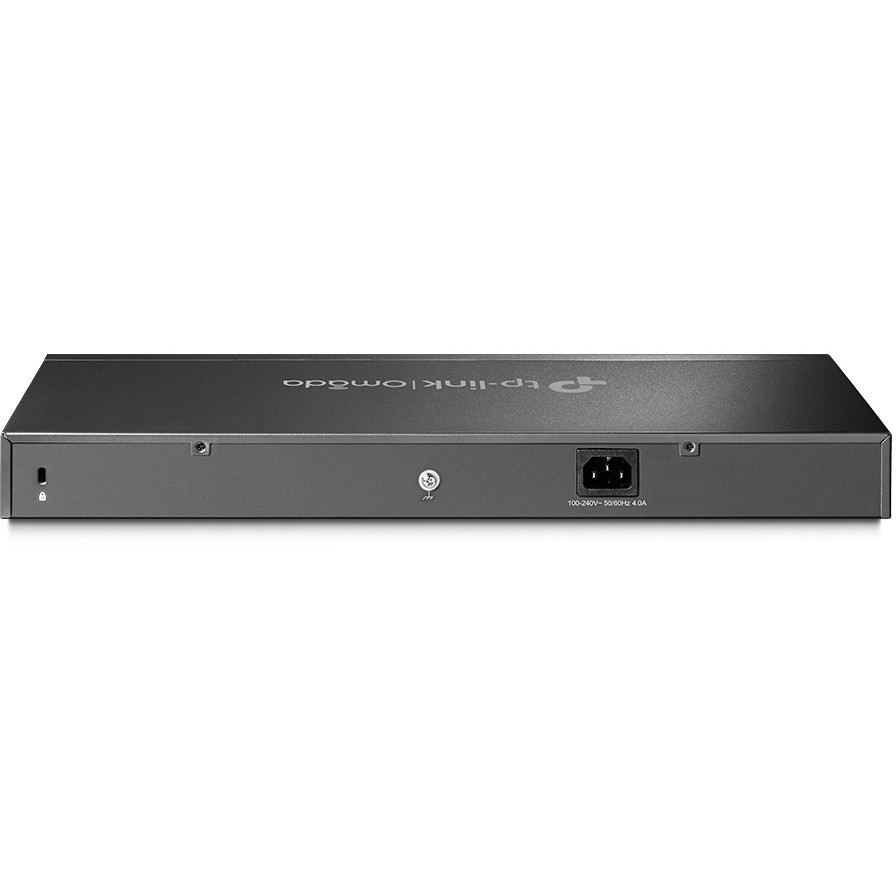

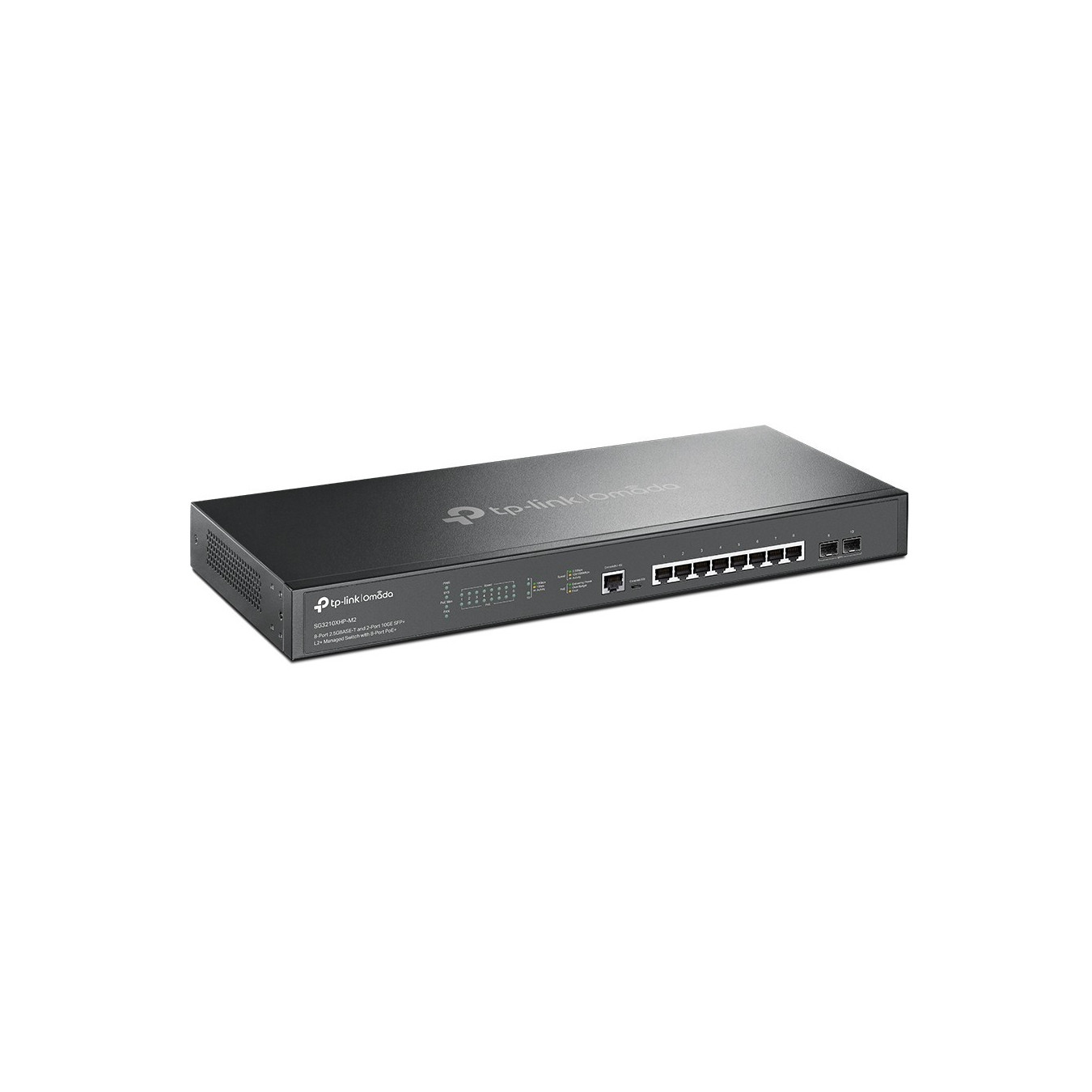

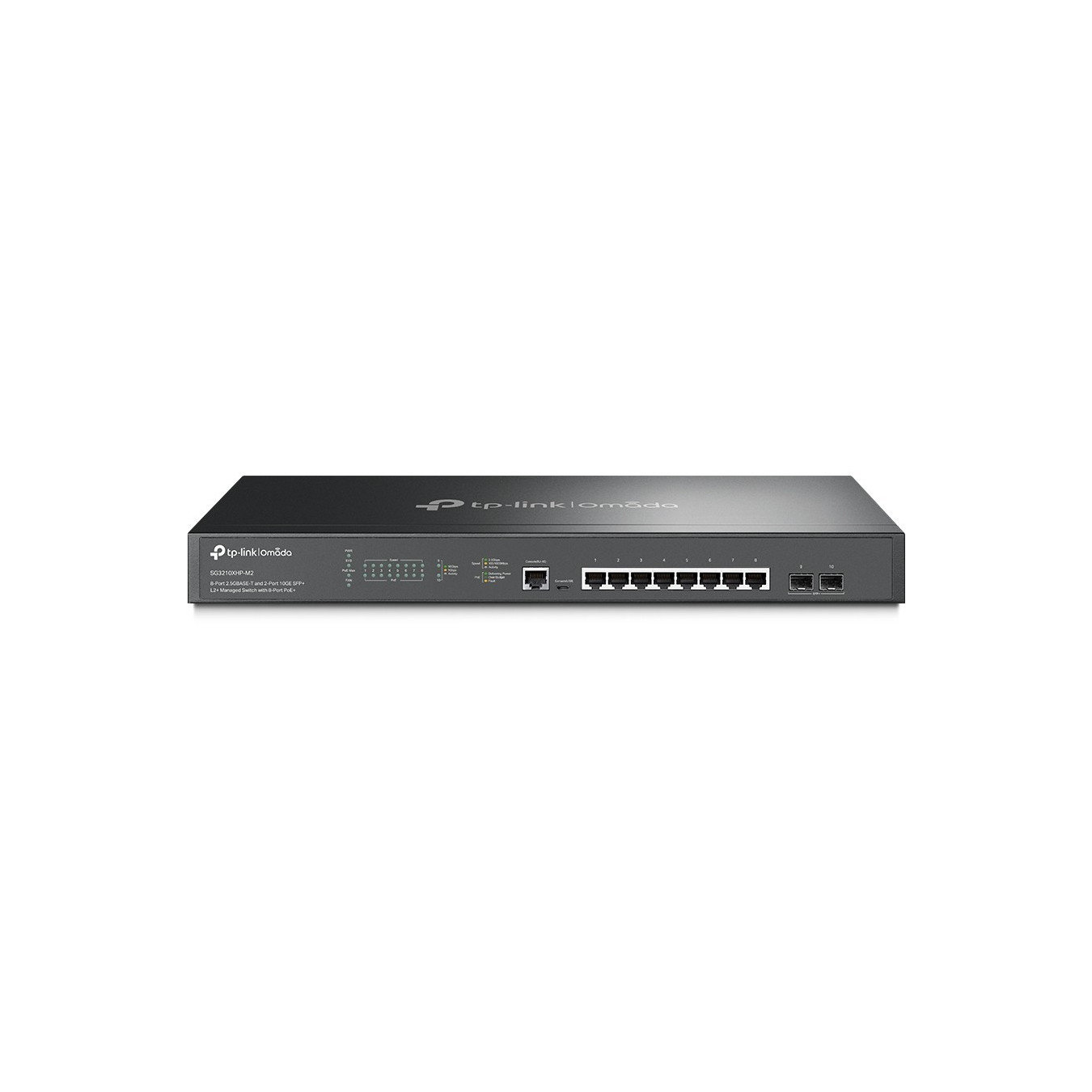

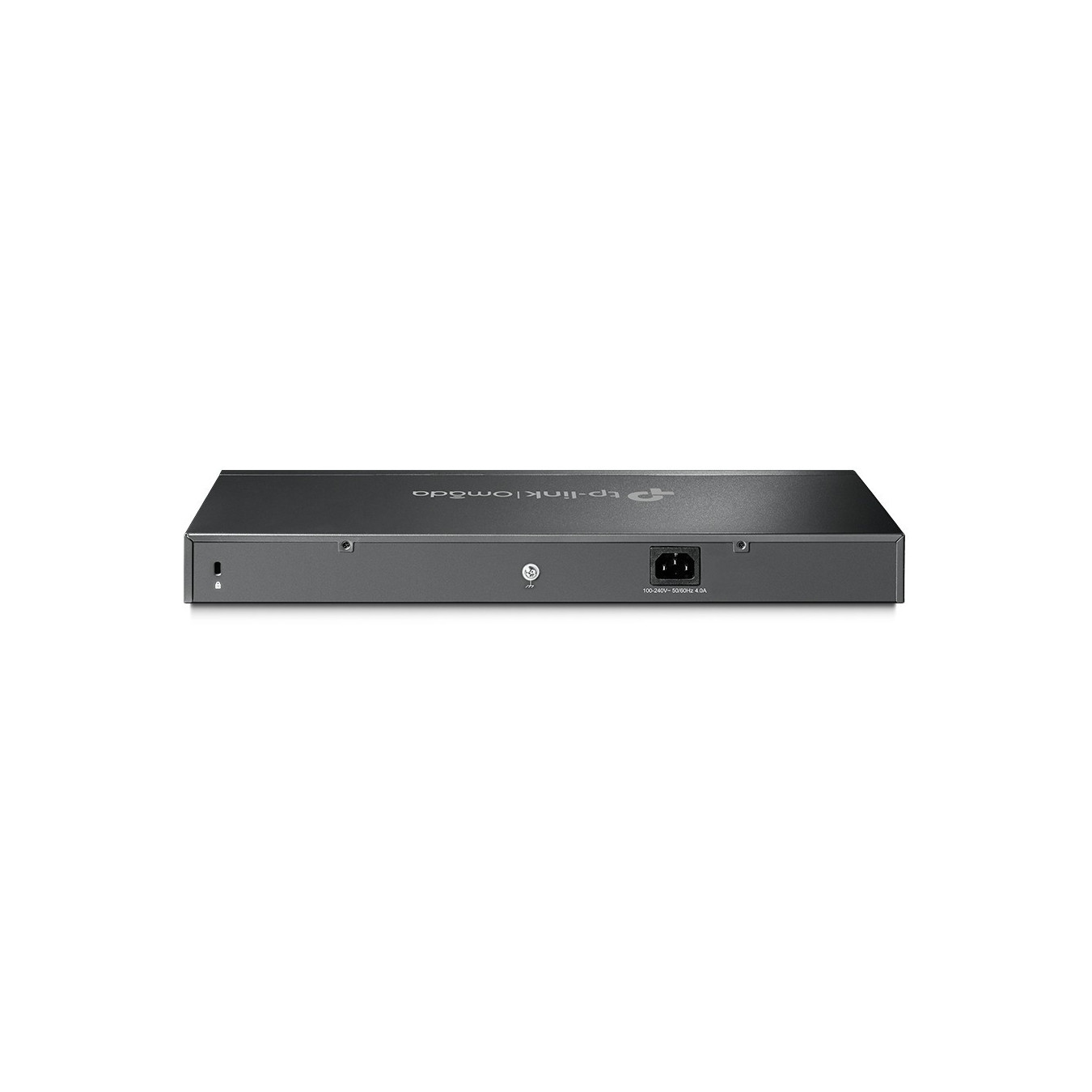

TP-Link Omada SG3210XHP-M2 - 8x 2.5G PoE+ & 2x 10G SFP+ L2+ Managed Rackmount Switch (1U)
L2+ managed 1U rackmount switch with 8× 2.5GBASE-T PoE+ ports and 2× 10G SFP+ uplinks. 16K MAC table and 80 Gbps switching capacity for SMB networks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 10 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - Rackmount | Yes |
TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 8. Console port: RJ-45/micro-USB. MAC address table: 16000 entries. Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Quick start guide |
| MIB support | RFC2925. RFC2618. RFC2620. RFC2021. RFC2819. RFC2674. RFC1493. RFC1643. RFC2233. RFC1213 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D. IEEE 802.1s. IEEE 802.1w |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Virtual LAN features | MAC address-based VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP client. DHCP relay. DHCP server. DHCP snooping. DHCPv6 client. DHCPv6 snooping |
| Security algorithms | HTTPS. SSH. SSH-2. SSL/TLS |
| Authentication | MAC-based authentication. Port-based authentication |
| Authentication type | AAA. TACACS+ |
| Queue scheduling algorithms | SP. WRR+SP. Weighted Round Robin (WRR) |
| Management protocols | SNMPv1/v2c/v3. SNTP |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 285.9 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 975.54 BTU/h |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | AC |
| Package type | Box |
| Certification | CE. FCC. RoHS |
