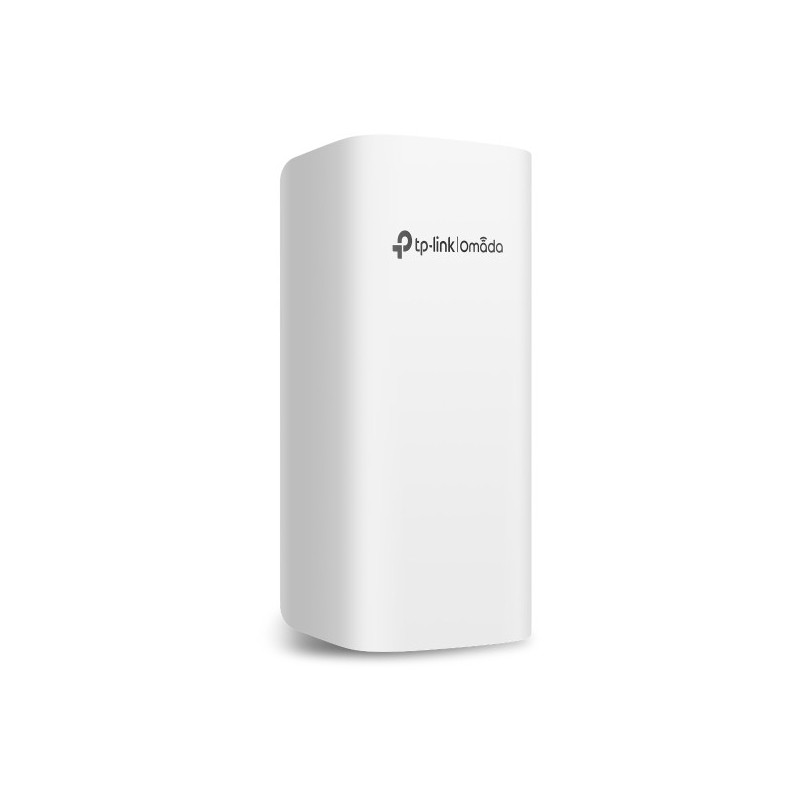

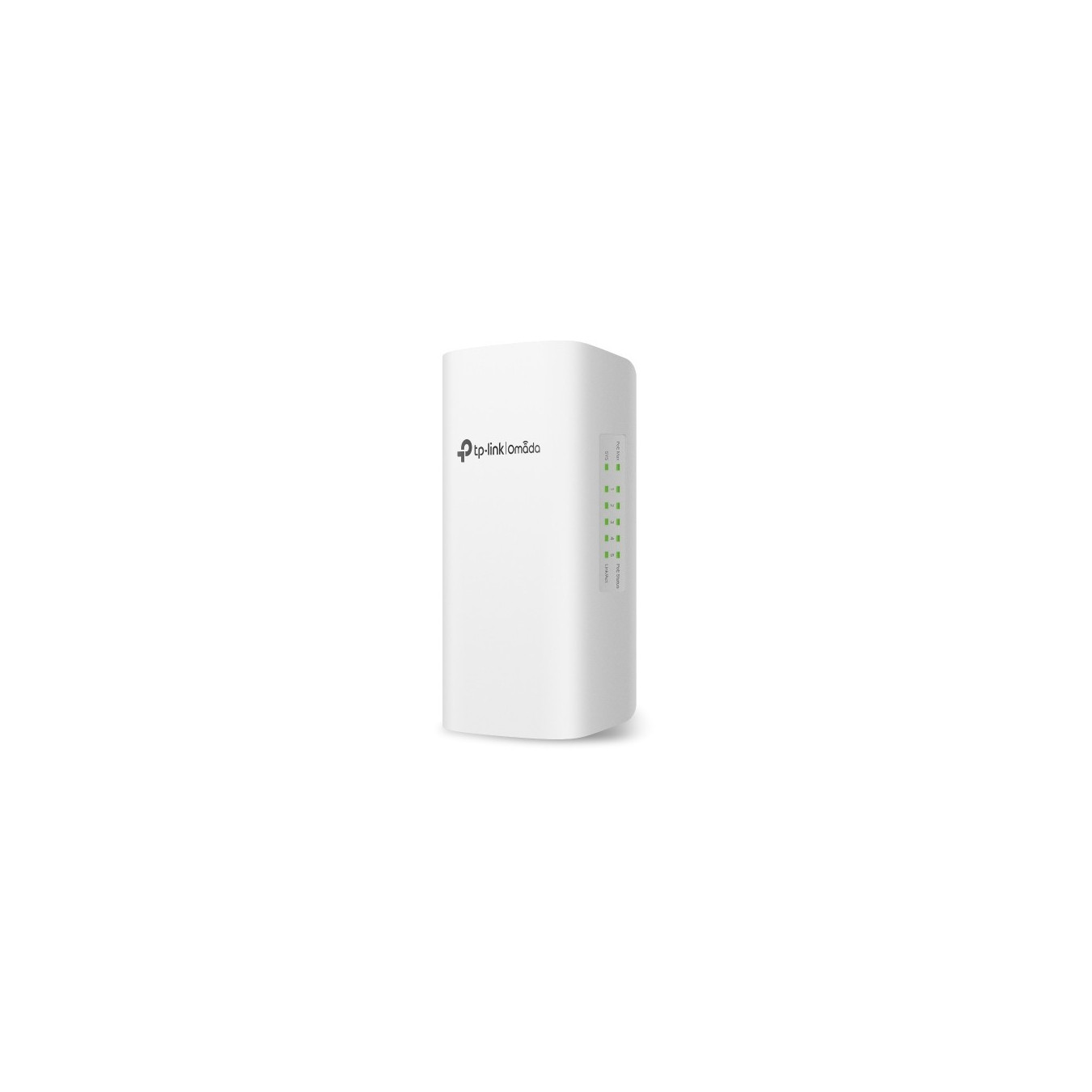

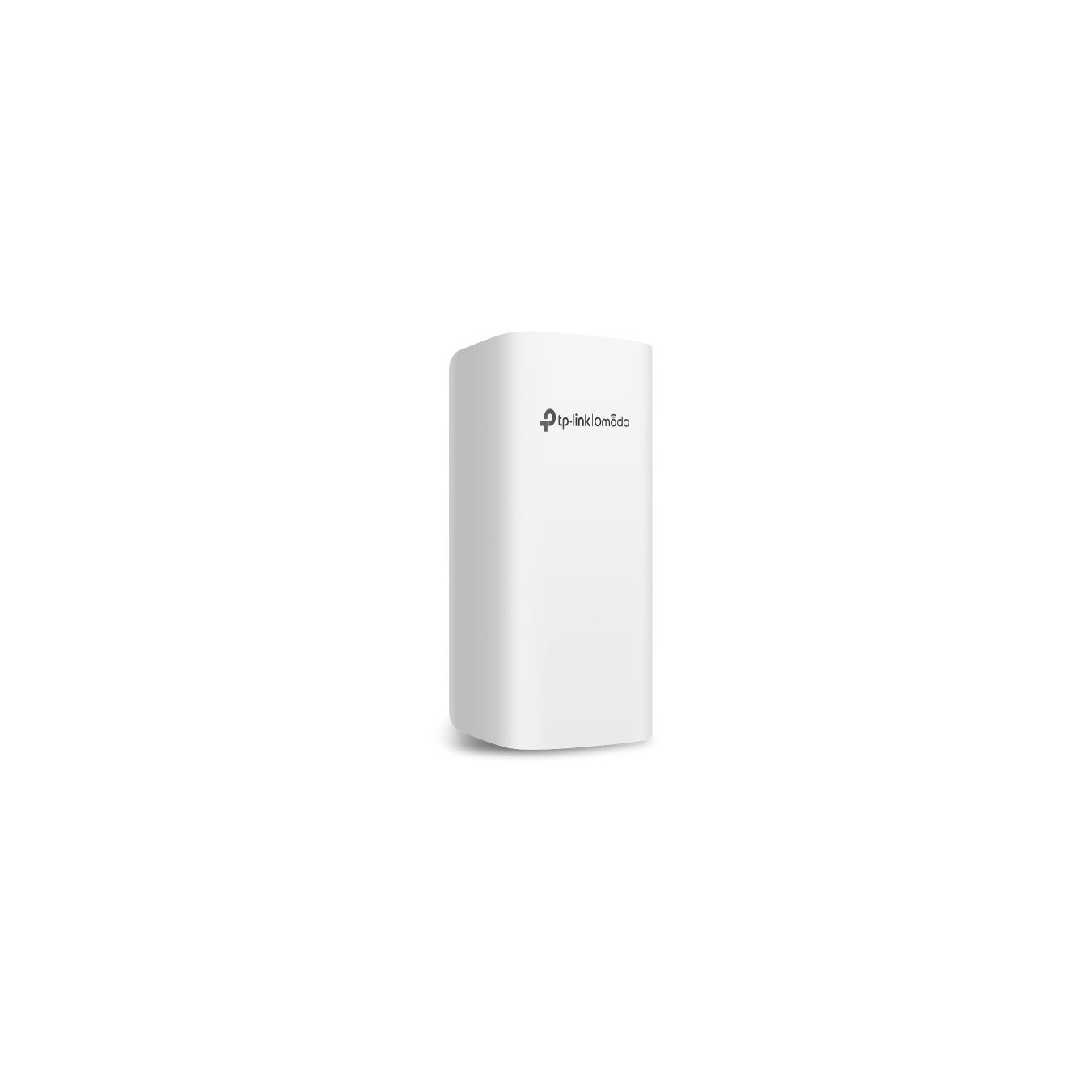

TP-Link Omada 5-Port Gigabit Smart Switch - SG2005P-PD - 4× PoE+ Out, 1× PoE++ In, L2 Managed, Desktop
5-port Gigabit L2 smart switch (SG2005P-PD) — 4× PoE+ outputs, 1× PoE++ input, L2/L2+ managed, 8000 MAC table, compact desktop form factor
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Form factor: Desktop
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 100BASE-T |
| Cable types supported | Cat5. Cat5e |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 9 |
| Packet forwarding rate (1 Gbps) | 7440 pps |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP relay. DHCP server |
| Access Control List (ACL) IPv4 entries | 32 |
| Security algorithms | 802.1x RADIUS |
| Authentication | MAC-based authentication. Port-based authentication |
| Multicast MAC address table | 8000 entries |
| IPv4 multicast entries | 511 |
| IPv6 multicast entries | 511 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6. IPv4/IPv6 access-control list (ACL). IPv6 tracert |
| Form factor | Desktop |
| Product colour | White |
| Power source | DC/PoE |
| Power consumption (typical) | 71.5 W |
| Power over Ethernet (PoE) power per port | 64 W |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 243.99 BTU/h |
| Width | 170 mm |
| Depth | 100 mm |
| Height | 38.5 mm |
| Compliance certificates | CE. RoHS |
