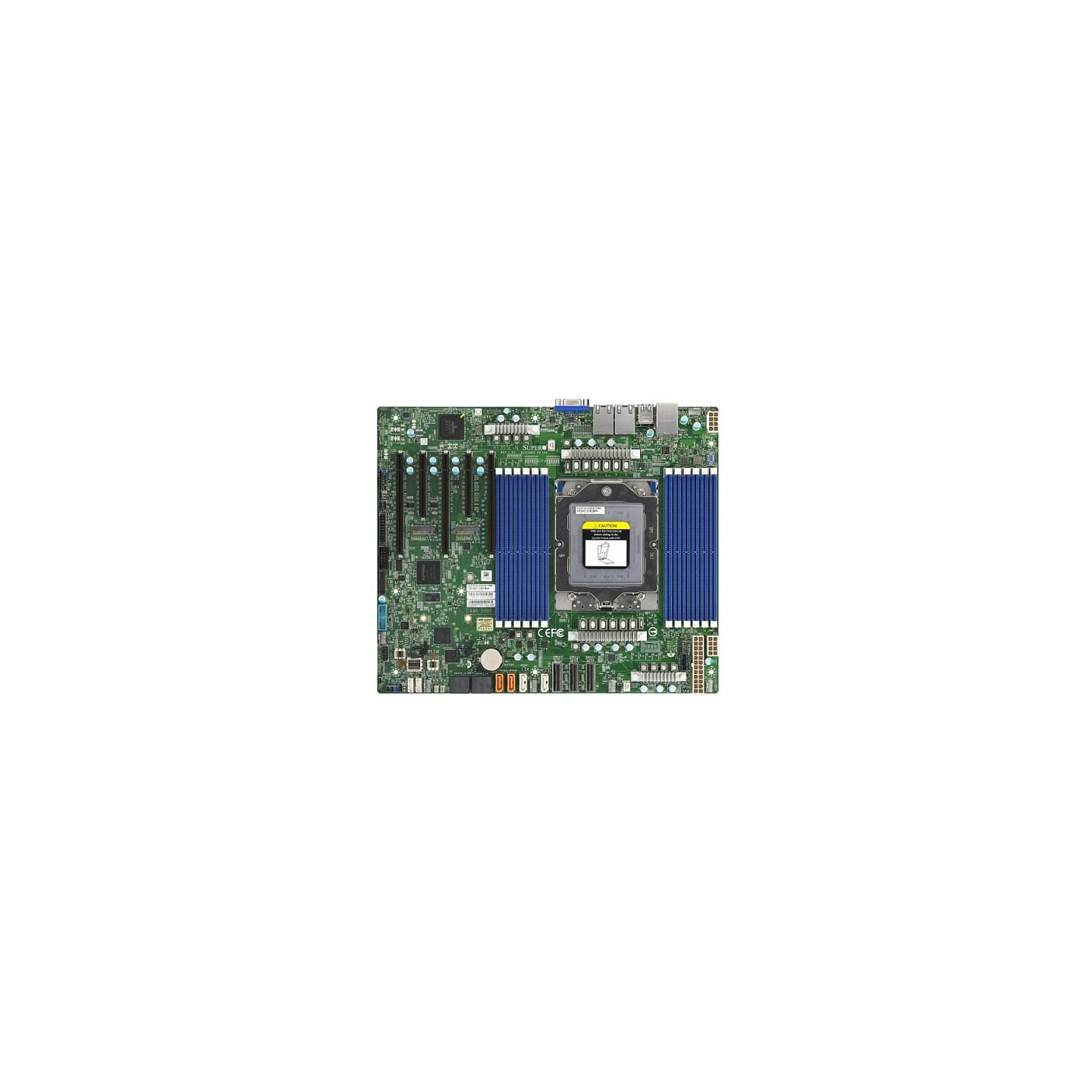

Supermicro MBD-H13SSL-N-B ATX SP5 EPYC 9004/9005 MB (Boxed)
Supermicro MBD-H13SSL-N-B is an ATX server motherboard for AMD EPYC 9004/9005 (SP5 socket). Supports up to 3TB DDR5 ECC RDIMM in 12 slots, PCIe 5.0, 8 SATA3, dual LAN. Ideal for enterprise/data centers with high TDP CPUs up to 400W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD SP3 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | ECC DDR4 RDIMM DDR5 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 8 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Supermicro MBD-H13SSL-N-B is a high-performance ATX server motherboard designed for AMD EPYC 9004 and 9005 series processors using the SP5 socket. It delivers exceptional compute power for enterprise, data center, and HPC applications, supporting CPUs with up to 160 cores/320 threads and 400W TDP.
Key features include 12 DIMM slots for up to 3TB (or 4.5TB on rev 2.0+) of 3DS ECC RDIMM DDR5-4800/6000MT/s memory, 3x PCIe 5.0 x16 and 2x PCIe 5.0 x8 slots for expansion, 8 SATA3 ports, and 2x PCIe 5.0 M.2 slots (2280/22110). Dual 1GbE LAN (Broadcom BCM5720L), ASPEED AST2600 BMC, and 6x 4-pin fan headers ensure robust connectivity and management.
- CPU: Single SP5 socket, EPYC 9004/9005 (rev 2.x for 9005)
- Memory: 12x DDR5 ECC RDIMM, up to 6000MT/s
- Storage: 8x SATA3, 2x M.2 PCIe 5.0
- Expansion: 5x PCIe 5.0 slots
- Networking: 2x 1GbE + IPMI LAN
- Form Factor: ATX (30.48 x 25.65 cm)
| CPU Socket | AMD SP5 (Single Socket) |
| CPU Support | AMD EPYC 9004/9005 Series (up to 160C/320T, 400W TDP) |
| Chipset | System on Chip (SoC) |
| Form Factor | ATX 12 |
| Memory Type | DDR5 ECC RDIMM (3DS), 4800/6000 MT/s |
| Memory Slots | 12 DIMM slots (1DPC) |
| Max Memory | Up to 3TB (4.5TB on rev 2.0+) |
| PCIe Slots | 3x PCIe 5.0 x16, 2x PCIe 5.0 x8 |
| M.2 Slots | 2x PCIe 5.0 x4 (2280/22110, M-Key) |
| SATA Ports | 8x SATA3 (6Gbps) |
| LAN | 2x 1GBase-T (Broadcom BCM5720L) + 1x IPMI LAN |
| USB Ports | 6x USB 3.0 (4 rear + 2 header) |
| Fan Headers | 6x PWM 4-pin |
| Graphics | ASPEED AST2600 BMC (VGA) |
| BIOS | AMI UEFI 2.8, ACPI 6.4, SMBIOS 3.5+ |
