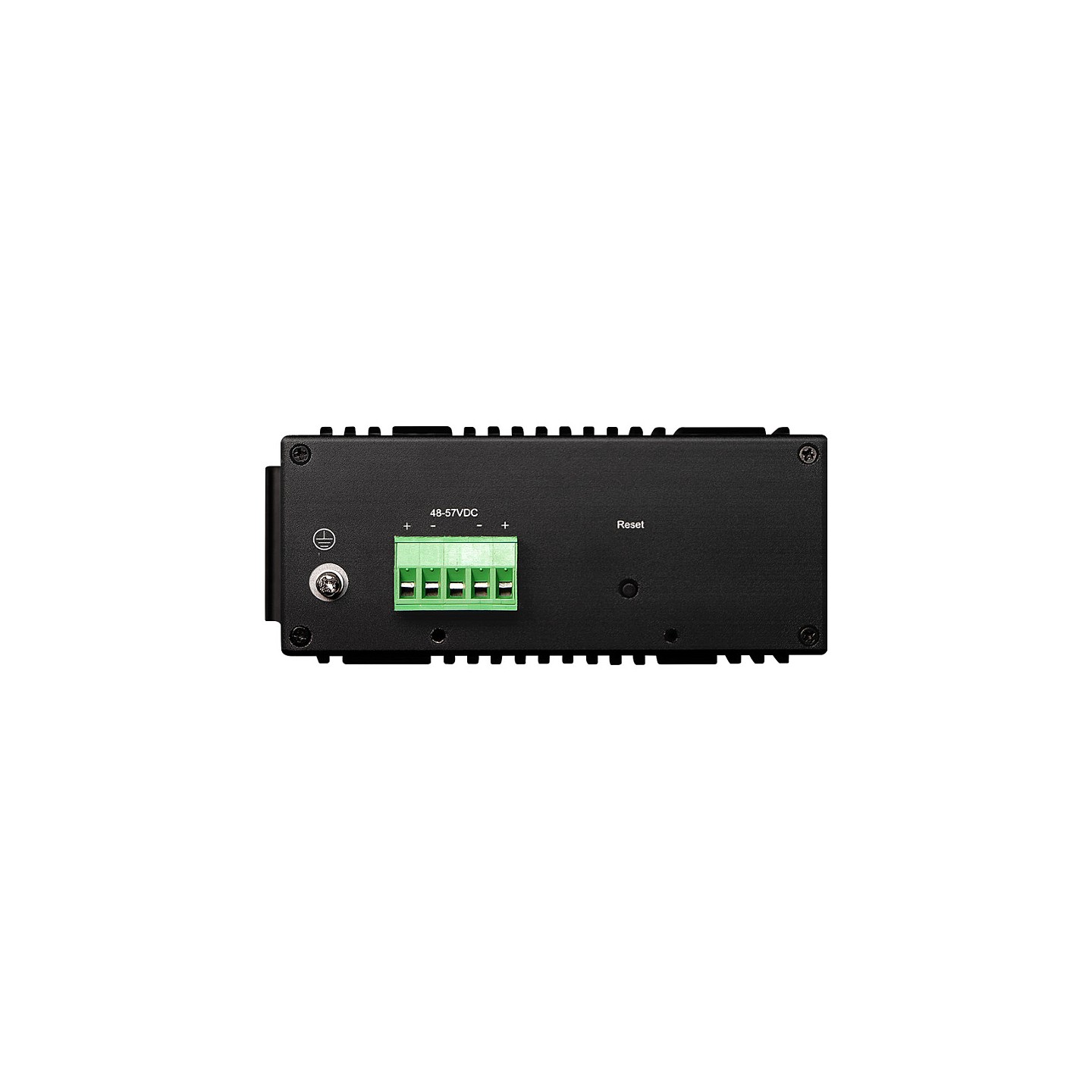

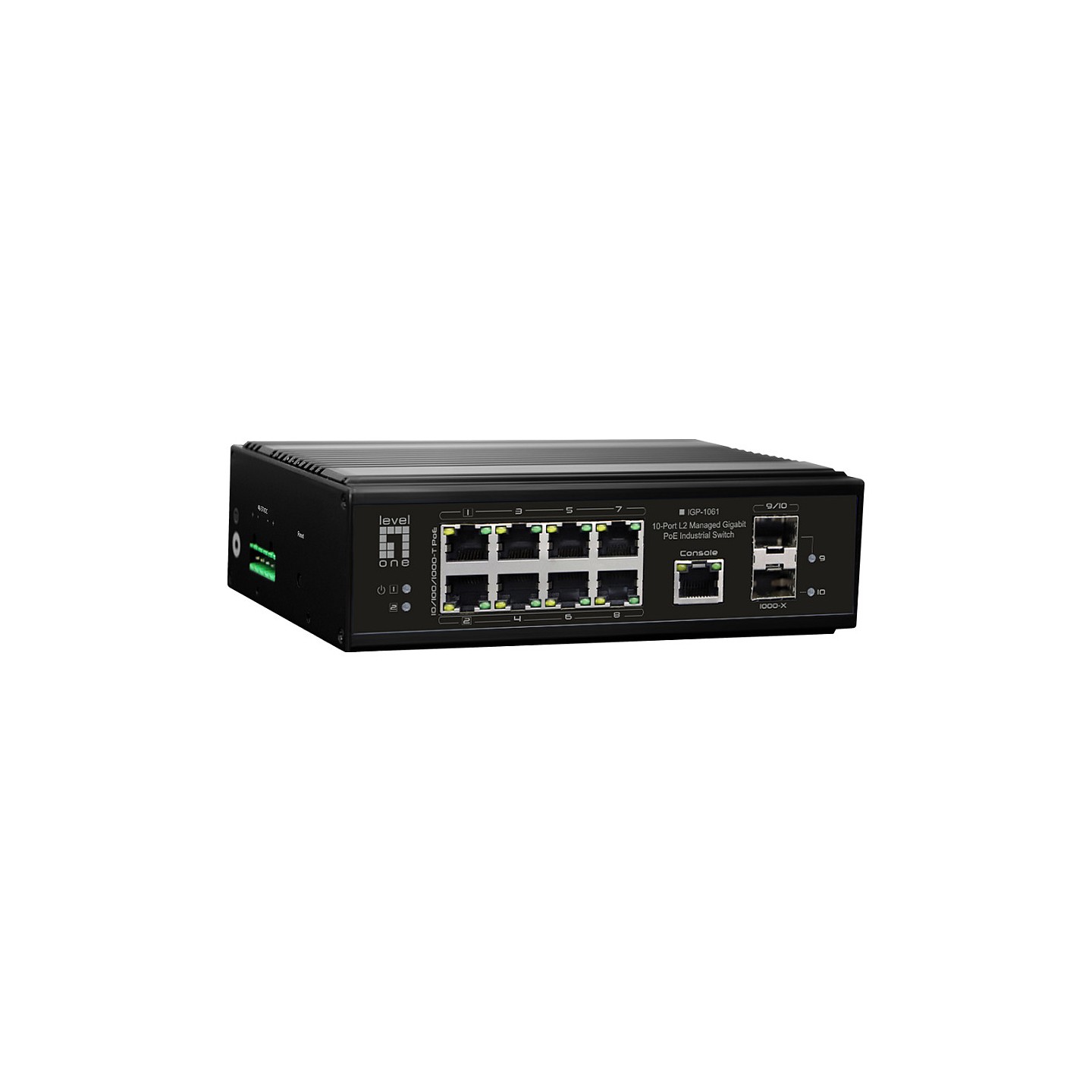

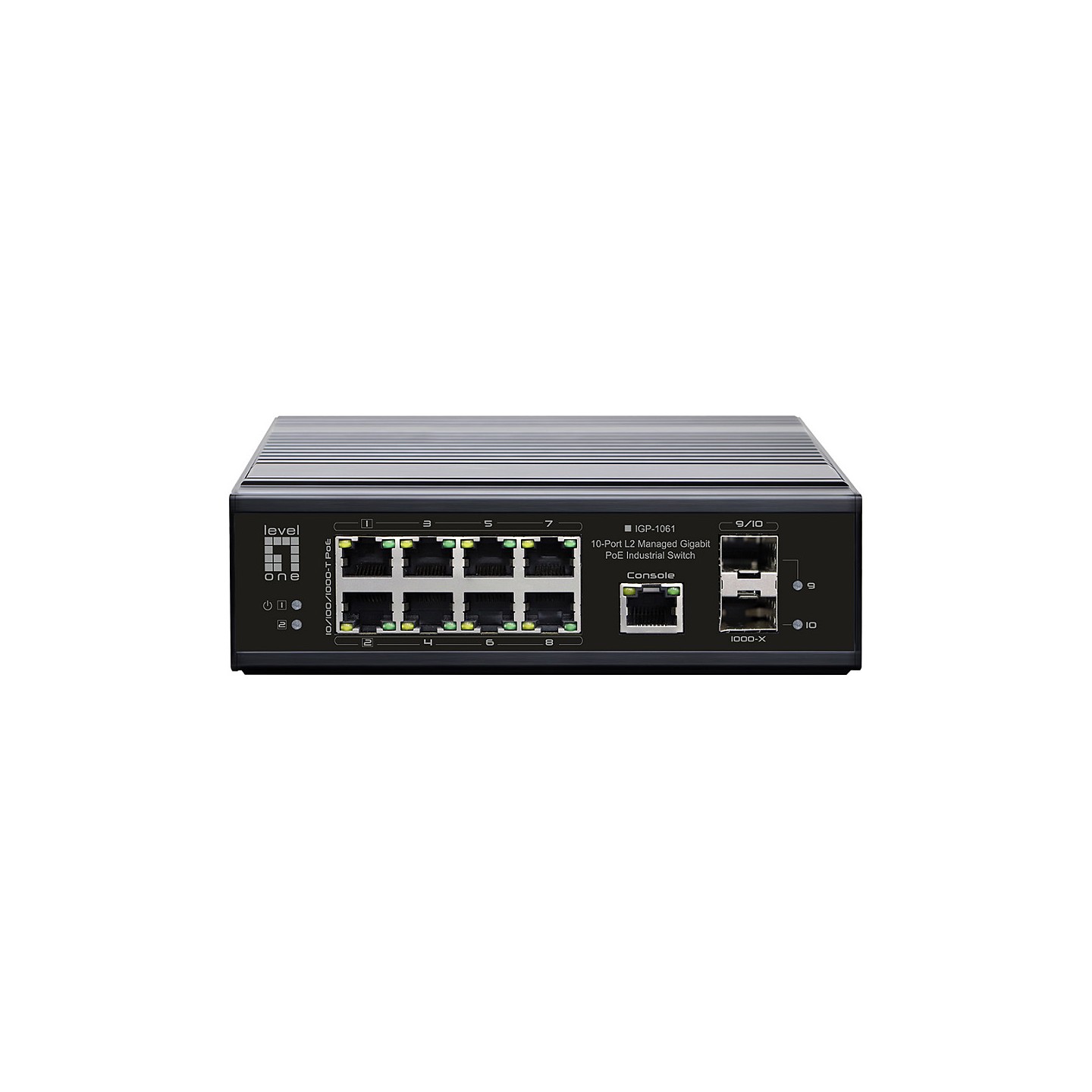

Switch 8x GE IGP-1061 2xGSFP 240W 8xPoE+
LevelOne IGP-1061. Managed. L2. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne IGP-1061. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Anzahl installierten SFP Module: 2. Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x. IEEE.... DC input Spannung: 48 - 57 V. Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Schnellstartübersicht |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 8 |
| Anzahl installierten SFP Module | 2 |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Virtuelle LAN-Funktionen | MAC address-based VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN. Voice VLAN |
| MAC-Adressentabelle | 8000 Eintragungen |
| Jumbo-Frames | 10000 |
| DHCP-Funktionen | DHCP Option 82. DHCP client. DHCP relay. DHCP snooping |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. PoE. Leistung |
| Speicherkapazität | 1024 MB |
| Flash-Speicher | 128 MB |
| Geräuschpegel | 0 dB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 338634 h |
| Energiequelle | Gleichstrom |
| DC input Spannung | 48 - 57 V |
| Stromverbrauch (Standardbetrieb) | 5 W |
| Stromverbrauch (max.) | 380 W |
| Power over Ethernet (PoE) Leistung pro Anschluss | 10 W |
| Gesamtleistung Power over Ethernet (PoE) | 360 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Breite | 165 mm |
| Tiefe | 115 mm |
| Höhe | 50 mm |
| Gewicht | 500 g |
| Verpackungsart | Box |
| Verpackungsbreite | 270 mm |
| Verpackungstiefe | 181 mm |
| Verpackungshöhe | 74 mm |
| Paketgewicht | 1.13 kg |
| Zertifizierung | CE. RoHS |
| Ursprungsland | China |
| Warentarifnummer (HS) | 85176990 |
