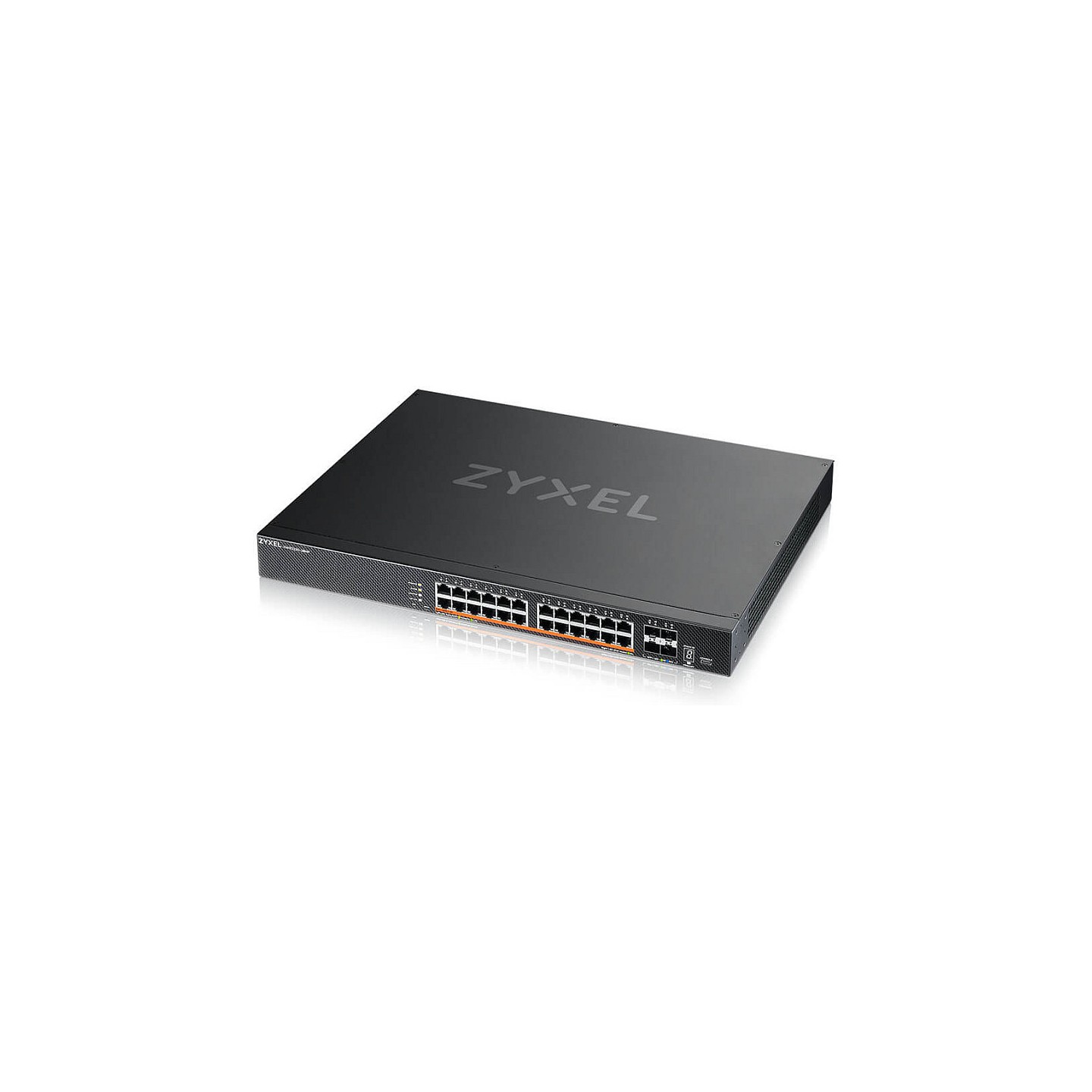

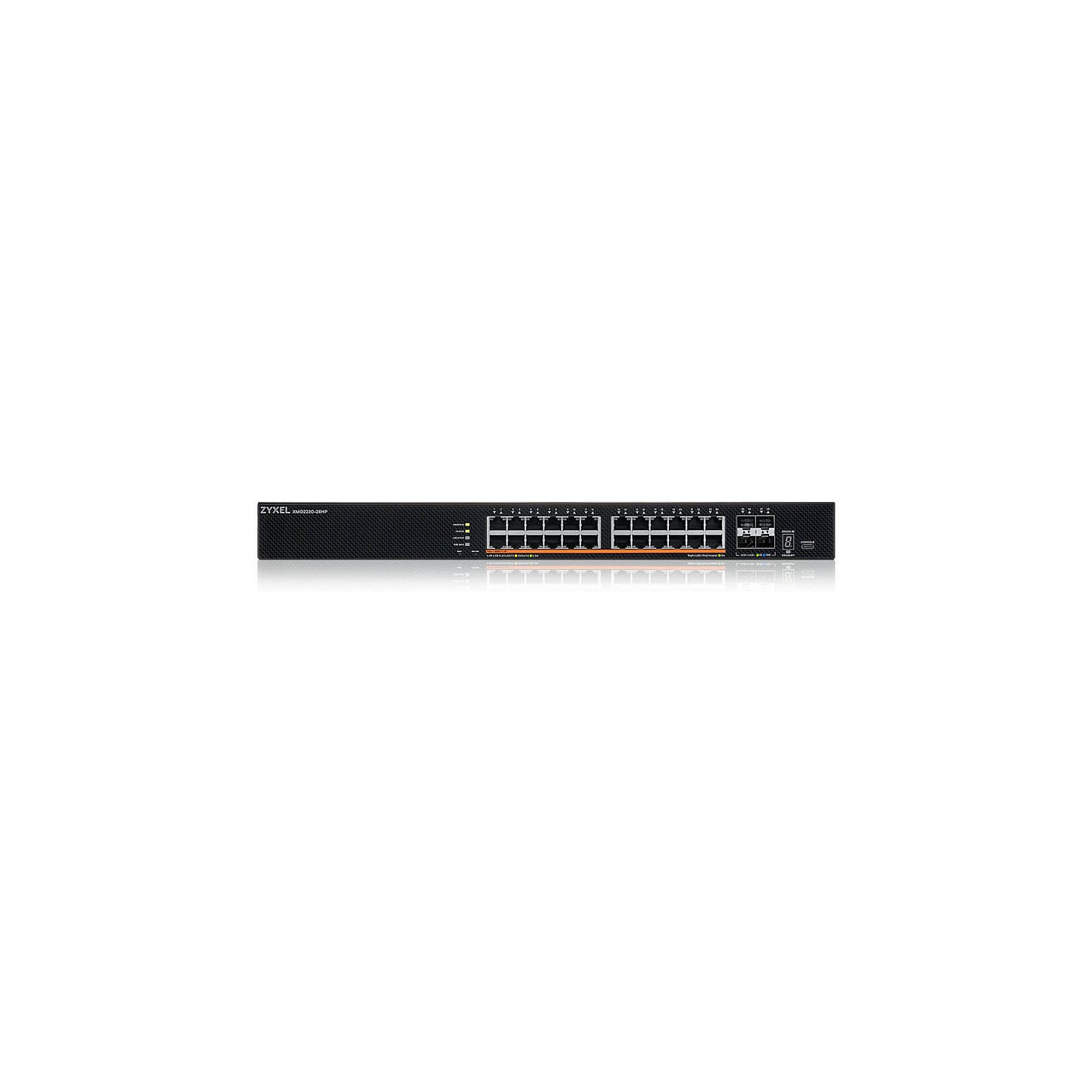

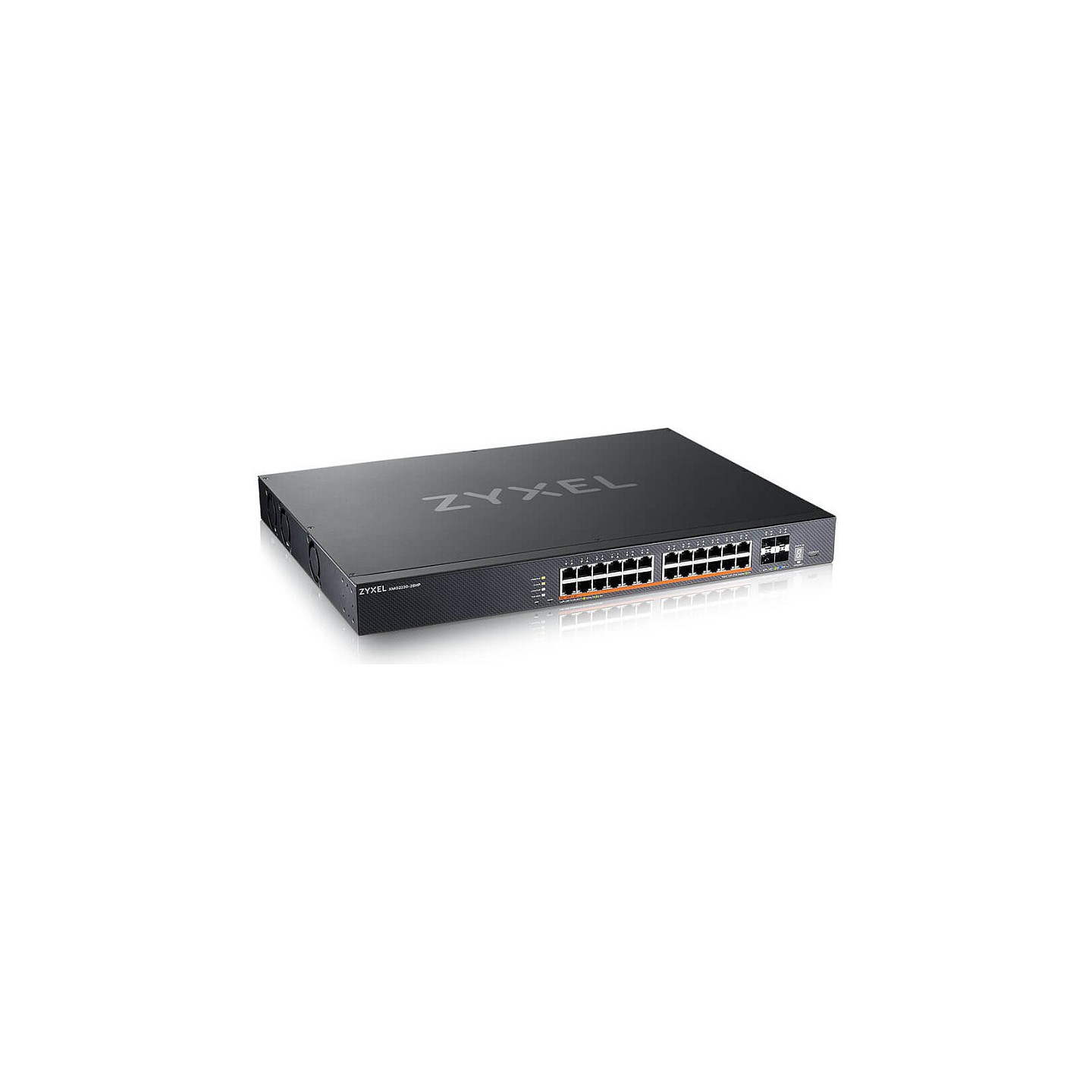

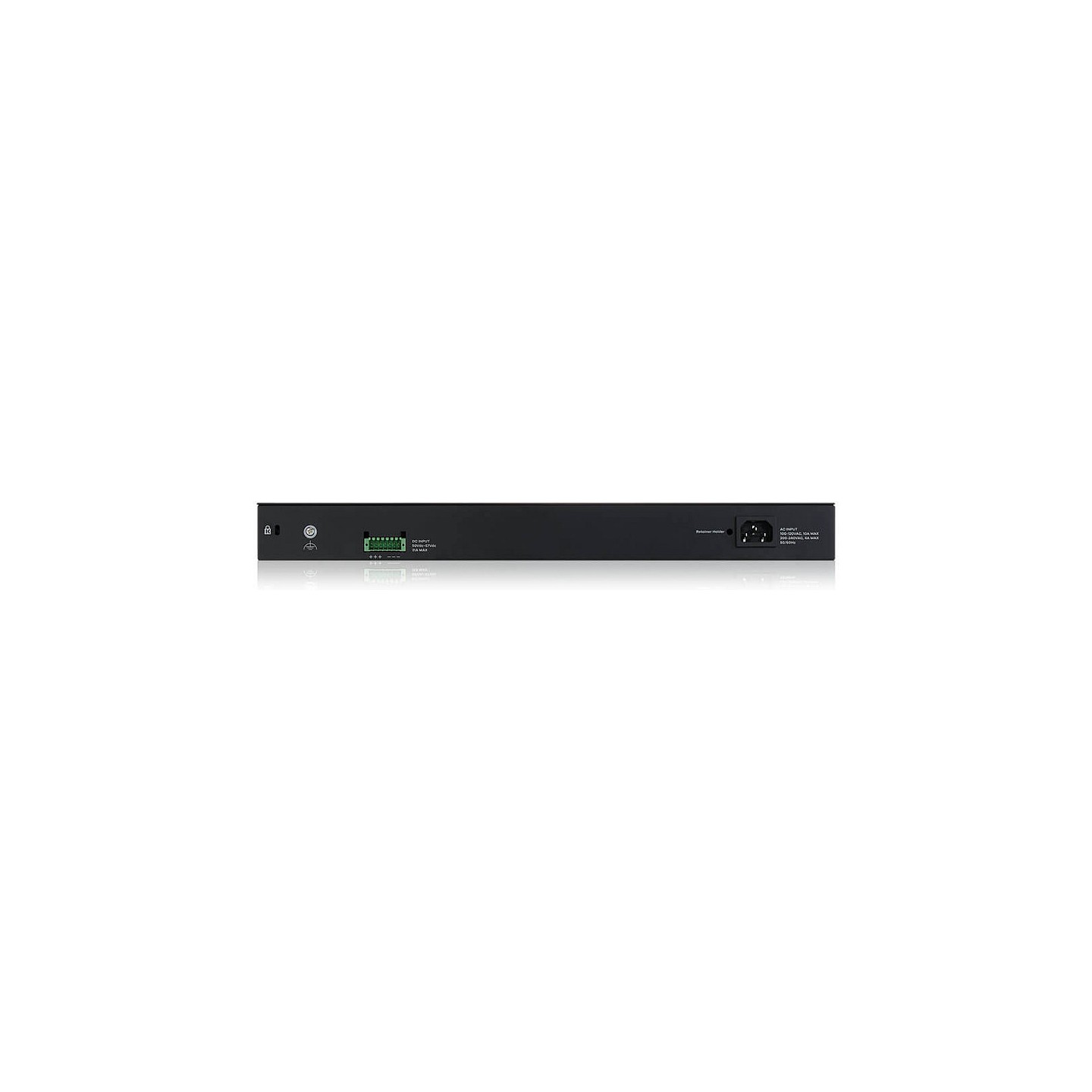

Zyxel XMG2230-28HP 28-port Smart Switch. NebulaFlex
Zyxel XMG2230-28HP. Managed. L2/L3. 2.5G Ethernet (100/1000/2500). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Zyxel XMG2230-28HP. Switch-Typ: Managed. Switch-Ebene: L2/L3. Basic Switching RJ-45 Ethernet Ports-Typ: 2.5G Ethernet (100/1000/2500). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45/USB Type-C. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 200 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE.... DC input Spannung: 50 - 57 V. Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 2.5G Ethernet (100/1000/2500) |
| Menge Modul-Steckplätze SFP+ | 4 |
| Konsolen-Port | RJ-45/USB Type-C |
| Kupfer Ethernet Verkabelungstechnologie | 2.5GBASE-T. 100BASE-T. 1000BASE-T |
| Routing Eingänge | 64 |
| Virtuelle LAN-Funktionen | IP subnet–based VLAN. Policy-based VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN. Voice VLAN |
| Routing-/Switching-Kapazität | 200 Gbit/s |
| Transferrate | 148.8 Mpps |
| MAC-Adressentabelle | 32000 Eintragungen |
| Anzahl der statischen Routen | 4000 |
| Anzahl IP-Schnittstellen | 32 |
| Jumbo-Frames | 12 |
| Datenpaket-Pufferspeicher | 2 MB |
| DHCP-Funktionen | DHCP Option 60. DHCP Option 82. DHCP client. DHCP relay. DHCP server. DHCP snooping. DHCPv6 relay. DHCPv6 snooping |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv2. SNMPv3 |
| Authentifizierung | Gast VLAN. MAC-basierte Authentifizierung |
| Autentifizierungstyp | IEEE 802.1x. NAC SSH V2.0. RADIUS. TACACS+ |
| IPv4 & IPv6-Funktionen | Dual stack IPv4/IPv6. ICMPv6. IPv6 Path MTU Discovery. IPv6 Telnet |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Speicherkapazität | 1000 MB |
| Flash-Speicher | 64 MB |
| Geräuschpegel | 48.85 dB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 554612.62 h |
| Energiequelle | AC/PoE |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| DC input Spannung | 50 - 57 V |
| Stromverbrauch (max.) | 1519.1 W |
| Power-over-Ethernet (PoE)-Typ unterstützt | PoE++ (4PPoE) |
| Gesamtleistung Power over Ethernet (PoE) | 1440 W |
| Betriebstemperatur | -20 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Wärmeableitung | 2856 BTU/h |
| Breite | 441 mm |
| Tiefe | 330 mm |
| Höhe | 44 mm |
| Gewicht | 4.53 kg |
| Verpackungsbreite | 580 mm |
| Verpackungstiefe | 503 mm |
| Verpackungshöhe | 95 mm |
| Paketgewicht | 6.81 kg |
| Konformitätsbescheinigungen | BSMI. Niederspannungsrichtlinie (LVD). RoHS |
| Zertifizierung | FCC Part 15 (Class A)CE EMC (Class A)BSMI EMC |
