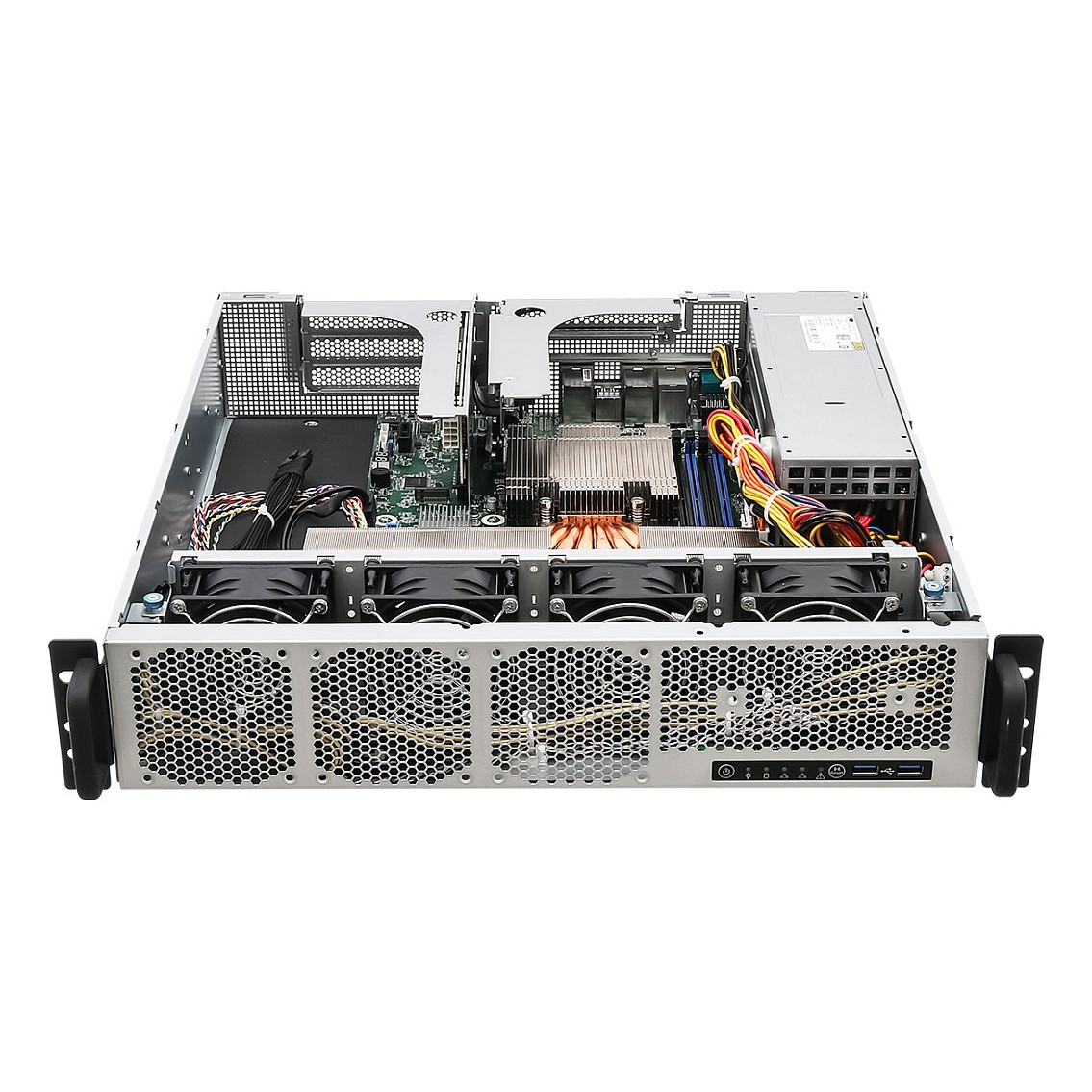

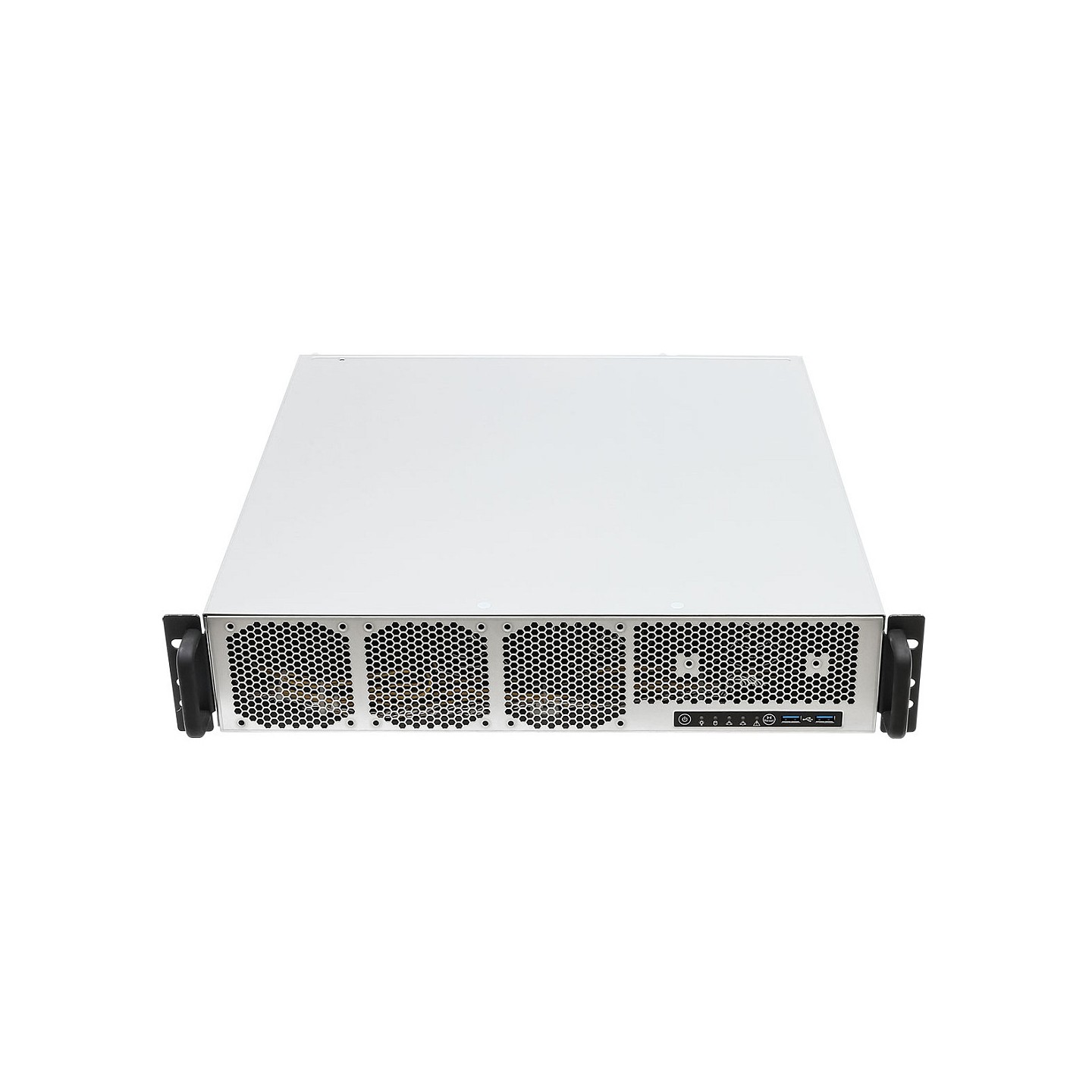

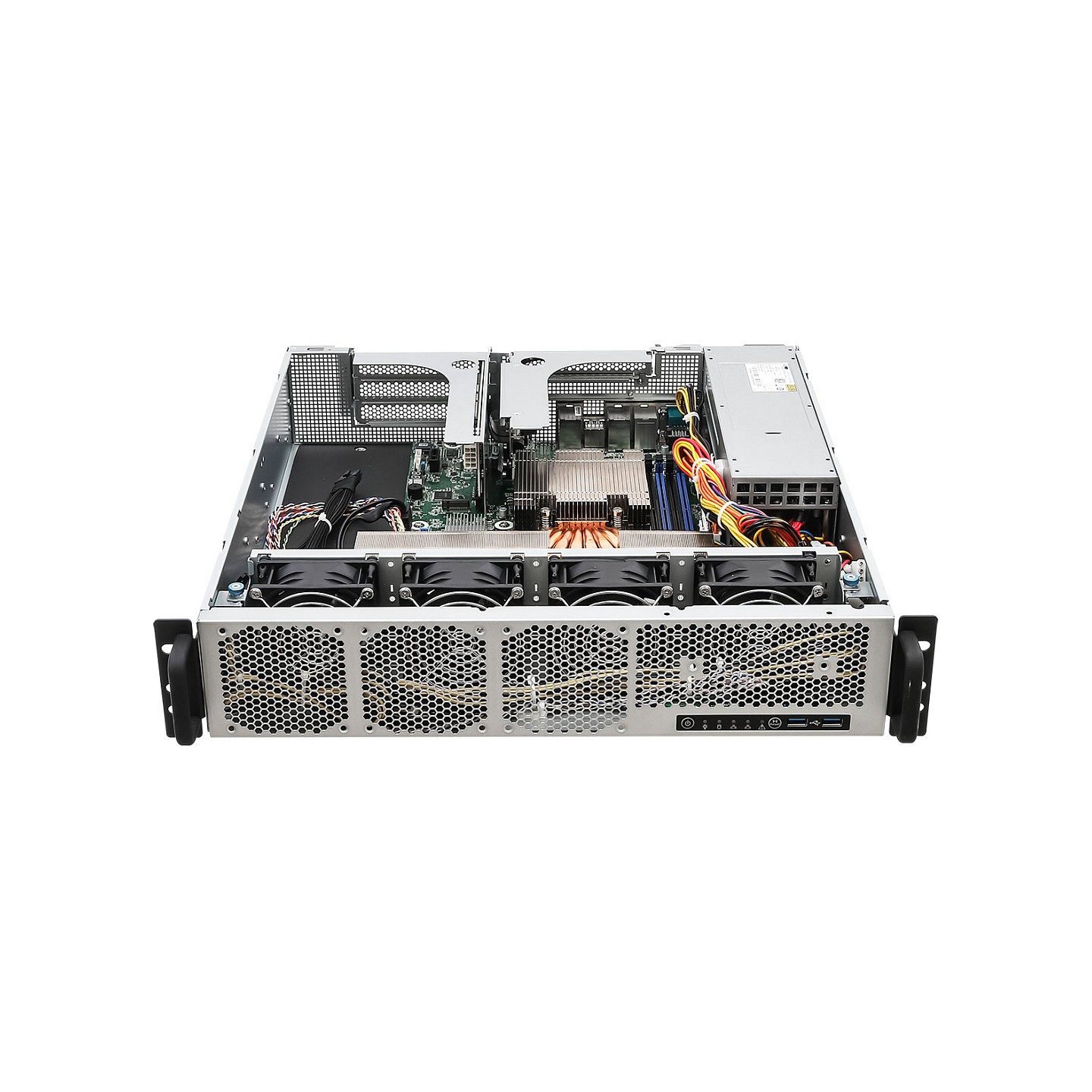

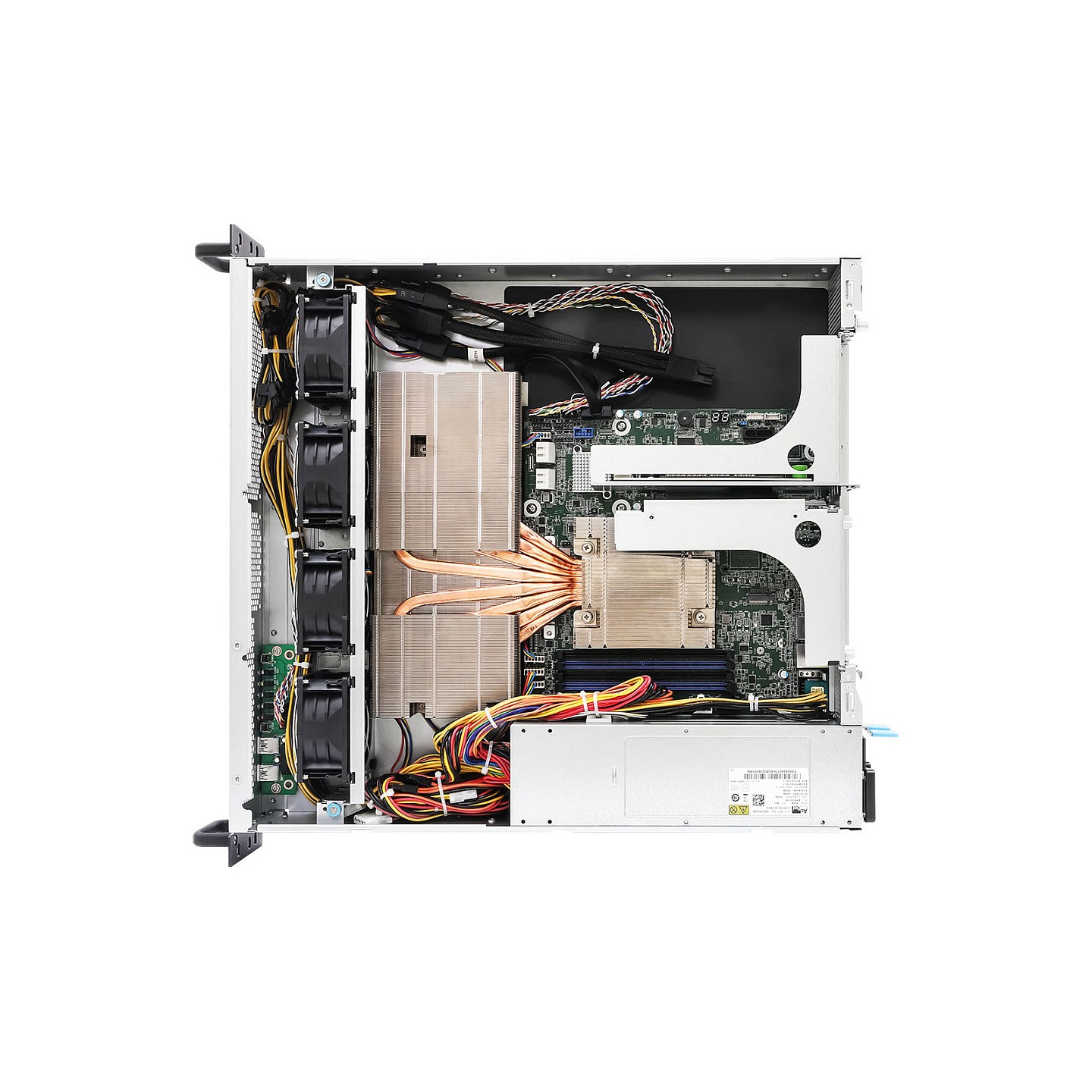

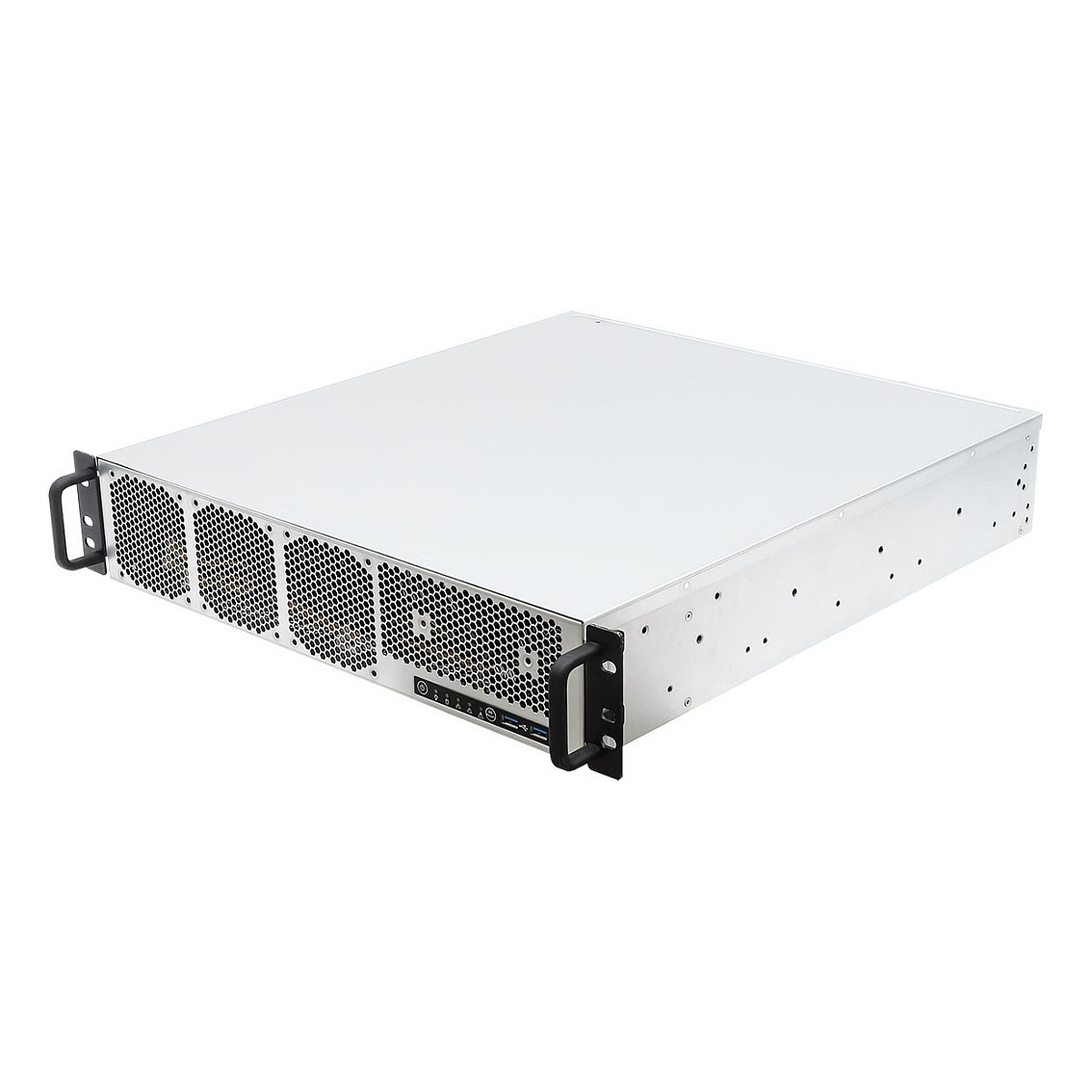

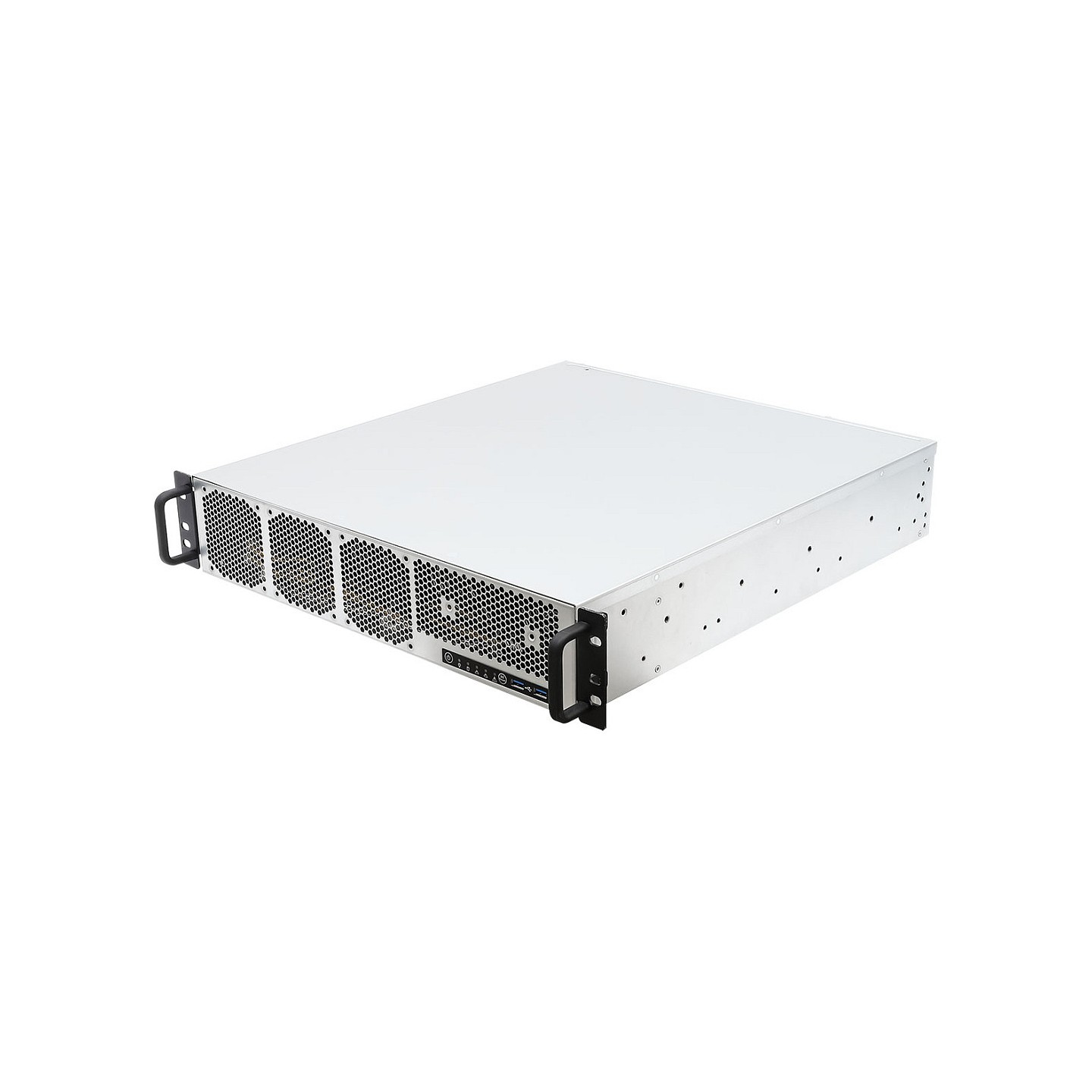

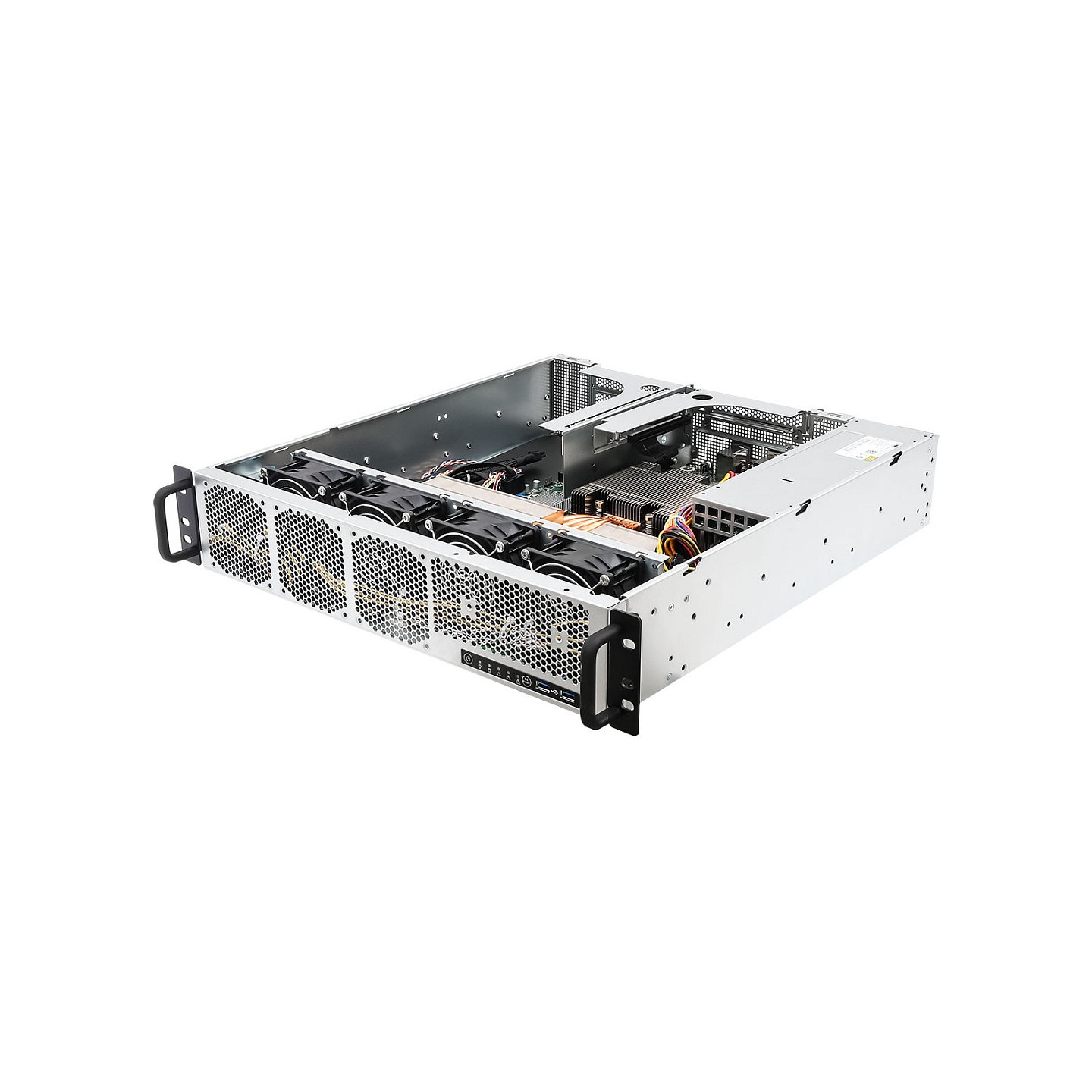

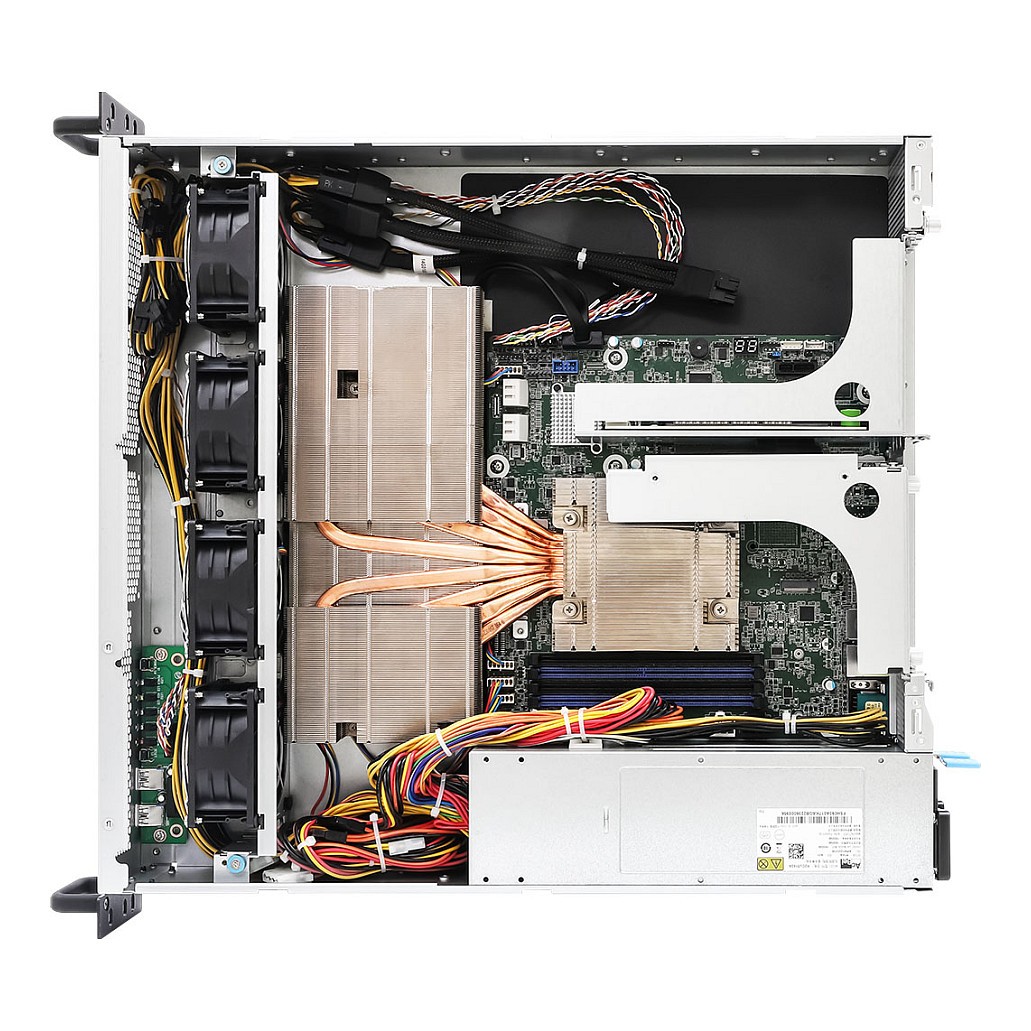

ASRock Barebone Server Single Sockel AM5 2U1G-B650 EVAC
Asrock 2U1G-B650/EVAC. Sockel AM5. DDR5-SDRAM. 48 GB. 288-pin DIMM. 1.1 V. Aspeed AST2600
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock 2U1G-B650/EVAC. Prozessorsockel: Sockel AM5. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 48 GB. Memory Formfaktor: 288-pin DIMM. Eingebautes Grafikkartenmodell: Aspeed AST2600. Ethernet Schnittstellen Typ: Gigabit Ethernet. LAN-Controller: Intel I210. BIOS-Typ: UEFI AMI. BIOS-Speichergröße: 256 Mbit
| Prozessorsockel | Sockel AM5 |
| Zahl der DIMM Slots | 4 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| RAM-Speicher maximal | 48 GB |
| Memory Formfaktor | 288-pin DIMM |
| Speicherspannung | 1.1 V |
| Feature | IPMI LAN (RJ-45)-Anschluss |
| Anzahl der unterstützten Speicherlaufwerke | 2 |
| Anzahl der 2.5" Erweiterungseinschübe | 2 |
| Eingebautes Grafikkartenmodell | Aspeed AST2600 |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Intel I210 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl COM-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Gehäusetyp | Rack (2U) |
| Stromversorgung | 1200 W |
| Betriebstemperatur | 10 - 35 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Breite | 430.4 mm |
| Tiefe | 477.7 mm |
| Höhe | 88 mm |
