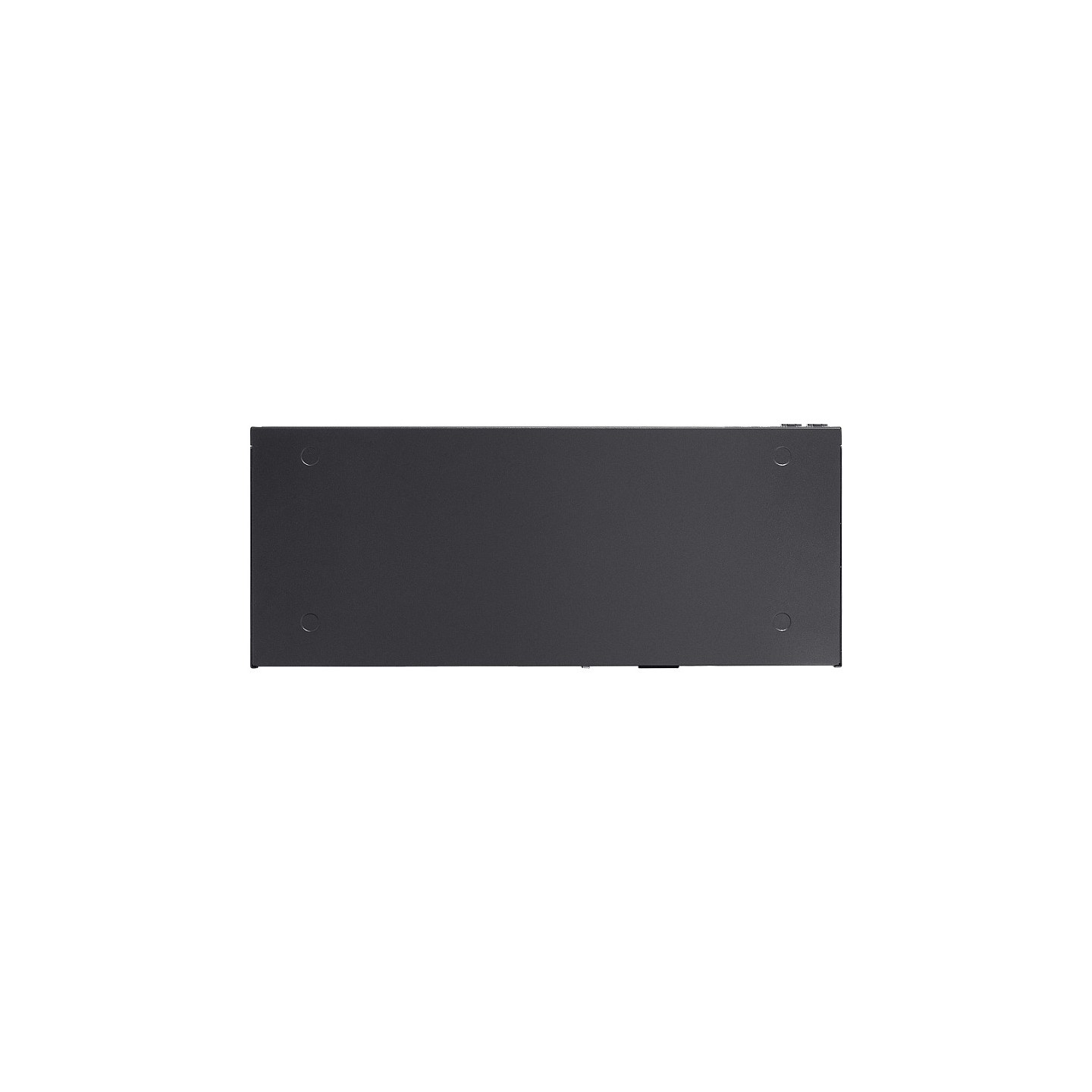

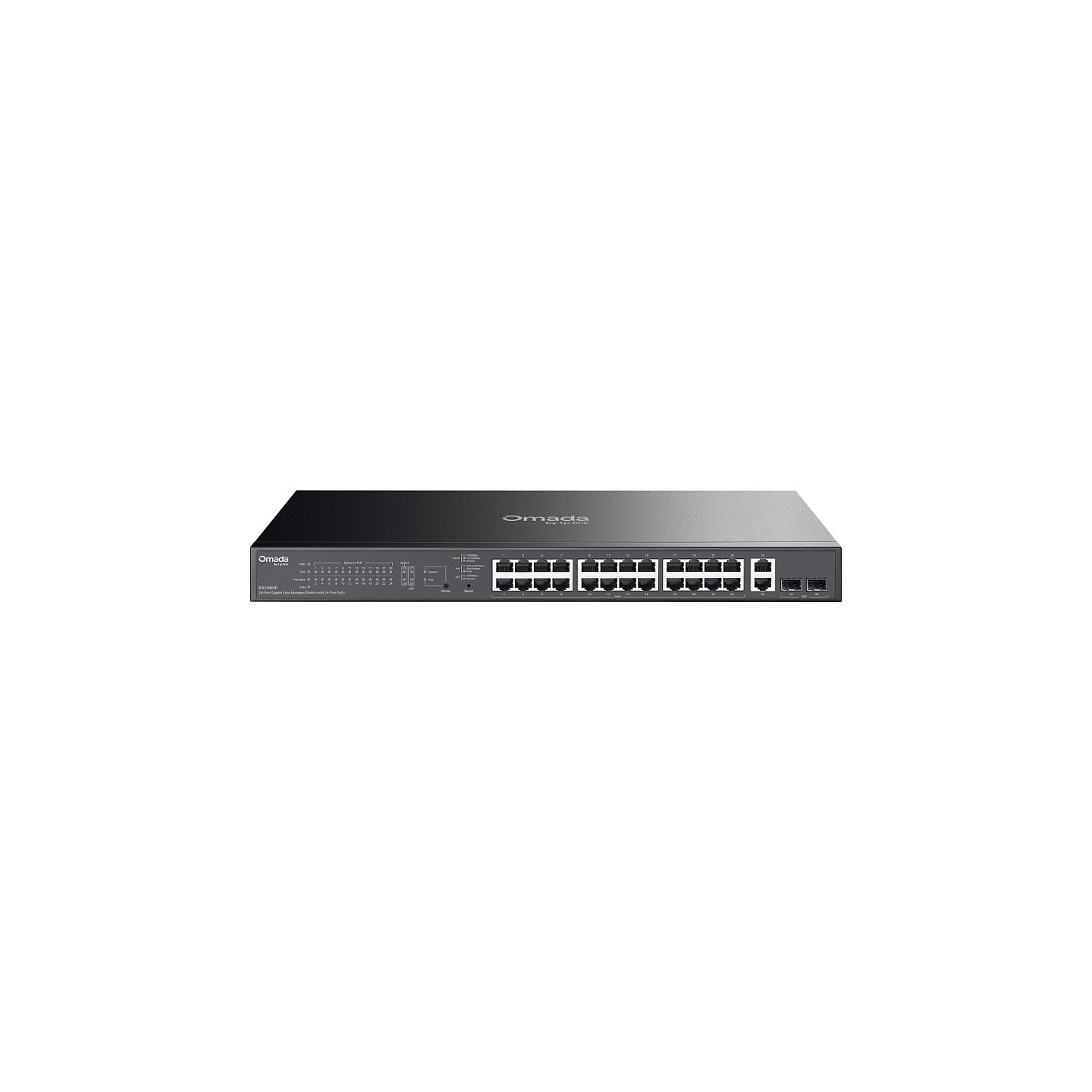

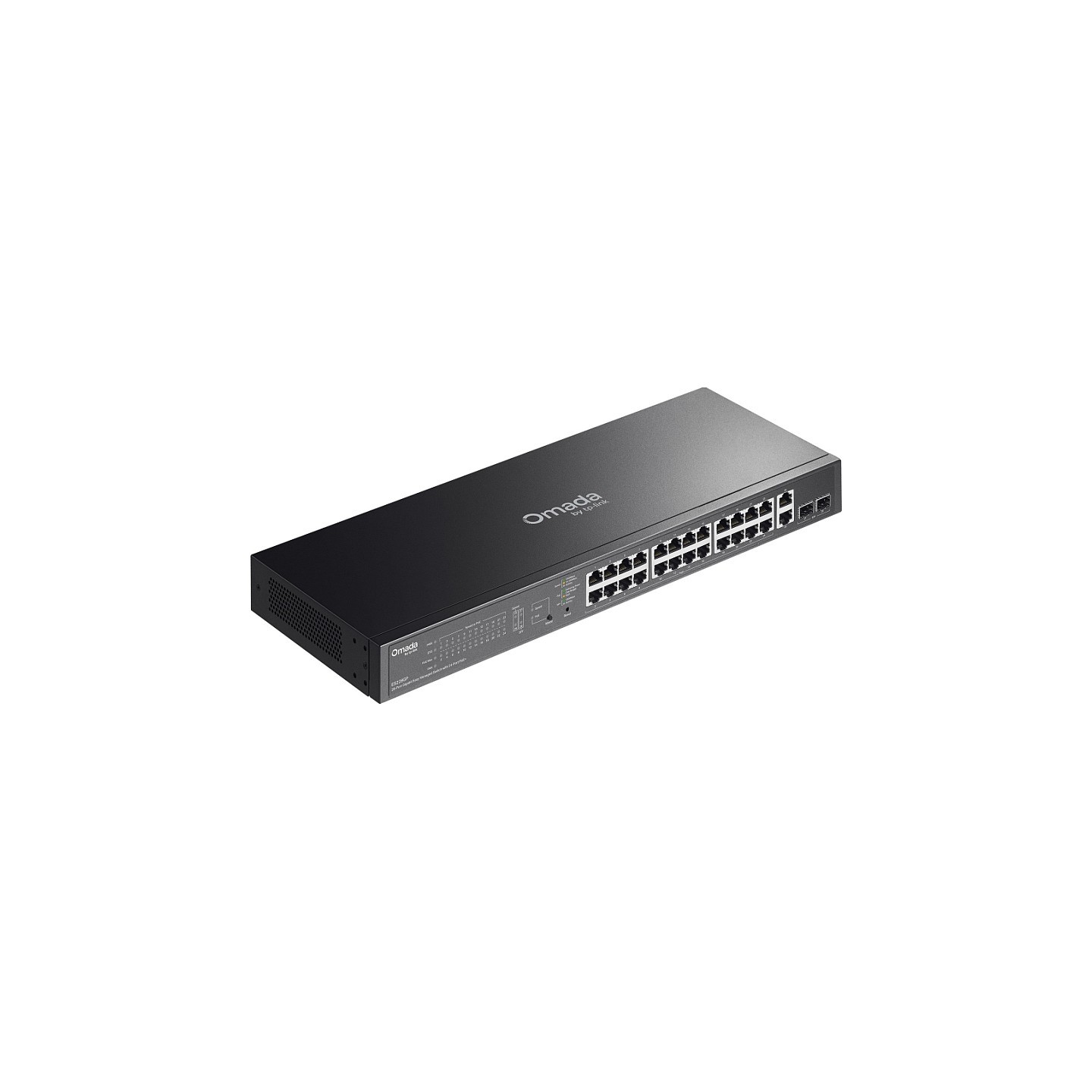

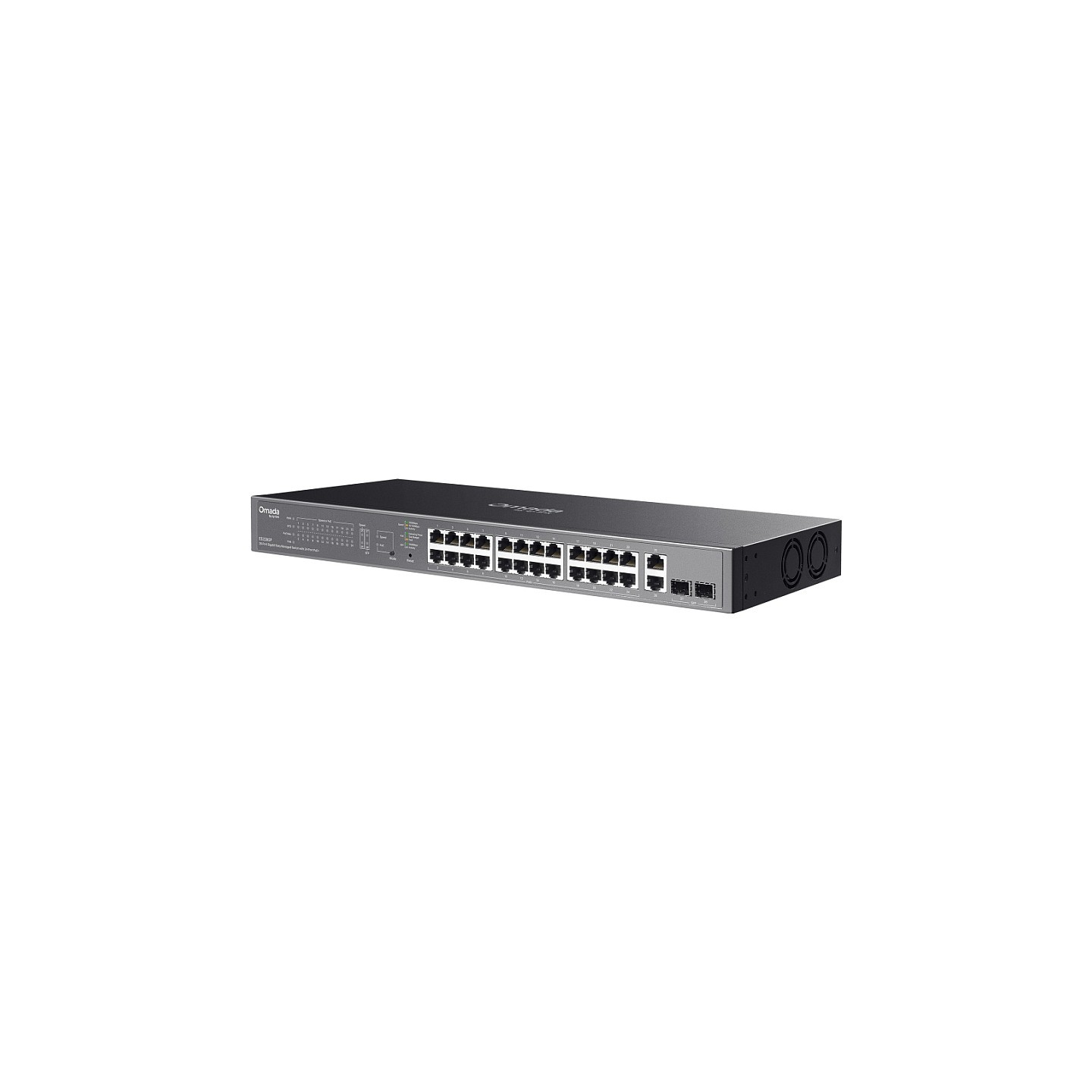

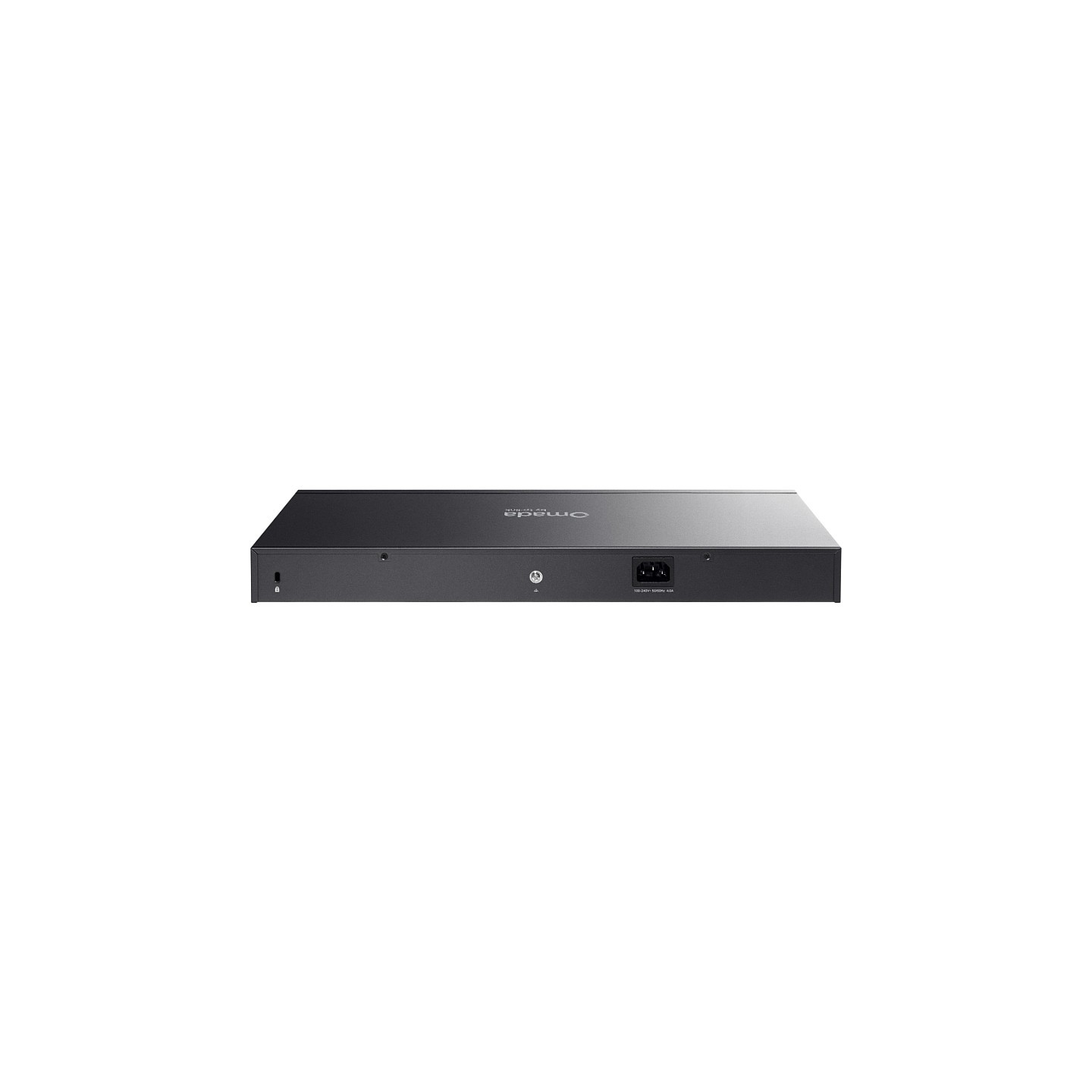

TP-Link Omada ES228GP 28-Port Gigabit Easy Managed Switch 24-Port PoE+
OMADA ES228GP. Managed. L2. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
OMADA ES228GP. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 26. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 56 Gbit/s. Netzstandard: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3af. IEEE 802.3at. Power over Ethernet (PoE). Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Betriebsanleitung |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 26 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3af. IEEE 802.3at |
| Virtuelle LAN-Funktionen | MTU VLAN. Port-based VLAN. Tagged VLAN |
| Routing-/Switching-Kapazität | 56 Gbit/s |
| Transferrate | 41.67 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 15000 |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP client |
| Warteschleifenplanungs-Algorithmen | Weighted Round Robin (WRR) |
| Produktfarbe | Schwarz |
| Anzahl Lüfter | 2 Lüfter |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Eingangsstrom | 4 A |
| Energieschutzeigenschaften | Überspannungsschutz |
| Power-over-Ethernet (PoE)-Typ unterstützt | PoE+ |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 24 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 250 W |
| Betriebstemperatur | -5 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Breite | 440 mm |
| Tiefe | 180 mm |
| Höhe | 44 mm |
| Mitgelieferte Kabel | AC |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
