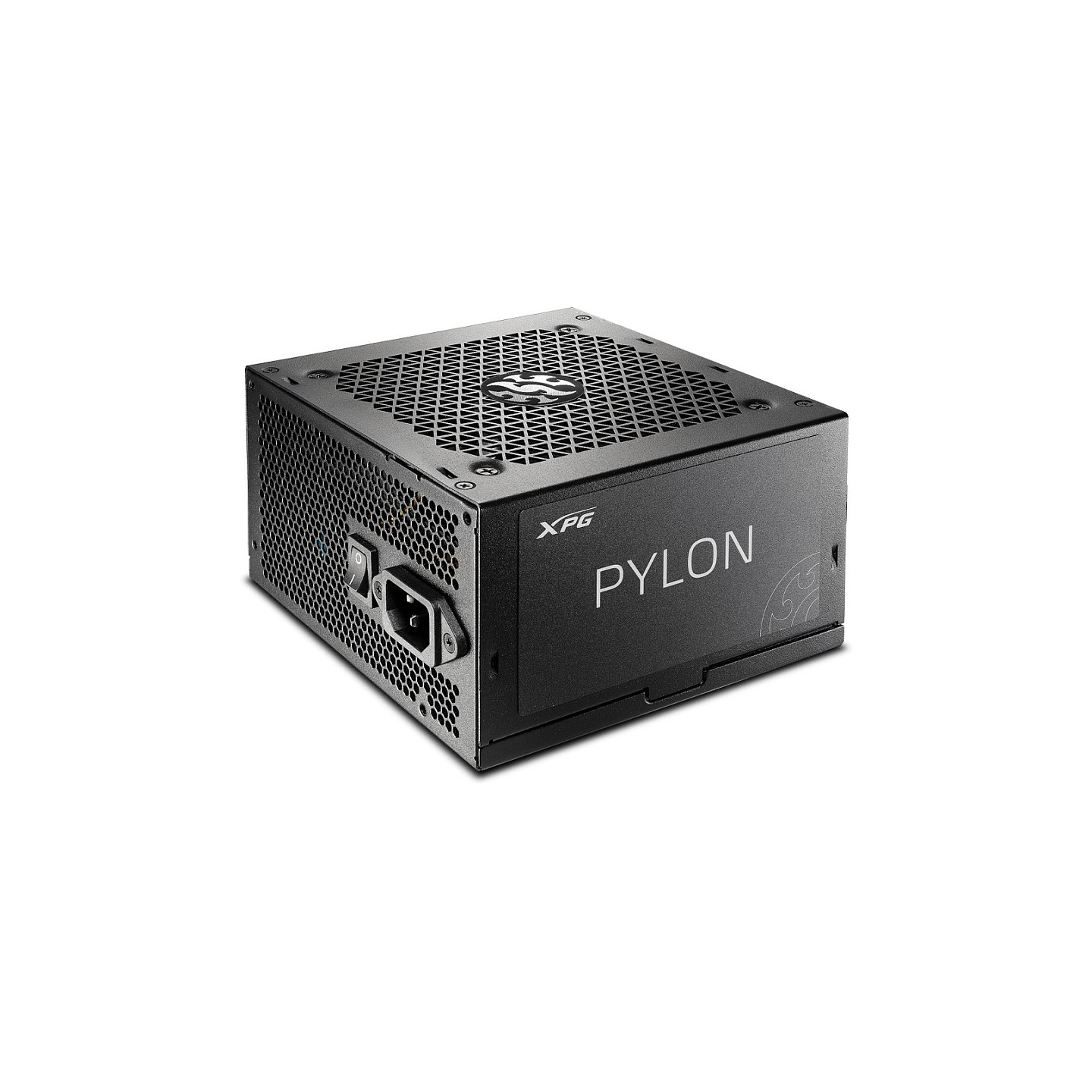

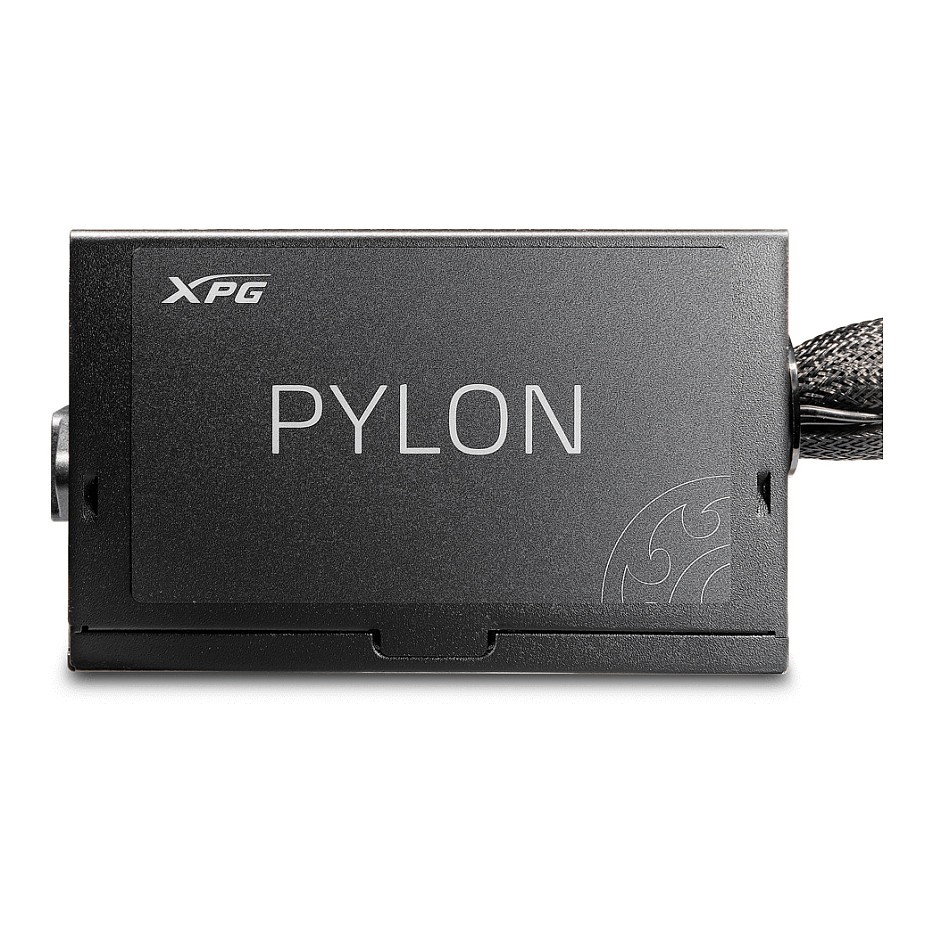

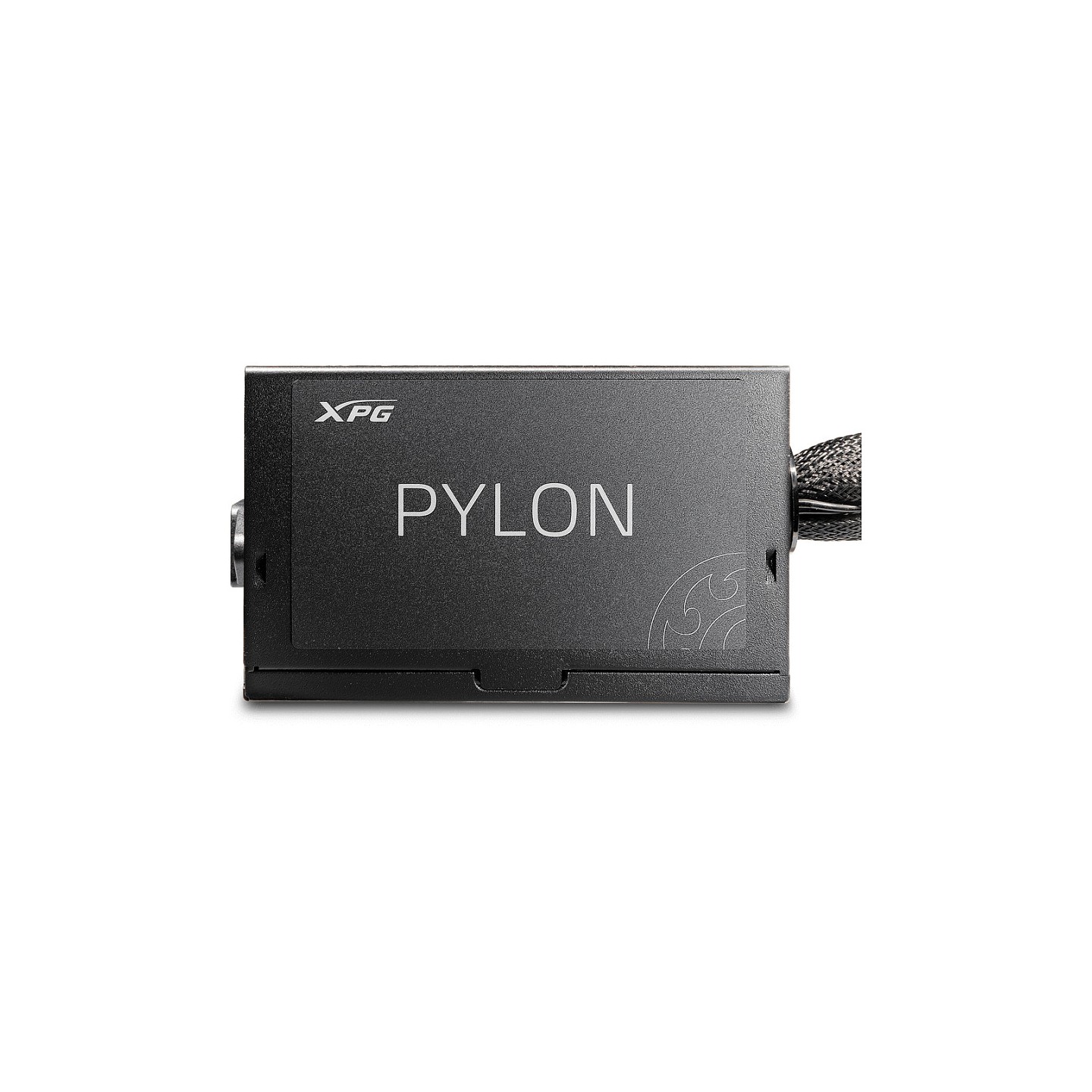

750W XPG PYLON 750 ATX2.4 80+ Bronze
XPG PYLON 750W Netzteil. 750 W. 100 - 240 V. 50/60 Hz. 10 - 5 A. Aktiv. 120 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
XPG PYLON 750W Netzteil. Gesamtleistung: 750 W. AC Eingangsspannung: 100 - 240 V. AC Eingangsfrequenz: 50/60 Hz. Motherboard Anschlussstecker: 24-pin ATX. Kabeltyp: Nicht-modular. Zweck: PC. Stromversorgungseinheit (PSU) Formfaktor: ATX. 80 Plus Zertifizierung: 80 PLUS Silver. Produktfarbe: Schwarz. Kühlung: Aktiv. Lüfterdurchmesser: 12 cm. Mitgelieferte Kabel: AC
| Gesamtleistung | 750 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Eingangsstrom | 10 - 5 A |
| Leistungsfaktor | 0.99 |
| Leistungsfaktorkorrekturfilter (PFC) | Aktiv |
| Kombinierter Strom (+3.3V) | 120 W |
| Kombinierter Strom (+12V) | 750 W |
| Kombinierter Strom (+5V) | 120 W |
| Kombinierter Strom (-12V) | 3.6 W |
| Kombinierter Strom (+5Vsb) | 12.5 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 62.5 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (-12V) | 0.3 A |
| Max. Ausgangsstrom (+5Vsb) | 2.5 A |
| Energieschutzeigenschaften | Überstrom. Überlastung. Überspannung. Überhitzung. Kurzschluß. Unterspannung |
| Motherboard Anschlussstecker | 24-pin ATX |
| Anzahl SATA Stromstecker | 8 |
| Anzahl Molex Anschlüsse 4pin | 3 |
| Feature | Nachhaltigkeitskonformität |
| Anzahl PCI Express Stromstecker 6+2pin | 4 |
| Kabeltyp | Nicht-modular |
| 80 Plus Zertifizierung | 80 PLUS Silver |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| ATX-Version | 2.4 |
| Lagertyp | FDB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 100000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Lüfterdurchmesser | 12 cm |
| Anzahl Lüfter | 1 Lüfter |
| Gebläsegeschwindigkeit | 0 - 2000 RPM |
| Mitgelieferte Kabel | AC |
| Konformitätsbescheinigungen | RoHS |
| Zertifizierung | CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC |
| Breite | 140 mm |
| Tiefe | 150 mm |
| Höhe | 86 mm |
| Gewicht | 2.12 kg |
| Paketgewicht | 2.63 kg |
| Nachhaltigkeitszertifikate | ErP |
| Warentarifnummer (HS) | 84733020 |
