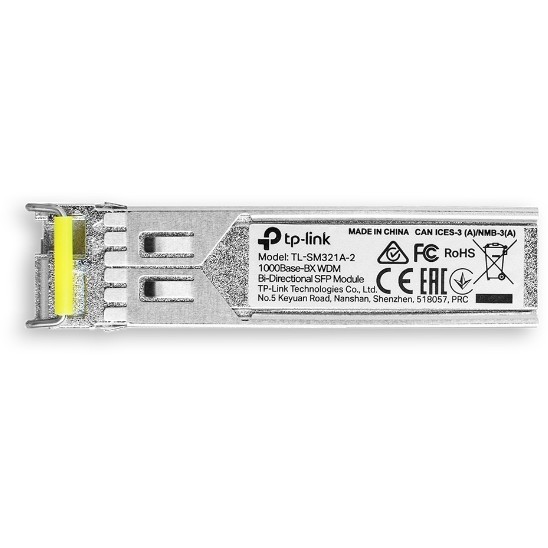

TP-Link TL-SM321A SFP Bi-Di Fiber Transceiver - LC (UPC) - Singlemode 1250Mbps, 1550/1310nm, Metallic

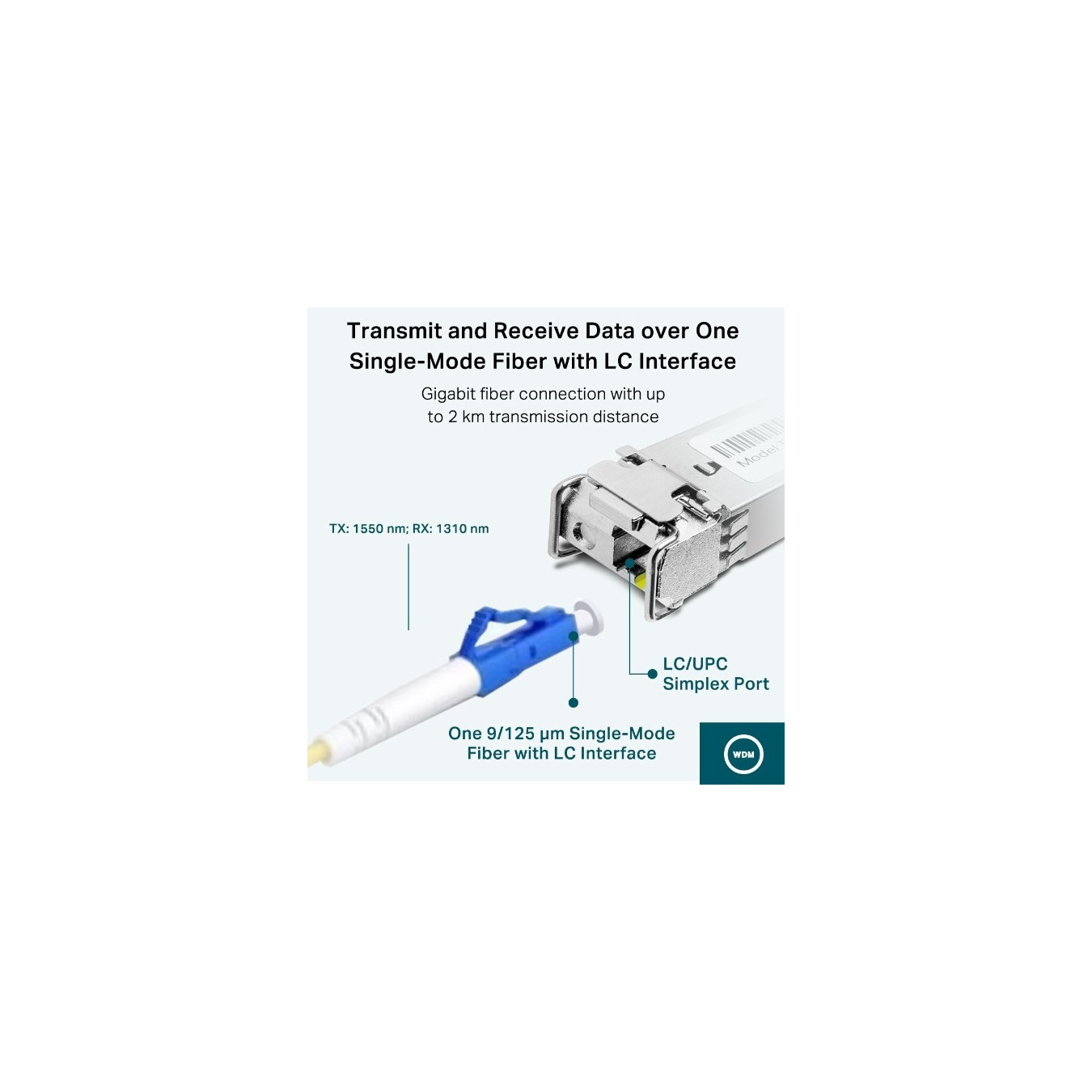

TL-SM321A SFP Bi-Di singlemode transceiver, LC (UPC) connector, 1250 Mbps, 1550nm Tx / 1310nm Rx, 1000 m reach, 3.3V, hot-swap, RoHS/CE/FCC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Interface | LC Duplex |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Singlemode (SMF) |
| SFP/SFP+ Modules - Coding/Brand | Generic |
TP-Link TL-SM321A. SFP transceiver type: Fiber optic. Maximum data transfer rate: 1250 Mbit/s. Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS. Certification: CE. FCC. Quantity per pack: 1 pc(s)
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Feature | Hot-swap |

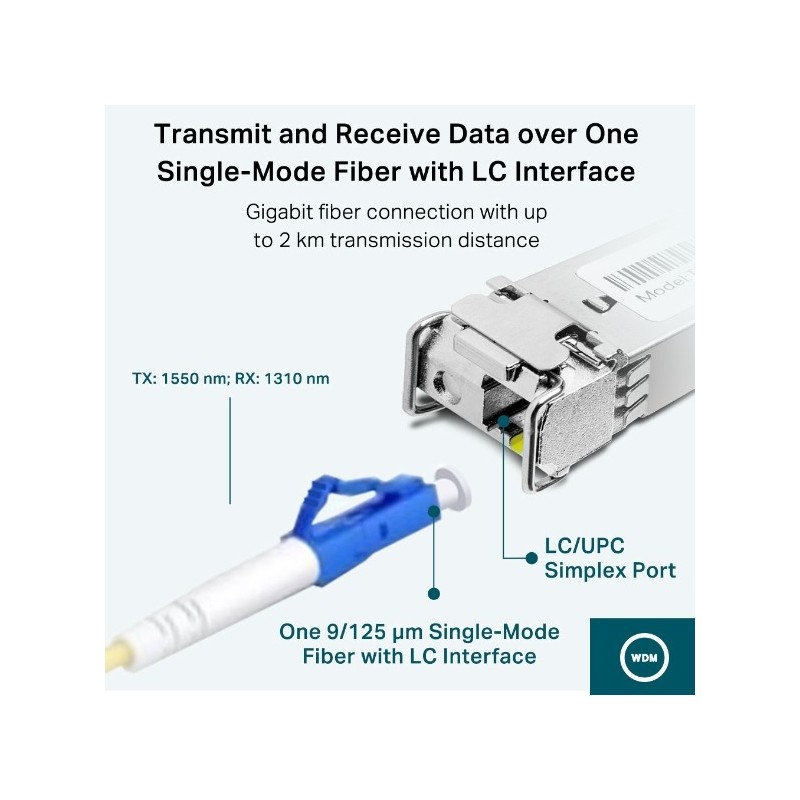

| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | BX |
| Maximum transfer distance | 1000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Compliance certificates | RoHS |
| Certification | CE. FCC |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Quantity per pack | 1 pc(s) |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Harmonized System (HS) code | 85369010 |
