GS-3628X

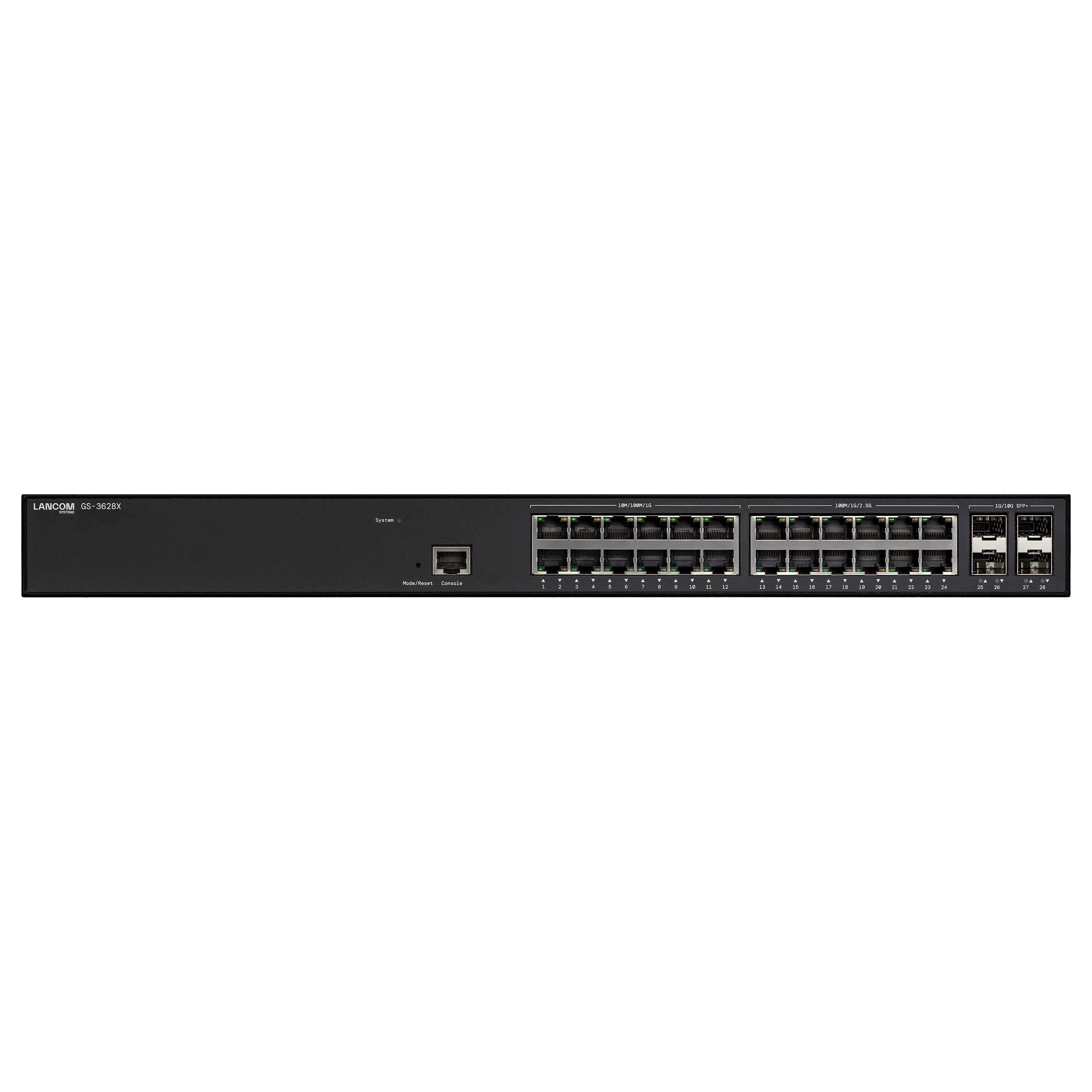

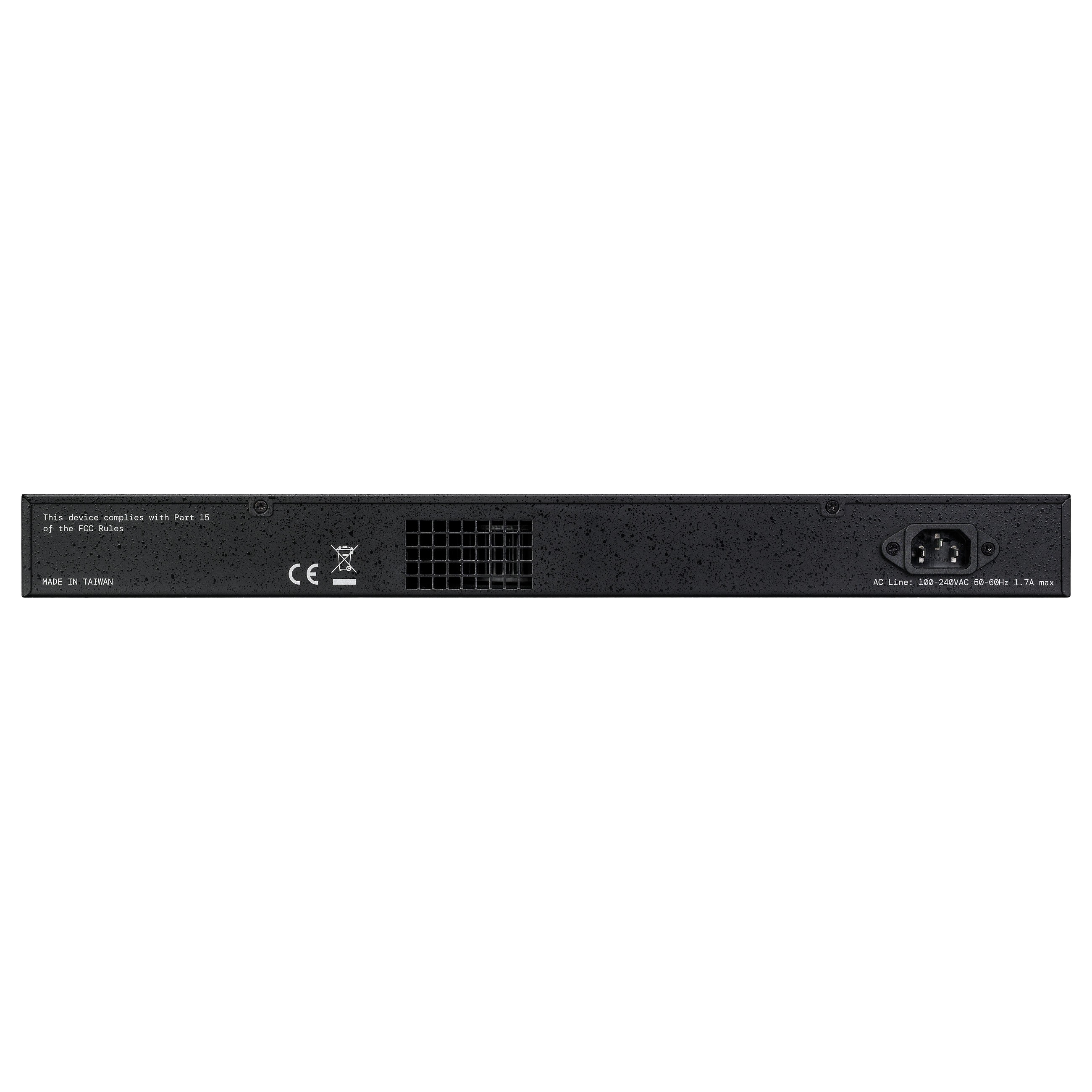

LANCOM GS-3628X. Managed. L2/L3. Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM GS-3628X. Switch-Typ: Managed. Switch-Ebene: L2/L3. Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45. MAC-Adressentabelle: 32000 Eintragungen. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ak. IEEE 802.1p..... Netzstecker: AC/DC. Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Feature | Rackmontageset |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 12 |
| Anzahl 2.5G Ethernet (Kupfer)-Ports | 12 |
| Menge Modul-Steckplätze SFP+ | 4 |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC/DC |
| Kupfer Ethernet Verkabelungstechnologie | 2.5GBASE-T. 10BASE-T. 100BASE-T. 1000BASE-TX |
| Anzahl der VLANs | 4093 |
| Durchsatz | 164 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Anzahl der statischen Routen | 128 |
| Jumbo-Frames | 10240 |
| Paketweiterleitungsrate (1 Gbit/s) | 122000000 pps |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP client. DHCP relay. DHCP server |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv2. SNMPv3. SSH. SSL/TLS |
| Authentifizierung | MAC-basierte Authentifizierung. Port-basierte Authentifizierung |
| Autentifizierungstyp | RADIUS. TACACS+ |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Anzahl Lüfter | 1 Lüfter |
| Geräuschpegel | 48 dB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 45 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 154 BTU/h |
| Breite | 442 mm |
| Tiefe | 375 mm |
| Höhe | 44 mm |
| Gewicht | 4 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsbreite | 470 mm |
| Verpackungstiefe | 534 mm |
| Verpackungshöhe | 100 mm |
| Paketgewicht | 5.52 kg |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
