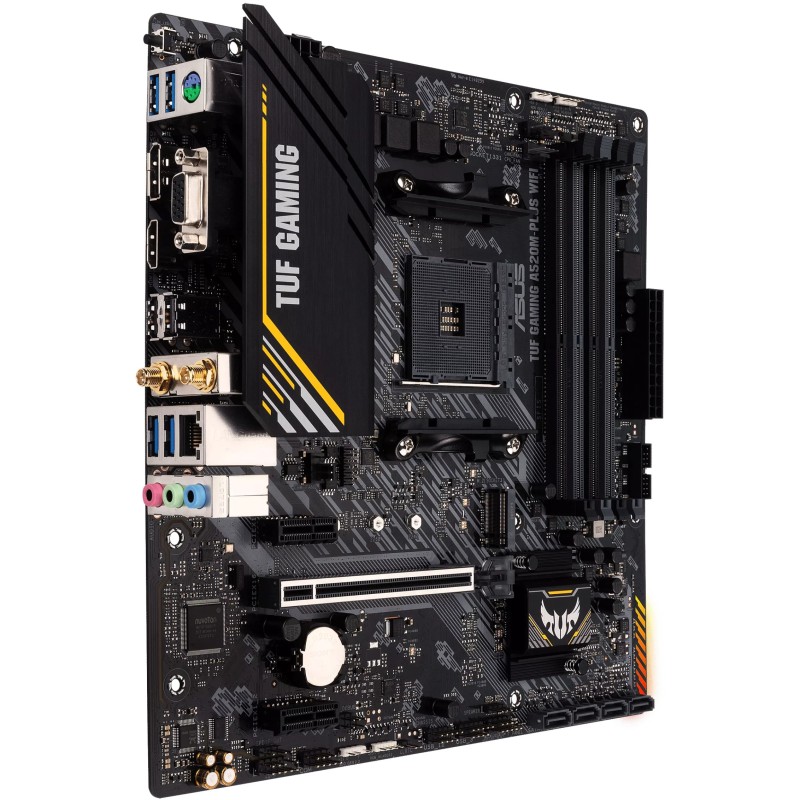

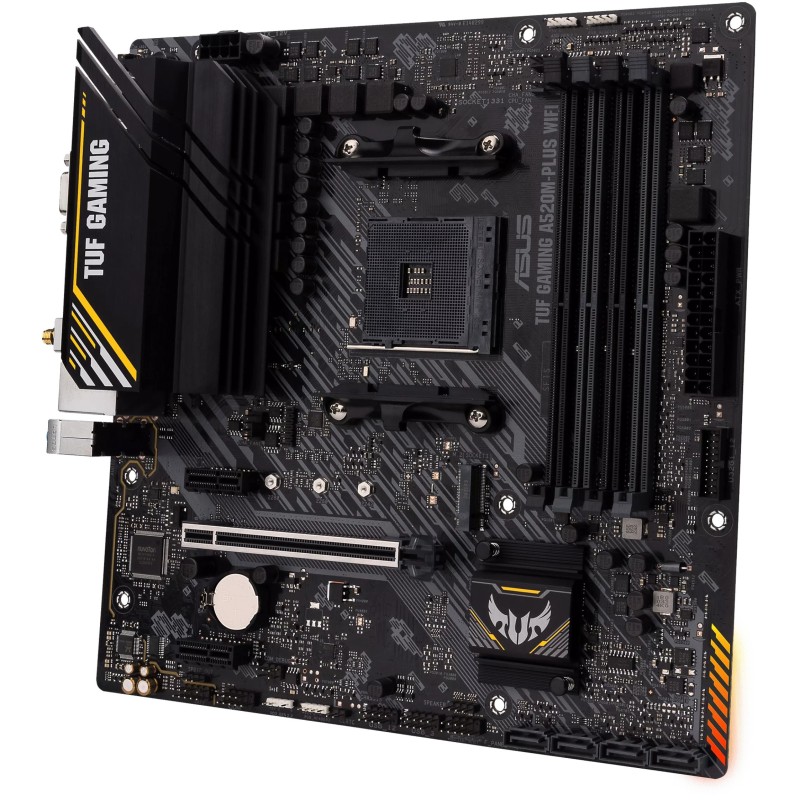

ASUS TUF Gaming A520M-PLUS WiFi - AM4 microATX Motherboard, DDR4 4x DIMM, 128GB Max, PCIe 3.0
AM4 microATX motherboard for AMD Ryzen 3000/5000, DDR4 up to 128GB (4 DIMM), M.2 & SATA III storage, PCIe 3.0, onboard Wi‑Fi and robust TUF durability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
ASUS TUF GAMING A520M-PLUS WIFI. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. PCI Express 3.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series. AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4000.4133.4266.4400.4466.4600.4800 MHz |
| Maximum internal memory | 128 GB |
| Feature | Drivers included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. PCI Express 3.0. SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Bluetooth version | 5.0 |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 67 mm |
| Cables included | SATA |
| Weight | 900 g |
